X2V2 WiFi channel properties

Use the following settings for APs

Access Point Mode

• SSID – bwifi
• Hide SSID
• Security Profile No encryption

Band if using X1s and X2s

• 2.4Ghz – G only
• channel spacing 20MHz
• Fixed channel as you decide…. (2412, 2437, 2462)

Just using X2s…

• 5GHz – A/N
• Channel Width 20/40 MHz Ce
• Channel Auto

• IP Address as follows 192.168.0.7
• Subnet 255.255.0.0
• Point DNS back to itself 192.168.0.7
• No Gateway

When operating on AUTO CHANNEL at 5G, the following channels appear to regularly communicate (20MHz spacing)

Band 5GHz A/N; 20/40MHz Ce. and the frequencies it attempted were…

5180, 5200, 5220, 5240, 5260, 5280, 5300, 5320, 5745, 5765, 5785, 5805, 5825

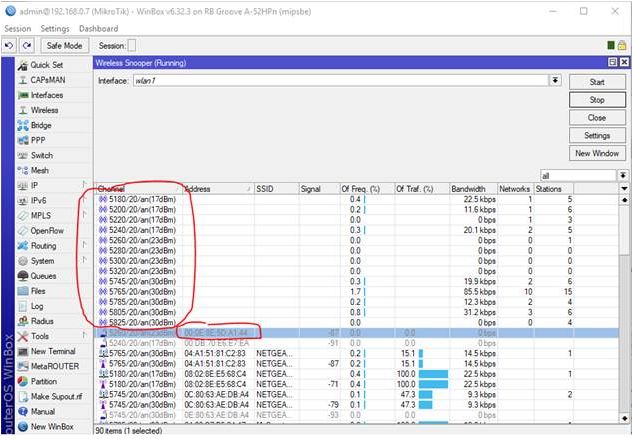

• Below image shows WINBOX and the channels recently used
• MAC address 00:0E:8E::: is the X2V2 MAC
