Stonkam IDGSDVR Initial Configuration and Setup

Stonkam Manual can be found at http://183.233.190.23:6061/dd.php?id=0i7d

Items Needed for Setup

• New IDGSDVR unit w/ accessory kit
• New SSD
• Power Supply
• Power & Ground banana plugs to 8 pin power cable
• A input/output medium, i.e.
  • Remote control + 6 pin to RCA cable with RCA to USB adapter for viewing on Amcap software (yellow is video)
  • Remote control + 6pin to 4 pin adapter cable + monitor
  • Stonkam 6 pin Touch Screen monitor
• SIM Card

NOTE: the 6 pin video out is labeled "AV OUT"

Login

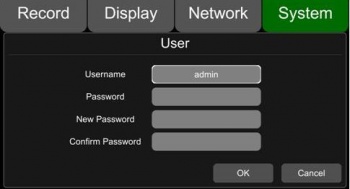

Admin Account

User Names are case sensitive

Default user name admin

Default password 123

After Config:

user name admin

password IDGD8

Routine Setup

Follow along with a IDGSDVR Configuration Checklist.

Install Batteries in Remote Control

From the accessory kit. We will not be sending a remote control for each DVR. We will ship some quantity to a location and only these need to have batteries installed.

Install SIM Card Installation

SIM Card Installation

Document the number on the Traveler

Keep the plastic card and note the IDGSDVR serial number on it.

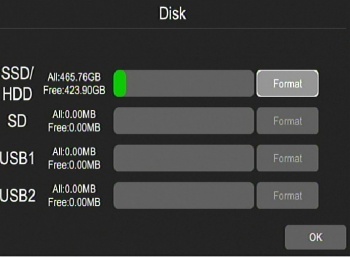

Install and Format Hard Drive

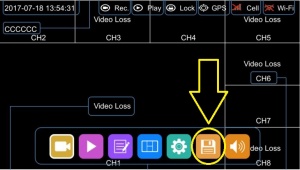

Click on the Floppy Disk Icon on main menu

Hard Disk Installation Detail

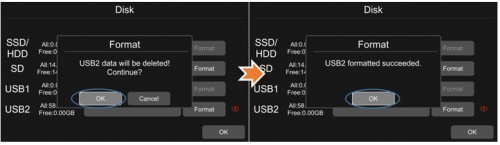

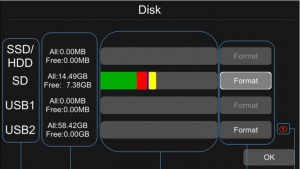

Format Hard Disk Detail

Wait for a format successful message. (this should take approximately 20 Seconds for a 1TB hard drive)

Document Device ID / Serial Number

Each Stonkam DV454 & 456 has a 9 digit unique Device ID (Serial Number) Located in System>Info

Write this down on the traveler.

• Device ID (AC uses this as the DVR Serial Number)

• Printed on the Label which goes on the DVR

Example: Device ID 307260025 will be Serial Number 307260025

Upgrade Firmware and Verify

There are two versions of the firmware - one for the 8 channel IDGSDVR and one for the 4 channel version

8 channel : dv454_upgrade_20230708.1737_idrive_Rename

4 Channel : dv456_upgrade_20230708.1737_idrive_Rename

Get current version from Teams 20230708.1737

Place Firmware on USB stick with the full path:

\upgrade\packet\local\dv454_upgrade_20230708.1737_idrive_Rename

After upgrade the system removes the FW from the USB Stick so you must re-copy it for the next upgrade

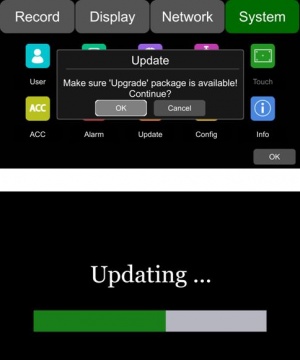

Upgrade Firmware

Verify Version

Install Config File for vehicle type (Handler or Crane)

Config Detail

Download contains 8 configuration files. 4 for Cranes files, 4 for Loader files, 4 of each type for US time zones(EST, CST, MST, PST)

[|Stonkam BNSF IDGSDVR Config Files 082423]

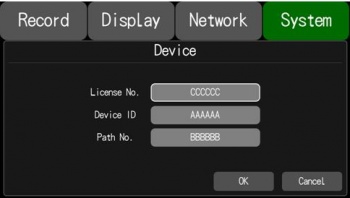

Set device/vehicle specific settings (tag device with vehicle number) (document on traveler)

License No. (vehicle name)

Device No. (EX: 307260025)

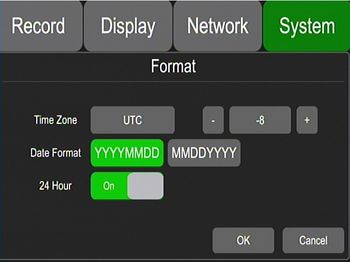

Time Zone – verify time correct for that zone

Anything else specific to this one device?

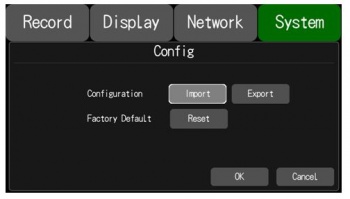

Save Configuration to hard drive and keep a copy in the support folder

SSD

Export the configuration to the SSD

Thumb drive

Export the configuration to a Thumb drive.

Copy the config file to our system (Idrive Support> BNSF> Config_files> Location Name> vehicle_number_sv_xml.xml)

This way we have a record in case we need it.

Labels

File:Idgsdvr dvr label.jpg

Print 3 IDGSDVR S/N Labels (one for IDGSDVR, one for the DVR box and one for outside of the shipping box)

Label on Front of IDGSDVR as shown (So Installer and Customer can identify the device for support)

Idrive IDGSDVR

IDGSDVR S/N – (UID ALL 9 digits)

SIM S/N

Label Download (template requires Zebra Designer software to open)

Remove Extra Items from DVR Kit

Remote Control (this will be shipped in the Location Items box)

Keys (ship one with the individual DVR and save the second at Idrive)

Monitor Cable (6pin - 4 pin)(this will be shipped in the Location Items box?)

CAN Cable

Alarm Cable

Serial Cable

Network Cable

Pack DVR For shipping

• Camera and Cable Kits will be packed in separate box. (Only the IDGSDVR is vehicle specific however the Crane package will be different and marked accordingly)

TBD ( If Ordered) *Each location will receive a Monitor, Monitor Cable, Extra Hard Drive, Hard drive reader(back ordered), A few remote controls and sets of keys.

Enter IDGSDVR into Admin Center

In the Manufacturing section select the "D4-DVR Production" Tab

click Add (Upper right in small font)

Select DVR Type (D8)

Enter serial number ("Device Id")

Click Add Device

Assign Device to the Customer and Location

For BSNF adjust the Warranty to three years (add two years to the default warranty date)

Assign IDGSDVR to a Vehicle in Iris

Log into Iris at https://iris.idriveglobal.com

Select the company you want to manage (if not Idrive Inc)

click on your account and select the desired company(upper right round circle with silhouette in it)

Go to Fleet Manager => Vehicles > Location and add vehicle (if it does not already exist)

Select the Configure Tab and click the Edit button (lower right)

Click "Add device"

Click the "D Series" button and select the desired IDGSDVR

Click "Assign"

• Click "Save" at the bottom right

Assign IDRSDVR to a BNSF Vehicle using Control Center

Please use Iris - this is the old method

• Log into the "BNSF CC" (in RMA area)

• Go to Fleet Manager => Personnel => Add new person and fill in the appropriate info

• Go to Vehicles => Add new vehicle => Fill in the appropriate info

• Go to Devices/Drivers section => D4 Device => and click on the "..." button

Select the serial number

Click Assign

• Click Save Vehicle

Set Alerts in Iris

Select the Alerts tab for the desired Vehicle

Select the "Type" (DVR in this case)

Geofence

DVR

Severe Shock

Events

Select the Subtype(s)

DVR camera disconnected

DVR not Recording

DVR camera reconnected

Set the Notification Type (Emails)

Select an email you want to send this alert notification to

• Terminal Manager or appointed location manager

• bnsfalerts@idriveglobal.com (distribution list for Idrive)

Assign and Activate SIM In Podsystems (Activate at ship time)

Assign and Activate SIMs at ship time.

Log in Podsuite

https://podiotsuite.com/login

Username:

Password:

Click on Subscriptions > All Subscribers

Select the desired SIM

Enter the last 7 numbers of the SIM in the search window and click the magnifying glass

Click on the serial number

Edit eSIM profile

Click on "Edit this eSIM Profile"

Enter Name: "Customer/Location/Vehicle" Example BNSF LPC T0314

Enter Group Name "IDGSDVR"

Click "Apply Settings"

Activate eSIM At Ship Time

Click on "Subscribe

Select Product

For US ...

Select Start date (1st of the Month or Today)

Click Next

Type "SUBSCRIBE" in the window and click Subscribe

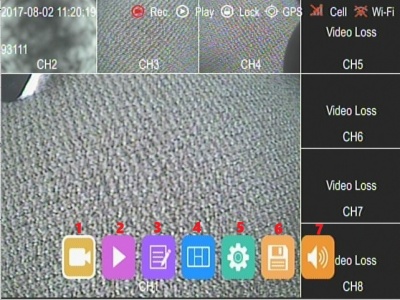

Main Menu

The Main Menu is Displayed by pressing Menu on the remote. If using a touch screen touch the bottom half of the screen. Entering any of these menus will stop the device from recording.

1)**Manually Control - Record, Play, Stop, FF, RW

2)**Playback - Search by date & Time

3)**Logs - System & Export Logs

4)*Display Mode - Switch Grid view from Channels 1-4, 5-8 or 1-8

5)**Configuration Settings - Record,Display, Network & System settings

6)**Storage - Manage SSD, SD, USB

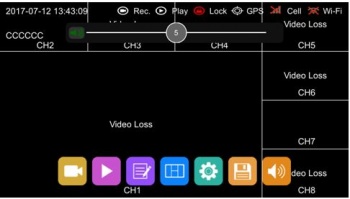

7)**Volume - Playback Volume

Playback

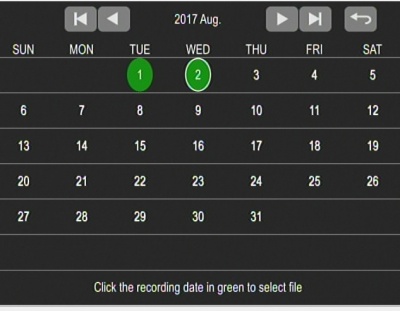

A date marked in green indicates that there were videos recorded that day.

Click the day to view the list of enter the video files for that date

Choose the desired video and press the Play button.

You can play single or multiple videos

Multiple videos can be played in sequence and can shift into the next or the previous one.

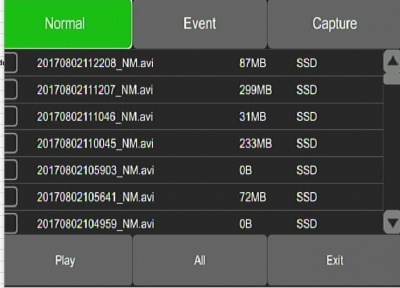

Select and Play Videos

Normal

Event

Capture

Play

Export

All

Exit

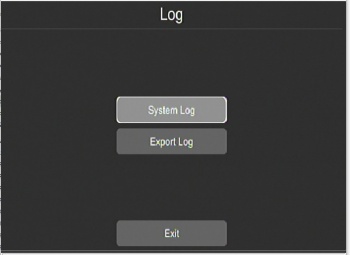

Logs

Used to keep a log of events in the system

Navigate to Menu->Setup->Log

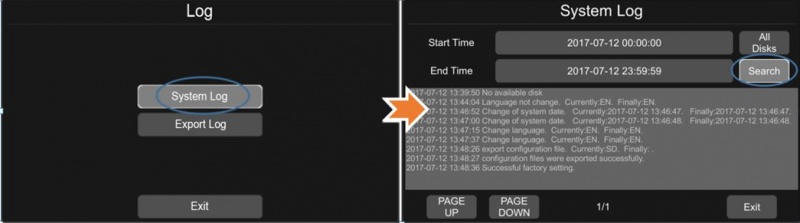

System Log

Feature allows you to search the Systems Log of events on the machine

This log can be found on the hard drive in the "Log" folder

Video Loss now is shown in Syslog

Disconnect camera #1 "Camera State Change:227"

Reconnect camera #5 "Camera State Change:224"

Disconnect camera #5 "Camera State Change:240"

Reconnect camera #5 "Camera State Change:224"

Also no "Fault" light

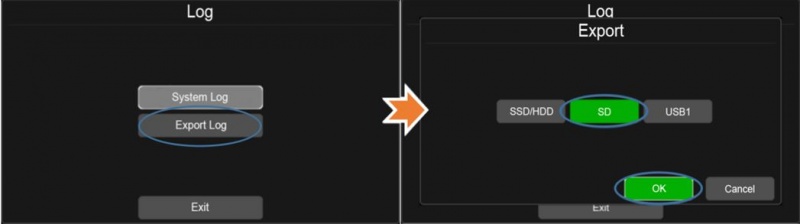

Export Log

Use this feature to export the system log.
Log can be exported to SSD, SD, USB

Configuration Settings

Record

File:Idgsdvr record settings.jpg

Picture is incorrect listed settings are correct

• Power On Rec ON

• Cyclic Rec. - Overwrite? ON

• Event Rec. OFF Event recording refers to the alarm recording triggered by events

• Event Rec. Lock Reserved

• *Video Quality - Settings for Main Stream, Sub Stream, JPG

• *Record Channel - turn on/off recording for each channel

• IPC - IP Cameras 9 - 12 settings

• Event Duration - 10 Seconds When the “Event Rec” is set to ON, the video file length

• File Length - 5 Minutes

• Motion Sensitivity - OFF

• G-Force Sensitivity - OFF

• File Type - AVI

• Record Audio - AVI

Video Quality

Verify impact on look-ins and cellular data

Main Stream

File:Idgsdvr video quality main.jpg

Resolution: 720p

Bit Rate: 512Kbps

Frame Rate: 15fps

Sub Stream

File:Idgsdvr video quality Substream.jpg

Resolution: CIF(NTSC)

Bit Rate: 64Kbps

Frame Rate: 25fps

JPG

File:Stkm video quality jpg.jpg

Frame Rate: LOW

Record Channel

File:Idgsdvr Record Channel.jpg

Green means channel is enabled to record.

Loaders use channels 1,2,3,4

Cranes (mostly) use channels 1,2,3,4,5,6,7,8

Display

File:Igrsdvr display settings.jpg

*Camera - Brightness, Contrast Etc for each Camera

*Cam Name - Name of Channel on Display

*Language - Set system Language

*Audio Out - Select Channel Audio to listen to

*OSD - On Screen Display Information

*Menu On - How lon Menu is Displayed before logout

*Speed - Speed Settings

*GPS - GPS Location Information

*Mirror - Mirror the Camera Image

*Sys Format - NTSC, PAL, Auto

*Radar - ??

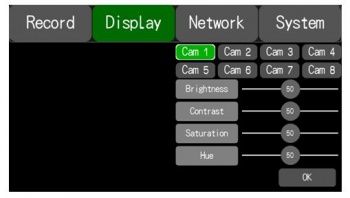

Camera

Individual Camera settings:

• Brightness

• Contrast

• Saturation

• Hue

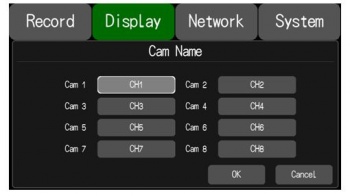

Cam Name

Each camera has its own channel with its own "channel name".

Navigate to the display tab by hitting Menu->Setup->Display

Choose which camera name you would like to change by selecting its associated channel name. (8 letters max)

Loader Cam Names

• CH1 - CAB

• CH2 - L-Front

• CH3 - R-Front

• CH4 - Rear

Crane Cam Names

• CH1 - CAB

• CH2 - L-Front

• CH3 - R-Front

• CH4 - Far-Side

• CH5 - CH8 - these channels need to be mirrored for cranes

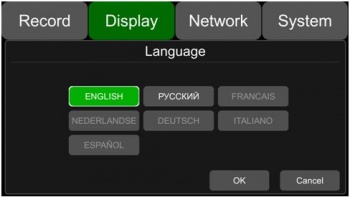

Language

To edit the language of the device access Menu->Setup->Display->Language

Select which language you want from the buttons presented. Languages available are English, French, German, Russian, Japanese, Italian, Austrian

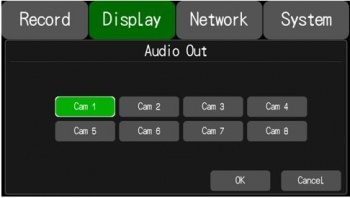

Audio Out (N/A for BNSF)

This setting edits the output for the audio channel in split mode

Navigate to this setting by selecting Menu->Setup->Display->Audio Out

Select which camera's audio you would like to output.

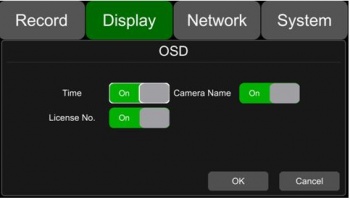

OSD

OSD controls what information gets overlayed on the video of each camera.

Navigate to this setting by selecting Menu->Setup->Display->OSD

• Time - ON

• License - ON

• Camera Names - ON

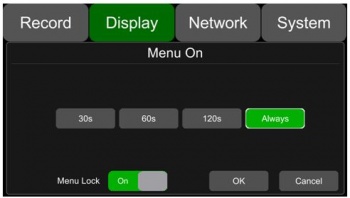

Menu On

Sets the duration of time the menu will display on the screen.

Navigate to this setting by selecting Menu->Setup->Display->Menu On

Settings: 30, 60, 120 seconds, or always on. ::*Time - Always On

The menu lock setting will lock the menu to be password protected.

A password is needed to change this setting

• Menu Lock - ON

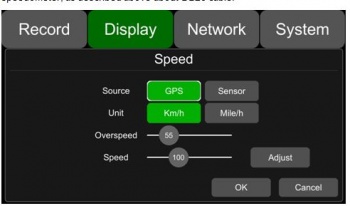

Speed

Allows you to change the source of the displayed speed to either the GPS or the vehicle speedometer as well as the units of speed to be either kph or mph

Navigate to this setting by selecting Menu->Setup->Display->Speed

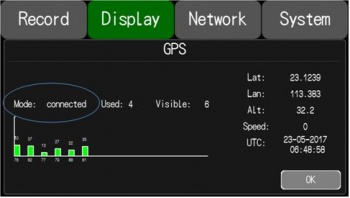

GPS

Displays information of latitude/longitude, detectable satellites, connected satellites, speed, and time

Navigate to this setting by selecting Menu->Setup->Display->GPS

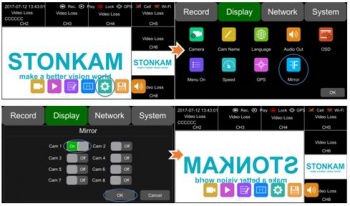

Mirror

Mirrors the video output on the selected camera. Configurable to each camera

Navigate to this setting by selecting Menu->Setup->Display->Mirror

SYS FORMAT

File:Stkm sys format.jpg

Set NTSC/PAL/AUTO

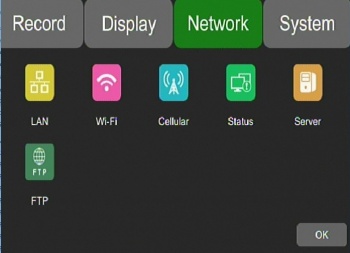

Network

*Lan - Lan Settings

*Wifi - Wifi Settings

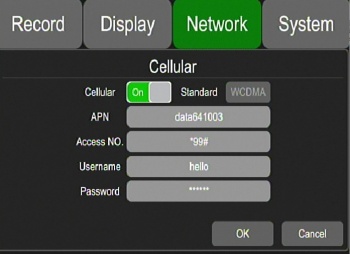

*Cellular - Cellular Settings

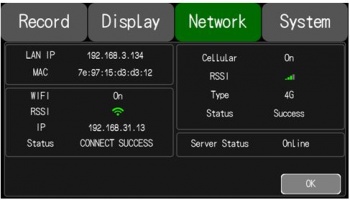

*Status - Networks Status

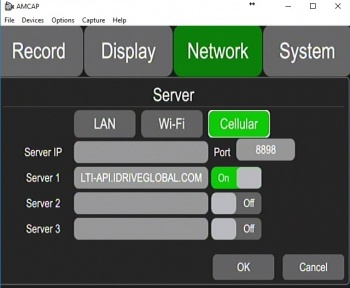

*Server - Server Settings

*Upload Files - Upload settings Settings

RTSP - RTSP Settings

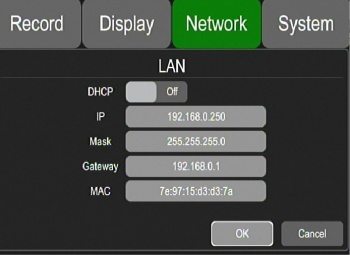

LAN

Defaults:

IP Address 192.168.100.188 set to 192.168.0.250

Mask 255.255.255.0

Gateway 192.168.100.1 set to 192.168.0.1

MAC Add: 7e:97:15:xx:xx:xx

Notes:

I can ping it but not login. There does not appear to be any access from the network only connectivity with a local server

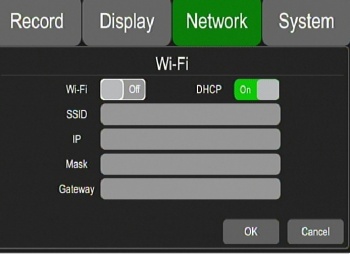

WiFi

N/A - Optional

Wi-Fi ON/OFF

DHCP On/Off

Ap Internet (new setting) Off

need new picture

Cellular

• Cellular - ON

• Standard - WCDMA

• APN - data641003

• Access No. - *99#

• User Name - BLANK Can only be set by Config file

• Password - Blank Can only be set by Config file

Status

Displays information on:

Lan IP address

MAC Address

4G Network Status

4G Signal Strength

Wifi Network Status

Wifi IP Address

Wifi Signal Strength

Server Status

Network Connectivity

Server

Server Address: lti-api.idriveglobal.com Port 8898

Server Address for AI integration 52.87.0.30 Port 9090 dvr-api.idriveglobal.com Port 9090

Upload Files

File:Stkm Upload files.jpg

• Upload Files - ON

• Cellular - ON

• Normal Files - OFF

• Status - x

RTSP

File:IDGSDVR RTSP.jpg

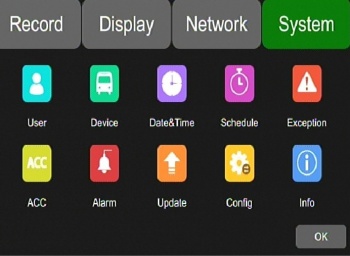

System

*User - User Password

*Device - Vehicle, Device, Path information

*Date & Time -

*Schedule - Timed Recording

*Exception - Buzzer On/Off and duration

*Acc -

*Alarm -

*Update -

*Config -

*Application -

*Info -

User

Device

License No. - Default:(AAAAAA) Set to Vehicle Name

Device ID - Default:(BBBBBB) Set to UID(last 8 Digits only) Example: 07270002

Path No. - Default (CCCCCC) Not Used (removed in later FW releases)

From Stonkam 8/11/17 "it is a feature reserved for adding bus number in the future if the customer needs"

Date & Time

Out of Date - missing Time Sync, Daylight Savings

Set for customer location

Timezone: Set to PST is -8

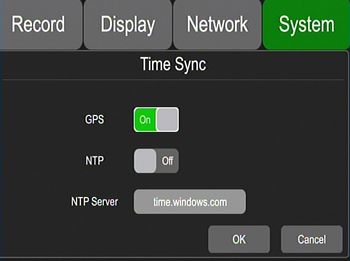

Time Sync: Set to GPS on NTP off

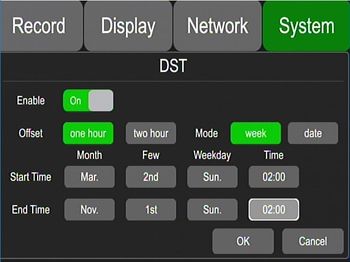

Enable: Set to ON

Start time / End time: Set to As Shown

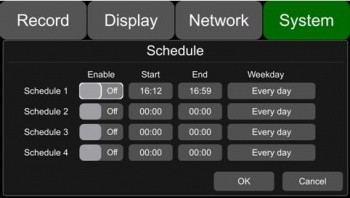

Schedule

Used to schedule up to 4 recording tasks.

Recording settings include a start & end time as well as day of the week to record.

Note: Recordings are permitted to overlap

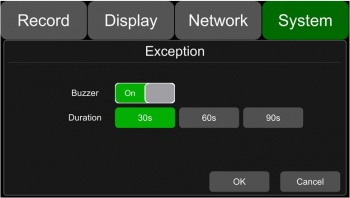

Exception

Settings to configure a buzzer when certain errors occur.

Example: Buzzer when camera becomes disconnected

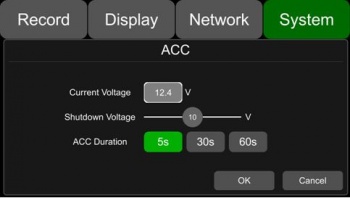

ACC

Displays:

Current voltage of the DVR

Shutdown voltage- If voltage < shutdown voltage then dvr shuts down, powers back on only when voltage exceeds shutdown voltage

ACC Delay- Continued recording after ACC is disconnected. Options are 5,30,60 seconds

FW 20180117 changes ACC Delay values to 5s, 60s, 30min, 60min

Alarm

Need picture update

Alarm Out - all to off

Alarm Rec. - Off

Update

Process takes ~ 3 Minutes

There are two versions of the firmware - one for the 8 channel IDGSDVR and one for the 4 channel version

8 channel : dv454_upgrade_20230708.1737_idrive_Rename

4 Channel : dv456_upgrade_20230708.1737_idrive_Rename

Ensure you are using the latest FW version (Download from IDG DVR group in Teams)

Copy the firmware to USB stick or SD card root directory.

Insert the USB Stick into the IDGSDVR.

Either:

• Reboot the IDGSDVR or

• Navigate to Menu -> Setup -> System -> Update> Hit OK

Wait for Update Success!

Remove the USB Stick or the IDGSDVR will continually update

Verify that the update was successful by Menu -> Setup -> System -> Info

Compare the current version to the desired version.

Config

Missing Auto Reboot setup

Note: When you select Import or Export it executes with "OK" you think it is hung but is working

Import

Insert the USB with the appropriate configuration file sv_xml.xml in its root directory

for example for USB you must use this structure: "Export_file\config\sv_xml.xml"

Eric's note: filename must match exactly, you might have to rename if downloaded from the AC

Select the import button

Export

Select Export, Select location (SSD or USB or SD)

Saves sv_xml.xml to location

Auto Reboot

On/Off, Day of Week, Time of Day

Set to On, Sunday, 02:00AM

Storage

Filesystem Structure

Log4Gui - ASCII System Log

test_writable - system test if disk read only?

Normal Folder - location where videos are stored

• 20170801 Folder - separate folder for each date

• Video files naming example: 20170801150248_NM_0030_0001_1920_1080_25_04194304_AAAAAA_02.avi

• 2017^08^01^ - Year^Month^Day

• 15^02^48 - Hour^Minute^Second (from start?)

• _NM_0030_0001_1920_1080_25_04194304_ Figure this out

• AAAAAA_02 - Vehicle_Channel

Volume

Set the playback volume via the remote. The default volume is 5.
Minimum volume: 1
Maximum volume: 10

Detailed Assembly Instructions

SIM Card Installation

Step 1: Unlock the IDGSDVR with its key, and open the side flap on the front panel and open the door to the right.

File:SIM installation.jpg

Document SIM Number and Insert SIM Into the IDGSDVR

File:SIM installed.jpg

Hard Drive

Step 1: Unlock the IDGSDVR with its key, and open the side flap on the front panel and open the door to the right.

File:SSD installation.jpg

Step 2: Slide the new hard drive into the DVR making sure a solid connection is made with the hard drive.

File:SSD Installed.jpg

Format Hard Disk Detail

Format SSD (xx seconds for 1TBB)

Press the orange floppy disk icon to access the disk management settings

Select which disk you would like to format.

Note once formatted all data on this disk will be lost

Acknowledge that you would like to proceed with the format.

Wait for a format successful message. (this should take approximately 5 minutes for a 500GB hard drive)

Firmware Versions Changes/Notes

File:Idrsdvr fw version.jpg

Displays system software version number

Update the picture with the current (new) version

Previous Versions

Stonkam 8 Channel Firmware release versions
Release Date	Sys Version	MCU Version	Description/Notes
x	x	x	x
8/23/23	20230707.1737	2023040309	Initial Release
8/31/23	20230708.1737	2023040309	Update
8/9/23	20230809.1808	2023040309	VGA

Stonkam 4 Channel Firmware release versions
Release Date	Sys Version	MCU Version	Description/Notes
x	x	x	x
8/23/23	20230707.1737	2023040309	Initial Release
8/31/23	20230708.1737	2023040309	Update
9/1/23	20230901.1787	2023040309	360 degree

Cellular connectivity notes

DVR cellular status messages

“modem signal drops, errors and does not reconnect” means signal is poor or no signal. so please double check if the sim card is well plug and with antenna and data there.

Engineer said there is an procedure when connect with cellular :

KO ERR -> OPEN ERR ->SIM/CPIN ERR -> CSQ ERR > CREG ERR> APN ERR ->DAILING ERR -> GET IP ERRor -> Success.

If there is any error, the status will go back to KO ERR, so could you take a picture of the last status where DVR goes back to KO error, then will be able to know the last failure spot.

LAN connection to D8

Set D8 IP address

configure a static IP (192.168.0.250 is set in our config file)

If IP not set by config file then: Open dvr display interface, revise the info in LAN interface (IP, Mask, Gateway, MAC) click OK to exit

Set computer to correct network segment (192.168.0.10)

1、connect DVR with network: dvr and computer in the same router or directly connect DVR to the computer. Computer and dvr should be in the same network segment.

2、Run cmd, see if you can ping the IP just set in DVR

If it works, You can continue to enter the command：

Telnet in DVR

Turn on Telnet Client in Windows 10 : Control Panel> Programs> turn windows features on or off

telnet 192.168.0.250 or //192.168.0.250 (IP just set in DVR)

(none) login: root

Password: sharpvision

Change UID

Only used if a serial number was duplicated. If you mess with it otherwise the warranty tracking will be messed up with Stonkam.

//After logging in, enter the following command：

echo xxxxxxxxxx > /etc/DeviceUid

//xxx.xxx.xxx.xxx (new uid)

Power off and reboot // reboot is necessary

3, check whether the UID number modified successfully.

4. new UID INFO (for example only!)

SerialNumber: 201035-424-00181 DeviceId: 1802230021 UserName: 201035 Password: 201035 Sever Ip: 183.233.190.23

SerialNumber: 201035-424-00182 DeviceId: 1802230022 UserName: 201035 Password: 201035 Sever Ip: 183.233.190.23
