Idrive Control Center "Idrive Settings"

These settings are not visible to the client and only accessible when signed in with the Idrive Support Control Center credential

User name: support@idriveglobal.com

Password: idrive2#

From the Dashboard select Settings>Idrive Settings

Device Settings

• Allows you to manually add an X1 or D4 to the Control Center Data Base or search
• Show /Hide tabs provide more window space removing the other device type from the task

• Clicking on a Green Gear or the underlined hyperlink opens the following Device Status dialogue box

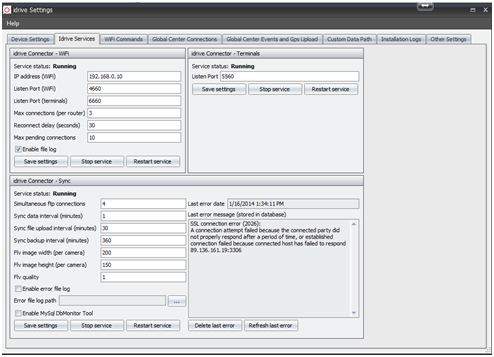

Idrive Services

• 3 Services operate in Windows; you can start/stop them here
• System errors are also listed here

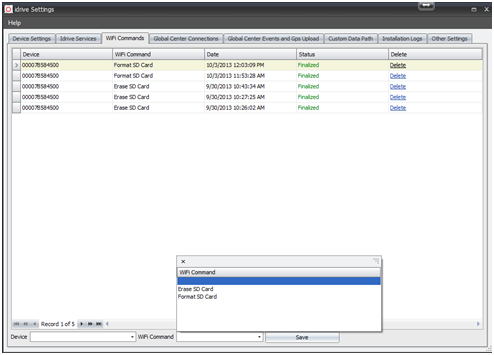

WiFi Commands

• These commands can be sent to a device via WiFi as needed
  • Erase SD
  • Format SD

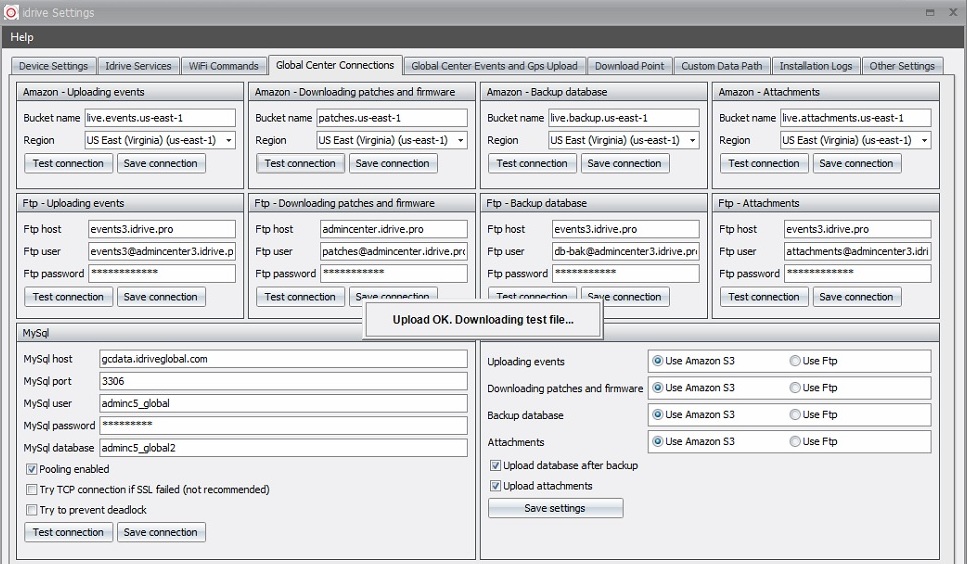

Global Center Connections

• This tests the SQL and FTP connectivity through the client Internet connection

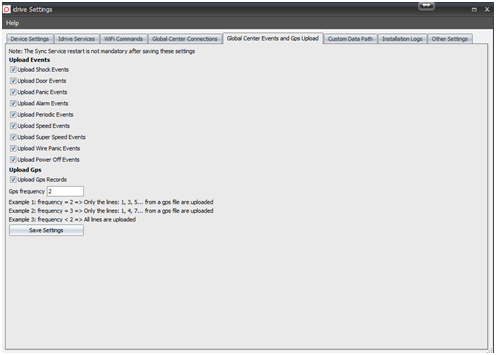

Global Center Events and GPS Upload

• Allow /disallow upload of Event types to the Global Center

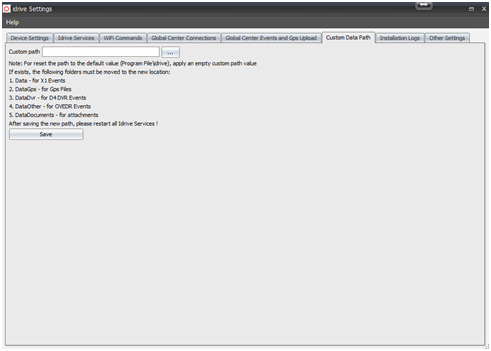

Custom Data Path

• This allows a Path to a larger storage (outside the idrive Base Station) such as a Network storage server or external HDD
• Original (default) data path is C:\Program Files\idrive\Data (if 64 bit)
• C:\Program Files (x86)\idrive (if 32 bit)
• NOTE: using an external drive (bypassing the RAID 1 mirror provided by and supported by idrive and Dell) could potentially result in loss of all data due to external HDD failure

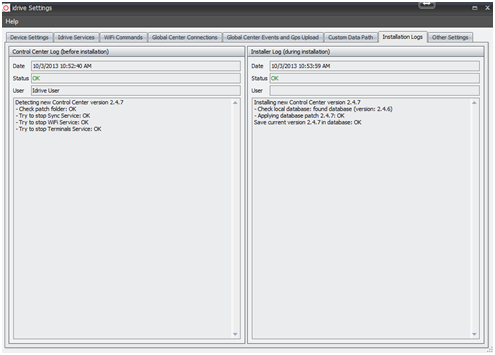

Installation Logs

• Self Explanatory

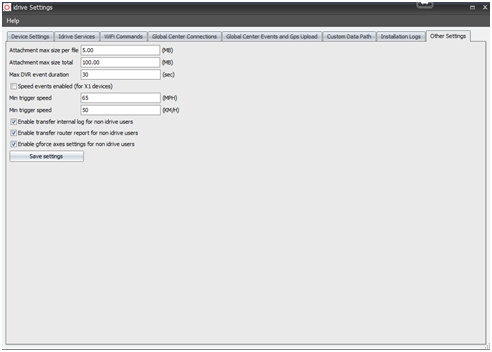

Other Settings

• Self Explanatory
