Idrive D4M Configuration

Record Serial Number

Serial number is located on the bottom of the D4M.

Remove D4M from the Security Box

Record Serial number

Print Label and afix to the top of the D4M

Enter Serial Number into Admin Center.

AC> Manufacturing >D4-DVR Production Tab

Click on ADD and enter the S/N

Select Item Type IDRDVRD4HD

Install Hard Drive/SSD

Use the 4 screws in the plastic bag with the keys to secure the SSD in the carriage

Install the Hard Drive Sled into the D4M

Setup the D4 for configuration

Plug in the Power Cable

Plug in the Monitor Cable

Plug in the Camera Cable

Plug in a Mouse (no Remote Control with the D4M)

Turn power supply ON

Turn Key ON

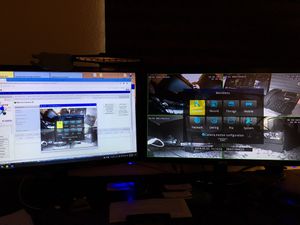

Select Main Menu

Click the Right Mouse Button For Options

1)*Main Menu - DVR Configuration Options

2)*SingleScreen - Display one Camera on the Monitor

3)*MultiScreen - Display all 4 cameras on the monitor

4)*UpScreen - Figure it out

5)*DownScreen - Figure it out

6)*Screen Save - Save the current screen configuration as Default

7)*PTZ

Verify Correct Firmware version

Main Menu> System> System Info

Current Release V206-2019/4/12-10:11:124

Upgrade Firmware if needed

Obtain Latest Firmware Version from AdminCenter (if we receive one)

Place the Firmware on a SD Card (USB Port is in use for the mouse)

Insert the SD card into the DVR

Main Menu> System> System Upgrade> Browse and select file and click OK

File:D4M FW Update.jpg

Import Idrive Default Configuration

Obtain Latest Config File from AdminCenter (if we receive one)

Place the Config File on a SD Card (USB Port is in use for the mouse)

Insert the SD card into the DVR

Main Menu> System> Config Operation> Import Configuration Browse and select file and click OK

Confirm Application version is the latest

[See FirmWare upgrade above]

Using the Remote - MAINMENU>SYSTEM>SYSTEM UPGRADESee FirmWare upgrade above]]

Compare the installed version to the latest version. If different update it to the current release.

Update firmware MAINMENU>SYSTEM>SYSTEM UPGRADE - Update File

Note - This file is located on the SDcard that you have inserted in the D4

Update firmware if needed

Insert the firmware and configuration SD Card into the unit

Turn the Key on ( wait ~40 Seconds for video and ~25 seconds for “Loading Disk”)

Press STOP on Remote Control to stop recording.

Install the Idrive standard configuration

Read the configuration file EZ config XML from the SD card MAINMENU>SYSTEM>CONFIG OPERATION>IMPORT CONFIGURATION> the UNIT will restart the App

Note - This file is located on the SD card that you have inserted in the D4, if the application freezes with blank green fields, turn the power key OFF and back ON

Press STOP on Remote Control to stop recording.

Confirm the config MAINMENU>SYSTEM>COMMON SETTINGS>TRANSPARENT = TRANSPARENT? If not the config did not get set.

Confirm the Alarm Configuration appears like the image below MAINMENU>SETTINGS>ALARM SETTINGS>

Confirm the Alarm Wire A01 (Grey wire below the purple wire on the black Molex plug) triggers Cam Ch#2 to full screen when connecting the Grey wire to 12VDC
