PowerUp2 Installation and Operation and Specifications Guide
Copyright information
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Idrive Inc. Copyright © 2020 Idrive Inc.
This product incorporates copyright protection technology. Use of this copyright protection technology must be authorized by Idrive Inc. Reverse engineering or disassembly is strictly prohibited. Information in this document is subject to change without notice.
Warnings
Please read the following carefully regarding proper use of the product and ensuring the user’s safety.
1. Use the idrive device only for its intended purpose.
2. Do not disassemble, attempt to repair, or alter the Idrive device. When malfunctions, errors, or other damage is found to be attributable to a user, said user may not be eligible for after sale service.
3. When cleaning the inside of a vehicle, do not spray water or any other cleaning product directly onto the Idrive device. It may cause damage, fire, or electric shock.
4. Keep the Idrive device away from chemicals or detergents as they may change the surface of the product or ruin internal components.
5. Do not insert any foreign objects into the Idrive device. Severe impact, shock, or other foreign matter may cause damage to the Idrive device.
6. Make sure the product is installed securely and do not expose the device to excessive shock. Do not move the device after installation.
7. Keep the product away from excessively humid or salty environments.
8. Use ONLY the supplied cable to connect the Idrive device to the power source, and only as directed in the manual. This product should be connected only to the power inside a vehicle. Any other power source is unacceptable and may cause malfunction or fire and may render the Idrive device ineligible for after sale service.
The information contained in this technical manual may be accompanied by omissions, Idrive Inc. reserve the right to make further changes. Idrive Inc. does not authorize the use of the systems for medical purposes or the saving of human lives.

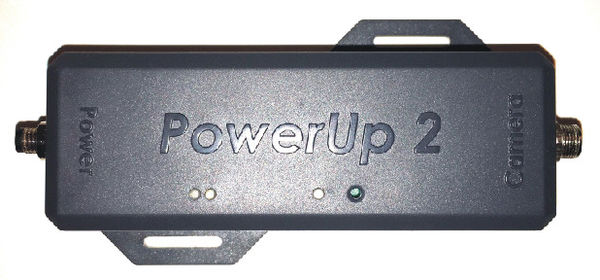

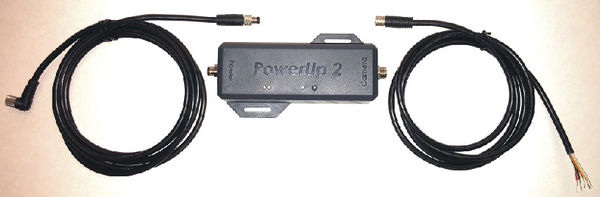

Idrive PowerUp2
DESCRIPTION The PowerUp 2 is a high voltage power manager providing instant-on operation and high efficiency battery charging over a wide voltage range.
Seamlessly used for 12Vdc to 24VDC embedded automotive systems; e.g. X2 & AI Camera Event Video Recording Systems.
An onboard buck-boost DC/DC controller operates with battery and/or system voltage above, below or equal to the input voltage. The PowerUp2 seamlessly manages power distribution between battery and converter outputs in response to load variations, battery charge requirement and input power supply limitations.
The module instant-on operation ensures system load power even with a fully discharged battery.
Additional safety features include preconditioning for heavily discharged batteries and an integrated timer for termination and protection. The module can provide constant-current/ constant -voltage charge algorithm (CC/CV). Maximum converter and battery charge current are resistor controlled.
