Difference between revisions of "Idrive Control Center "Idrive Settings""
Jump to navigation
Jump to search
| (5 intermediate revisions by one other user not shown) | |||
| Line 1: | Line 1: | ||
| − | '''These settings are not visible to the client and only accessible when signed in with | + | '''These settings are not visible to the client and only accessible when signed in with the Idrive Support Control Center credential''' |
User name: support@idriveglobal.com | User name: support@idriveglobal.com | ||
Password: idrive2# | Password: idrive2# | ||
| − | |||
| Line 10: | Line 9: | ||
| + | == Device Settings == | ||
| − | + | * Allows you to manually add an X1 or D4 to the Control Center Data Base or search | |
| − | + | * Show /Hide tabs provide more window space removing the other device type from the task | |
| − | |||
[[image:Device_settings.jpg|735x526px]] | [[image:Device_settings.jpg|735x526px]] | ||
| − | + | * Clicking on a Green Gear or the underlined hyperlink opens the following Device Status dialogue box | |
[[image:Device_status.jpg|735x526px]] | [[image:Device_status.jpg|735x526px]] | ||
| Line 23: | Line 22: | ||
| − | + | ||
| − | + | == Idrive Services == | |
| − | + | ||
| + | * 3 Services operate in Windows; you can start/stop them here | ||
| + | * System errors are also listed here | ||
[[image:Idrive_services.jpg|735x526px]] | [[image:Idrive_services.jpg|735x526px]] | ||
| Line 31: | Line 32: | ||
| − | + | ||
| − | + | == WiFi Commands == | |
| − | + | ||
| − | + | * These commands can be sent to a device via WiFi as needed | |
| + | ** Erase SD | ||
| + | ** Format SD | ||
[[image:Wifi_commands.jpg|735x526px]] | [[image:Wifi_commands.jpg|735x526px]] | ||
| Line 40: | Line 43: | ||
| − | |||
| − | |||
| − | + | == Global Center Connections == | |
| + | * This tests the SQL and FTP connectivity through the client Internet connection | ||
| + | [[image:Idr_ports.jpg|735x526px]] | ||
| − | + | == Global Center Events and GPS Upload == | |
| − | + | ||
| + | * Allow /disallow upload of Event types to the Global Center | ||
[[image:Global_center_uploads.jpg|735x526px]] | [[image:Global_center_uploads.jpg|735x526px]] | ||
| Line 54: | Line 58: | ||
| − | + | ||
| − | + | == Custom Data Path == | |
| − | + | ||
| − | + | * This allows a Path to a larger storage (outside the idrive Base Station) such as a Network storage server or external HDD | |
| − | + | * Original (default) data path is C:\Program Files\idrive\Data (if 64 bit) | |
| + | * C:\Program Files (x86)\idrive (if 32 bit) | ||
| + | * '''NOTE: using an external drive (bypassing the RAID 1 mirror provided by and supported by idrive and Dell) could potentially result in loss of all data due to external HDD failure''' | ||
[[image:Custom_data_path.jpg|735x526px]] | [[image:Custom_data_path.jpg|735x526px]] | ||
| + | == Installation Logs == | ||
| + | * Self Explanatory | ||
| + | |||
| + | [[image:Installation_logs.jpg|735x526px]] | ||
| − | |||
| − | |||
| − | |||
| + | == Other Settings == | ||
| − | + | * Self Explanatory | |
| − | |||
[[image:Other_settings.jpg|735x526px]] | [[image:Other_settings.jpg|735x526px]] | ||
Latest revision as of 21:35, 26 August 2014
These settings are not visible to the client and only accessible when signed in with the Idrive Support Control Center credential
User name: support@idriveglobal.com
Password: idrive2#
From the Dashboard select Settings>Idrive Settings
Device Settings
- Allows you to manually add an X1 or D4 to the Control Center Data Base or search
- Show /Hide tabs provide more window space removing the other device type from the task
- Clicking on a Green Gear or the underlined hyperlink opens the following Device Status dialogue box
Idrive Services
- 3 Services operate in Windows; you can start/stop them here
- System errors are also listed here
WiFi Commands
- These commands can be sent to a device via WiFi as needed
- Erase SD
- Format SD

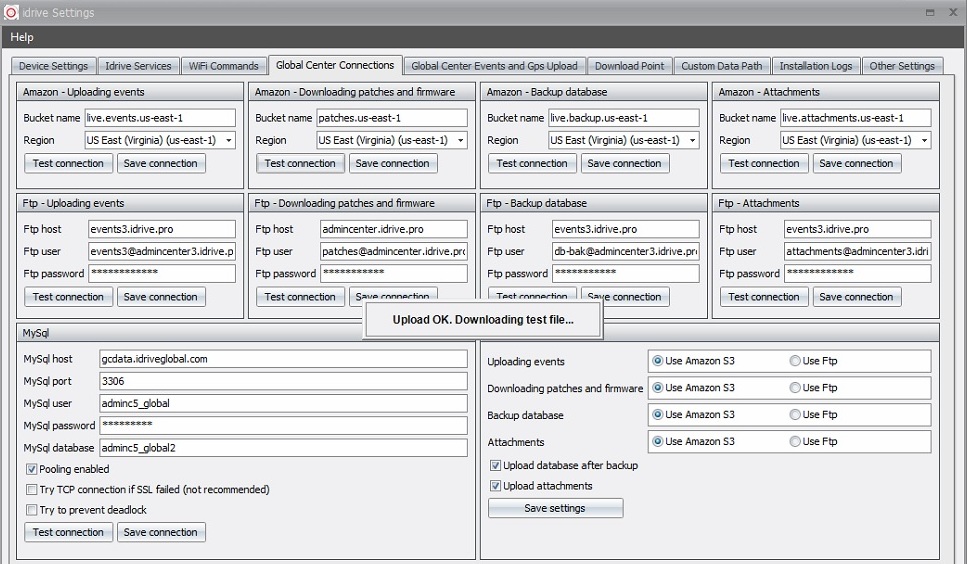

Global Center Connections
- This tests the SQL and FTP connectivity through the client Internet connection
Global Center Events and GPS Upload
- Allow /disallow upload of Event types to the Global Center
Custom Data Path
- This allows a Path to a larger storage (outside the idrive Base Station) such as a Network storage server or external HDD
- Original (default) data path is C:\Program Files\idrive\Data (if 64 bit)
- C:\Program Files (x86)\idrive (if 32 bit)
- NOTE: using an external drive (bypassing the RAID 1 mirror provided by and supported by idrive and Dell) could potentially result in loss of all data due to external HDD failure
Installation Logs
- Self Explanatory
Other Settings
- Self Explanatory
