Stonkam D8 Installation Guide

Idrive D8 Installation Guide

Packaging

The DVRs will be programmed for a specific individual vehicle. This way when received by the installer the DVR will be set up for the exact vehicle and configuration. The outside of the DVR Box will have the vehicle number on it.

• Camera and Cable Kits will be packed in separate box. (Only the DVR is vehicle specific however the Crane package will be different and marked accordingly)

• Each location (not DVR) will receive a Monitor, Extra Hard Drive, Hard drive reader, A few remote controls and sets of keys.

System Components

Idrive D8 DVR

• DVR with SSD & SIM card installed and configured for specific vehicle

• Security Shield

• Power Cable and Fuse

• 44Pin Camera Breakout Cable

• Dual 3G/GPS Antenna

• Keys

• Remote Control (Batteries Installed)

Camera Types

• IDRDVRWPRCAMDIN - Waterproof Rear View CAM

• IDRDVRD4CAM1 - Standard CCD Dome Cam (No Audio)

• IDR8165CAM - 155 degree view

Video Splitter (4 channels)

For use in Cranes only to route the video from the existing 4 camera monitor system to the DVR.

• QTY 4 Video Splitters (1 for each existing ECCO Camera)

Each Splitter has 3 adapter cables

Splitter to DVR

Splitter to ECCO Camera

Splitter to Monitor

• Four 3 meter extension cables (from Splitter to DVR)

Monitor

One Per Location

Security Box

Security box is in flux, this information no longer accurate. Stay tuned...

The Security box size is 12"x 16" x6.5"

Mount the box in the vehicle

Questi TI - let us know

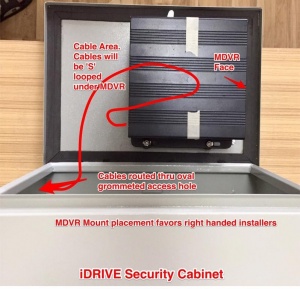

Mount the DVR in the Security Box

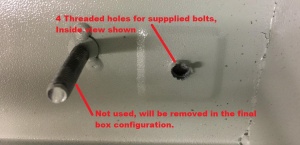

Use the supplied hardware with shock mounts (3).

(The final Security Box will have 4 Shock mounts as part of the box)

For the first few installations the shown hardware is provided (3)

Connections

Before Installations on cranes verify that the existing installed equipment is functioning. Idrive is not responsible for the 4 installed cameras or monitor system on cranes.

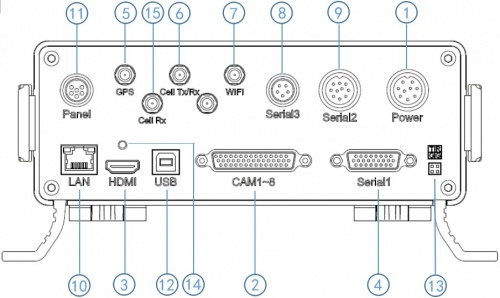

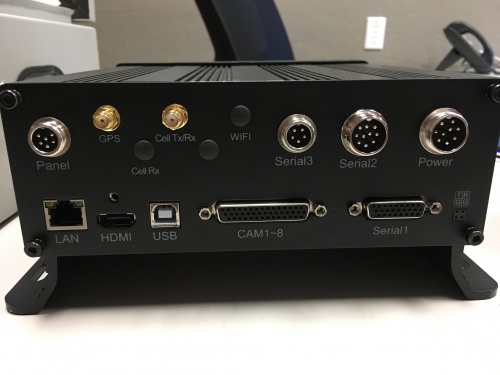

Back Panel Diagram

Back Panel Connections
1) Power input (12-32V)	9) Panic button, external GPS module connector
2) Camera cable input	10) Ethernet(RJ45)
3) HDMI output	11) 6pin CVBS video monitor output
4) Alarm input/output	12) USB 2.0 input
5) GPS Connector	13) debug
6) Cellular Connector, TX/RX	14) HDMI cable fixing hole
7) Wifi Connector	15) Cellular Diversity Connector, Rx
8) Can input/output, External temp.sensor input

Power

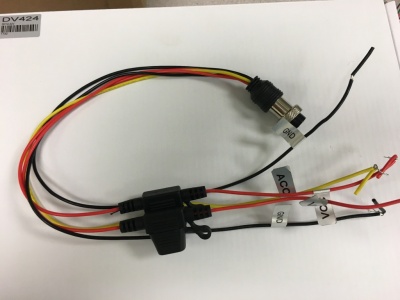

Power Cable

*Red +12volts

*Black GROUND

*Yellow Ignition

Pin 1 : VCC

Pin 2 : VCC

Pin 3 : IGN

Pin 4 : NC

Pin 5 : NC

Pin 6 : GND

Pin 7 : GND

Pin 8 : NC

Pin 9 : NC

Fuses are 5 AMP

Power Connections

Changed 8/29/17: ACC now hard wired to power through fuse (no switch)

ACC (Yellow wire) connected to power with not switch (DVR Always on)

Cameras

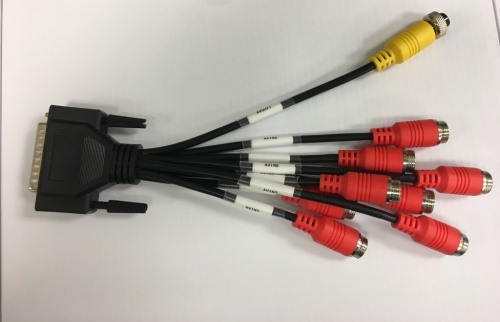

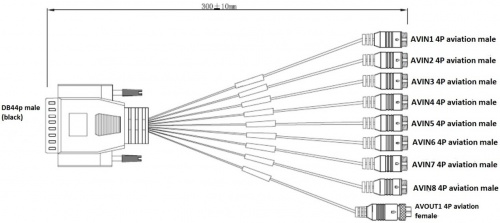

44 Pin Camera Cable

Camera Connections

Camera Connections	Cam#/Type/Cable
Connector	Side Loader	Chassis Handler	Crane
AVIN1	#1 /Dome/ 5m	#1 /Dome/ 5m	#1/Dome/5m
AVIN2	#2 /WP/ 10m	#2 /WP/5m or 10m?	#2/WP/10m
AVIN3	#3 /WP/ 10m	#3 /WP/ 10m	#3/WP/10m
AVIN4	#4 /WP/ 10m	#4 /WP/ 10m	#4/WP Wide Angle/65m
AVIN5	N/A	N/A	#5 /Splitter CH1/ 3m
AVIN6	N/A	N/A	#6 /Splitter CH2/ 3m
AVIN7	N/A	N/A	#7 /Splitter CH3/ 3m
AVIN8	N/A	N/A	#8 /Splitter CH4/ 3m

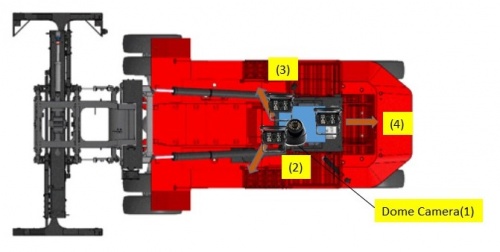

Side loader Camera Locations & Mounting

Change 8/29/17 from Jose: Left front camera and right front camera should be switched so that the view on screen is panoramic. This changes the On screen display.

Mark: Updated Picture with cam #2 & #3 switched, Changed labels for on screen names

• #1 Dome Cam mounted above and to the Left of driver On screen name: CAB

• #2 Waterproof Cam On screen name: L-Front

• #3 Waterproof Cam On screen name: R-Front

• #4 Waterproof Cam On screen name: Rear

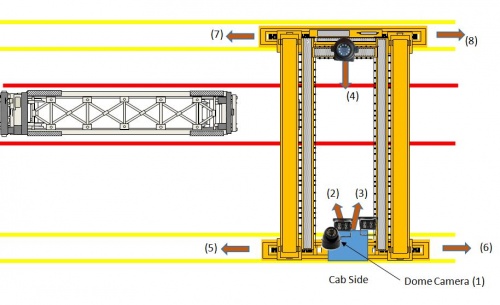

Crane Camera Locations & Mounting

• #1 Dome Cam mounted above and to the Left of driver On screen name: CAB

• #2 Waterproof Cam On screen name: L-Front

• #3 Waterproof Cam On screen name: R-Front

• #4 8165 Cam On screen name: Far-Side

• #5 - Existing installed camera On screen name: CH5

• #6 - Existing installed camera On screen name: CH6

• #7 - Existing installed camera On screen name: CH7

• #8 - Existing installed camera On screen name: CH8

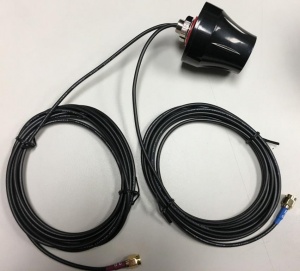

GPS/3G Antenna

Video Monitor

7" Monitor

Configuration is done for each specific vehicle at Idrive prior to shipment.

We supply a standard regular monitor for customer locations to be used for video playback.

Plug into Video Out (Yellow 4 Pin Connector) on the 44Pin Cameras cable using the Male to Male adapter and cable.

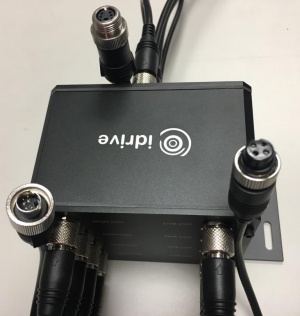

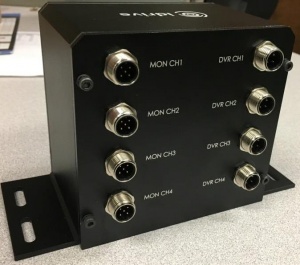

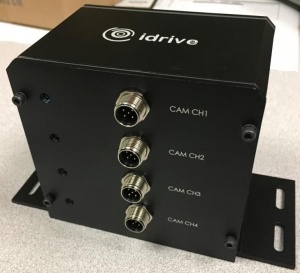

Video Splitter (Cranes only)

For the Crane installs. It splits the video from the existing installed camera into 2 signals. One goes to the existing monitor system and the second to the Idrive D8.

The Monitor system supplies power to each channel individually so that if the Idrive D8 is shut off or has some issue the Existing monitor system will keep working.

More Picture and information will follow in a few days.

Size and Mounting Area

Base Size is ~7" x 3"

Case size is ~ 4.5" W x 3"D x 4"H

For cables to connect ~4" or more space will be required on each side

Total area required will be ~12" x 7" X4.5"

Mounting Location

The Splitter should be mounted where the Camera cables connect to the existing monitor system cables. If mounting is such a location in not possible we will need to have longer custom cables built. We need Questi's feedback on this ASAP.

Adapter Cables

3 different adapter cables are supplied and each is 300CM long.

File:Stkm vidspttr cam cable.jpg

File:Stkm vidspttr mon cable.jpg

File:Stkm vidspttr dvr cable.jpg

Functional Test and Sign Off

• Connect Monitor to system

• Power On system

• Verify video for all channels is working (4 channels for loaders, 8 channels for cranes)

• Verify the cameras are upright and pointed at the correct location

• Contact Idrive Support 805-273-4196 to confirm the DVR is registered on the server

• Verify GPS

• Verify Cellular conection

• Verify Video Loss Alarm

• Disconnect one camera to verify Alarms emails are working. Reconnect camera

• Turn Keys and Remote control over to terminal manager

• Manager sign off sheet for installation complete
