Stonkam D8 Installation Guide

Stonkam D8 Installation Guide

Packaging

All components for a specific individual vehicle will be in one box. This way the DVR will be set up for the exact vehicle and configuration.

System Components

Idrive D8 DVR

Security Box

Cables

Cameras

4 Channel Video Splitter (Cranes only)

Monitor (1 per location)

Idrive D8 DVR

• DVR with SSD & SIM card installed and configured for specific vehicle

• Power Cable and Fuse

• 44Pin Camera Breakout Cable

• Dual 3G/GPS Antenna

• Keys

• Remote Control (Batteries Installed)

Camera Types

• IDRDVRWPRCAMDIN - Waterproof Rear View CAM

• IDRDVRD4CAM1 - Standard CCD Dome Cam (No Audio)

• IDR8165CAM - 155 degree view

Video Splitter (4 channels)

For use in Cranes only to route the video from the existing 4 camera monitor system to the DVR.

• Video Splitter (4 Channels)

• Four 3 meter cables (from Splitter to DVR)

Mounting

Need input from Questi TI

Connections

For each of the 4 channels:

Connect the Camera to ----- using the supplied adapter cable

Connect the Monitor to ----- using the supplied adapter cable

Connect the Idrive D8 to _____ using the supplied adapter cable

Connections

Before Installations on cranes verify that the existing installed equipment is functioning. Idrive is not responsible for the 4 installed cameras or monitor system on cranes.

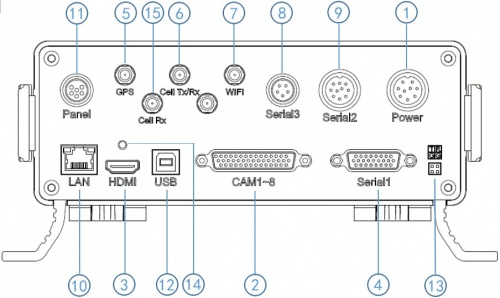

Back Panel Diagram

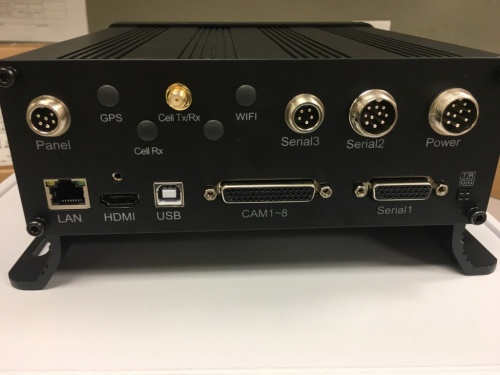

Back Panel Connections
1) Power input (12-32V)	9) Panic button, external GPS module connector
2) Camera cable input	10) Ethernet(RJ45)
3) HDMI output	11) 6pin CVBS video monitor output
4) Alarm input/output	12) USB 2.0 input
5) GPS Connector	13) debug
6) Cellular Connector, TX/RX	14) HDMI cable fixing hole
7) Wifi Connector	15) Cellular Diversity Connector, Rx
8) Can input/output, External temp.sensor input

Change Picture when we get the model with the GPS

Power

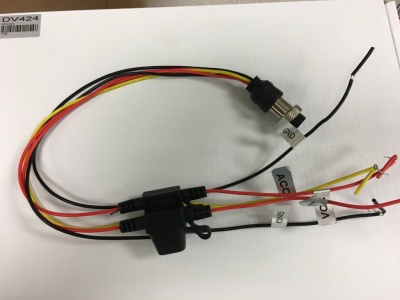

Power Cable

*Red +12volts

*Black GROUND

*Yellow Ignition

Pin 1 : VCC

Pin 2 : VCC

Pin 3 : IGN

Pin 4 : NC

Pin 5 : NC

Pin 6 : GND

Pin 7 : GND

Pin 8 : NC

Pin 9 : NC

Fuses are 5 AMP

Power Connections

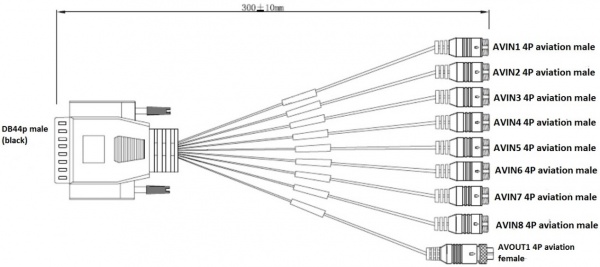

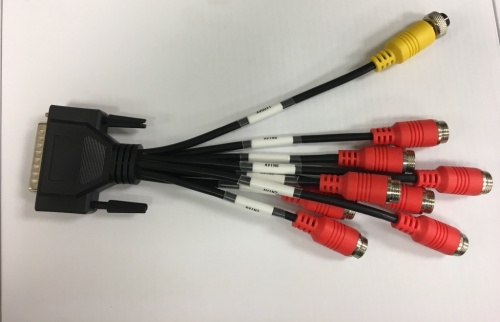

44 Pin Cameras Cable

Camera Connections

Camera Connections	Cam#/Type/Cable
Connector	Side Loader	Chassis Handler	Crane
AVIN1	#1 /Dome/ 5m	#1 /Dome/ 5m	#1/Dome/5m
AVIN2	#2 /WP/ 10m	#2 /WP/5m or 10m?	#2/WP/10m
AVIN3	#3 /WP/ 10m	#3 /WP/ 10m	#3/WP/10m
AVIN4	#4 /WP/ 10m	#4 /WP/ 10m	#4/WP Wide Angle/65m
AVIN5	N/A	N/A	#5 /Splitter CH1/ 3m
AVIN6	N/A	N/A	#6 /Splitter CH2/ 3m
AVIN7	N/A	N/A	#7 /Splitter CH3/ 3m
AVIN8	N/A	N/A	#8 /Splitter CH4/ 3m

Side loader Camera Locations & Mounting

• #1 Dome Cam mounted above and to the Left of driver On screen name? (8 letters max)suggest: CAB

• #2 Waterproof Cam mounted where? On screen name? suggest: R-Front (8 letters max)

• #3 Waterproof Cam mounted where? On screen name? suggest: L-Front(8 letters max)

• #4 Waterproof Cam mounted where? On screen name? suggest: Rear (8 letters max)

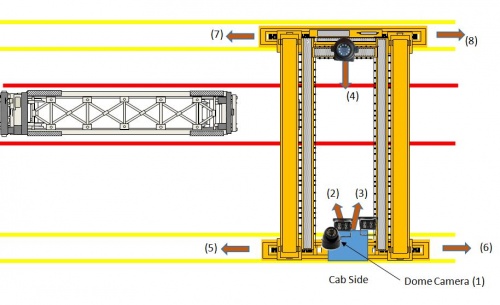

Crane Camera Locations & Mounting

• #1 Dome Cam mounted above and to the Left of driver On screen name? (8 letters max)suggest: CAB

• #2 Waterproof Cam mounted where? On screen name? (8 letters max) suggest: L-Front

• #3 Waterproof Cam mounted where? On screen name? (8 letters max) suggest: R-Front

• #4 8165 Cam mounted where? On screen name? (8 letters max)suggest: Far-Side

• #5 - #8 Existing installed cameras On screen name? (8 letters max) suggest:????

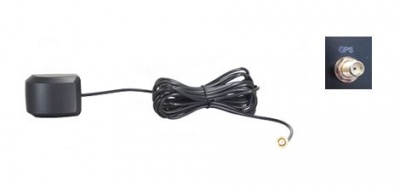

GPS Puck

*Mounting location instructions here - need real pictures

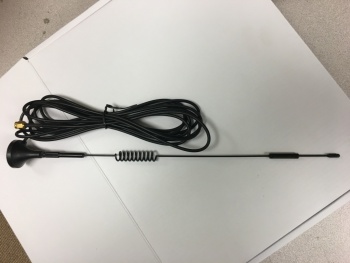

3G/4G Antenna

Mounting location instructions here

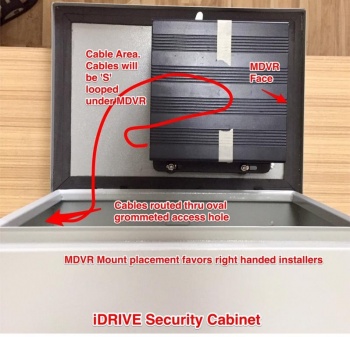

Anti-Tamper Security Box

Install it - real pictures are coming

Extra Cables Not used

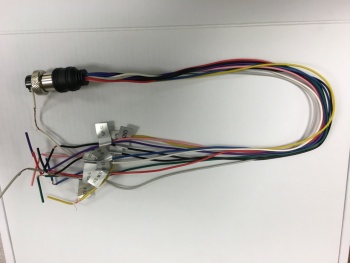

10 Pin Alarm, External GPS Cable

5 Pin Can I/O, Temp Sensor Cable

File:Stkm can temp cable.jpg

26 Pin DB Cable (RS232 etc)

File:Stkm 26pin cable.jpg

Video Monitors

7" Monitor

File:Stkm 7inch monitor.jpg

Configuration is done at Idrive prior to shipment. We supply a standard regular monitor for customer locations to be used for video playback.

Plug into Video Out (Yellow 4 Pin Connector) on the 44Pin Cameras cable using the Male to Male adaptor.

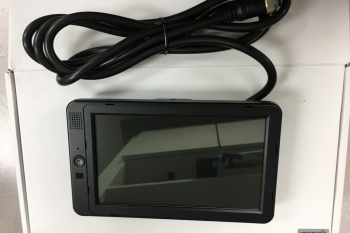

Touch Screen Monitor

Model HD297 touch screen Monitor has two video inputs, HDMI & 6 Pin Aviation - use the Monitor's Remote (Not DVR Remote) to change the input between HDMI and 6 Pin

① HD293 power button, LED red for stand by mode, and green for working mode

② HDMI connector

③ HDMI cable

④ HD293 6pin aviation cable connector, with Power and Video/Audio pin.

HD293

Description HD 10.1"Color monitor

Features used for HD DVR

Resolution 1024 x 600 (RGB)

Maximum Number of Cameras 1

Audio input 1

Audio output (loudspeaker) 1W

HDMI input 1

VGA input /

Functional Test and Sign Off

• Connect Monitor to system

• Power On system

• Verify video for all channels is working (4 channels for loaders, 8 channels for cranes)

• Verify the cameras are upright and pointed at the correct location

• Contact Idrive Support 805-273-4196 to confirm the DVR is registered on the server

• Verify GPS

• Verify Cellular conection

• Verify Video Loss Alarm

• Disconnect one camera to verify Alarms emails are working. Reconnect camera

• Turn Keys and Remote control over to terminal manager

• Manager sign off sheet for installation complete We need to create one.
