Stonkam D8 Installation Guide

Stonkam D8 Installation Guide

Packaging

All components for a specific individual vehicle will be in one box. This way the DVR will be set up for the exact vehicle and configuration.

Components

DVR

Security Box

Cables

Cameras

4 Channel Video Splitter (Cranes only)

Idrive D8 DVR

• DVR with SSD & SIM card installed and configured

• Power cable and Fuse

*Camera cables - fix this

• External GPS Module

• 3G/4G Antenna

define/confirm for Stonkam *Video Monitor Cable

• Keys

• Remote Control (Batteries Installed)

Video Splitter (4 channels)

For use in Cranes only to route the video from the existing 4 camera monitor system to the DVR.

• Video Splitter (4 Channels)

• Four 3 meter cables (from Splitter to DVR)

Camera Types

• Waterproof

• Dome (No Audio)

• CAM8165 - what is this?

Connections

Before Installations on cranes verify that the existing installed equipment is functioning. Idrive is not responsible for the 4 installed cameras or monitor system on cranes.

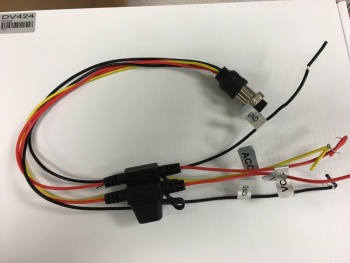

Power Cable

*Red +12volts

*Black GROUND

*Yellow Ignition

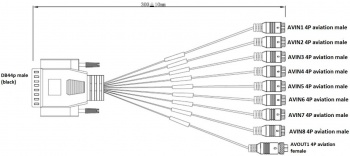

44 Pin Cameras Cable

Camera #1 Input AVIN1 4PIN Aviation male

Camera #2 Input AVIN2 4PIN Aviation male

Camera #3 Input AVIN3 4PIN Aviation male

Camera #4 Input AVIN4 4PIN Aviation male

Camera #5 Input AVIN5 4PIN Aviation male

Camera #6 Input AVIN6 4PIN Aviation male

Camera #7 Input AVIN7 4PIN Aviation male

Camera #8 Input AVIN8 4PIN Aviation male

Monitor Output AVOUT1 4PIN Aviation female

Camera Connections

Camera Connections	Cam#/Type/Cable
Connector	Side Loader	Chassis Handler	Crane
CAM1&CAM2 "A"	#1 /Dome/ 5m	#1 /Dome/ 5m	#1/Dome/5m
CAM1&CAM2 "B"	#2 /WP/ 10m	#2 /WP/5m or 10m?	#2/WP/10m
CAM3&CAM4 "A"	#3 /WP/ 10m	#3 /WP/ 10m	#3/WP/10m
CAM3&CAM4 "B"	#4 /WP/ 10m	#4 /WP/ 10m	#4/8165CAM/65m
CAM5&CAM6 "A"	N/A	N/A	#5 /Splitter CH1/ 3m
CAM5&CAM6 "B"	N/A	N/A	#6 /Splitter CH2/ 3m
CAM7&CAM8 "A"	N/A	N/A	#7 /Splitter CH3/ 3m
CAM7&CAM8 "B"	N/A	N/A	#8 /Splitter CH4/ 3m

Side loader Camera Locations & Mounting

• #1 Dome Cam mounted above and to the Left of driver

• #2 Waterproof Cam mounted where

• #3 Waterproof Cam mounted where

• #4 Waterproof Cam mounted where

Crane Camera Locations & Mounting

• #1 Dome Cam mounted above and to the Left of driver

• #2 Waterproof Cam mounted where

• #3 Waterproof Cam mounted where

• #4 8165 Cam mounted where

• #5 - #8 Existing installed cameras

GPS Puck

*Mounting location instructions here

3G/4G Antenna

Mounting location instructions here

Rear Anti-Tamper Case Cable Shield

File:Icvd8 rear shield tape.jpg

Install it - Wrap cables with ________ to prevent wear on sheet metal.

Identify wrapping tape to prevent cables from wearing on sheetmetal

Picture with shield mounted on DVR and Tape

Functional Test and Sign Off

• Connect Monitor to system

• Power On system

• Verify video for all channels is working (4 channels for loaders, 8 channels for cranes)

• Contact Idrive Support 805-273-4196 to confirm the DVR is registered on the server

• Verify GPS

• Verify Cellular conection

• Verify Video Loss Alarm

• Disconnect one camera to verify Alarms emails are working. Reconnect camera

• Turn Keys and Remote control over to terminal manager

• Manager sign off sheet for installation complete We need to create one.
