Manufacturing:X2 Final Assembly/Packaging

Idrive X2 Final Assembly/Packaging (Windshield support attachment, Final Inspection, Packaging)

X2 Final Processing Materials
Windshield Support Assembly
Screw for attachment of Support to X2 Camera
Hex nut for Support Attachment
2 serial number barcode labels

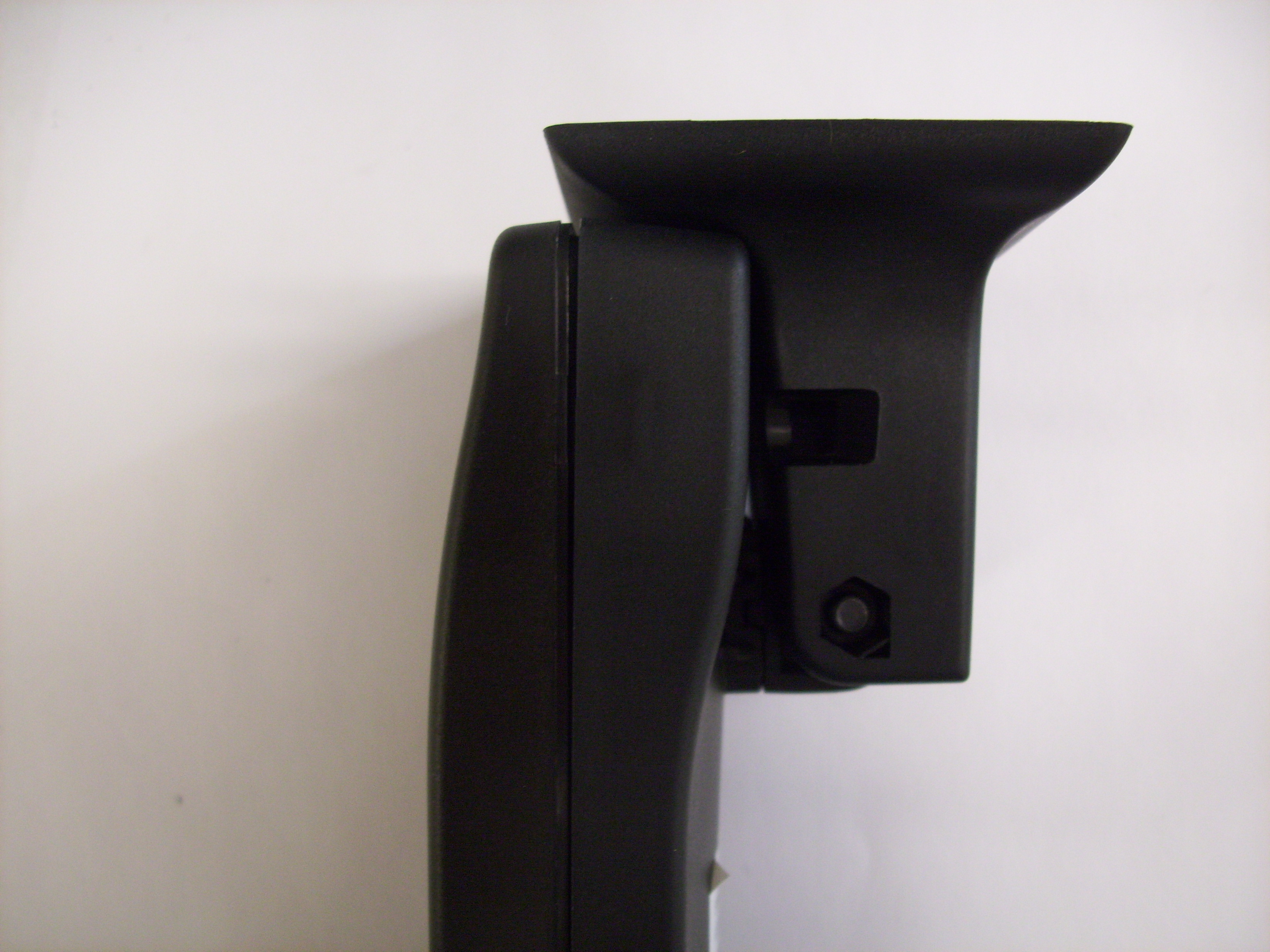

Attach Windshield support to camera

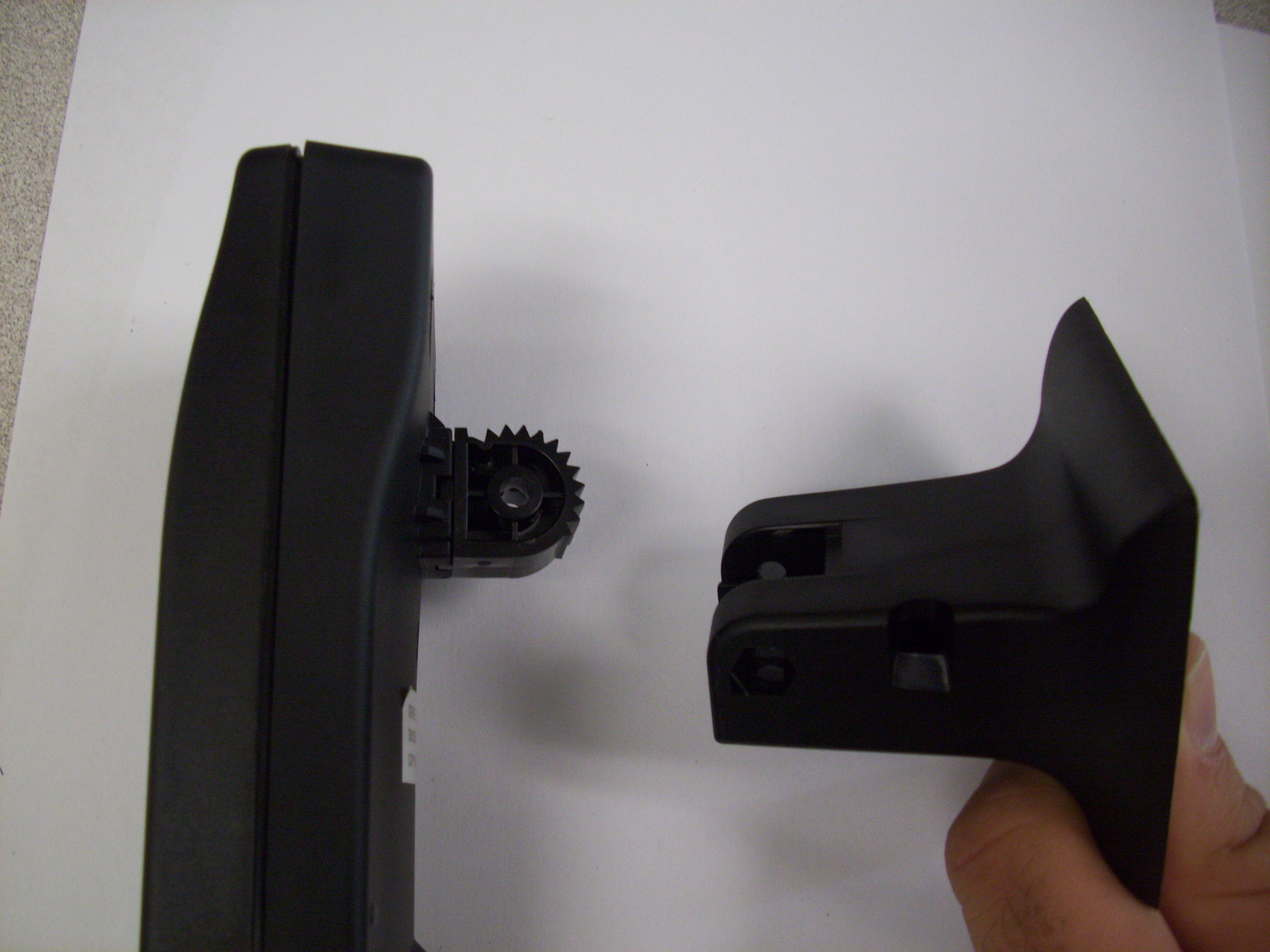

1. Attach Windshield support to the Support Spur using the supplied screw and nut. (Note correct orientation of the window mount)

2. Check the "Final Box" in AdminCenter to make the camera eligible for shipment.

X2 Camera Final Inspection and Packaging

No smudges

put in plastic bubble wrap bag & place sticker on the outside with the serial number

Place in box and put serial number sticker on outside of box
