Idrive X2 Programming Station Documentation

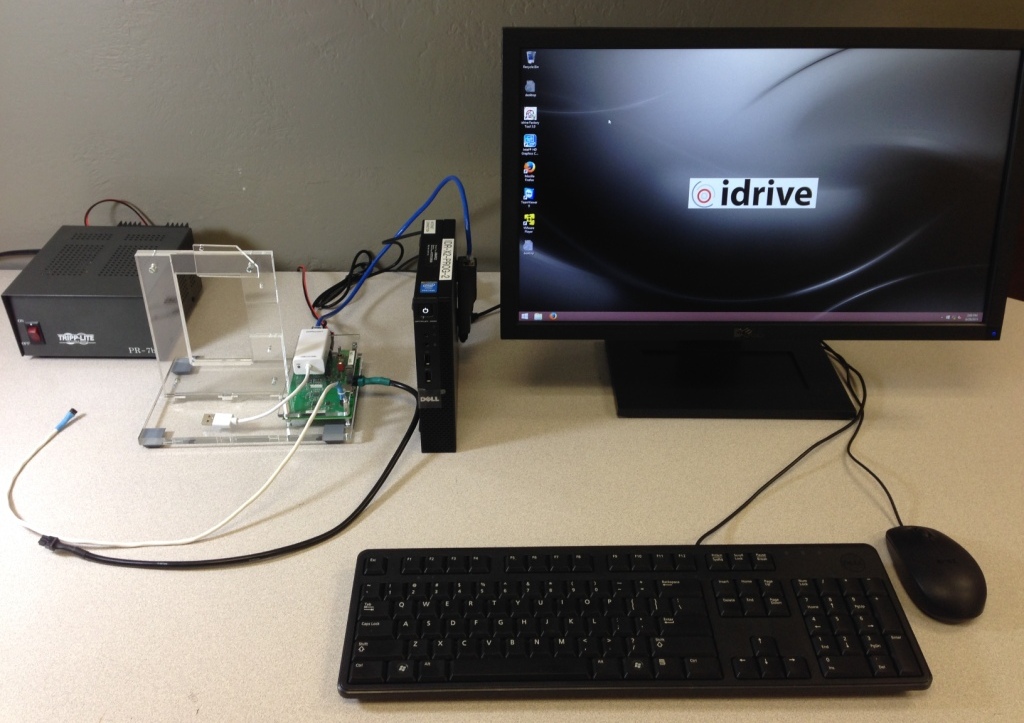

Programming Station Components

X2 Programming Station Components
Windows 7 or higher Computer with Monitor and speaker(s)(see requirements below)
Bar Code Scanner (Optional)
Lens Focus Charts
Micro SD card reader
Idrive X2 Programmer Fixture
I/O Loopback Test Adapter
DC 12V/1A LINEAR power supply
USB type B cable
USB to Ethernet adapter
Cat5 Cable
Power cable for X2
X2 Serial Programming cable

<br\>

X2 Programming Computer Setup

Computer Hardware Minimum Requirements

Monitor (needs to support 1600X1200 screen resolution)

Speaker(s)

Windows 10 Professional recommended

4GB RAM

100 GB Hard Disk

2 Network Interface adaptors (NICs)

Keyboard and Mouse

Network Configuration

Network Connection to the Programming Fixture

IP address: 192.168.0.10

Subnet Mask: 255.255.0.0

Default gateway: Blank

Network Connection with access to internet

DHCP or as required by location

<br\>

Computer Software Requirements

TeamViewer V11 (http://www.teamviewer.com ) - no license. Install TeamViewer - during setup you need to choose the Personal license installation!

Idrive Factory Tools 3.6.4

Future Technologies USB Driver for X2 Programming Fixture (http://www.ftdichip.com/Drivers/VCP.htm)

Firefox Web browser (https://www.mozilla.org/en-US/firefox/new/)

Disabling Driver Signature Enforcement In Windows 8 Permanently

Step 1. Open the Windows command promt as “Run as Administrator”.

Step 2. Run “bcdedit -set loadoptions DISABLE_INTEGRITY_CHECKS” (without the “”).

Step 3. To finalize the process run “bcdedit -set TESTSIGNING ON” (without the “”).

Step 4. Reboot and you’re done.

This method it leaves a watermark saying you are in test mode until you disable it again.

WARNING: if the procedure is executed remotely, the reboot should be executed with the fallowing command from Run or cmd.exe:

shutdown -r -f -t 0

to avoid hanging up the restart.

X2 Programming Fixture Setup

<br\><br\>

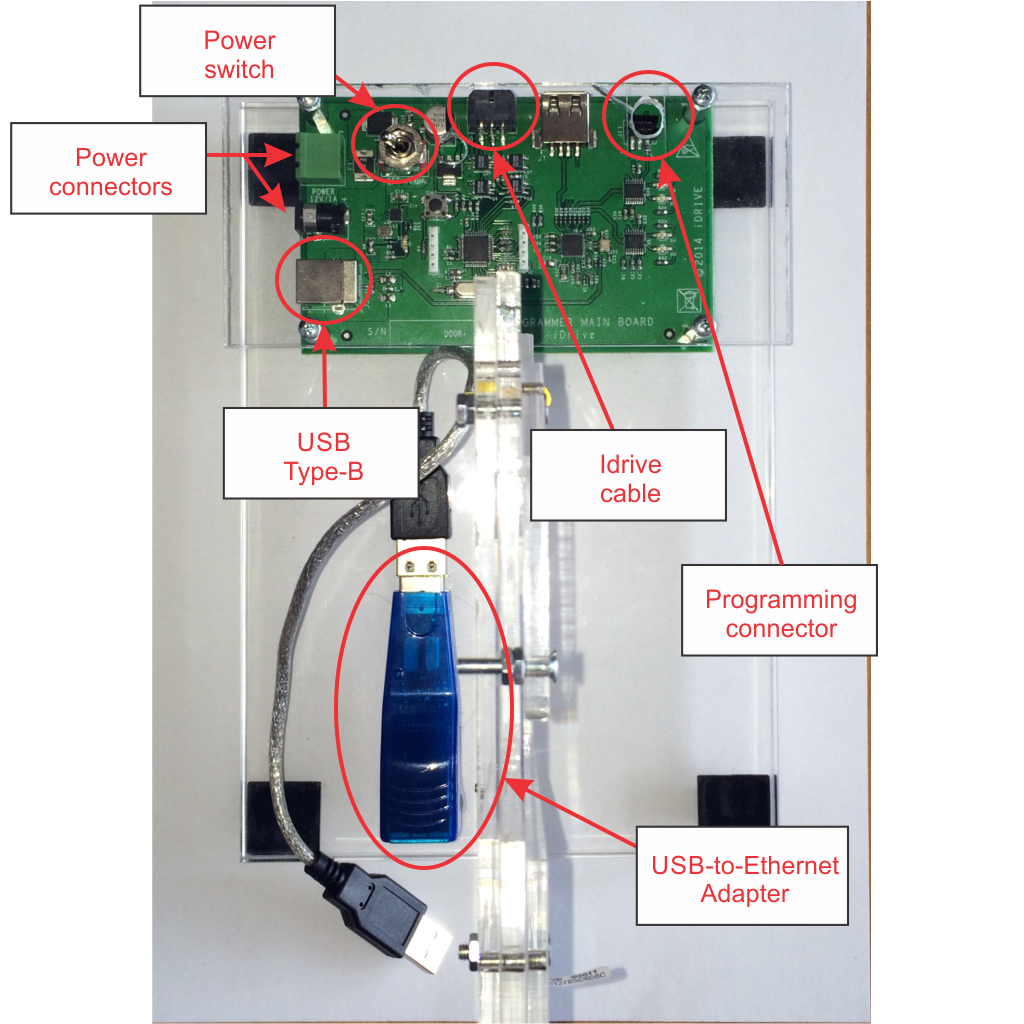

Computer Connections

Connect the 12volt Power Supply to the Power Connector

Connect the USB cable from Programming computer to USB Type B connector

Connect the USB-to-Ethernet Adapter to the Programming Computer with a Cat5 (Network) Cable

Idrive Camera Connections

Connect "Idrive Cable" to the Device to be programmed

Connect the "Programming Connector" to the Device to be programmed

Connect the USB-to-Ethernet Adapter to the Device to be programmed

<br\><br\><br\><br\>

Turn On the Power switch and leave the programmer on for the batch of boards.(you do not need to turn it off to program the next board)

X2 Programming Fixture Documentation

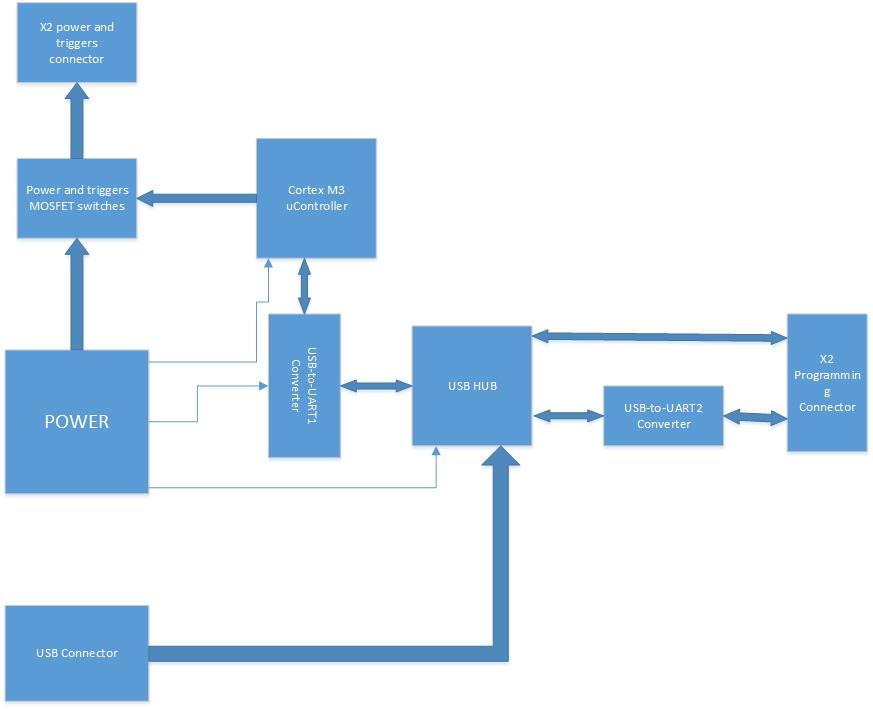

On X2 programming connector there are 2 communication buses present:

one bus is PC-to-X2 serial connection (using USB to UART converter)(serial one) is used to communicate(send commands receive messages) with U-boot(bootloader) and/or X2's Linux OS (linux console).

the second bus is PC-to-X2 direct USB connection (USB OTG port of X2 processor)is used only for initial bootloader NAND IC programming or as system recovery in case the bootloader present in NAND IC is corrupted.

When using Factory tool Auto Install or Install Bootloader features, first operation executed by FT is to erase the old bootloader from NAND.

After erasing old one, if X2 processor is not able to "see" the bootloader present in NAND, it enters the system recovery mode by activating it's USB OTG port for a Processor-to-PC direct connection ;this should be confirmed on PC by enumerating a "HID-compilant vendor-defined device" on Device manager (see picture attached).

NOTE: The "HID-compilant vendor-defined device" will appear only when NAND bootloader is missing or corrupted.

From log messages displayed by your Factorytool, it seems that first step (bootloader erase) was performed and the X2 processor USB OTG connection is rejected by PC (please observe "Device Arrival" , "Device Removal" messages present in the log).

In my opinion this is a PC USB problem , for confirmation you can test a known working fixture (for ex: RMA fixture) on this PC. The fact that shunting the USB-to-serial converter's port does not provide feedback is also indicating PC USB problems.

The only components "involved" in this connection are:

1. Programmer's USB HUB -this is working because you can see/access the USB-to-UART converters.

2. Cable - if cable is bad no HID-compliant device message will ever appear.

3. X2 Processor - known to previously work.

4. PC station
