Boost Converter Assembly



Purpose

This accessory was created to address the issue of voltage drop over the 65 meter cables used on BNSF Cranes.

The output voltage is set specifically for this cable length and if used for any other cable length the voltage would need to be adjusted

File:Idrvboost complete.jpg



Parts required

Rio Rand Boost Module

File:Idrvboost module.jpg








Enclosure

Enclosure

File:Idrvboost enclosure.jpg








Adaptor Board (Custom)

File:Idrvboost adaptorboard.jpg









Camera Cable (using left over .5 meter cables we have in stock)

File:Idrvboost camcable.jpg








"4 Berg Sticks"

File:Idrvboost bergsticks.jpg







"2 Small Zip-Ties"



Assembly Preparation



Prepare the Cables

Cut the .5 meter cable to 6 inches from the end (face) of the connector to the cut

With an Exacto Knife strip the outer insulation so that ~18mm of the 3 wires is showing

Unwrap the copper shielding from the Yellow video wire

Hold the wires in the following order; RED, White, Yellow and pull the copper shield wire so it is next to the yellow wire

separate and cut off ~6 strands of the shield and twist the rest into one "wire"

Tin the copper wire with solder to form the 4th wire

Using an Exacto know carefully strip the Red, White & Yellow wires so that 8mm of insulation is still exposed (this is important so that the zip tie used for strain relief and contact the outer insulation of the cable) The Yellow wire is smaller than the others so ensure you do not cut any of the wire strands!!

Tin the 3 remaining wires with solder.



Prepare the Adapter Board

With the board silkscreen side up insert the 4 berg sticks into the holes in the corner of the adapter board

Place the Boost module on the berg sticks to help with alignment (Vertical so the boost module and adapter board are aligned)

Solder the berg sticks to the Adapter board only

Remove the boost module



Assembly

Input Cable

Feed the female cable through the Wire Gland of the enclosure

Insert the wires into "J1" on the adapter board from the opposite side from the silkscreen and solder the wires

Fold the cable over and secure with a zip-tie

Idrvboost inputsolder.jpg

Idrvboost inputziptie.jpg

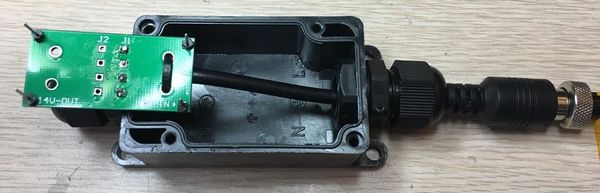

Idrvboost inputdone.jpg



Output Cable

Feed the male cable through the Wire Gland of the enclosure

Insert the wires into "J2" on the adapter board from the opposite side from the silkscreen and solder the wires

Fold the cable over and secure with a zip-tie

Idrvboost outputsolder.jpg

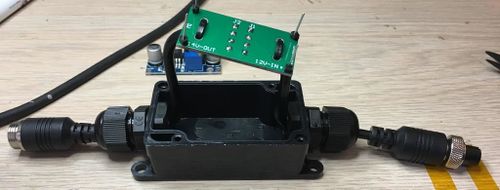

Idrvboost outputdone.jpg



Test and adjustment



Label the assembly



=
