Login

User Names are case sensitive

Default user name admin

Default password 123

Default "Guest User name : guest

Default Guest Password: 321

Guest Account

The Guest account limits Menu Access to Playback and Volume only

Change Guest to: bnsf

Password: 249805

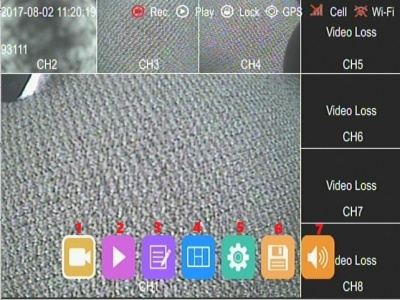

Main Menu

The Main Menu is Displayed by pressing Menu on the remote. If using a touch screen touch the bottom half of the screen.

1)**Manually Control - Record, Play, Stop, FF, RW

2)**Playback - Search by date & Time

3)**Logs - System & Export Logs

4)*Display Mode - Switch Grid view from Channels 1-4, 5-8 or 1-8

5)**Configuration Settings - Record,Display, Network & System settings

6)**Storage - Manage SSD, SD, USB

7)**Volume - Playback Volume

Manually Control

Playback

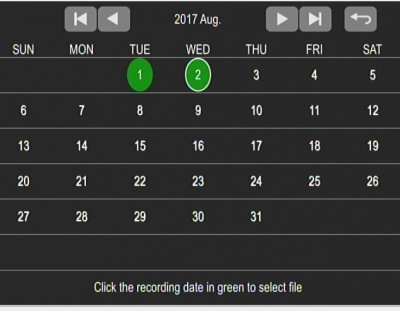

A date marked in green indicates that there were videos recorded that day.

Click the day to view the list of enter the video files for that date

Choose the desired video and press the Play button.

You can play single or multiple videos

Multiple videos can be played in sequence and can shift into the next or the previous one.

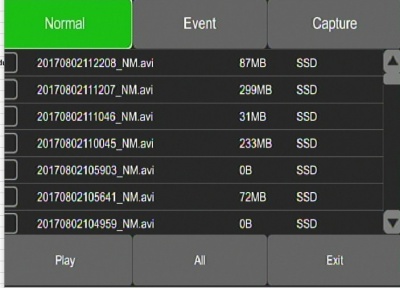

Select and Play Videos

Normal

Event

Capture

Play

All

Exit

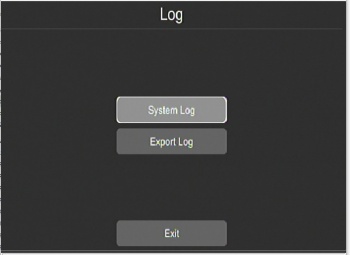

Logs

Used to keep a log of events in the system

Navigate to Menu->Setup->Log

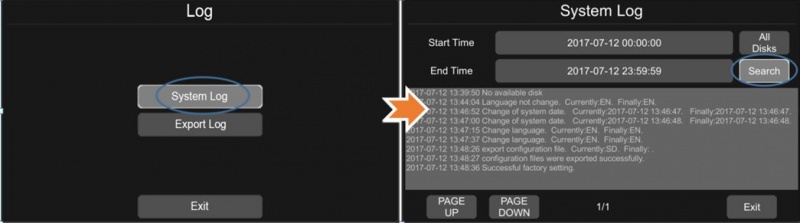

System Log

Feature allows you to search the Systems Log of events on the machine

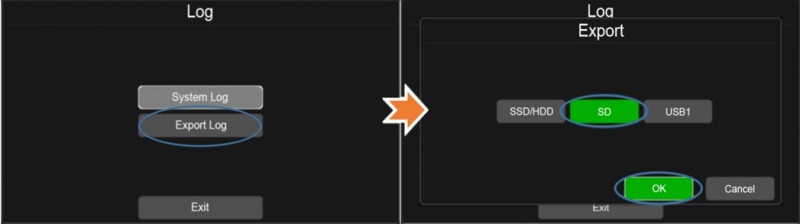

Export Log

Use this feature to export the system log.
Log can be exported to SSD, SD, USB

Configuration Settings

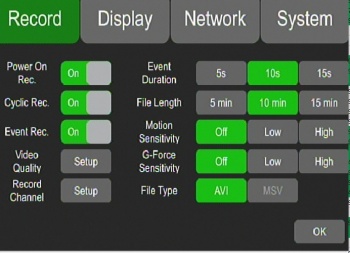

Record

Power On Rec

Cyclic Rec. - Overwrite?

Event Rec.

Video Quality

Record Channel - turn on/off recording for each channel

Event Duration

File Length

Motion Sensitivity

G-Force Sensitivity

File Type

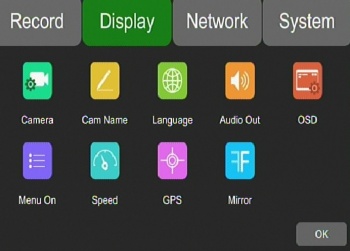

Display

*Camera - Brightness, Contrast Etc for each Camera

*Cam Name - Name of Channel on Display

*Language - Set system Language

*Audio Out - Select Channel Audio to listen to

*Camera - Brightness, Contrast Etc for each Camera

*OSD - On Screen Display Information

*Menu On - How lon Menu is Displayed before logout

*Speed - Speed Settings

*GPS - GPS Location Information

*Mirror - Mirror the Camera Image

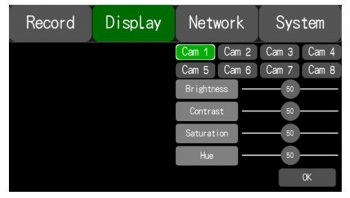

Camera

Individual Camera settings:

Brightness

Contrast

Saturation

Hue

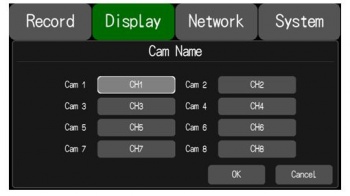

Cam Name

Each camera has its own channel with its own "channel name". This is what you will be changing since the cameras are pre labeled cam1,cam2...etc

Navigate to the display tab by hitting Menu->Setup->Display

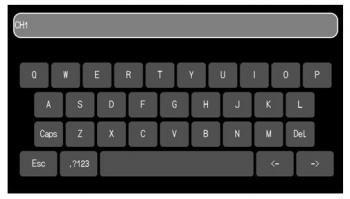

Choose which camera name you would like to change by selecting its associated channel name. This Name will be displayed at the bottom of the screen on each camera individually. Once the channel is selected a keyboard will pop up, type in the desired name with a maximum of 8 characters and must not be blank

Once you are finished hit escape and check to see if your cameras are correctly named

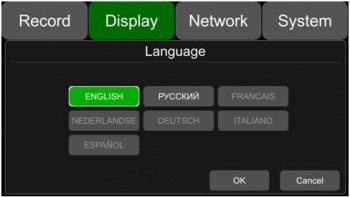

Language

To edit the language of the device access Menu->Setup->Display->Language

Select which language you want from the buttons presented. Languages available are English, French, German, Russian, Japanese, Italian, Austrian

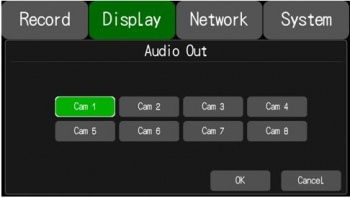

Audio Out

This setting edits the output for the audio channel in split mode

Navigate to this setting by selecting Menu->Setup->Display->Audio Out

Select which camera's audio you would like to output.

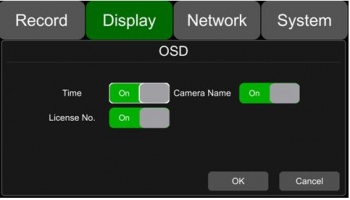

OSD

OSD controls what information gets overlayed on the video of each camera.

Navigate to this setting by selecting Menu->Setup->Display->OSD

Options:

Time,

License

Camera Names

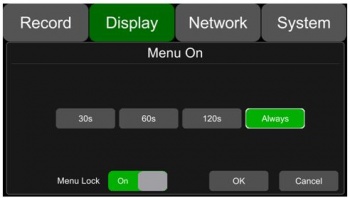

Menu On

Sets the duration of time the menu will display on the screen.

Navigate to this setting by selecting Menu->Setup->Display->Menu On

Settings: 30, 60, 120 seconds, or always on.

The menu lock setting will lock the menu to be password protected.

A password is needed to change this setting

Select the duration of display on time you need, and toggle the Menu Lock option to change it.

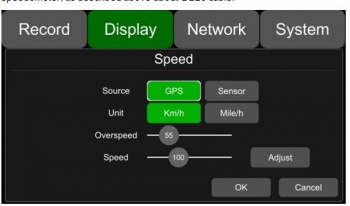

Speed

Allows you to change the source of the displayed speed to either the GPS or the vehicle speedometer as well as the units of speed to be either kph or mph

Navigate to this setting by selecting Menu->Setup->Display->Speed

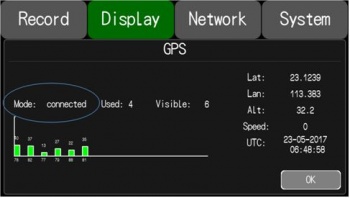

GPS

Displays information of latitude/longitude, detectable satellites, connected satellites, speed, and time

Navigate to this setting by selecting Menu->Setup->Display->GPS

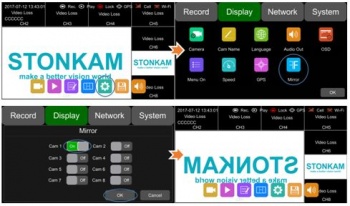

Mirror

Mirrors the video output on the selected camera. Configurable to each camera

Navigate to this setting by selecting Menu->Setup->Display->Mirror

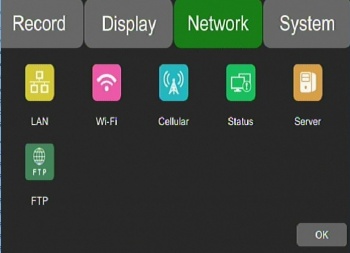

Network

*Lan - Lan Settings

*Wifi - Wifi Settings

*Cellular - Cellular Settings

*Status - Networks Status

*Server - Server Settings

*FTP - FTP Settings

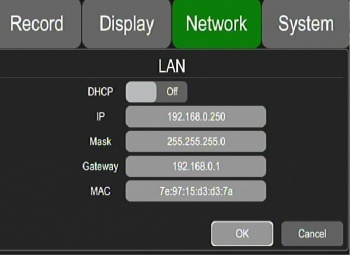

LAN

Defaults:

IP Address 192.168.100.188 set to 192.168.0.250

Mask 255.255.255.0

Gateway 192.168.100.1 set to 192.168.0.1

MAC Add: 7e:97:15:xx:xx:xx

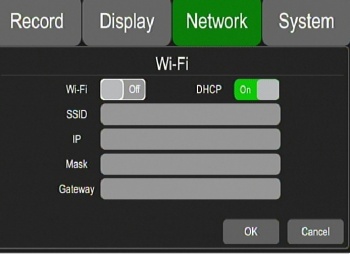

WiFi

N/A - Optional

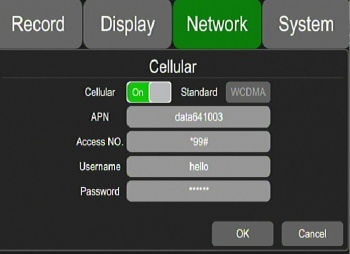

Cellular

Default Port is 9090, What do we need for LTI?

SetI set 6608 to test with newdvr.idriv...

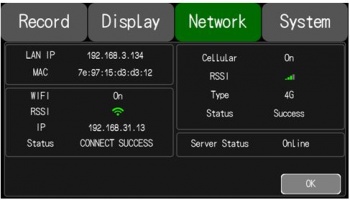

Status

Displays information on:

Lan IP address

MAC Address

3G/4G Network Status

3G/4G Signal Strength

Wifi Network Status

Wifi IP Address

Wifi Signal Strength

Server Status

Network Connectivity

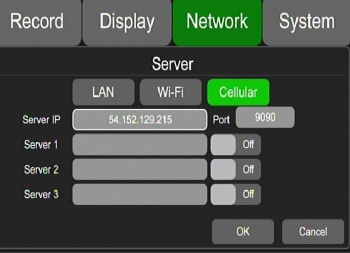

Server

Newdvr.idriveglobal.com IP 54.152.129.215

No DNS? - Need setting for LTI

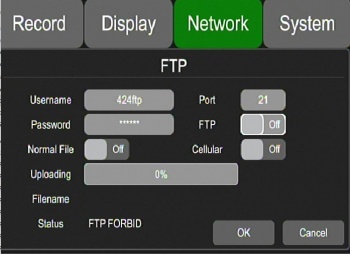

FTP

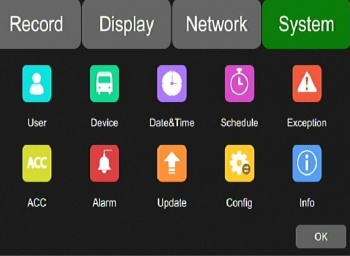

System

*User - Admin only!!!?

*Device - Vehicle ID

*Date & Time -

*Schedule - Timed Recording

*Exception - Buzzer On/Off and duration

*Acc -

*Alarm -

*Update -

*Config -

*Info -

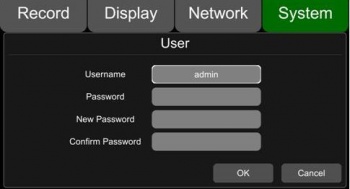

User

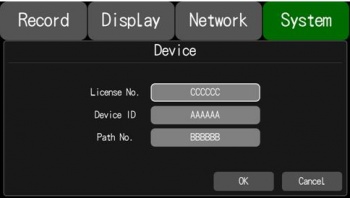

Device

License No. - Default:(AAAAAA)

Device ID - Default:(BBBBBB)

Path No. - Default (CCCCCC)

Date & Time

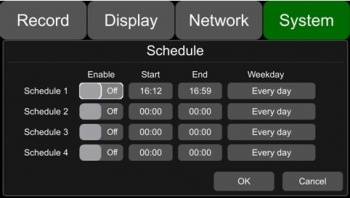

Schedule

Used to schedule up to 4 recording tasks.

Recording settings include a start & end time as well as day of the week to record.

Note: Recordings are permitted to overlap

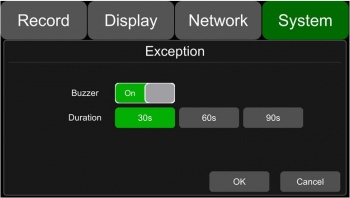

Exception

Settings to configure a buzzer when certain errors occur.

Example: Buzzer when camera becomes disconnected

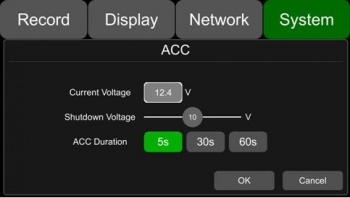

ACC

Displays:

Current voltage of the DVR

Shutdown voltage- If voltage < shutdown voltage then dvr shuts down, powers back on only when voltage exceeds shutdown voltage

ACC Delay- Continued recording after ACC is disconnected. Options are 5,10,15 seconds

Alarm

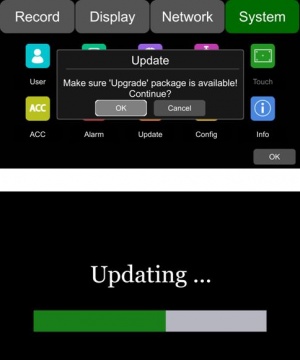

Update

Update of Firmware removes all configuration settings!!!

Process takes ~ 3 Minutes

Ensure you are using the latest FW version (download section of AdminCenter)

Copy the firmware to USB stick or SD card root directory.

Insert the USB Stick into the DVR.

Either:

Reboot the DVR or

Navigate to Menu -> Setup -> System -> Update> Hit OK

Wait for Update Success!

Verify that the update was successful by Menu -> Setup -> System -> Info

Compare the current version to the desired version.

Upgrade Notes

Currently, the upgrade package is deleted from the USB stick after the upgrade process is finished. To prevent having to recopy the firmware to the USB stick rename the file.

Example of Firmware Name: “dv424_upgrade_2017xxxxxxxx”

Change Name to : “dv424_upgrade_never_rename” Step 2：Copy the package to USB disk or SD card root directory, and insert it to DVR. Step 3：Power off the DVR and reboot it, then it will auto upgrade. Or in the menu Menu -> System -> Update, click OK to confirm to upgrade. Both method can start the upgrade process.

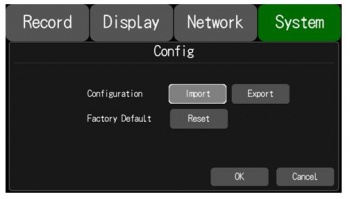

Config

Import

Insert the USB with the appropriate configuration file sv_xml.xml in its root directory

Select the import button

Export

Select Export, Select location (SSD or USB or SD)

Saves sv_xml.xml to location

Info

File:Stkm system information.jpg

Displays system software version number

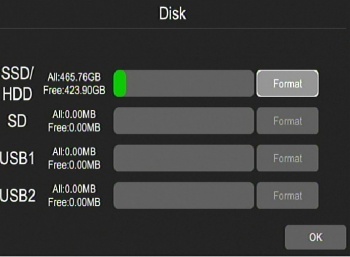

Storage

Filesystem Structure

Log4Gui - ASCII System Log

test_writable - system test if disk read only?

Normal Folder - location where videos are stored

20170801 Folder - separate folder for each date

Video files naming example: 20170801150248_NM_0030_0001_1920_1080_25_04194304_AAAAAA_02.avi

2017^08^01^ - Year^Month^Day

15^02^48 - Hour^Minute^Second (from start?)

_NM_0030_0001_1920_1080_25_04194304_ Figure this out

AAAAAA_02 - Vehicle_Channel

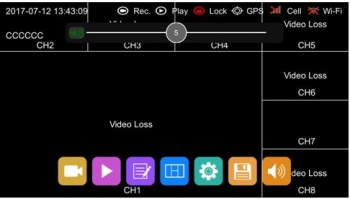

Volume

Set the playback volume via the remote. The default volume is 5.
Minimum volume: 1
Maximum volume: 10

Routine Setup

Install and Format Hard Drive

Click on the Floppy Disk Icon on main display

Format SSD (15 seconds for 500GB)

FileSystem windows format not Linux

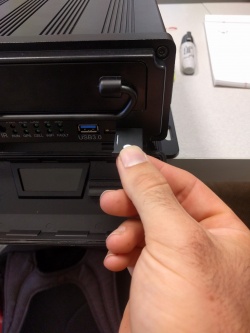

SIM Card Installation

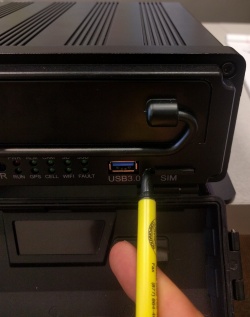

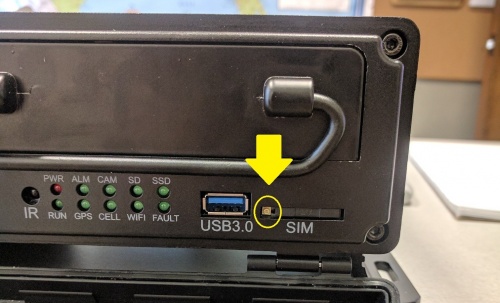

Push the Eject button (shown in yellow) to the left of the SIM Slot with a pen

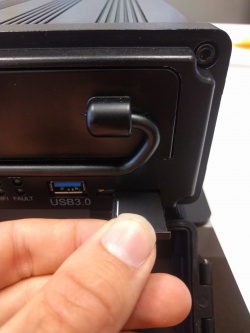

Remove SIM Tray

Document SIM Number

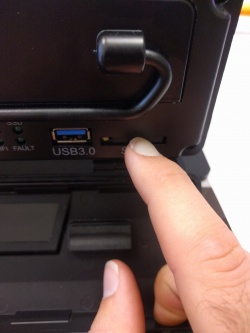

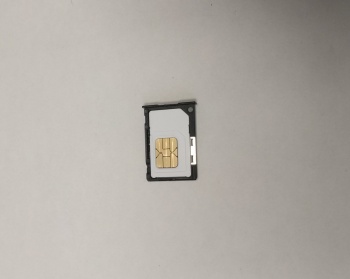

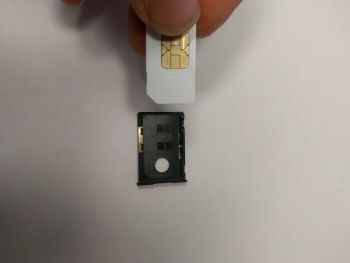

Insert SIM Into Tray

Insert Tray into System

Verify SIM by ?????

Update Firmware

Load Configuration File

Hard Disk Installation

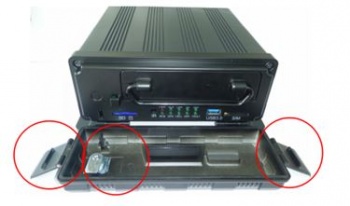

Step 1: Unlock the device with its key, and open the two side flaps on the front panel. Pull the front plate from the top down as shown.

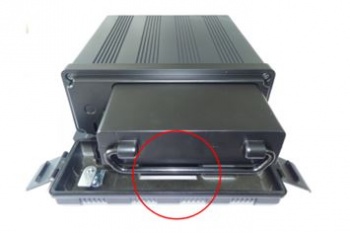

Step 2: Pull the hard drive sled out by its attached ring

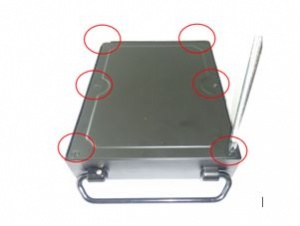

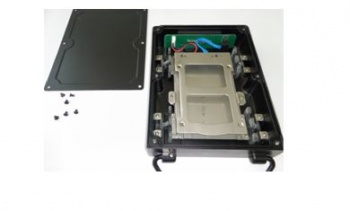

Step 3: Remove the six screws that hold the hard drive sled together carefully with a screwdriver. Once these screws are off the whole bottom plate should be removed.

Step 4: Remove the two screws on the silver hard drive support shelf. Once these are removed pull the top of the shelf up as illustrated.

Step 5: Slide the new hard drive into the enclosure making sure a solid connection is made with the hard drive.

Step 6: Fold the hard drive shelf back down into its resting position and secure the 4 hard drive mounting screws in place. These hard drive mounting screws come from the device's accessory pack

Step 7: Lock the hard drive shelf into place with the 2 securing screws from step 4

Step 8: Reinstall 6 Hard drive Sled screws that secure its bottom panel.

Step 9: Slide hard drive sled back into the D8 securely

Stonkam D8 Initial Configuration and Setup
