Stonkam D8 Initial Configuration and Setup

Routine Setup

Login

Default user name admin

Default password 123

Hard Disk Installation

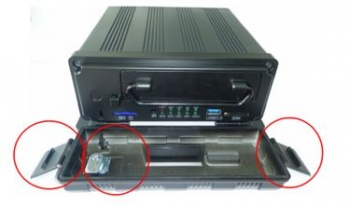

Step 1: Unlock the device with its key, and open the two side flaps on the front panel. Pull the front plate from the top down as shown in the photo below

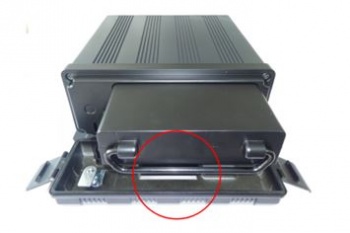

Step 2: Pull the hard drive sled out by its attached ring as shown in the image below

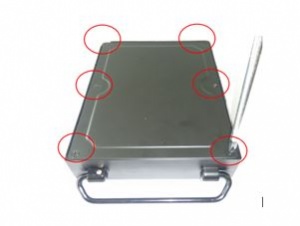

Step 3: Remove the six screws that hold the hard drive sled together carefully with a screwdriver. Once these screws are off the whole bottom plate should be removed.

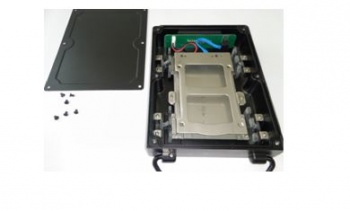

Step 4: Remove the two screws on the silver hard drive support shelf as shown below. Once these are removed pull the top of the shelf up as illustrated.

Step 5: Slide the new hard drive into the enclosure making sure a solid connection is made with the hard drive ribbon cable.

Step 6: Fold the hard drive shelf back down into its resting position and secure the 4 hard drive mounting screws in place. These hard drive mounting screws come from the device's accessory pack

Step 7: Lock the hard drive shelf into place with the 2 securing screws from step 4

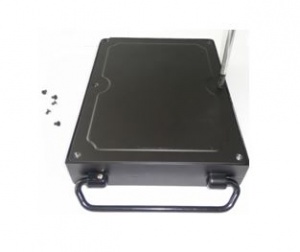

Step 8: Reinstall 6 Hard drive Sled screws that secure its bottom panel.

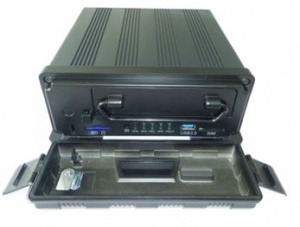

Step 9: Slide hard drive sled back into the D8 securely

Manual Configuration

Enter Setup Mode by pressing the cog button on the main menu.

Record

File:Stkm record main.jpg

• Power On Rec

• Cyclic Rec. - Overwrite?

• Event Rec.

• Video Quality

• Record Channel

• Event Duration

• File Length

• Motion Sensitivity

• G-Force Sensitivity

• File Type

Network

LAN

Defaults:

IP Address 192.168.100.188

Mask 255.255.255.0

Gateway 192.168.100.1

MAC Add: 7e:97:15:xx:xx:xx

WiFi

N/A - Optional

System

Device

License No. - Default:(AAAAAA)

Device ID - Default:(BBBBBB)

Path No. - Default (CCCCCC)
