Stonkam D8 End User Guide

Idrive D8 End User Guide

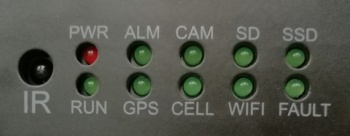

Front Panel LEDs

PWR: Power indicator - DVR is powered ON.

RUN: Working status indicator. It will flash slowly when DVR is running.

ALM: Alarm indicator. It keeps on with the record when there is Alarm-in, G-force activation or motion detection or speed or panic button event alarm.

GPS: GPS indicator. It lights up when GPS is running.

CAM: Camera indicator. It keeps on when camera is working and off when not working.

SD: SD card indicator. It blinks when recording, and keeps on when no recording, and is off when SD card in abnormal status.

SSD: SSD/HDD indicator. It blinks when recording, and keeps on when no recording, and is off when SSD/HDD in abnormal status.

CELL: Cellular indicator. It always lights up when uploading data and off when no cellular module or cellular module in abnormal status.

WIFI: WIFI indicator. It always lights up when uploading data and off when no cellular module or WIFI module in abnormal status.

FAULT: What is this?

IR This is not an LED, it is Infared Receiver is for the DVR remote control.

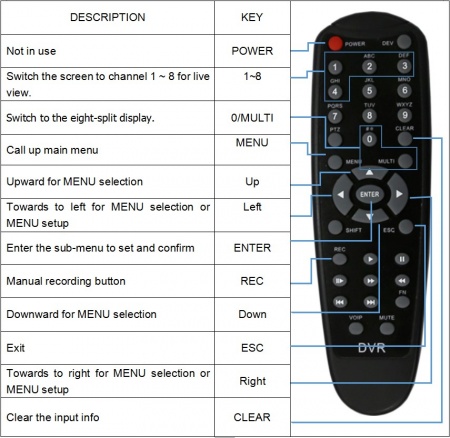

Remote Control
