ICV D8 Installation Guide
ICARvisions D8 Installation Guide
Packaging
All components for a specific individual vehicle will be in one box. This way the DVR will be set up for the exact vehicle and configuration.
Components
DVR
Cables
Cameras
4 Channel Video Splitter (Cranes only)
Idrive D8 DVR
- DVR with SSD & SIM card installed and configured
- Power cable and Fuse
- Dual Video Camera Splitter Cable (QTY 2 for Sideloaders and Chassis, QTY 4 for Cranes)
- External GPS Module
- 3G/4G Antenna
- Video Monitor Cable
- Keys
- Remote Control (Batteries Installed)
Video Splitter (4 channels)
For use in Cranes only to route the video from the existing 4 camera monitor system to the DVR.
- Video Splitter (4 Channels)
- Four 3 meter cables (from Splitter to DVR)
Camera Types
- Waterproof
- Dome (No Audio)
- CAM8165 - what is this?
Connections

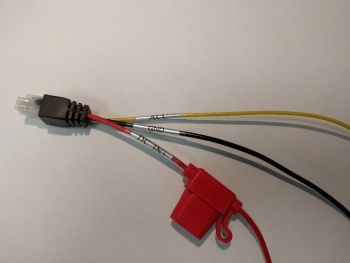

Power Cable
- *Red +12volts
- *Black GROUND
- *Yellow Ignition

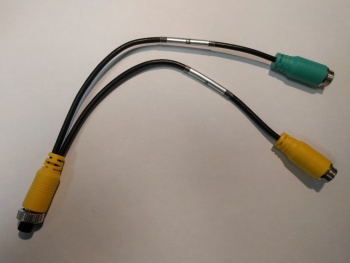

Dual Video Camera Splitter Cable
- *Yellow - Channel "A"
- *Green - Channel "B"
Camera Connections
| Camera Connections | Cam#/Type/Cable | ||
|---|---|---|---|
| Connector | Side Loader | Chassis Handler | Crane |
| CAM1&CAM2 "A" | #1 /Dome/ 5m | #1 /Dome/ 5m | #1/Dome/5m |
| CAM1&CAM2 "B" | #2 /WP/ 10m | #2 /WP/5m or 10m? | #2/WP/10m |
| CAM3&CAM4 "A" | #3 /WP/ 10m | #3 /WP/ 10m | #3/WP/10m |
| CAM3&CAM4 "B" | #4 /WP/ 10m | #4 /WP/ 10m | #4/8165CAM/65m |
| CAM5&CAM6 "A" | N/A | N/A | #5 /Splitter CH1/ 3m |
| CAM5&CAM6 "B" | N/A | N/A | #6 /Splitter CH2/ 3m |
| CAM7&CAM8 "A" | N/A | N/A | #7 /Splitter CH3/ 3m |
| CAM7&CAM8 "B" | N/A | N/A | #8 /Splitter CH4/ 3m |
Sideloader Schematic:
Crane Schematic:
GPS Puck
- *Mounting location instructions here
3G/4G Antenna
Mounting location instructions here
Rear Anti-Tamper Case Cable Shield
Install it - Wrap cables with ________ to prevent wear on sheet metal.
Identify wrapping tape to prevent cables from wearing on sheetmetal
Testing
- Connect Monitor to system
- Power On system
- Verify video for all channels is working (4 channels for loaders, 8 channels for cranes
- Contact Idrive Support to confirm the DVR is registered on the server
- Turn Keys and Remote control over to terminal manager and get signoff
