D8 Configuration and Setup

Assemble System

Place default configuration (Parameters file on the SSD) (Figure out how to use an SD card for this)

Hard Drive Installation

Stuff - Eric has pictures

Connect Power and 16 Pin Accessory Cable

Power - make sure it is the D8 Power cable and not the D4 cable

Plug into +12V Power Supply

16 Pin Accessory Cable - connect

Plug the Starcom S-Video Composite to USB Adaptor into the BNC connector

You need a BNC to Phono Jack Adapter Sending you two AL

Remote needs Batteries

Install 2 AAA Batteries (not included with D8)

Install and Document SIM Card

Install the SIM card (what SIM, how to document etc)

Configure the Default Parameters using a param.xml file

Stage the param.xml file on an SD card or the SSD

Power on the D8

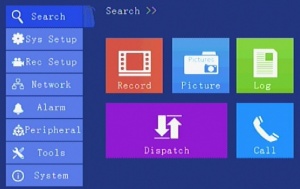

Press "Login" button on the remote

Enter the default admin password "666666" and press"OK"

Navigate the menus using the left, right, up, down arrow buttons on the remote

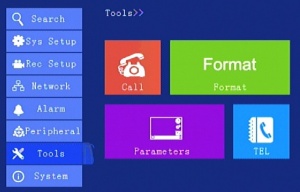

Navigate to "Tools> Parameters"

Device Specific Settings

Power on the D8

Press "Login" on the remote

Enter the Admin Password (Default = 666666)

Configuration "Parameters" Discussion

From Al 3/14

1. This will set ever D8 the same and there needs to be changes to each config for Terminal (which is the last 6 digits of the serial number)

3. Also I just got to setting the Alerts and only have one camera set to “EXIGENCY” – which means when disconnected send an ALARM, but I just found out I cannot duplicate the ALARM in the same window for more cameras ALARM… we get a weird alarm text when trying to save… chinglish

To make the param.xml file for Mark, I had to change the device 6 digit number ID number. I used the last six digits of the serial number from the label on the side…

Since then I changed the unit number in the software and have not been able to connect again… I made no change to the APN data that is the same…

The DVR shows the icon as connected to the server, but I cannot get the data or tracking on the server… am working with Chinese right now…

From Al 3/15

It was unexplained. But the vehicle name must be the same as the Phone number field.

Parameters file differences

Comparison of Al's initial config and the default config

<KeyPara

MD5 different

<BaseSetup

TimeZone (Al = 7 Default = 20)

timingtime (Al = "00:00:00" Default = "06:30:00")

OprTimeOut (Al = 120 Default = 30)

<TerminalSetup

device_num (Al = 225001 Default = 10000)

Phonenumber (Al = Blank Default = 1000)

company_name (Al = "idr" Default = Blank)

Authentication (Al = "225001" Default = 10000)

<RecordSet

CameraType (Al = "0" Default = 1)

<RecordSetMainChNoSet

Resolution (Al = "2" Default = 0)

<RecordSetMirrorChNoSet

isRec (Al = "1" Default = 0)

<SystemPowerSet

PowerOnTime (Al = "00:00:00" Default = 06:00:00)

PowerOffTime (Al = "00:00:00" Default = 22:00:00)

<MonitorSet

showNum (Al = 9 Default = 8)

<NetWorkSet

IpAddr (Al = 10.7.7.14 Default = 192.168.1.80)

GateWay (Al = 10.7.7.1 Default 192.168.2)

DNS1 (Al = 65.32.5.111 Default 192.168.1.2)

DNS2 (Al = 65.32.5.111 Default 192.168.1.2)

AL:

Default:

<CenterNetwork __id="7" Enable="1" Type="0" CenterIP="113.108.120.47" ContrlPort="21" DomainName="" /

<DialUpSet

APN (Al = data641003 Default = 3gnet)

UserName (Al = Blank Default = card)

UserPwd (Al = Blank Default = card)

SimICCID (Al & Default = "89860115851042424258") Why are these the same?

SmsCenter (Al = Blank Default = +8613010888500)

<WifiSet

Encrypt (Al = 2 Default = 3)

SSID (Al = Blank Default = 888

Pwd (Al = Blank Default = 88888888)

IpAddr (Al = 255.255.255.255 Default = 192.168.2.10)

SubNet (Al = 255.255.255.255 Default = 255.255.255.0)

GateWay (Al = 255.255.255.255 Default = 192.168.2.1)

Purpose (Al = 16 Default =0)

<AlarmSet

Al:

   <SensorAlarmSet __id="0" Name="Exigency" Enable="1" isRecord="1" LimitValue="1" HoldTime="3" DelayTime="1" linkage="32" HomePageChannel="0" />
   <SensorAlarmSet __id="1" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="2" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="3" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="4" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="5" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="6" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="0" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="7" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />

Default:

   <SensorAlarmSet __id="0" Name="IO1" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="1" Name="IO2" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="2" Name="IO3" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="3" Name="IO4" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="4" Name="IO5" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="5" Name="IO6" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="6" Name="IO7" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="7" Name="IO8" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />

<SubStreamSet

bitRate (Al = "400" Default = 160)

targetFrame (Al = ="25" Default = 4)

<UserParam

AL:

intParam0="255" intParam1="255" intParam2="255" intParam3="255" intParam4="255" intParam5="255" intParam6="255" intParam7="255" doubleParam="0.000000" charParam=""

Default:

intParam0="0" intParam1="0" intParam2="0" intParam3="0" intParam4="0" intParam5="0" intParam6="0" intParam7="0" doubleParam="0.000000" charParam=""

Things we may need/want to set

<SystemInfo Product_List_info , Manufacturer

<SecuritySet

AdminPassword (Default 666666)

UserPassword (Default 000000)

<Front0sdSet

<ChlName __id="0" ChlName="CH1" (Change "CH1" to "Crane front Left" etc?)

Camera Connections

On the Back Panel

AV IN #1 connector - White - CH1 Yellow = CH2

AV IN #2 connector - White - CH3 Yellow = CH4

AV IN #3 connector - White - CH5 Yellow = CH6

AV IN #4 connector - White - CH7 Yellow = CH8
