Idrive X2 Secondary/Final Test Station Documentation

Secondary/Final Test Station Components

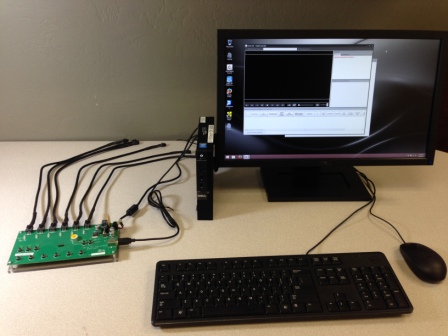

X2 Secondary/Final Test Station Components
Windows 8 Computer with Monitor and speaker(s)(see requirements below)
USB to Ethernet adapter (Second NIC on Computer)
Bar Code Scanner
Idrive X6 Test Fixture
DC 12V/6A power supply
6 Power cables for X2
Zebra barcode printer
USB type B cable (for Printer)
802.11g Wifi access point
Cat5 Cable, POE, Shielded FTP Cable

<br\>

<br\>

X2 Secondary/Final Test Computer Setup

Computer Hardware Minimum Requirements

• Monitor (needs to support 1600X1200 screen resolution)

• Speaker(s)

• Windows 8.1 Professional recommended

• 1GB RAM

• 100 GB Hard Disk

• 2 Network Interface adaptors (NICs)

• Keyboard and Mouse

Network Configuration

Network Connection to the Programming Fixture

• IP address: 192.168.0.10

• Subnet Mask: 255.255.0.0

• Default gateway: Blank

Network Connection with access to internet

• DHCP or as required by location

<br\>

Computer Software Requirements

• TeamViewer V9 (http://www.teamviewer.com ) - personal license. Install TeamViewer - during setup you need to choose the Personal license installation!

• Idrive Factory Tools 3.2.x

• Firefox Web browser (https://www.mozilla.org/en-US/firefox/new/)

X6 Secondary/Final Test Fixture Setup

Computer Connections

• No Direct connection from the X6 Fixture and the PC

• Idrive 802.11g Access point

• Internet connection

Idrive Camera Connections

• Connect "Idrive Power Cable Cable" to the Cameras to be Configured/Tested

<br\><br\>

Turn On the Power switch and leave the programmer on for the batch of boards.

Wireless router Setup

If a wireless router is used with the V7 programmer a small network hub is required to share the idrive programmer NIC on the computer.

• LAN IP address 192.168.0.1

• Network Mask 255.255.0.0

• Default Gateway Blank

• SSID bwifi

• No DHCP

• No DNS

• No WAN settings (not in use)
