Transfer Activities

Allows for monitoring and review of Event transfers that happen at this physical location. Vehicles that transfer at other locations in your organization (Base Station) must be viewed at that location.

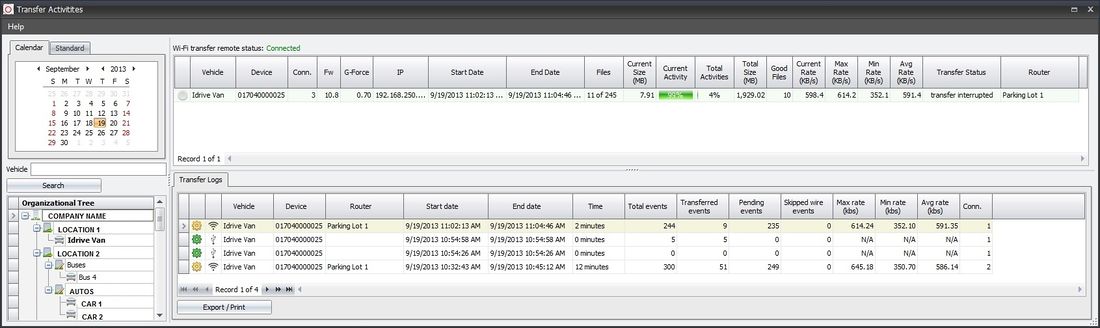

The Transfer Activities window is broken into 4 sections: Search, Organizational Tree, WiFi Activities List, Transfer Logs

<br\><br\>

Search

• Search for transfer activity Date(s) or Interval

• Enter a specific Vehicle name to refine the search

• Click the search button to perform the search

-Matching results will be displayed in Transfer Logs windows

-Vehicles with downloads in the selected date range will be shown in bold text in the organizational tree window

<br\><br\>

Organizational Tree

The Organizational Tree window displays the hierarchical structure of your organization.

In searches the Tree will show the vehicles with transfers matching the search date(s) selected in the Search window. Vehicles with a transfers in this time period will be displayed in BOLD text.

By clicking on the level of hierarchy in the tree only transfers from that group will be displayed.

* Clicking on Company Name will display all transfers for the date(s) selected.

* Clicking on Location 1 will display transfers for the date(s) selected for Vehicles from only that location

* Clicking on Vehicle Name 1 will display transfers for the date(s) selected for the vehicle only

The following example shows an example organization. The text in Green shows the minimum structure.

- Organization Name

- Location 1

- Vehicle Group 1 (if created)

- Vehicle Group 2 (if created)

- Vehicle Name 1

- Vehicle Name 2 (if created)

- Location 2 (if you have a second location)

ETC

<br\><br\>

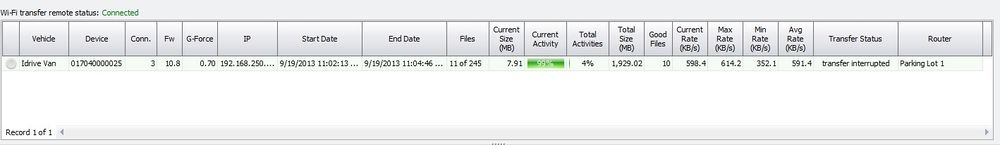

WiFi Activities List

This is a dynamic display of the WiFi activity at this physical location. This is an active display of current and recent transfer activity and not the results of a search.

The Transfer Activity List can be sorted by any criteria by clicking on the appropriate column head

<br\><br\>

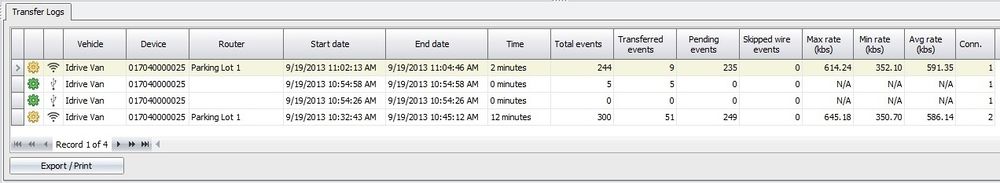

Transfer Logs

The Transfer Logs window will display detailed information about the files transferred between the Idrive Devices and the Idrive Base Station.

The following information about transfers is available in the logs:

• Detailed Log (Click Gear for more Details about the transfer)

- All events Transferred

- Transferred was interrupted before completion

• Transfer Type

- Transfer from WiFi network

- Transfer from Import (Import details [[1]])

• Vehicle assignment (a Vehicle MUST be assigned to the Device for events to be reviewed)

• Device serial number

• Router (Access Point name or MAC ID the transfer come over)

• Start date (Beginning of transfer)

• End Date (End of transfer)

• Time (Total Time of Transfer)

• Total Events

• Transferred Events (successfully transferred and verified)

• Pending Events (Number of Events remaining on the device)

• Total skipped wire events (download of wire events is optional)

• Max Rate – Highest wireless transfer rate

• Min Rate – Lowest wireless transfer rate

• Avg Rate – Average transfer rate

• Conn. – (number of connections attempted for the device)

The results of your search can be sorted by any criteria by clicking on the appropriate column head.

Note: Event Transfer logs older than one month will be deleted automatically
