Manufacturing:AI Device Manufacturing and Programming Process

AI Device Manufacturing and Programming

Radu Notes

The AI programmer is mandatory only one time when the board comes from China with the default chinese AOSP. Once the AOSP is overwritten with our AOSP, the programmer becomes optional.

You need a micro usb cable in order to connect camera to a computer usb port, a power source for AI camera and a computer with Windows 10 (preferable).

Factory Tool Installation

Install Factory Tool

Download and install the latest Factory Tool from Admin Center

Firmware

Firmware folder is auto-populated by the Factory Tool installer and should have the following structure:

- firmware.apk represents the current firmware version (40.0.55)

- updater.apk is a background application taking care about firmware and aosp upgrades / firmware crashes / background staffs. The current version is 1.0

- idrive_root is the place where we keep different files (neural networks, settings, etc)

- firmware.apk should be replaced every time when a new stable firmware is released. For example, if you have a new update.apk file, you can rename this file and copy it over firmware.apk. You have also to copy the same file over idrive_root/recovery.apk file

- The same mechanism should be used if we will upgrade updater.apk. That apk should also be copied over idrive_root/recovery_updater_app.apk.

- Any file from idrive_root folder is replaceable. In the future we can add / remove / replace any file from idrive_root

Install the Android OS

Download and install the latest AOSP from Admin Center

Unzip the ASOP archive

Copy the files to C:\Program Files (x86)\Idrive\Factory Tool 2.0\FactoryToolsAI\Aosp

Every time when a new AOSP is released, the files from Aosp folder should be replaced with the new files.

FT Configuration

Select Idrive Development > Settings (password > idrive2#dev)

Disable Passwords ( if applicable)

Click on Passwords tab and disable

Config and Install

The Factory Tool is documented, but I don't have the documentation now 🙂 (Alexandra will send you all documents tomorrow morning)

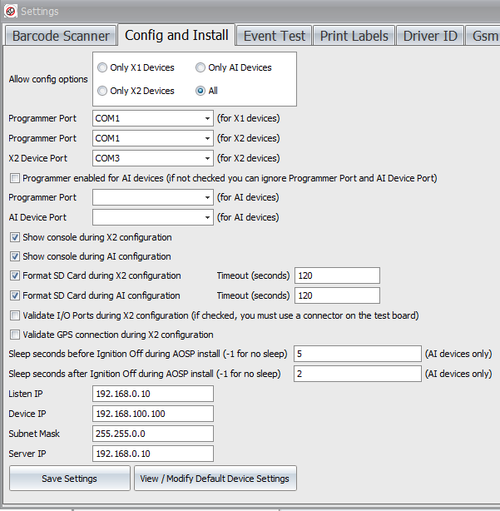

However the process is very similar with X2. There are AI settings in Idrive Development->Settings->Config and Install (see below)

(DO NOT CHANGE the "sleep seconds" fields for AI devices only).

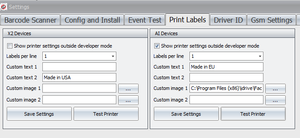

Factory Tool Print Settings (Santa Barbara)

Appendix E - Idrive AI Labels/Printing Documentation

Add the Printer

Settings > printers

Add printer>

\\idr-x2-prog-1\Zdesigner GK420t

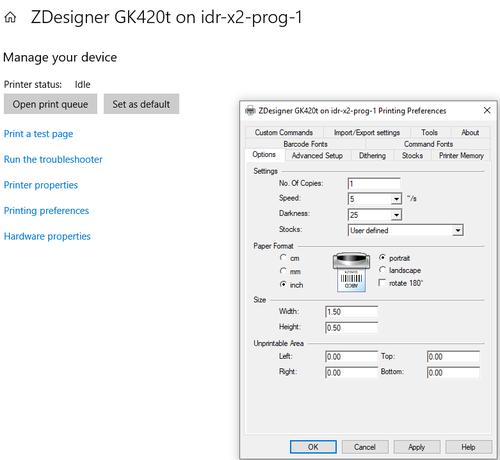

Click on printer and Manage > Printing preferences Options> Darkness 25, Width 1.5" Height .5"

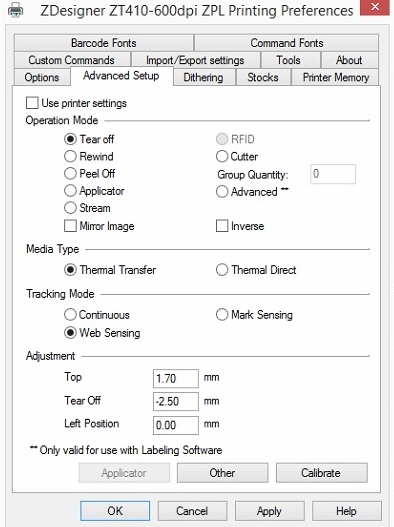

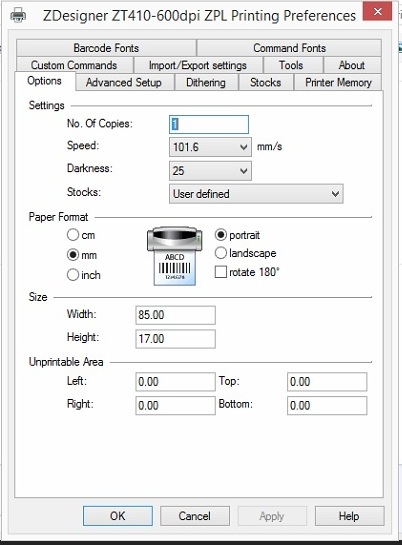

GK420T Printer Configuration (Santa Barbara)

Install Zebra Setup Utilities (Not needed for Factory Tool)

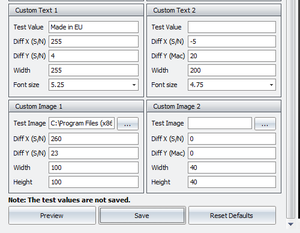

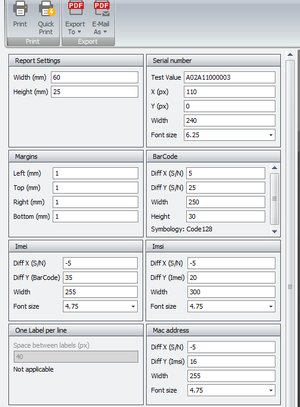

Factory Tool Print Settings (Santa Barbara)

Label for GK420T printer in RMA area

https://www.zpsstore.com/ShoppingCart.asp

https://www.barcodesinc.com

https://www.bradyid.com/en-us/family/cps-3053222 (In use in RMA Area)

Zebra Part #: 10011693

Label Size (WxH): 1.5" x 0.50"

Labels Per Roll: 9,420

Rolls Per Case: 4

Core Size: 3"

Outside Diameter: 8"Zebra Z-Ultimate 10011693

• NO perforation between label

Thermal Ribbon:

Zebra 5095 Performance Ribbon

https://www.barcodesinc.com/search.htm?search=05095GS06407&v=1
