New D4M (4/17/19) Initial Configuration and Setup

Idrive D4M Configuration

Record Serial Number

Serial number is located on the bottom of the D4M.

Remove D4M from the Security Box

Record Serial number

Print Label and afix to the top of the D4M

• Enter Serial Number into Admin Center.

AC> Manufacturing >D4-DVR Production Tab

Click on ADD and enter the S/N

Select Item Type IDRDVRD4HD

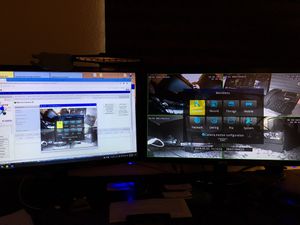

Install Hard Drive/SSD

Use the 4 screws in the plastic bag with the keys to secure the SSD in the carriage

Install the Hard Drive Sled into the D4M

Setup the D4 for configuration

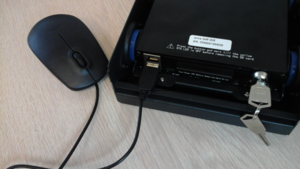

1)*Plug in a Mouse into the USB port on the left hand side of the Front Panel(no Remote Control with the D4M)

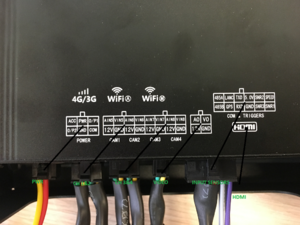

In the Rear Panel>

1)*Plug in the Power Cable

2)*Plug in the Monitor Cable

3)*Plug in the Camera Cable

4)*Turn power supply ON

5)*Turn Key ON

6)*Select Main Menu

1)*Confirm that the Alarm Wire SNR1 (Grey wire below the purple wire on the black Molex plug) triggers Cam Ch#2 to full screen when connecting the Grey wire to 12VDC

Click the Right Mouse Button For Options

1)*Main Menu - DVR Configuration Options

2)*SingleScreen - Display one Camera on the Monitor

3)*MultiScreen - Display all 4 cameras on the monitor

4)*UpScreen - Figure it out

5)*DownScreen - Figure it out

6)*Screen Save - Save the current screen configuration as Default

7)*PTZ

Verify Correct Firmware version

Main Menu> System> System Info

Current Release V206-2019/4/12-10:11:124

Upgrade Firmware if needed

• Obtain Latest Firmware Version from AdminCenter (if we receive one)

• Place the Firmware on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

• Main Menu> System> System Upgrade> Browse and select file and click OK

File:D4M FW Update.jpg

Import Idrive Default Configuration

• Obtain Latest Config File from AdminCenter (if we receive one)

• Place the Config File on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

• Main Menu> System> Config Operation> Import Configuration Browse and select file and click OK

Verify Config and customize Settings

• Enter the serial number for the D4M into the “LICENSE ID” Menu> Mobile> Motor> License ID

• Set the CUSTOMER's Time Zone Menu> Setting> Date/Time> Timezone

• Set the CUSTOMER's Time Menu> Setting> Date/Time> Set Time

• Set the CUSTOMER's Daylight Savings Time Menu> Setting> Dst Setting> USA

Note No need to fill in the week day or Hour. USA sets this

• Turn Key OFF

• Remove SD Card

Format the SSD / Hard Drive

• Install the hard drive carriage into the D4M

• Turn the key ON

• Format the SSD/Hard Drive Menu> Storage> Disk Info> Format

The Format Button is at the bottom but does not display in AMCAP

• Push record and verify that it can write to the hard drive.

• Push stop

• Test all camera ports with a working camera to ensure that they all work.

• Turn the Key and Power supply off.

• Box up unit with serial number on the outside of the box

Main Menu

The Main Menu is Displayed by right clicking the USB mouse .

1)**Preview - Camera Setting, Motion Setting

2)**Record - Video program, parameters and related configuration

3)**Storage - Hard disk information and formatting

4)**Mobile - Power, motor, GPS, G-sensor etc.

5)**Network - 3G/4G, LAN, Sever related configuration

6)**Setting - User, alarm system parameters, such as configuration

7)**File - The captured image display and operation

8)**System - System info, upgrade management, etc.

Preview

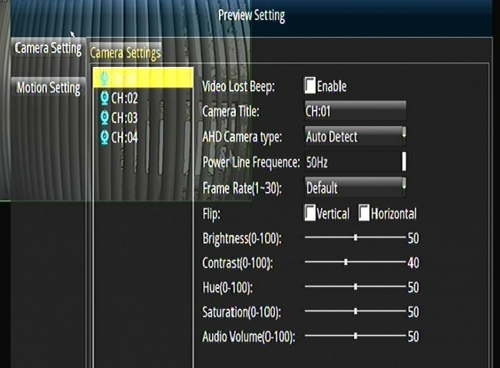

Camera Settings

Each channel set separately

1)*Video Lost Beep - Enable for beep when video is lost OFF

2)* Camera Title - DEFAULT(CH:0#)?

3)*AHD Camera Type - AUTO DETECT

4)*Power Line Frequence - ?

5)*Frame Rate - DEFAULT (30)

6)*FLIP - Mirror horizontal or vertical OFF,OFF

7)*Brightness * DEFAULT (50)

8)*Contrast - DEFAULT (40)

9)*Hue - DEFAULT (50)

10)*Saturation - DEFAULT (50)

11)*Audio Volume - DEFAULT (40)

12)*Auto Black-and-White - At night switch to Black and White mode OFF

13)*FrameRate Down - lower frame rate at night OFF

14)*IR LED Light - Only if supported by the camera AUTO

15)*LED Status Indicator - OFF

Copy To, Apply, Return Buttons not shown in AMCAP

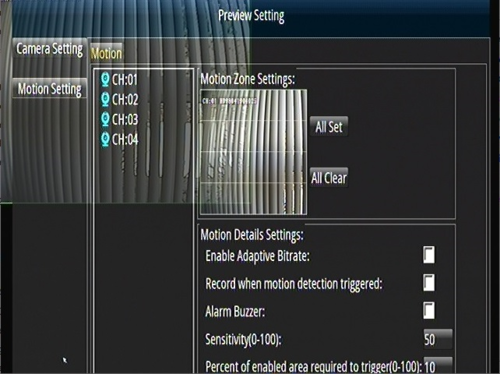

Motion Settings

Each channel set separately

1)*Motion Zone Settings All Clear

2)* Enable Adaptive Bit rate Default

3)* Record when motion detection triggered Default

4)* Alarm Buzzer Default

5)* Sensitivity(0-100) Default(50)

6)* Percent of enabled area required to trigger (0-100) Default(10)

Copy To, Apply, Return Buttons not shown in AMCAP

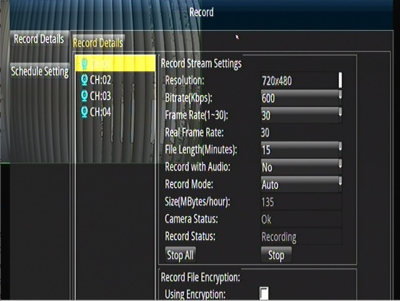

Record

1)* Resolution - DEFAULT(BASIC)

2)* Bitrate(Kbps) - DEFAULT(200)

3)* Frame Rate(1-30) - DEFAULT(30)

4)* Real Frame Rate - 30

5)* File Length(Minutes) - 5

6)* Record with Audio - DEFAULT(NO)

7)* Record Mode - DEFAULT(AUTO)

8)* Size(MBytes/hour) - DEFAULT(710)

9)* Camera Status - DEFAULT(Monitored,OK)

10)* Record Status - DEFAULT(Monitored,Recording)

11)* Stop All Stop - Do not press, unless intending to stop recording.

12)* Record File Encryption - DEFAULT(Blank)

Copy To, Apply, Return Buttons not shown in AMCAP

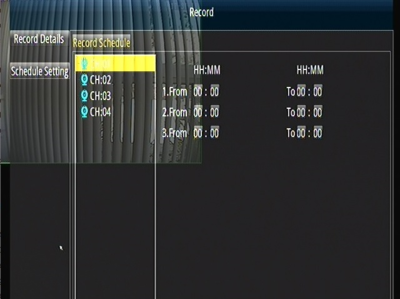

Record Schedule

1)* HH:MM HH:MM Leave this section blank - DEFAULT

Clear, Copy To, Apply, Return Buttons not shown in AMCAP

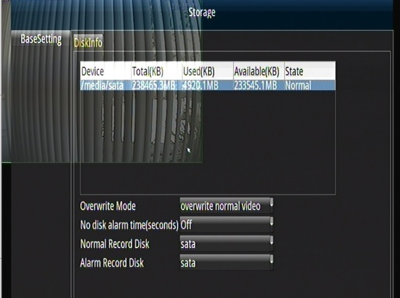

Storage

1)* Overwrite Mode - DEFAULT(Overwrite normal video)

2)* No disk alarm time(seconds)) - DEFAULT(Off)

3)* Normal Record Disk - DEFAULT(sata)

4)* Alarm Record Disk - DEFAULT(sata)

5)* Format - Use Format Only at Initialization of SSD

Format, Refresh, Apply, Return Buttons not shown in AMCAP

Mobile

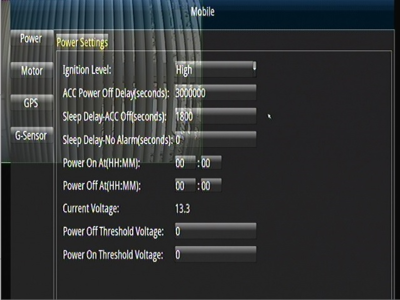

Power

1)* Ignition Level - DEFAUL(High)T

2)* ACC Power Off Delay(seconds)) - DEFAULT(30)

3)* Sleep Delay-ACC Off(seconds) - DEFAULT(60)

4)* Sleep Delay-No Alarm(seconds) - 0

5)* Power On at(HH:MM) - 00:00

6)* Power Off at (HH:MM) - 00:00

7)* Current Voltage - 13.3(monitored)

8)* Power Off Threshold Voltage - 12.9

9)* Power On threshold Voltage - 13.0

Apply, Return Buttons not shown in AMCAP

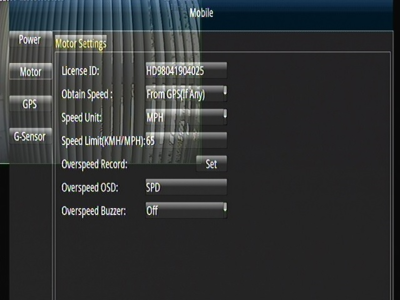

Motor

1)* License ID - ENTER S/N

2)* Obtain Speed - DEFAULT(From GPS(If any))

3)* Speed Unit - MPH

4)* Speed Limit - 65

5)* Overspeed Record - DEFAULT

6)* Overspeed OSD - SPD

7)* Overspeed buzzer - Off

Apply, Return Buttons not shown in AMCAP

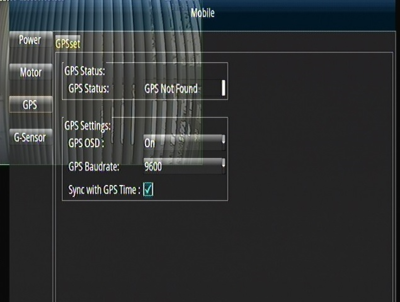

GPS

1)* GPS Status - DEFAULT

2)* GPS OSD - DEFAULT(On)

3)* GPS Baudrate - DEFAULT(9600)

4)* Sync with GPS time - Check

Apply, Return Buttons not shown in AMCAP

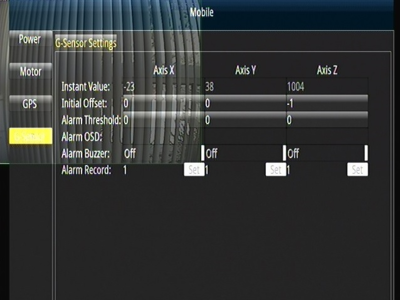

G-Sensor

1)* Instant Value - DEFAULT

2)* Initial Offset - DEFAULT

3)* Alarm Threshold - DEFAULT

4)* Alarm Buzzer - DEFAULT

5)* Alarm Record - DEFAULT

Correction, Refresh, Apply, Return Buttons not shown in AMCAP

Network

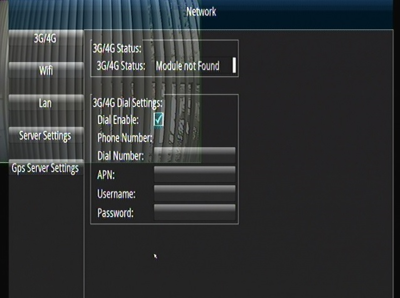

3G/4G

1)* 3G/4G Status - DEFAULT

2)* Dial Enable - DEFAULT(Check))

3)* Dial Number - DEFAULT(Blank)

4)* APN - DEFAULT

5)* Username - DEFAULT

6)* Password - DEFAULT

Apply, Return Buttons not shown in AMCAP

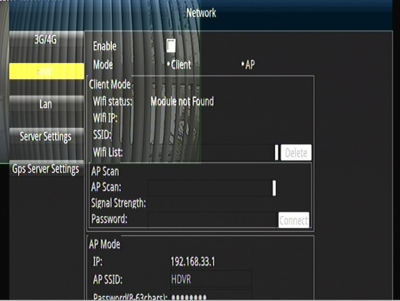

WiFi

1)* Enable - DEFAULT(Uncheck)

2)* Mode - DEFAULT(Do not Select)

3)* WiFi Status - Module not found

4)* WiFi IP - DEFAULT

5)* SSID - DEFAULT

6)* WiFi List - SPD

7)* AP Scan - DEFAULT

8)* Signal Strength - DEFAULT

9)* Password - DEFAULT

Apply, Refresh, Return Buttons not shown in AMCAP

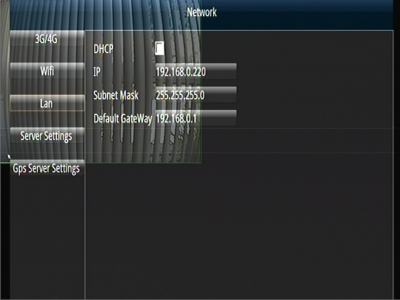

LAN

1)* DHCP - DEFAULT(Uncheck)

2)* IP - DEFAULT(192.168.0.220)

3)* Subnet Mask Status - DEFAULT(255.255.255.0)

4)* Default Gateway - DEFAULT(192.168.0.1)

Apply, Return Buttons not shown in AMCAP

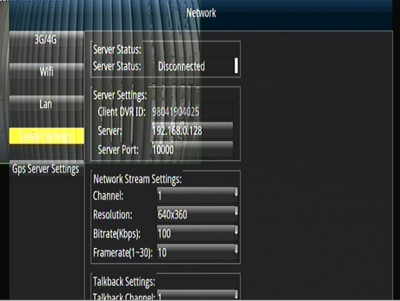

Server Settings

1)* Server Status - DEFAULT(disconnected)

2)* Client DVR ID - DEFAULT(S/N)

3)* Server - DEFAULT(192.168.0.128)

4)* Server Port - DEFAULT(10000)

5)* Channel - DEFAULT(1)

6)* Resolution - DEFAULT(640x360)

7)* Bitrate(Kbps) - DEFAULT(100)

8)* Framerate(1-30) - DEFAULT(10)

9)* Talkback Channel- DEFAULT(1)

Apply, Return Buttons not shown in AMCAP

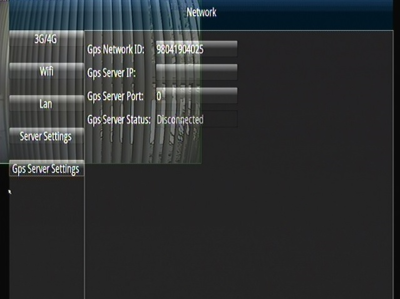

GPS Server Settings

1)* GPS Network ID - DEFAULT(S/N)

2)* GPS Server IP - DEFAULT)

3)* GPS Server Port - DEFAULT(0)

4)* GPS Server Status - DEFAULT(Disconnected)

Apply, Return Buttons not shown in AMCAP

Setting

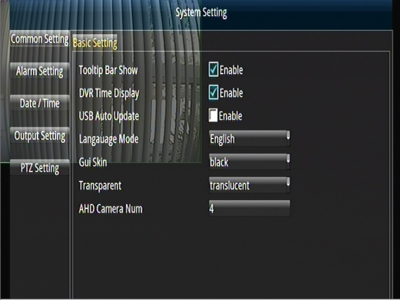

Basic Settings

1)* Toolbartip Bar Show - Enabe(Check)

2)* DVR Time Display - Enable(Check)

3)* USB Auto Update - DEFAULT(Not checked)

4)* Language Mode - English

5)* GUI Skin - Black

6)* Transparent - Translucent

7)* AHD Camera Num - 4

Apply, Return Buttons not shown in AMCAP

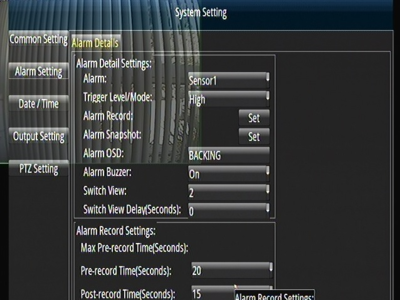

Alarm Settings

1)* Alarm - Sensor1 1

2)* Trigger Level/Mode - High

3)* Alarm Record - Set

4)* Alarm Snapshot - Set

5)* Alarm OSD - DEFAULT(BACKING) ?

6)* Alarm Buzzer - DEFAULT(On) ?

7)* Switch View - DEFAULT(2) ?

8)* Switch View Delay(Seconds) - 0

9)* Pre-record Time(Seconds) - 20

10)* Post-record Time(Seconds) - 15

Apply, Return Buttons not shown in AMCAP

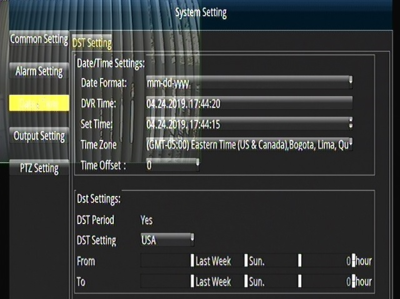

DST Settings

1)* Date Format- mm-dd-yyyy

2)* DVR Time - DEFAULT

3)* Set Time - DEFAULT(Input current date and time)

4)* Time Zone - (GMT-05:00) Eastern Time.

5)* Time Offset - 0

6)* DST Period - Yes

7)* DST Setting - USA

8)* From - DEFAULT(User Input)

9)* To - DEFAULT(User Input)

Apply, Return Buttons not shown in AMCAP

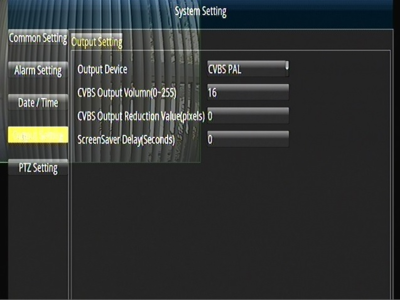

Output Setting

1)* Output Device - CVBS PAL ?

2)* CVBS Output Volume(0-255) - 16 ?

3)* CVBS Output Reduction Value - 0

4)* ScreenSaver Delay(Seconds) - 0

Apply, Return Buttons not shown in AMCAP

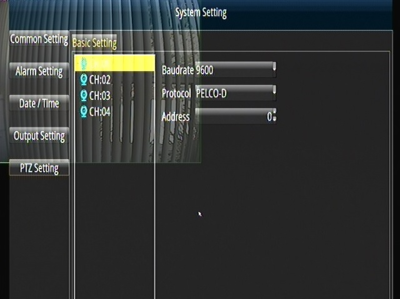

PTZ Settings

Apply the following to all four channels.

1)* CH:01 - Baudrate 9600

2)* CH:02 - Protocol PELCO-D

3)* CH:03 - Address 0

4)* CH:04 - DEFAULT

Copy to, apply, Return Buttons not shown in AMCAP

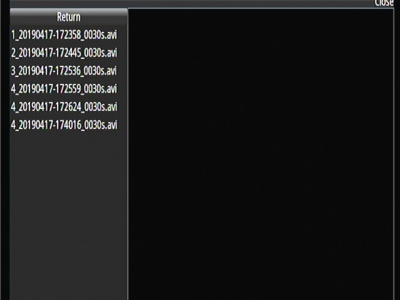

File

File

No Setup needed.

System

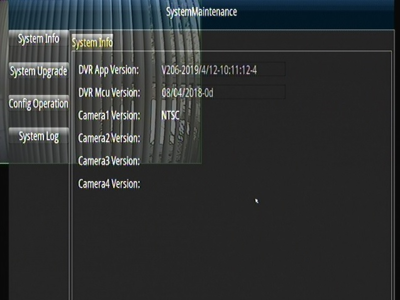

System Info

1)* DVR App Version - V206-2019/4/12-10:11::12-4

2)* DVR MCU Version - 08/04/2018-0d

3)* Camera1 Version - NTSC

Apply, Return Buttons not shown in AMCAP

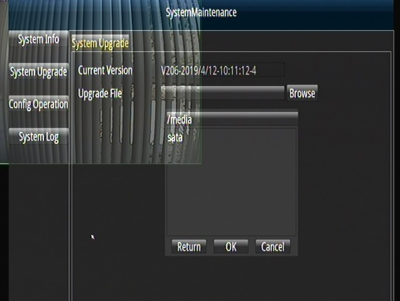

System Upgrade

1)* Current Version - V206-2019/4/12-10:11::12-4

Confirm Current Version is the latest version; if not, browse available resources for upgrade?

2)* Upgrade file - DEFAULT(Browse)

Upgrade, Return Buttons not shown in AMCAP

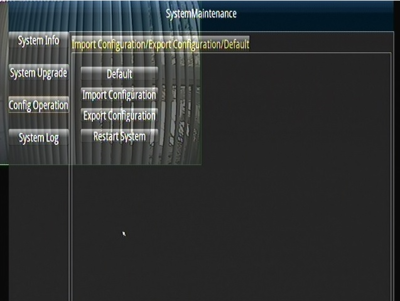

Config Operation

1)* DEFAULT - DEFAULT

2)* Import Configuration - DEFAULT ?

3)* Export Configuration - DEFAULT

4)* Restart System - DEFAULT(Use only if changes were made)

Upgrade, Return Buttons not shown in AMCAP

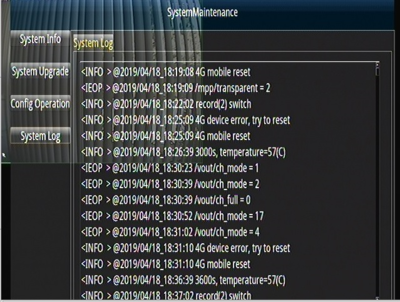

System Log

1)* DISPLAYS LOG - DEFAULT(Refresh only if necessary)

Refresh, Return Buttons not shown in AMCAP
