Global Center3 User's Manual

About the Idrive Global Center3

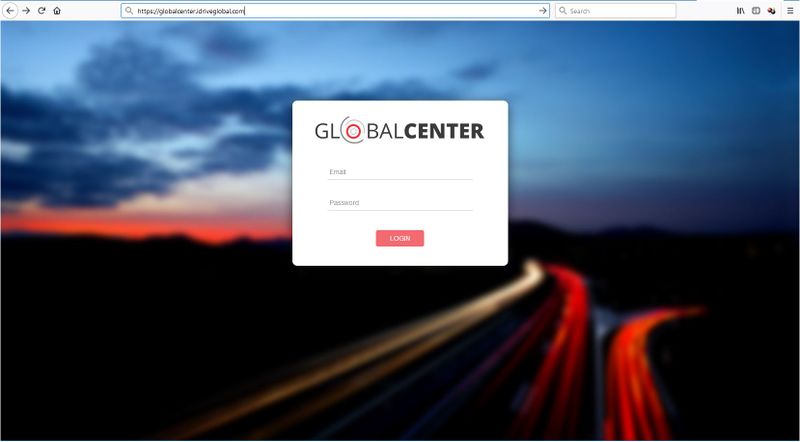

New Features and Benefits start with a brand new sign-in page

and is found at the same location as before

http://globalcenter.idriveglobal.com

Note a User Account must be created and permissions set on the Idrive Control Center Software

• see Control Center>Fleet Manager>Personnel... to add or change permissions for User Access

Idrive Global Center3 - Dashboard

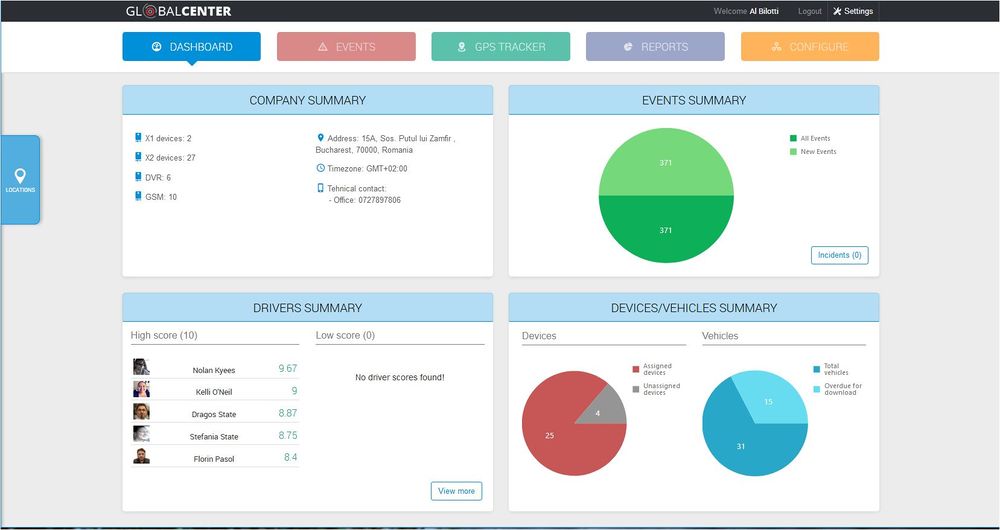

Dashboard

• Company Summary
• Events Summary

Pie-charts are clickable links; shortcut to Events selection

• Drivers Summary
• Devices/Vehicles Summary

Pie-charts are clickable links to flyout data display

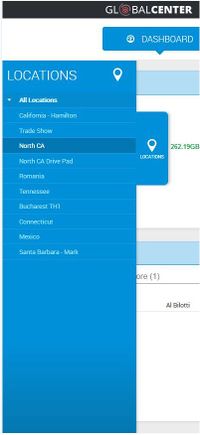

Locations

- Multiple company locations equipped with Idrive Base Stations, each will be listed as a separate select-able location from the left tab Flyout

- Multiple company locations equipped with Idrive Download Points, then all vehicles will be listed at the single Target Point location (Main Station)

• • Note: You can sort by department later in Events>Advanced search

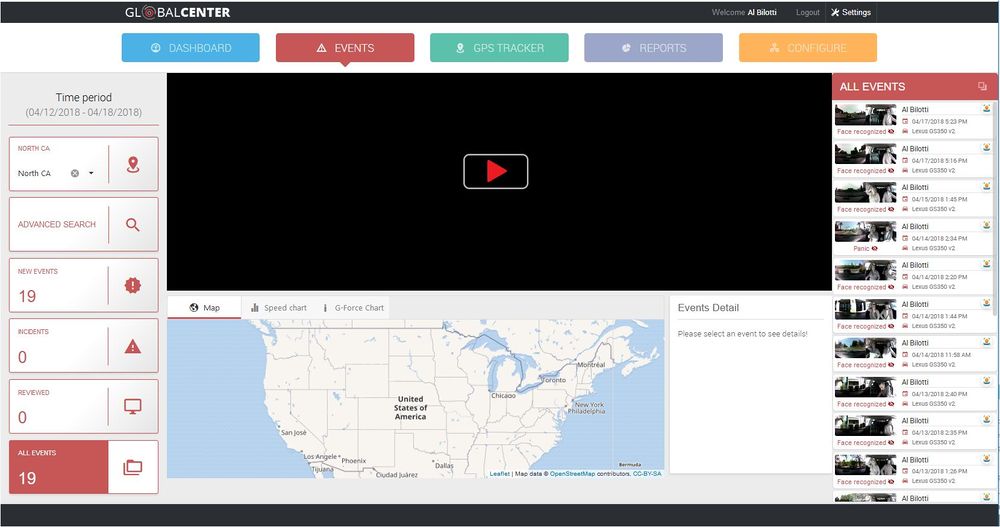

Idrive Global Center3 - Events

Events

• Locations Sort

• Advanced Search

• New Events

• Incidents

• Reviewed

• ALL Events

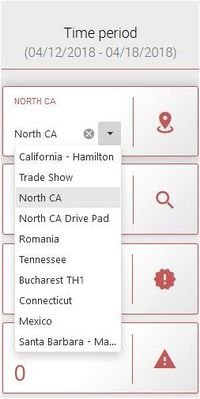

Locations Sort click to select location to view from flyout

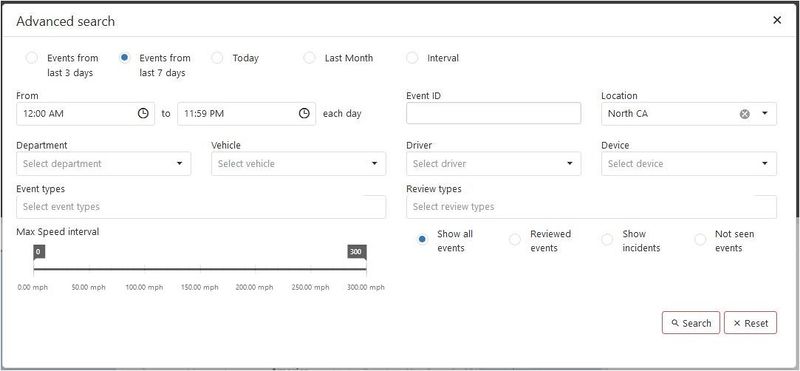

Advanced Search perform granualar searches as specific as you need

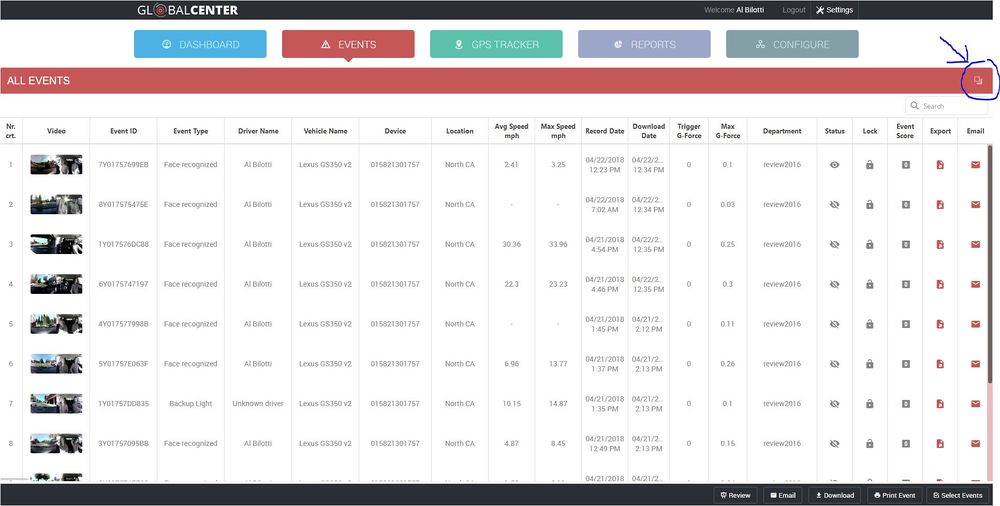

Clicking the ALL Events Table List icon on the top right of the Events Column will expand or contract the Events Data columns

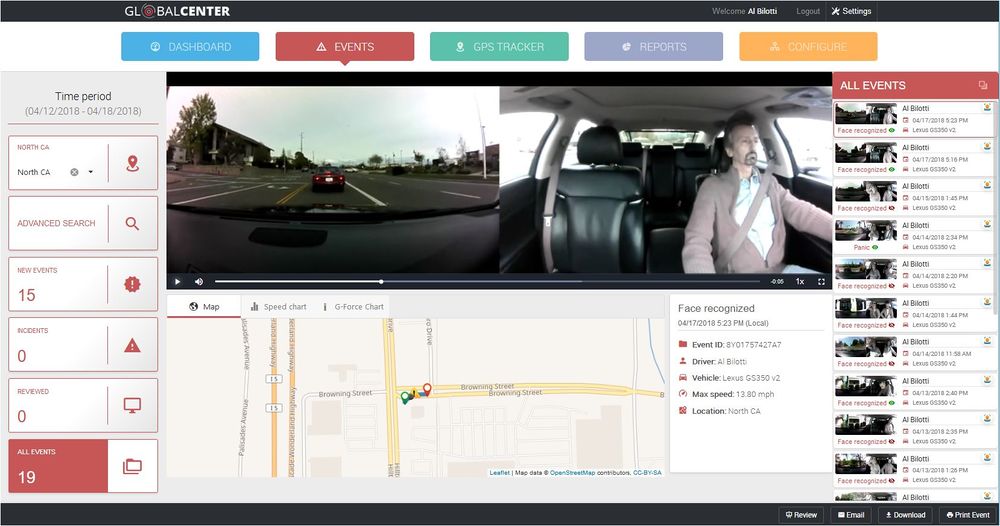

A selected Event loads and plays with the Map View as default

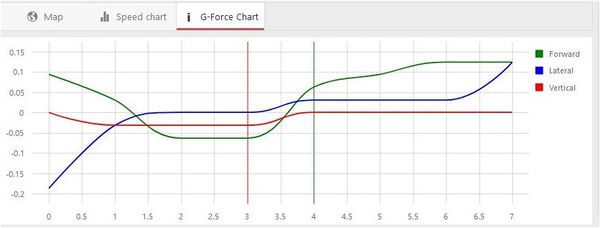

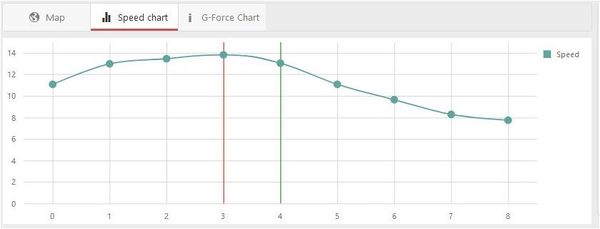

Selectable Map View alternatives are Speed Chart and G-Force Chart

Idrive Global Center3 - Events (Review, Email, Download, Print)

Additional Features are found on the Event Play Window

and are visible after an Event is loaded into the player

- Note: these Features are available to those Users

according to their Permissions in the Control Center Software

- See your Idrive System Administrator for Permissions changes/Access

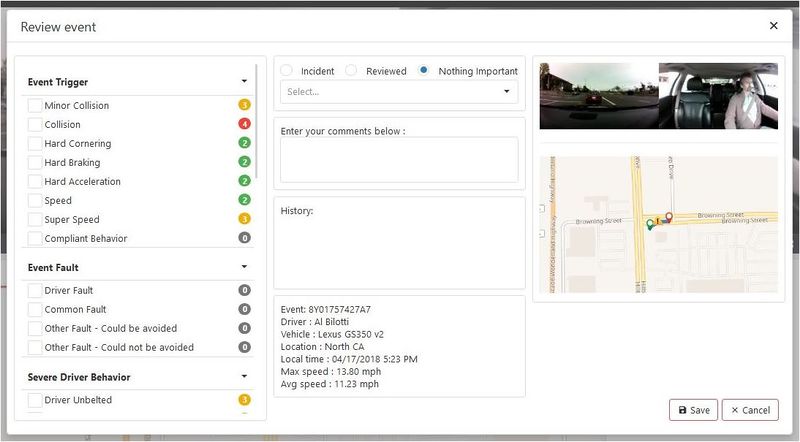

The Review Feature allows you to select from pre-populated triggers and driver behaviors

all of which have scores of 1-4 attached to their selection

additionally you can enter comments that when saved will sync back with the Idrive PC for storage

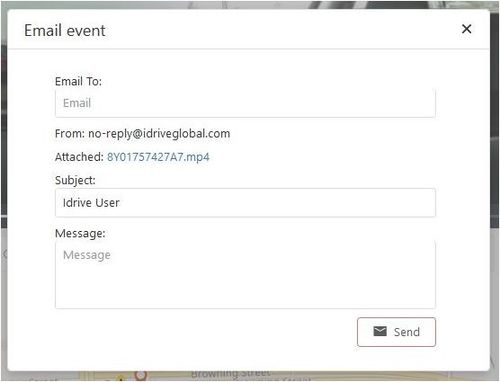

The Email Feature allows you to send the combined Event Video to the recipient of your choice

The Download Feature allows you to save the combined Event Video to your PC

- Note it is recommended to use VLC Player (available at www.videolan.org) to play these videos

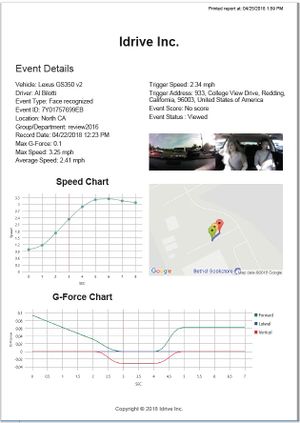

The Print Feature allows you to export a detailed report to PDF

which can be opened or be saved by you on your PC

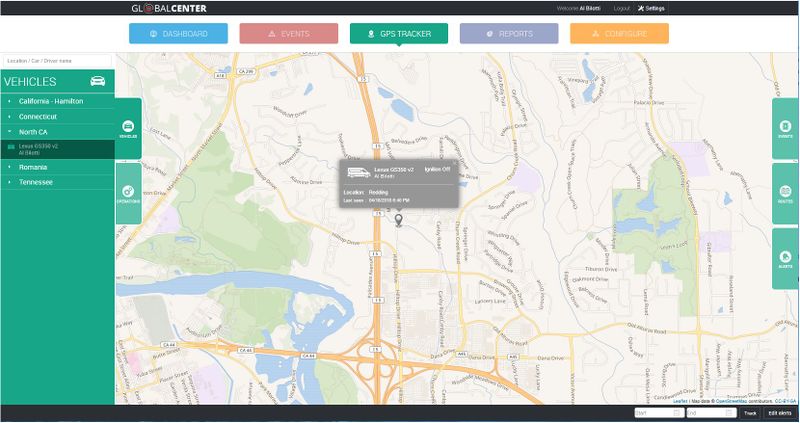

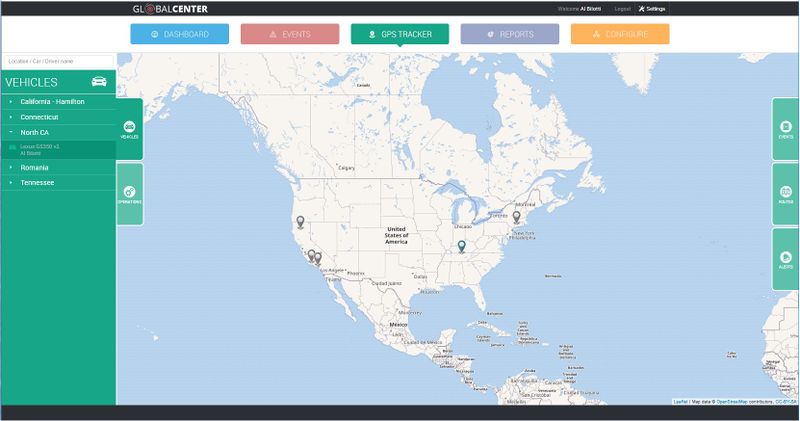

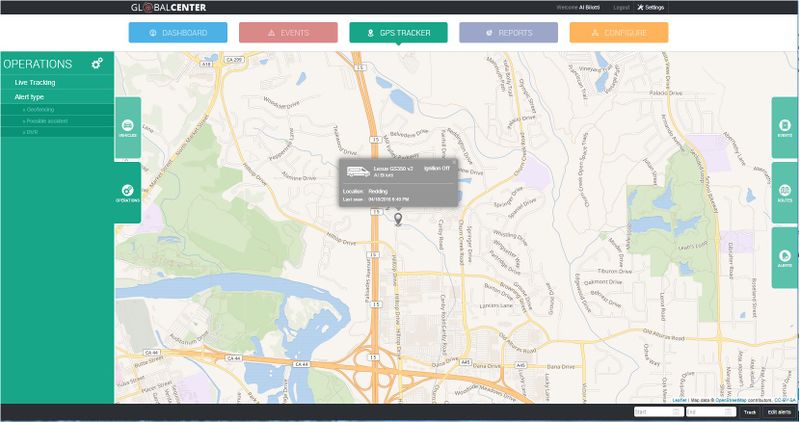

Idrive Global Center3 - GPS Tracker

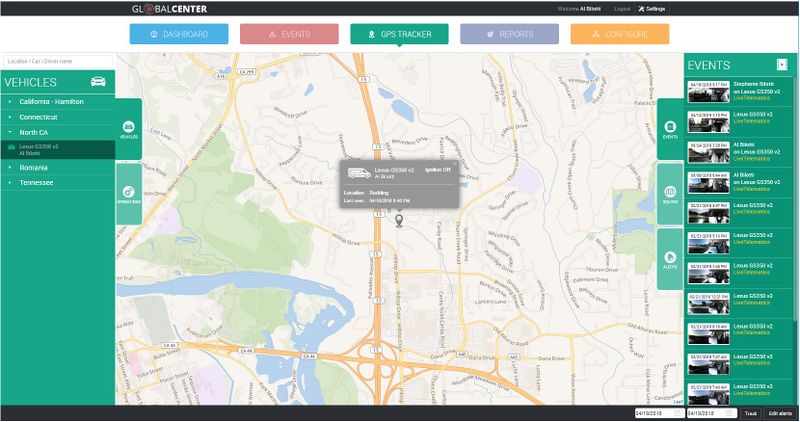

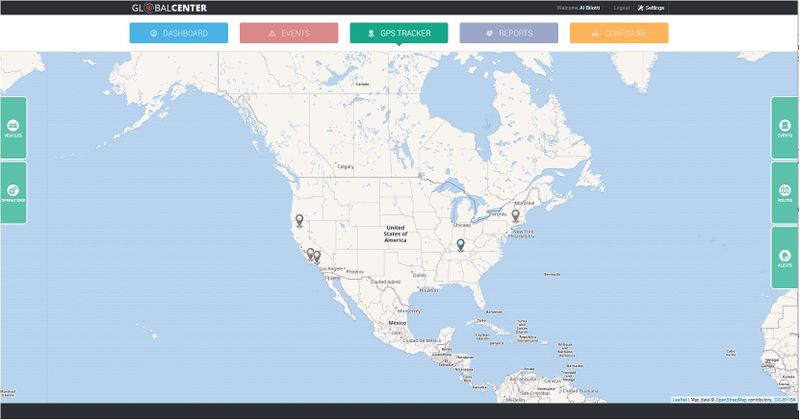

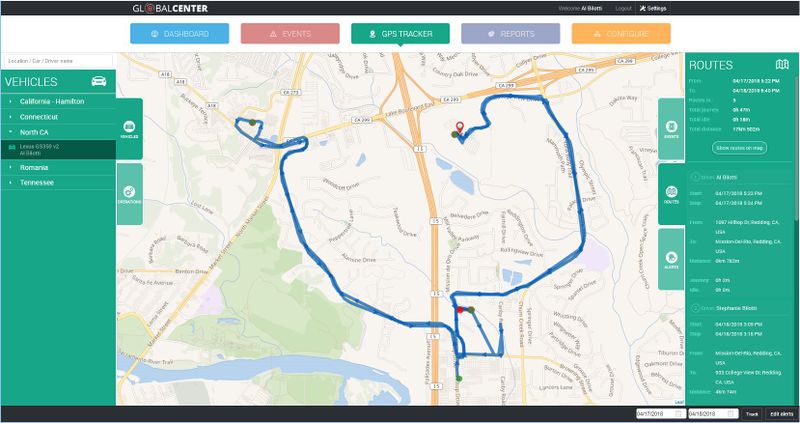

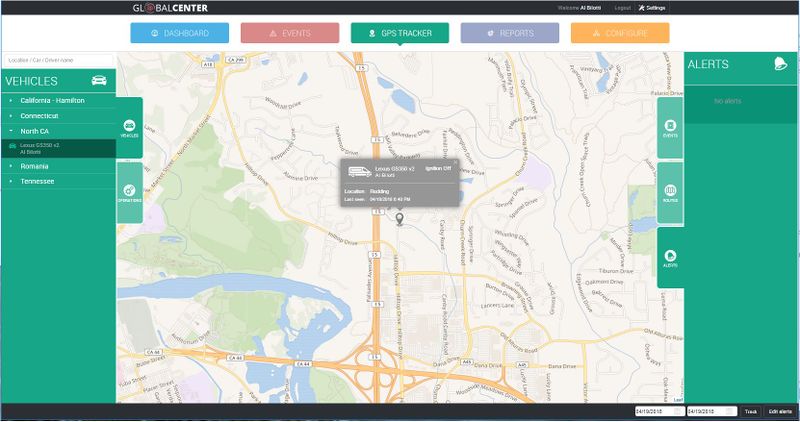

GPS Tracker

• Subscription Service
  • Requires Idrive GSM (Ground Station Cellular Module)
  • Live tracking up to 2 minute intervals
  • Live Look-In (20 Look Ins per month/per vehicle;5 seconds each)

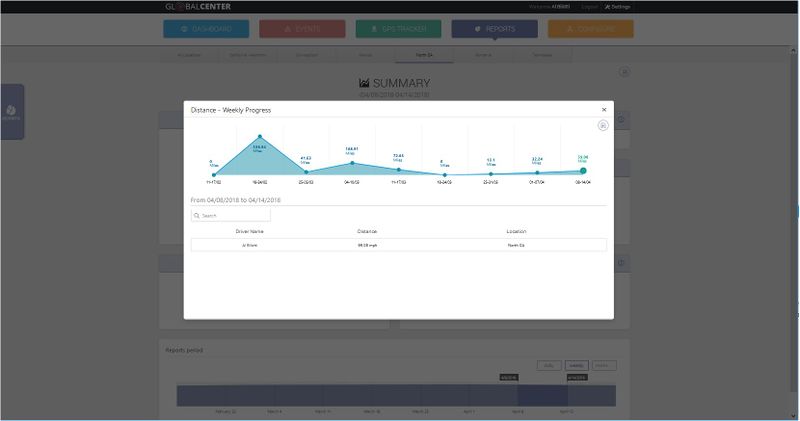

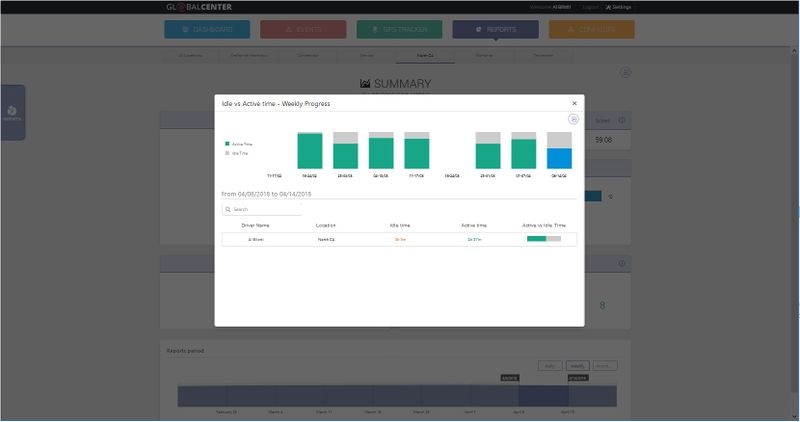

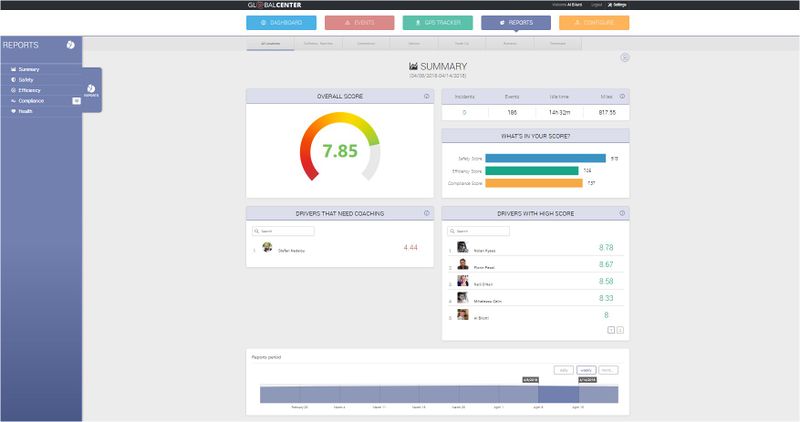

Reports

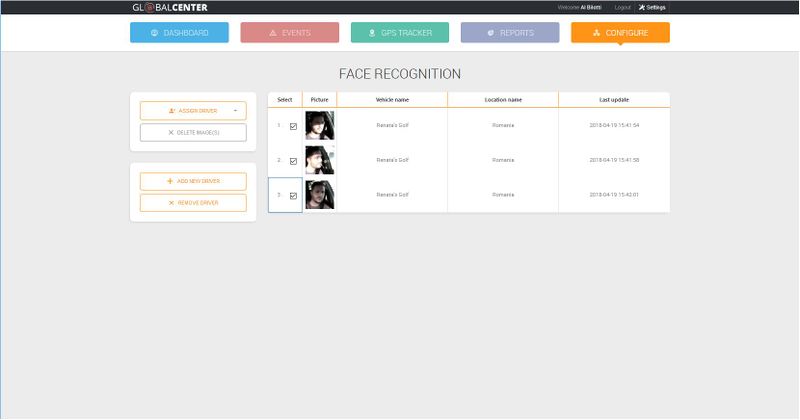

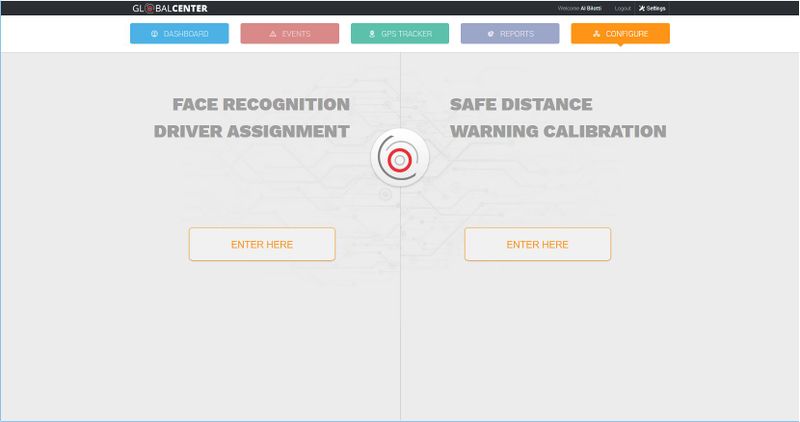

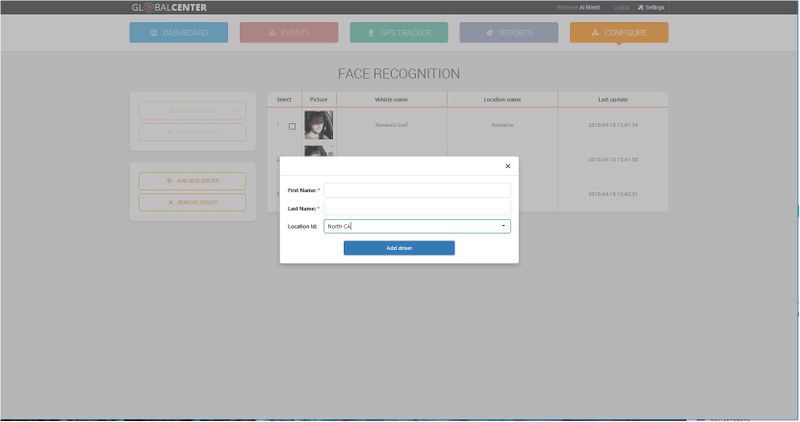

Configure
