AI Device Manufacturing and Programming

FINAL TEST (VIA FACTORY TOOL)

Open Factory Tool  Factory - New devices – Auto  Event Test – Transfer and Play (event test window will open – see at point 7)

Connect 5 assembled AI cameras to Switch boxes power supplies (Power and Ignition are OFF).

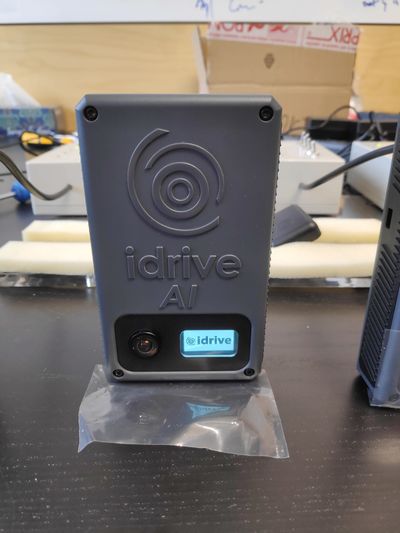

Switch Power and Ignition ON  AI cameras will start to boot (Idrive logo will be displayed).

In this phase, AI cameras connect to GPS and to network (2G/3G/4G). The operator must pay attention to the cameras screens to assure that connections are available, and that all the icons are displayed and there is no error code – See picture below.

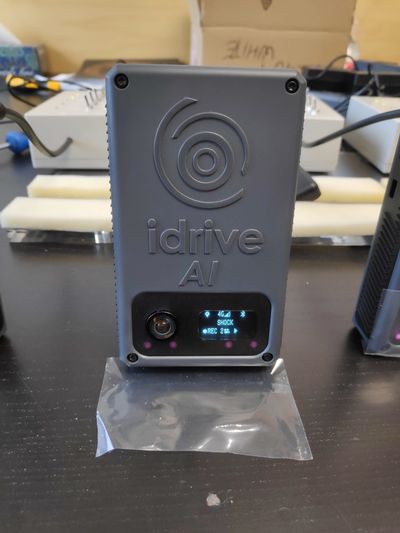

Trigger a SHOCK event by pulling (shaking) each AI camera backward and forward (once or twice) Message SHOCK will be displayed on the screen, moment when the camera starts recording the event.

After triggering and recording the SHOCK event (display gets back to normal), Switch Ignition OFF for AI cameras.

In this phase, AI cameras connect to Wi-Fi and start transferring. A text with IGNITION OFF followed by CLOSING TRIGGERS, by CONNECTING WIFI and by TRANSFERING along with specific icons, will be displayed on the screen.

In the event test window, click on Play for each of the AI camera in the Play events area  the record of the SHOCK event will be played.

Verify the focus of both lenses (image clarity). If the image is clear, lens focus was done properly. If not, the camera must be put aside. Check also if GPS route was recorded.

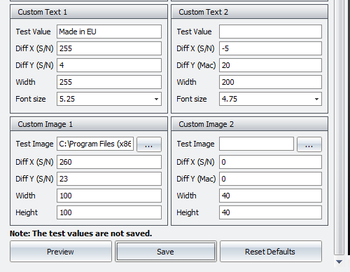

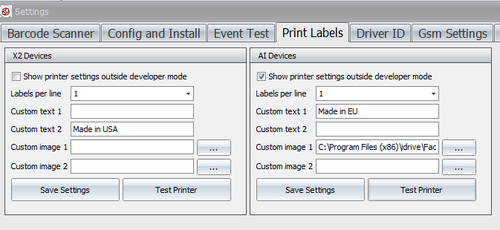

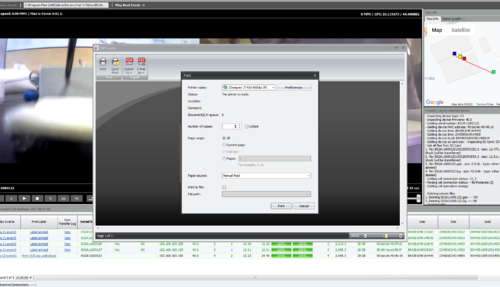

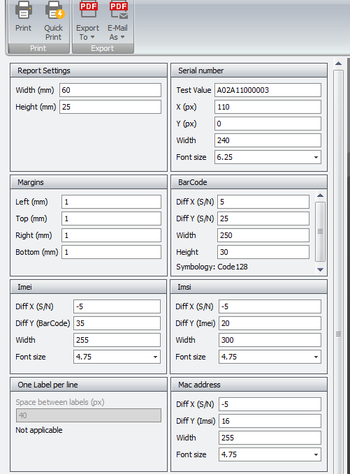

If lens focus OK and GPS route recorded  Click on Label Printed – Print and print 2 labels. Close the window.

There will be displayed 2 messages: one for label print confirmation and one for beep confirmation. If label was not printed, click NO and try again to reprint the label. Camera starts to beep only if label printed was confirmed. Once label print and beep confirmed, serial number text row turnes green. If there is no beep, it means that the camera has a problem with the speaker.

Camera will shut down automatically (SHUTTING DOWN message will be displayed)  Switch Power OFF and Unplug the camera.

Apply one label on the bottom of the AI camera and one on the right side of the Final box.

Put the AI camera into the Final box.

Radu Notes

The AI programmer is mandatory only one time when the board comes from China with the default chinese AOSP. Once the AOSP is overwritten with our AOSP, the programmer becomes optional.

You need a micro usb cable in order to connect camera to a computer usb port, a power source for AI camera and a computer with Windows 10 (preferable).

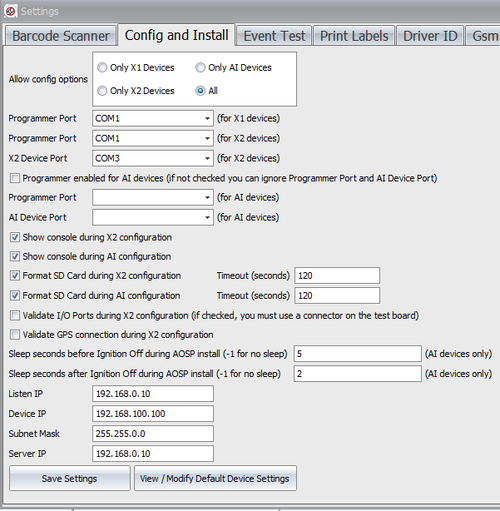

Factory Tool Installation

Install Factory Tool

Download and install the latest Factory Tool from Admin Center

Firmware

Firmware folder is auto-populated by the Factory Tool installer and should have the following structure:

- firmware.apk represents the current firmware version (40.0.55)

- updater.apk is a background application taking care about firmware and aosp upgrades / firmware crashes / background staffs. The current version is 1.0

- idrive_root is the place where we keep different files (neural networks, settings, etc)

- firmware.apk should be replaced every time when a new stable firmware is released. For example, if you have a new update.apk file, you can rename this file and copy it over firmware.apk. You have also to copy the same file over idrive_root/recovery.apk file

- The same mechanism should be used if we will upgrade updater.apk. That apk should also be copied over idrive_root/recovery_updater_app.apk.

- Any file from idrive_root folder is replaceable. In the future we can add / remove / replace any file from idrive_root
