Idrive Factory Tool Documentation

Launch the Idrive Factory Tools 3.4.x Application

Factory tool icon.png Double click the icon on the Desktop to open the application



Ft main menu.jpg



Configure Application Settings for the Programming Station

Click on Settings Ft settings button.jpg

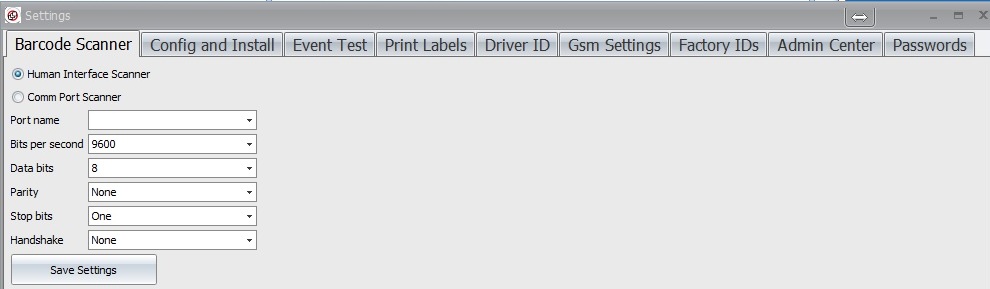

Ft barcode settings.jpg

Set the port number for the Barcode scanner. (Normally Human Interface Scanner)

(Port number can be checked in "Control Panel> System and Settings> Administrative Tools> Computer Management> Device Manager> Ports)

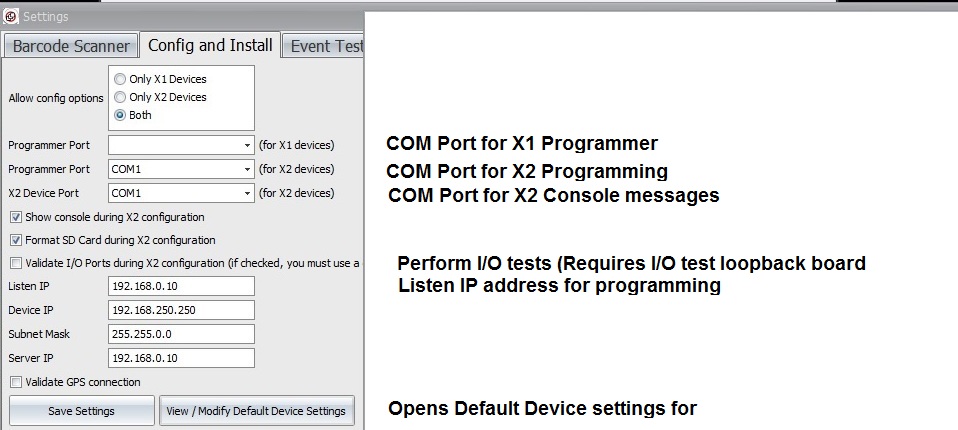

Ft config settings.jpg

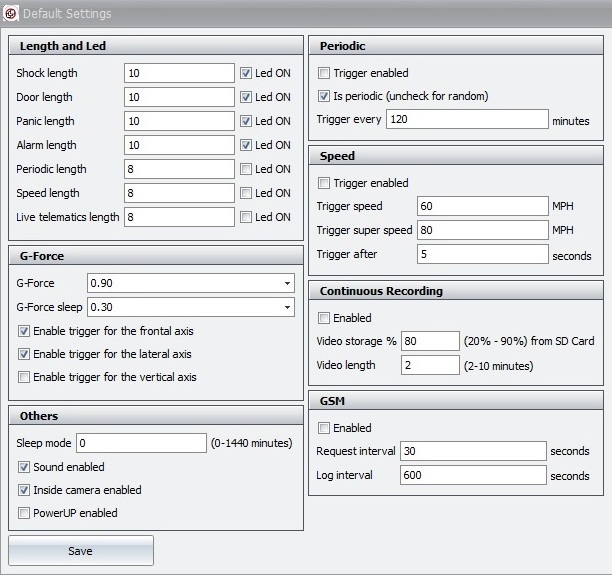

Ft default device settings.jpg

(Port numbers can be checked in "Control Panel> System and Settings> Administrative Tools> Computer Management> Device Manager> Ports)

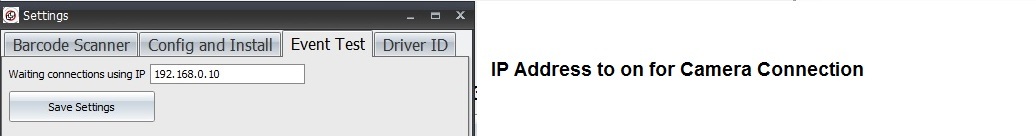

Ft event settings.jpg

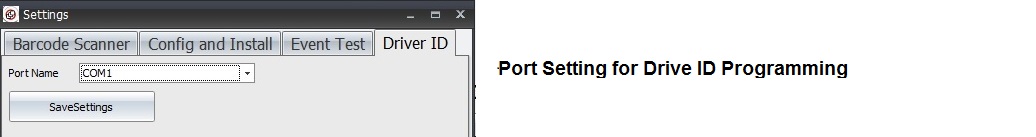

Ft driverid settings.jpg

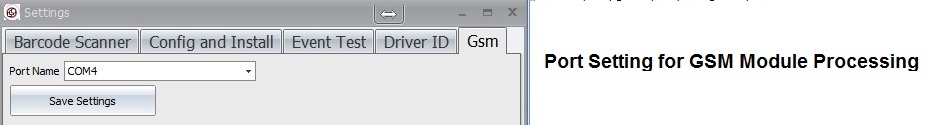

Ft gsm settings.jpg

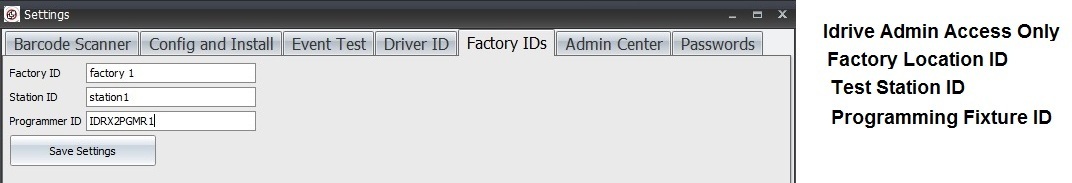

Ft factoryid settings.jpg

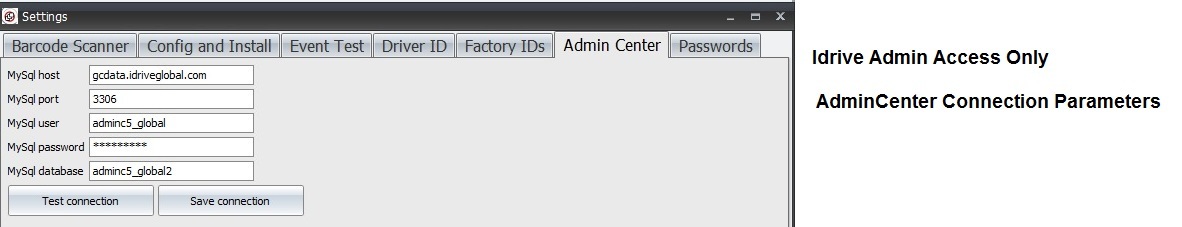

Ft admincenter settings.jpg



Ft passwords settings.jpg
