Necessities

What you will need:

New D8 unit w/ accessory kit
New SSD
Power Supply
Power & Ground banana plugs to 8 pin power cable
A input/output medium, i.e.
- Remote control + 6 pin to RCA cable with RCA to USB adapter for viewing on Amcap software (yellow is video)
- Remote control + D8 monitor
- D8 Touch Screen monitor

NOTE: the 6 pin video out is labeled "Panel" on the D8

The D8 will turn on with the power supply, there is no intermediate power switch (contrary to the D4 DVRs).

Login

Admin Account

User Names are case sensitive

Default user name admin

Default password 123

After Config:

user name admin

password IdrD8

Not yet implemented

Change admin to: IDRIVE Need to verify when we receive another D8. I do not want to lock us out of the only one we have.

Password: IdrD8 Is this OK?

Guest Account

The Guest account limits Menu Access to Playback and Volume only

Default "Guest User name : guest

Default Guest Password: 321

Change Guest to: bnsf

Password: 249805 (SB street address and area code)

Routine Setup

Document Serial Number

There is a sticker on the bottom of the unit with DV424 in large font and a bar code. Record the serial number as 424 followed by the number under the bar code. I.e. 4241730 would be conventional in the below example.

Install Batteries in Remote Control

Install and Format Hard Drive

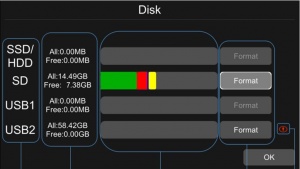

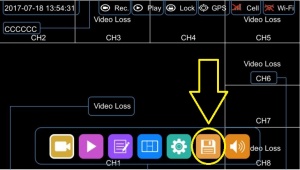

Click on the Floppy Disk Icon on main display

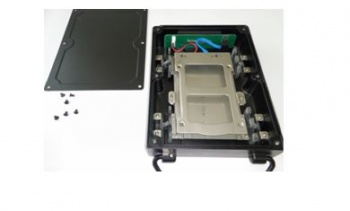

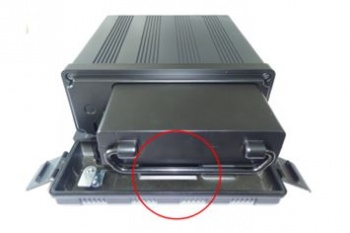

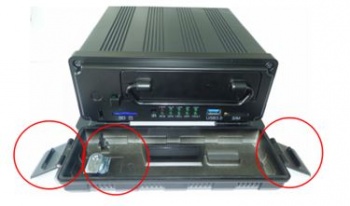

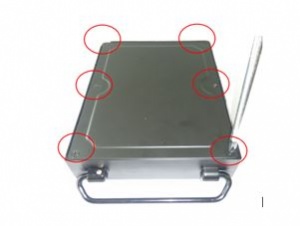

Hard Disk Installation Detail

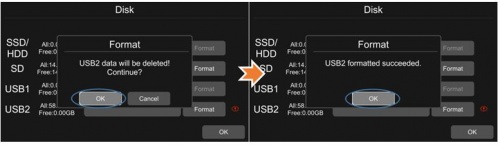

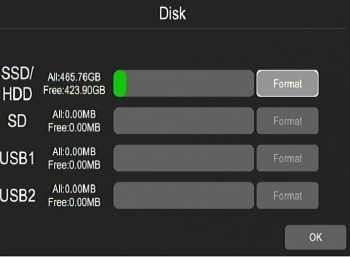

Format Hard Disk Detail

Wait for a format successful message. (this should take approximately 5 minutes for a 500GB hard drive)

Upgrade Firmware and Verify

Get current version from AC

Upgrade Firmware

Verify Version

Install Config File for vehicle type (Handler or Crane)

Config Detail

Stonkam BNSF Crane Config File

Stonkam BNSF Loader Config File

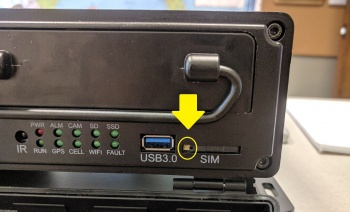

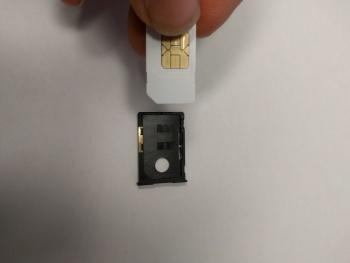

Install SIM Card Installation

SIM Card Installation

Set device/vehicle specific settings (tag device with vehicle number) (document on traveler)

License No. (vehicle name)

Device No. (DVR Serial number) (EX: 4241730)

Time Zone – verify time correct for that zone

Anything else specific to this one device?

Save Configuration to hard drive

If saved to the hard disk the disk might get moved to a different vehicle.

Add an SD card to the system for this purpose? - SD Cards will not format at this time

Rename the config file so it does not get deleted if imported

Labels

Idrive Sticker In/On security Box (Advertising)

Label on top of DVR showing (So Installer and Customer can identify the device for support)

Vehicle Name

DVR S/N – (424)and the 4 digits on the unit example: 4241730

SIM S/N

Download (template requires Zebra Designer software to open)

Remove Film from Door Window

There is a protective film on the front door to protect the plastic

Mount DVR into the Security case for shipping

Mount in Security case for shipment

Pack DVR For shipping

Place 44Pin Cam Cable, Power cable, GPS/3G Antenna, Remote, DVR Keys, Security Box Keys in a box

Label the outside of the box with the vehicle name

Enter DVR into Admin Center

Set Warranty Date

Document SIM Number

Assign (name) SIM In Podsystems (Activate when and by who?)

Kit the other items for the vehicle (Cameras, Cables)

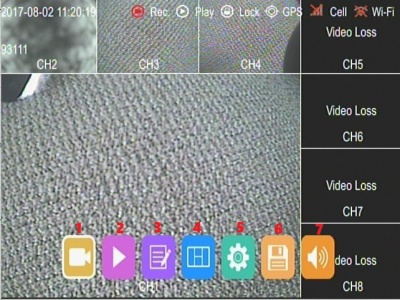

Main Menu

The Main Menu is Displayed by pressing Menu on the remote. If using a touch screen touch the bottom half of the screen. Entering any of these menus will stop the device from recording.

1)**Manually Control - Record, Play, Stop, FF, RW

2)**Playback - Search by date & Time

3)**Logs - System & Export Logs

4)*Display Mode - Switch Grid view from Channels 1-4, 5-8 or 1-8

5)**Configuration Settings - Record,Display, Network & System settings

6)**Storage - Manage SSD, SD, USB

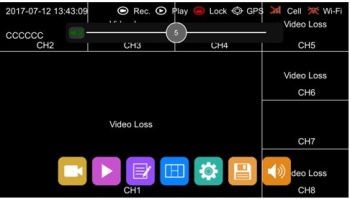

7)**Volume - Playback Volume

Manually Control

Playback

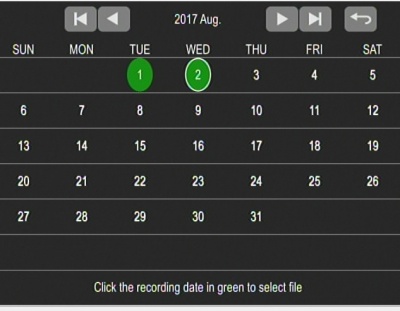

A date marked in green indicates that there were videos recorded that day.

Click the day to view the list of enter the video files for that date

Choose the desired video and press the Play button.

You can play single or multiple videos

Multiple videos can be played in sequence and can shift into the next or the previous one.

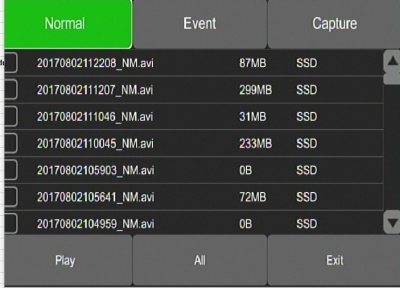

Select and Play Videos

Normal

Event

Capture

Play

All

Exit

AL, I think "Capture" can be used to save the video to USB Stick. Might become more practical than swapping the hard drives. I have not tested this.

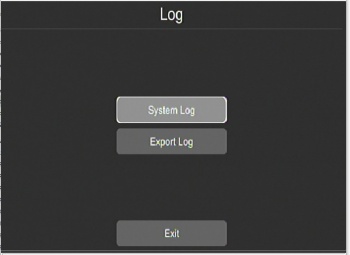

Logs

Used to keep a log of events in the system

Navigate to Menu->Setup->Log

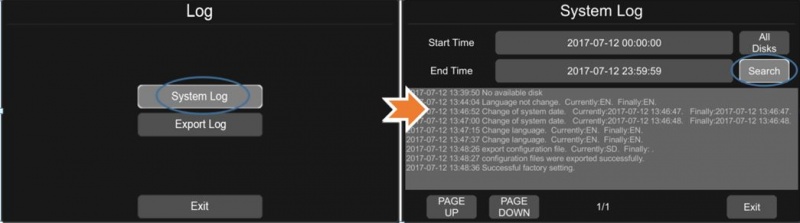

System Log

Feature allows you to search the Systems Log of events on the machine

Video Loss not shown in Syslog? Also no "Fault" light

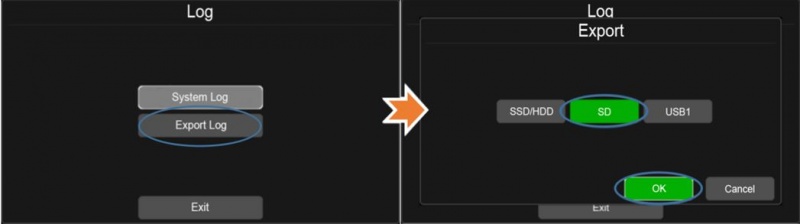

Export Log

Use this feature to export the system log.
Log can be exported to SSD, SD, USB

Configuration Settings

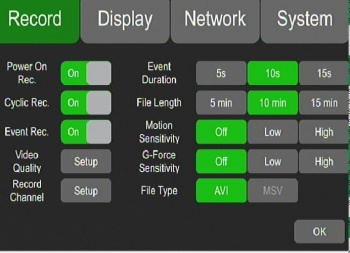

Record

Power On Rec ON

Cyclic Rec. - Overwrite? ON

Event Rec. OFF

*Video Quality - Settings for Main Stream, Sub Stream, JPG

*Record Channel - turn on/off recording for each channel

Event Duration - 15 Seconds

File Length - 15 Minutes

Motion Sensitivity - OFF

G-Force Sensitivity - OFF

File Type - AVI

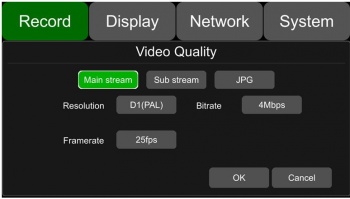

Video Quality

Main Stream

Resolution: D1(NTSC)

Bit Rate: 2Mbps

Frame Rate: 20fps

Sub Stream

File:Stkm video quality Substream.jpg

Resolution: CIF(NTSC)

Bit Rate: 64Kbps

Frame Rate: 20fps

JPG

File:Stkm video quality jpg.jpg

Frame Rate: LOW

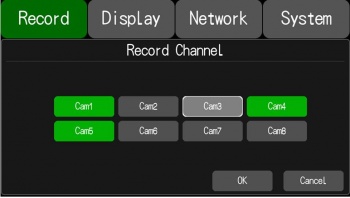

Record Channel

Green means channel is enabled to record.

Loaders use channels 1,2,3,4

Cranes use channels 1,2,3,4,5,6,7,8

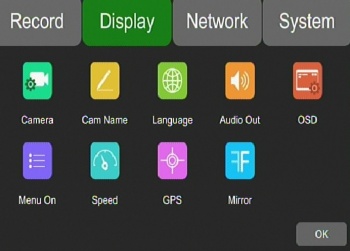

Display

*Camera - Brightness, Contrast Etc for each Camera

*Cam Name - Name of Channel on Display

*Language - Set system Language

*Audio Out - Select Channel Audio to listen to

*Camera - Brightness, Contrast Etc for each Camera

*OSD - On Screen Display Information

*Menu On - How lon Menu is Displayed before logout

*Speed - Speed Settings

*GPS - GPS Location Information

*Mirror - Mirror the Camera Image

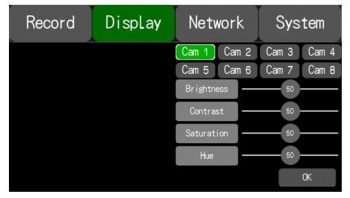

Camera

Individual Camera settings:

Brightness

Contrast

Saturation

Hue

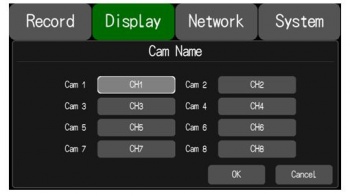

Cam Name

Each camera has its own channel with its own "channel name".

Navigate to the display tab by hitting Menu->Setup->Display

Choose which camera name you would like to change by selecting its associated channel name. (8 letters max)

Loader Cam Names

CH1 - suggest: CAB

CH2 - suggest: R-Front

CH3 - suggest: L-Front

CH4 - suggest: Rear

Crane Cam Names

CH1 - suggest: CAB

CH2 - suggest: L-Front

CH3 - suggest: R-Front

CH4 - suggest: Far-Side

CH5 - CH8 - suggest: ?????? Need names for these

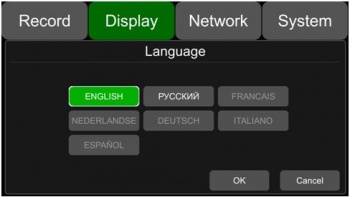

Language

To edit the language of the device access Menu->Setup->Display->Language

Select which language you want from the buttons presented. Languages available are English, French, German, Russian, Japanese, Italian, Austrian

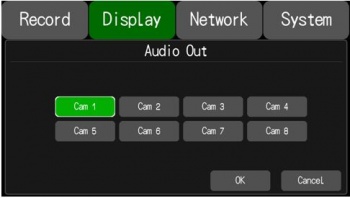

Audio Out

This setting edits the output for the audio channel in split mode

Navigate to this setting by selecting Menu->Setup->Display->Audio Out

Select which camera's audio you would like to output.

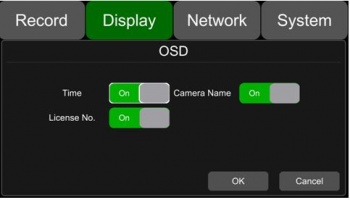

OSD

OSD controls what information gets overlayed on the video of each camera.

Navigate to this setting by selecting Menu->Setup->Display->OSD

Time - ON

License - ON

Camera Names - ON

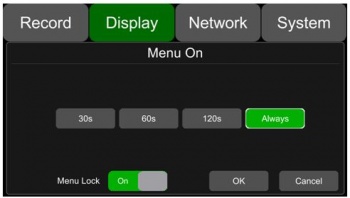

Menu On

Sets the duration of time the menu will display on the screen.

Navigate to this setting by selecting Menu->Setup->Display->Menu On

Settings: 30, 60, 120 seconds, or always on. ::*Time - 60 Seconds

The menu lock setting will lock the menu to be password protected.

A password is needed to change this setting

Menu Lock - ON

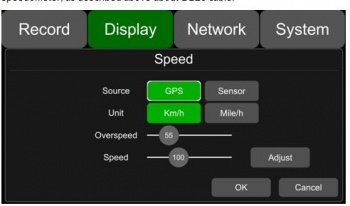

Speed

Allows you to change the source of the displayed speed to either the GPS or the vehicle speedometer as well as the units of speed to be either kph or mph

Navigate to this setting by selecting Menu->Setup->Display->Speed

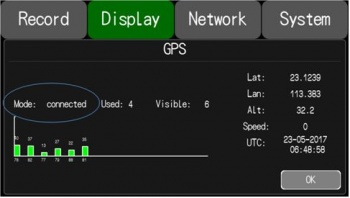

GPS

Displays information of latitude/longitude, detectable satellites, connected satellites, speed, and time

Navigate to this setting by selecting Menu->Setup->Display->GPS

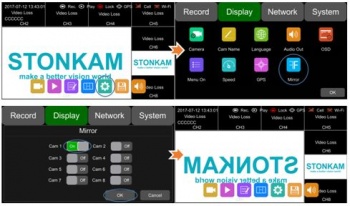

Mirror

Mirrors the video output on the selected camera. Configurable to each camera

Navigate to this setting by selecting Menu->Setup->Display->Mirror

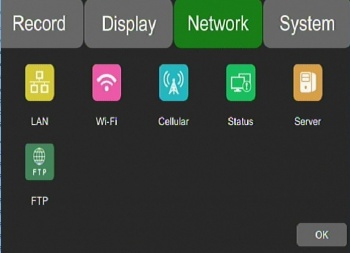

Network

*Lan - Lan Settings

*Wifi - Wifi Settings

*Cellular - Cellular Settings

*Status - Networks Status

*Server - Server Settings

*FTP - FTP Settings

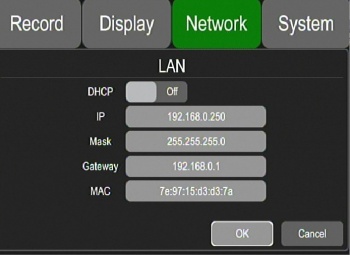

LAN

Defaults:

IP Address 192.168.100.188 set to 192.168.0.250

Mask 255.255.255.0

Gateway 192.168.100.1 set to 192.168.0.1

MAC Add: 7e:97:15:xx:xx:xx

Notes:

I can ping it but not login. There does not appear to be any access from the network only connectivity with a local server

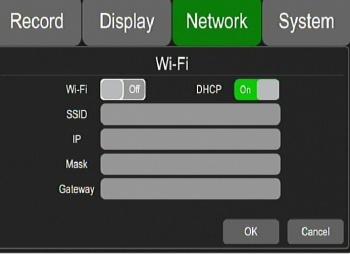

WiFi

N/A - Optional

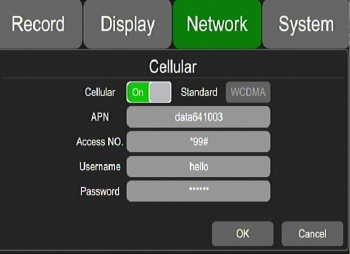

Cellular

Help, this is not working!!!

Default Port is 9090, What do we need for LTI?

I set the port 6608 to test with newdvr.idriv...

Cellular - ON

Standard - WCDMA

APN - data641003

Access No. - *99#

User Name - BLANK

Password - Blank

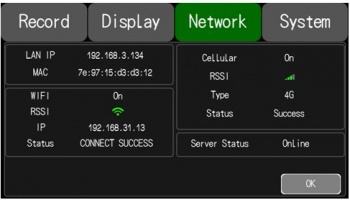

Status

Displays information on:

Lan IP address

MAC Address

3G/4G Network Status

3G/4G Signal Strength

Wifi Network Status

Wifi IP Address

Wifi Signal Strength

Server Status

Network Connectivity

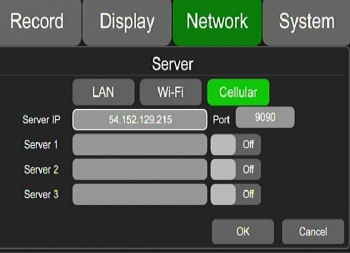

Server

I need the server settings for LTI!!!

Note: Server IP will not take a name, it needs an IP address

From Stonkam 8/11/17: "Good idea, we will add DNS function soon"

Server IP: HELP!

Port: HELP!

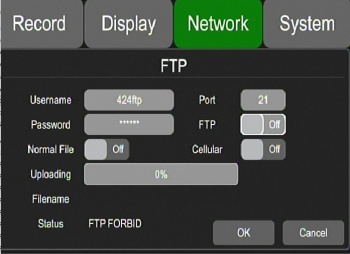

FTP

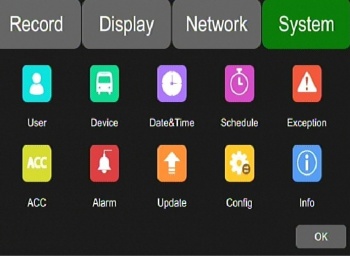

System

*User - User Password

*Device - Vehicle, Device, Path information

*Date & Time -

*Schedule - Timed Recording

*Exception - Buzzer On/Off and duration

*Acc -

*Alarm -

*Update -

*Config -

*Info -

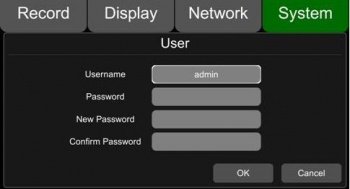

User

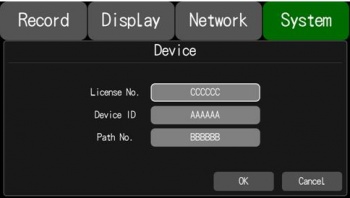

Device

Which gets set for alerts? License or Vehicle?

License No. - Default:(AAAAAA) Set to Vehicle Name

Device ID - Default:(BBBBBB) Set to Device Serial number? Example 4241730

Path No. - Default (CCCCCC) What is this?

From Stonkam 8/11/17 "it is a feature reserved for adding bus number in the future if the customer needs"

Date & Time

Set for customer location

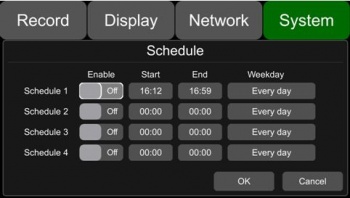

Schedule

Used to schedule up to 4 recording tasks.

Recording settings include a start & end time as well as day of the week to record.

Note: Recordings are permitted to overlap

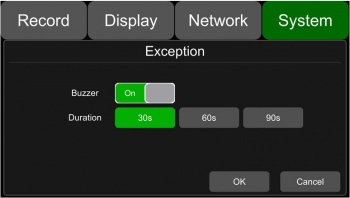

Exception

Settings to configure a buzzer when certain errors occur.

Example: Buzzer when camera becomes disconnected

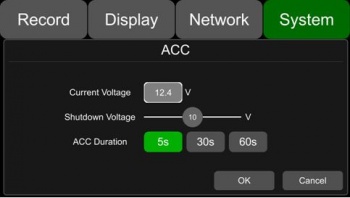

ACC

Displays:

Current voltage of the DVR

Shutdown voltage- If voltage < shutdown voltage then dvr shuts down, powers back on only when voltage exceeds shutdown voltage

ACC Delay- Continued recording after ACC is disconnected. Options are 5,30,60 seconds

Note for ACC Delay the manual states that options are 5,10,15 seconds so there is conflict on which is true

Alarm

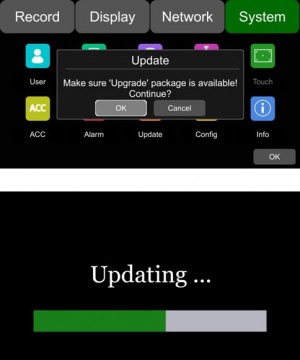

Update

Update of Firmware removes all configuration settings!!!

From Stonkam 8/11/17 " Because the firmware is not totally settled for now and we will upgrade it sometimes according to your specifc needs, so it will modify the configuration file when ungrading. after the firmware is sort of settled, it can keep the customer's setting while upgrading. May also cause the D8 to beep uncontrollably until the config is loaded."

Process takes ~ 3 Minutes

Ensure you are using the latest FW version (Stonkam Firmware 20170807)

Eric's note: USB would not mount unless first formatted in the D8. Windows will see the D8 formatting as something it needs to "scan and fix". Do not "fix" this.

Copy the firmware to USB stick or SD card root directory.

Insert the USB Stick into the DVR.

Either:

Reboot the DVR or

Navigate to Menu -> Setup -> System -> Update> Hit OK

Wait for Update Success!

Verify that the update was successful by Menu -> Setup -> System -> Info

Compare the current version to the desired version.

Upgrade Notes

Currently, the upgrade package is deleted from the USB stick after the upgrade process is finished. To prevent having to recopy the firmware to the USB stick rename the file.

Example of Firmware Name: “dv424_upgrade_2017xxxxxxxx”

Change Name to : “dv424_upgrade_never_rename”

Step 2：Copy the package to USB disk or SD card root directory, and insert it to DVR.

Step 3：Power off the DVR and reboot it, then it will auto upgrade. Or in the menu Menu -> System -> Update, click OK to confirm to upgrade. Both method can start the upgrade process.

Eric's note: rebooting the DVR with a "never_rename" firmware file inserted will cause the system to loop

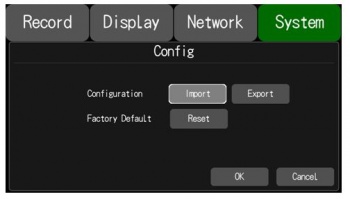

Config

Import

Insert the USB with the appropriate configuration file sv_xml.xml in its root directory

Eric's note: filename must match exactly, you might have to rename if downloaded from the AC

Select the import button

Export

Select Export, Select location (SSD or USB or SD)

Saves sv_xml.xml to location

Info

File:Stkm system information.jpg

Displays system software version number

Update the picture with the current (new) version

Installed version was:

SYS Version:201705221746

MCU Version: Not shown

UID : 1705080007

Latest Version we received on 8/7/17 is:

SYS Version: 201708070904

MCU Version: 2017080215

UID : 1707270002

Storage

Filesystem Structure

Log4Gui - ASCII System Log

test_writable - system test if disk read only?

Normal Folder - location where videos are stored

20170801 Folder - separate folder for each date

Video files naming example: 20170801150248_NM_0030_0001_1920_1080_25_04194304_AAAAAA_02.avi

2017^08^01^ - Year^Month^Day

15^02^48 - Hour^Minute^Second (from start?)

_NM_0030_0001_1920_1080_25_04194304_ Figure this out

AAAAAA_02 - Vehicle_Channel

Volume

Set the playback volume via the remote. The default volume is 5.
Minimum volume: 1
Maximum volume: 10

Detailed Assembly Instructions

Hard Drive

Hard Disk Installation Detail

Step 1: Unlock the device with its key, and open the two side flaps on the front panel. Pull the front plate from the top down as shown.

Step 2: Pull the hard drive sled out by its attached ring

Step 3: Remove the six screws that hold the hard drive sled together carefully with a screwdriver. Once these screws are off the whole bottom plate should be removed.

Step 4: Remove the two screws on the silver hard drive support shelf. Once these are removed pull the top of the shelf up as illustrated.

Step 5: Slide the new hard drive into the enclosure making sure a solid connection is made with the hard drive.

Step 6: Fold the hard drive shelf back down into its resting position and secure the 4 hard drive mounting screws in place. These hard drive mounting screws come from the device's accessory pack

Step 7: Lock the hard drive shelf into place with the 2 securing screws from step 4

Step 8: Reinstall 4 Hard drive Sled screws that secure its bottom panel.

Step 9: Slide hard drive sled back into the D8 securely

Format Hard Disk Detail

Format SSD (15 seconds for 500GB)

Press the orange floppy disk icon to access the disk management settings

Select which disk you would like to format.

Note once formatted all data on this disk will be lost

Acknowledge that you would like to proceed with the format.
