ICV D8 Initial Configuration and Setup

ICARvisions D8 Initial Configuration

Configure/Document Hardware

Document Model Number, Serial number, SIM Card number

Record them where? A/C, AWS, Pod systems - need RO support for this.

Hard Drive Installation/Configuration

Install SSD in in the D8 tray ans secure with the 4 supplied screws

Format Hard drive EXT3 (Linux filesystem)

• Format the hard drive in the D8 Tools>Format (an unformatted HDD will show 0MB capacity)

or

• Format the hard drive in a Linux system (use VMware/Ubuntu)

Launch VMWare - Ubuntu

Plug hard drive into USB with adaptor

Click Player>Removable Devices>Sunplus Inovation USB to Serial-ATA Bridge and Disconnect from host

Install Batteries (not included)in the remote control

• requires 2 AAA batteries

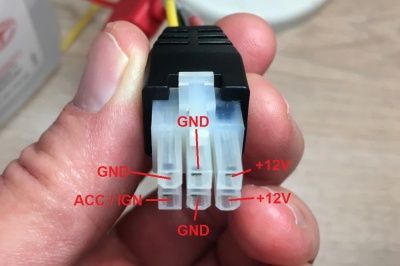

Plug in the power supply harness

Power connector's plastic is keyed the same as Easystorage(D4)as well as the VisionMaster D8 and but the pinouts are different!

Connect a monitor or Computer

Plug supplied Monitor cable into the front of the D8

Connect Monitor cable to either:

• External Monitor (Connect Yellow for video and black for monitor power)

• For Laptop connection use StarTech USB to Svideo Video adapter with AMCAP Capture software (Connect yellow video connector requires Male to Male RCA adatpter)

• plug Cat5 cable into device,Use Web browser - navigate to 192.168.0.250 ( need to verify if this is default with a new D8)

Remove Sensor Cable and other unused options

The cable will not be used by BNSF. Remove it and keep at Idrive in case needed in the future

System Configuration

Power up the device

Logging into D8 System

Note: when you login recording will stop

Press the "Login" Button on the remote.

Default login: Admin user default passwd 888888

For Configuration: User name 6 letters/numbers max

*I propose we change "Admin" user to "Idrive" with a password of "idrd8adm" . This login would be used by Idrive Support only.

I renamed the user on my system but cannot change the password!

*Create a user called BNSF for the location manager to use. This will not have full admin permissions, only what we would allow them to do what they need to. We need to identify what they need and how to set the permissions. - Mark

• View, Copy videos

• Next item

• Next item

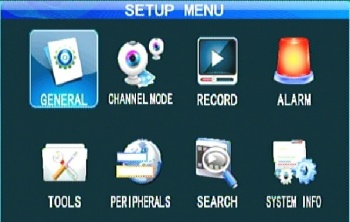

Setup Menu

The Setup Menu has 8 options

*General - Basic info for: Device, Vehicle, User, Network, Display, OCD

*Channel Mode -

*Record - Recording Settings

*Alarm - Alarm Settings

*Tools -

*Peripherals - PTZ, Cellular, Wifi setup

*Search - Search for videos by Date/Time Etc.

*System Info

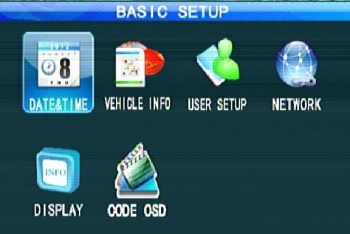

General

The Basic setup menu has 6 options

*Date & Time - Date, Time, Daylight Savings, Timezone, Power Modes Etc.

*Vehicle Info - Serial Number, Device_Number SIM- Number, Vehicle Number

*User Setup - User Management

*Network - Network and server settings

*Display - On screen display, video out settings

*Code OSD - Per channel screen/video display

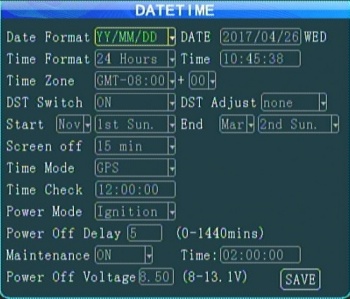

Date & Time

• Date Format

• Time Format

• Daylight Savings Settings

• Time Mode - GPS

• Power Mode - Ignition

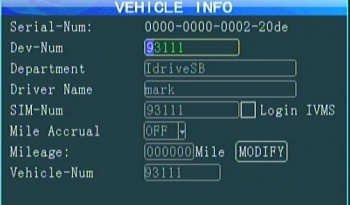

Vehicle Info

Serial number of Device (Hex so not suitable for device number) Example 0000-0000-0002-20de

• Dev-Num - must be 5 digits to integrate with server

• Department - Optional

• Driver Name - Optional

• SIM-Num - field is only 12 digits long but SIM cards are 19 digits long. - figure it out

• Login IVMS check box - must Un-Check to use SIM Card

• Mile Accrual - N/a

• Mileage - N/A

• Vehicle-Num - vehicle name. can take letters as well as numbers. Set on server?

User Setup

Add/Remove users. Only the Admin User exists in the received device.

• Setup a BNSF User.

• change "Admin" to "Idrive" and non-defaut password?

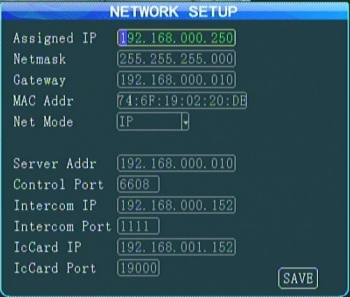

Network

For Wired Cat5 connection ONLY:

• IP Address

• Netmask

• Gateway

• MAC Address

For Wired, Wireless and Cellular connections:

• Net Mode - search for Server by IP address or DNS

• Server Address - either IP Address or DNS Ex: dvr.idriveglobal.com

• Control Port - Must match the port of the "Gateway Server"

Other Options: Intercom & IcCard - N/A

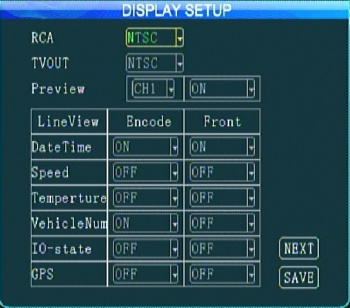

Display

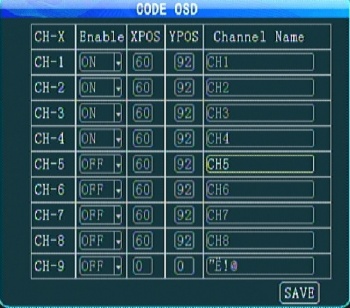

Code OSD

Controls the text shown on screen/recordings

For BNSF each vehicle type will have different settings:

*SideHandler

*Chassis Handler

*Crane

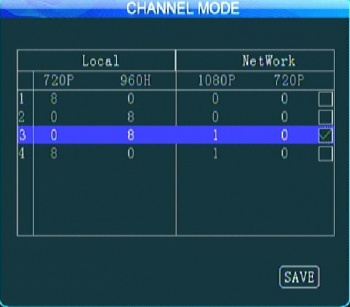

Channel Mode

Channel Mode Settings

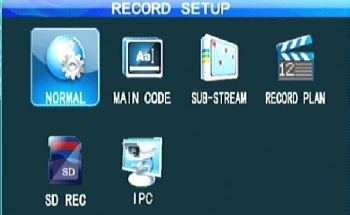

Record Settings

*Normal - Recording Basic Setup

*Main Code -Channels setup

*Sub-Stream -

*Record Plan- Timed recording schedule

*SD Rec - Set backup to SD Card?

*IPC - IP Camera Settings

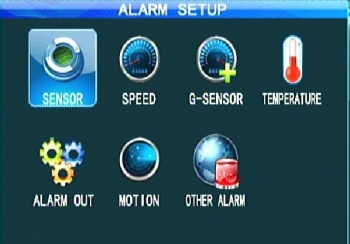

Alarm Settings

*Sensor - Configure & Assign input for wired alarms

*Speed - Configure speed alarms

*G-Sensor - Configure accelerometer alarms

*Temperature - Configure temperature alarms

*Alarm Out - Configure & Assign output for wired alarms

*Motion - Configure motion sensor alarms

*Other Alarms - Configure stationary or Fatigue alarms

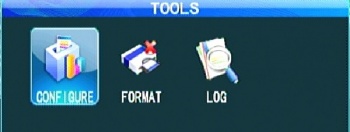

Tools Settings

*Configure - Import, Export, Default Config, Upgrade Logo

*Format - Format media

*Log Search - Search System/Alarm Logs

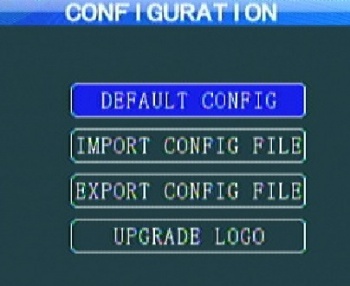

Configure

• Default Config - restore all settings to factory default

• Import Config File - Import configuration Settings

• Export Config File - Export Configuration Settings

• Upgrade Logo - Import Logo

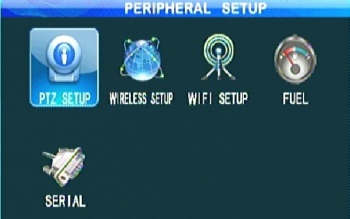

Peripherals Settings

*PTZ Setup -

*Wireless Setup - 3G/4G Setup

*Wifi Setup - Wifi Setup

*Fuel -

*Serial - Com Port setup

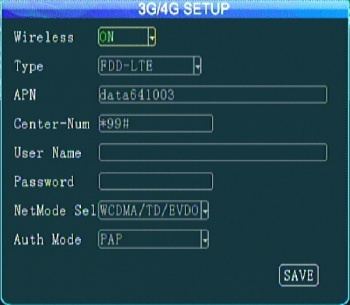

Wireless Setup

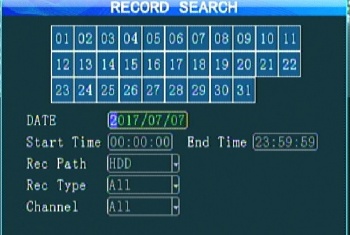

Search Settings

System Info

File:Icvd8 system info.jpg

Configure

Firmware upgrade with USB Stick

1.Device must switch off power disconnect the power source before upgrading;

2.Extract the rar file, copy the .crc file to a USB flash memory FAT32 format, insert the flash memory to the MDVR USB port.

3.Power on the MDVR(connect the power), it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Attention: Upgrade will need about 3-5 minutes. Make sure power connecting all the time during upgrading

Firmware upgrade with SD Card

1.Device must switch off power;

2.Decompress the rar file, copy the .crc file to a SD card, and insert the SD card to the MDVR SD card port.

3.Power on the MDVR, it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Note: upgrade will need about 3 minutes. Make sure power connecting all the time during upgrading.
