Configure VPN Server

Before start configure VPN server download the Configuration tool for RouterOS.

Run Winbox.exe and wait 5-10 sec. until the IP and MAC adress will apear.

A pop-up window will apear and choose "Remove Configuration" otherwise the router will create a default configuration.

First step is to create a static IP for your internet connection.

Select "Addresses" from "IP" and click the plus sign.

We used IP 10.3.0.80 which is a local IP from the main router IP Pool and we have forwarded the 1723 port.

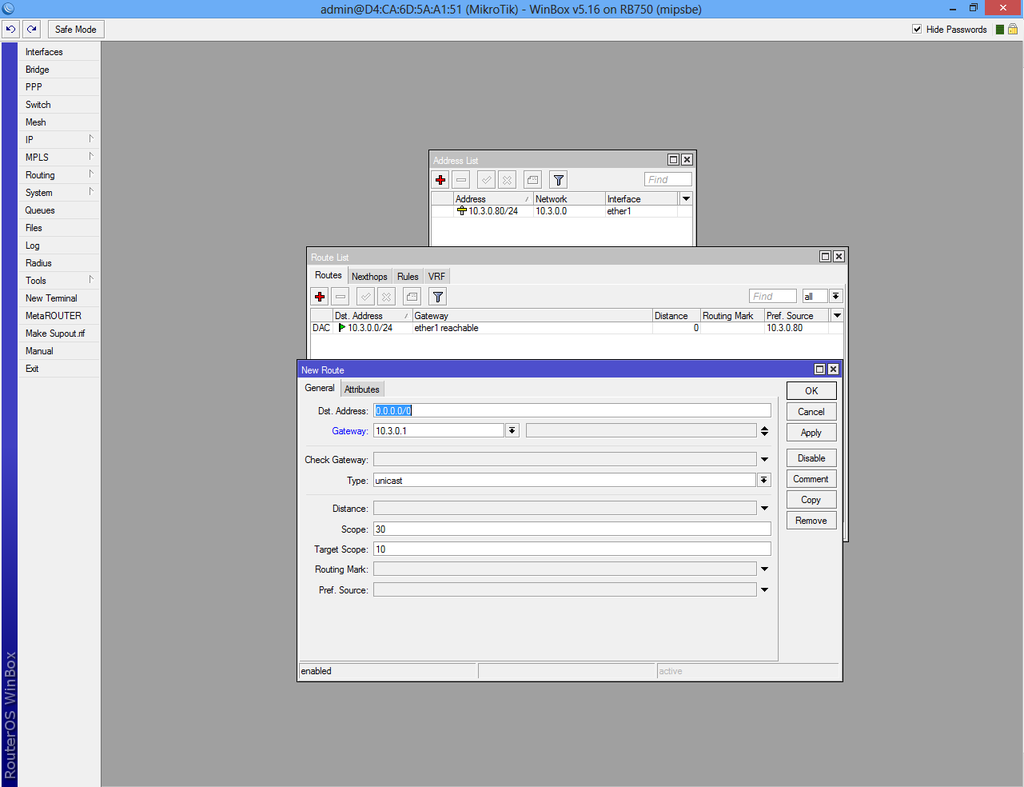

Route IP for internet access.

Add IP 0.0.0.0/0 in "Dst. Address:" box. In "Gateway" box add your ISP gateway.

Select "Bridge" from the left menu and add new bridge.

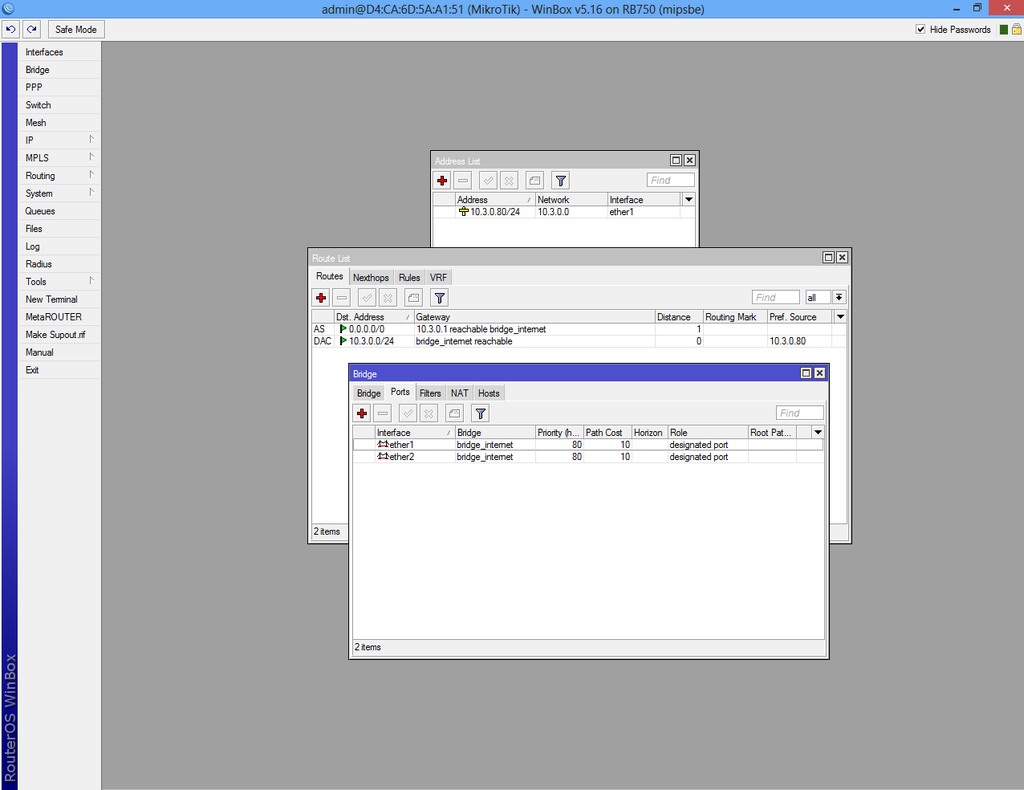

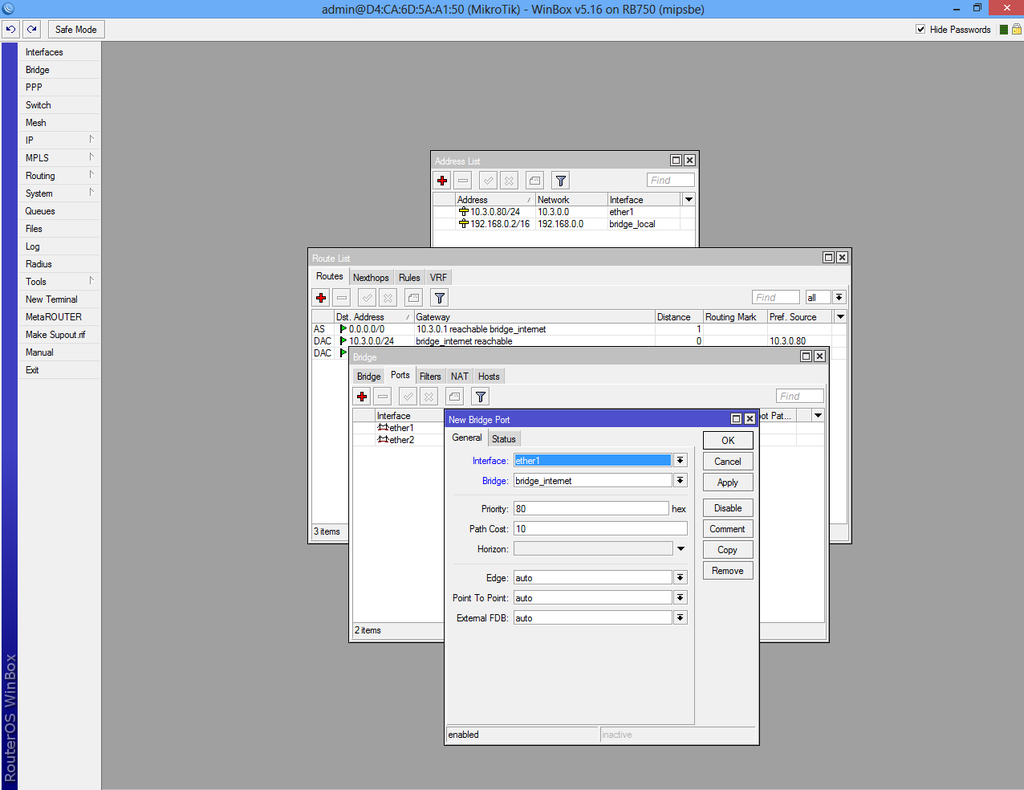

From the same interface select "Ports" tab and add interfaces ether1 and ether2 to "bridge_internet"

Now repeat the step above and create a new bridge.

Make sure the "ARP" is disabled!

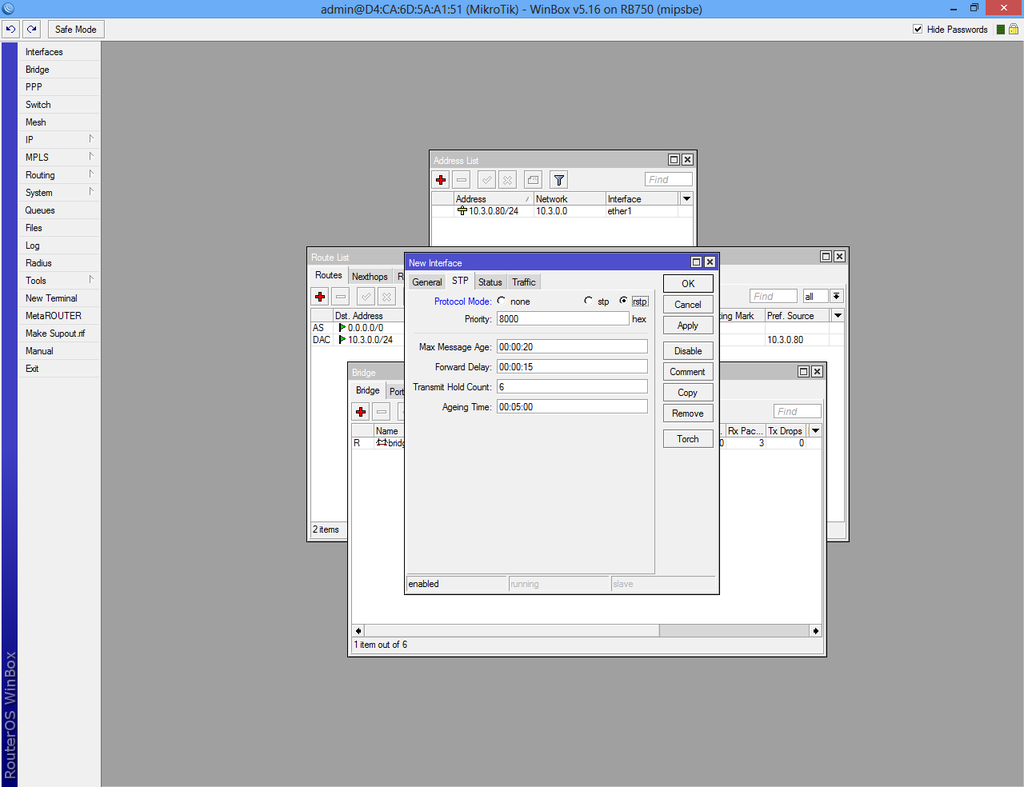

From the same interface click on "STP" tab, check "Protocol mode: rstp" and apply.

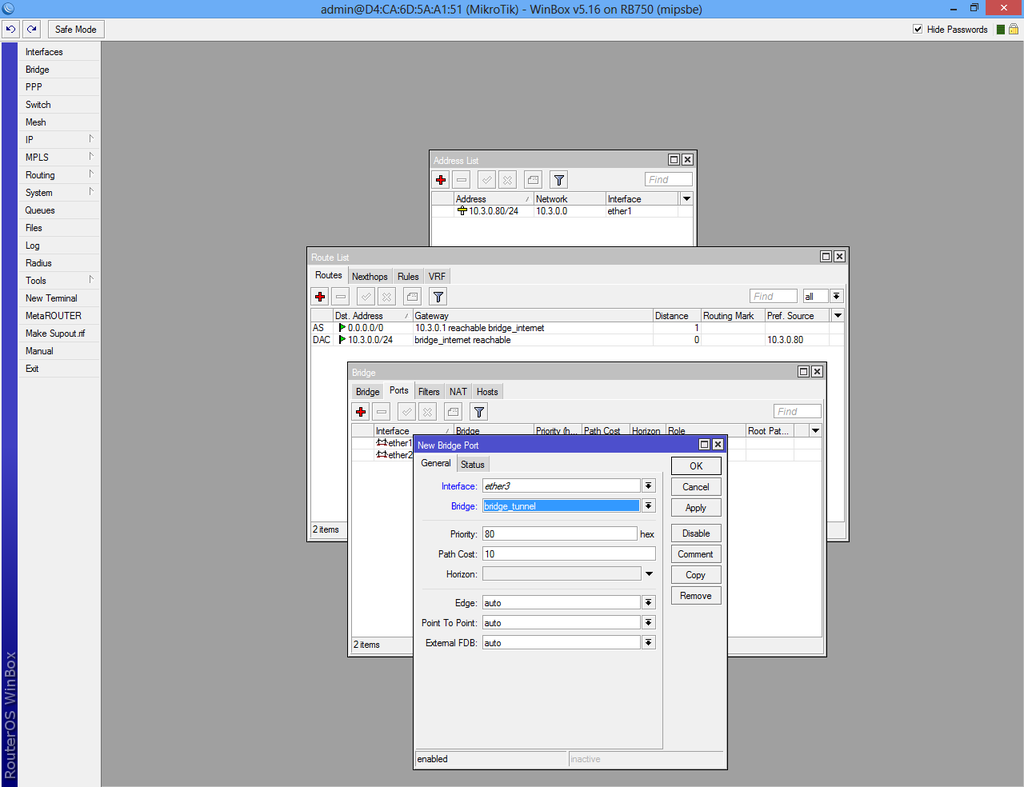

Select "Ports" tab from the "Bridge" interface and add new bridge port.

Select "ether3" and "bridge_tunnel" from the drop-down list.

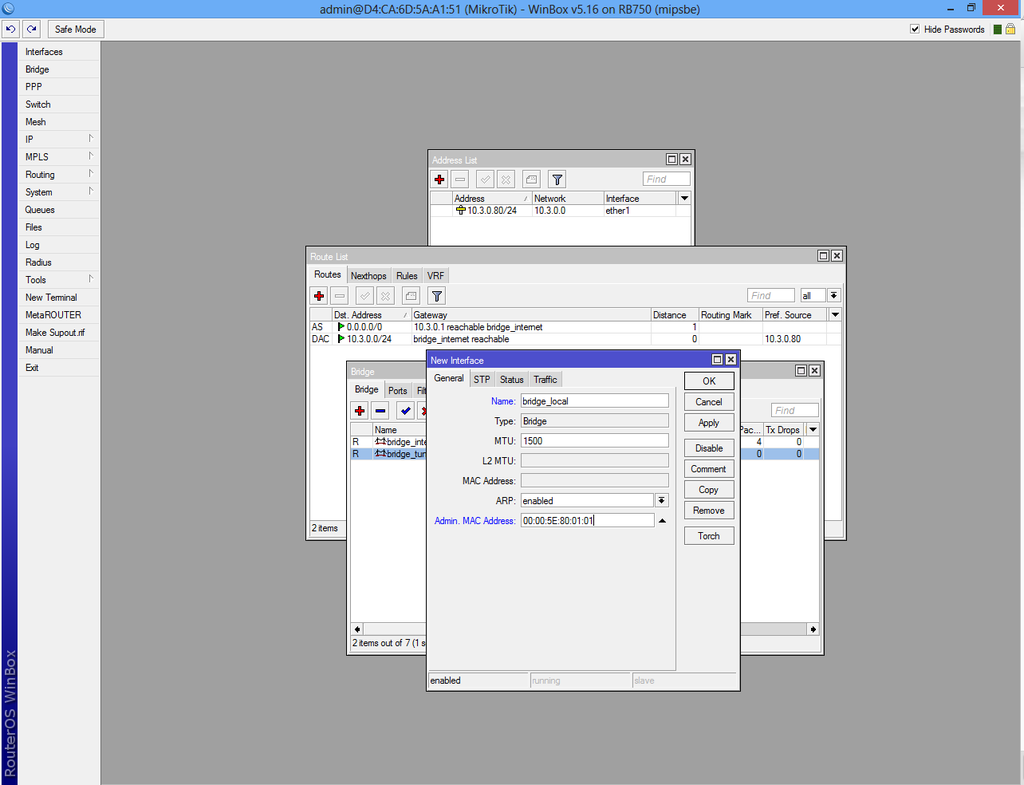

Create a third bridge, "bridge_local" with "ARP" enabled then same as above, select "STP" tab, check "Protocol mode: rstp" and apply.

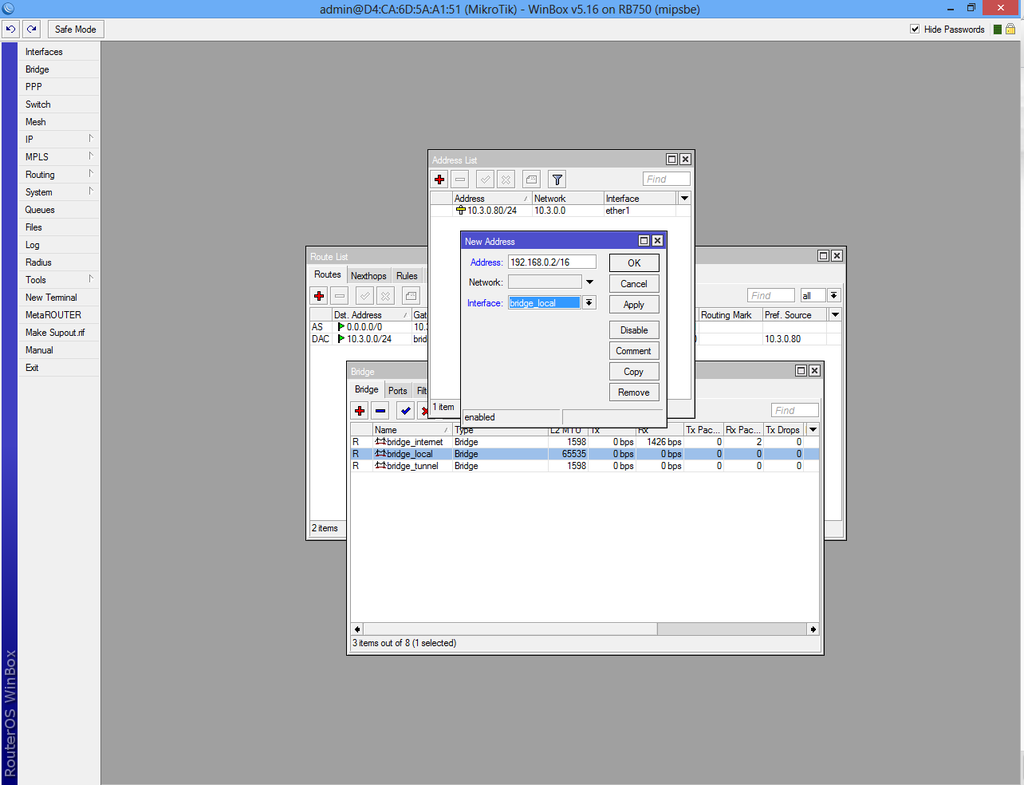

Return to the IP->Address List interface and add "192.168.0.2/16" to "bridge_local"
