New D4M (4/17/19) Initial Configuration and Setup

Idrive D4M Configuration

Record Serial Number

Serial number is located on the bottom of the D4M.

Remove D4M from the Security Box

Record Serial number

Print Label and afix to the top of the D4M

• Enter Serial Number into Admin Center.

AC> Manufacturing >D4-DVR Production Tab

Click on ADD and enter the S/N

Select Item Type IDRDVRD4HD

Install Hard Drive/SSD

Use the 4 screws in the plastic bag with the keys to secure the SSD in the carriage

Install the Hard Drive Sled into the D4M

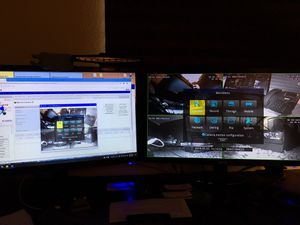

Setup the D4 for configuration

File:D4M Front.jpg

File:D4M Back Panel.jpg

• Plug in the Power Cable

• Plug in the Monitor Cable

• Plug in the Camera Cable

• Plug in a Mouse (no Remote Control with the D4M)

• Turn power supply ON

• Turn Key ON

• Select Main Menu

Click the Right Mouse Button For Options

1)*Main Menu - DVR Configuration Options

2)*SingleScreen - Display one Camera on the Monitor

3)*MultiScreen - Display all 4 cameras on the monitor

4)*UpScreen - Figure it out

5)*DownScreen - Figure it out

6)*Screen Save - Save the current screen configuration as Default

7)*PTZ

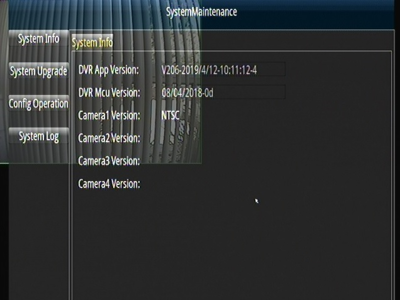

Verify Correct Firmware version

Main Menu> System> System Info

Current Release V206-2019/4/12-10:11:124

Upgrade Firmware if needed

• Obtain Latest Firmware Version from AdminCenter (if we receive one)

• Place the Firmware on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

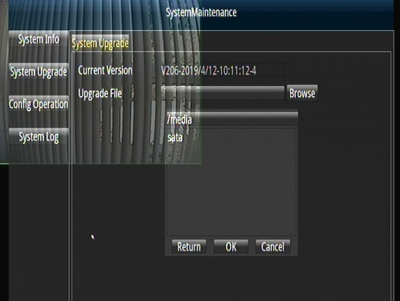

• Main Menu> System> System Upgrade> Browse and select file and click OK

File:D4M FW Update.jpg

Import Idrive Default Configuration

• Obtain Latest Config File from AdminCenter (if we receive one)

• Place the Config File on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

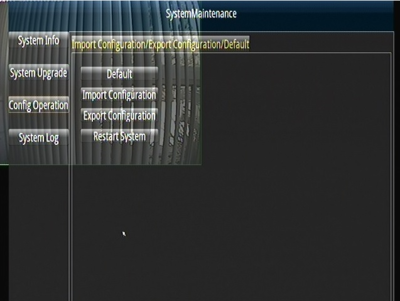

• Main Menu> System> Config Operation> Import Configuration Browse and select file and click OK

Verify Config and customize Settings

• Enter the serial number for the D4M into the “LICENSE ID” Menu> Mobile> Motor> License ID

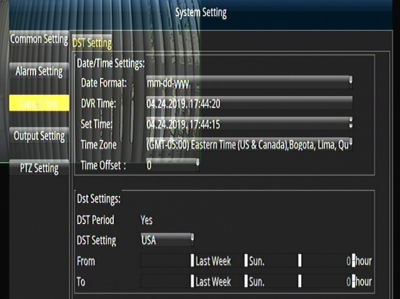

• Set the CUSTOMER's Time Zone Menu> Setting> Date/Time> Timezone

• Set the CUSTOMER's Time Menu> Setting> Date/Time> Set Time

• Set the CUSTOMER's Daylight Savings Time Menu> Setting> Dst Setting> USA

Note No need to fill in the week day or Hour. USA sets this

• Turn Key OFF

• Remove SD Card

Format the SSD / Hard Drive

• Install the hard drive carriage into the D4M

• Turn the key ON

• Format the SSD/Hard Drive Menu> Storage> Disk Info> Format

The Format Button is at the bottom but does not display in AMCAP

• Push record and verify that it can write to the hard drive.

• Push stop

• Test all camera ports with a working camera to ensure that they all work.

• Turn the Key and Power supply off.

• Box up unit with serial number on the outside of the box

Main Menu

The Main Menu is Displayed by right clicking the USB mouse .

1)**Preview - Camera Setting , Motion Setting

2)**Record - words here

3)**Storage - words here

4)**Mobile - words here

5)**Network - words here

6)**Setting - words here

7)**File - words here

8)**System - words here

Preview

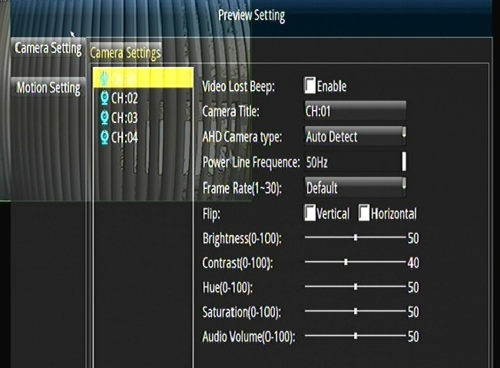

Camera Settings

Each channel set separately

1)*Video Lost Beep - Enable for beep when video is lost OFF

2)* Camera Title - DEFAULT

3)*AHD Camera Type - AUTO DETECT

4)*Power Line Frequence - ?

5)*Frame Rate - DEFAULT (30)

6)*FLIP - Mirror hoizontal or vertical OFF,OFF

7)*Brightness * DEFAULT (50)

8)*Contrast - DEFAULT (40)

9)*Hue - DEFAULT (50)

10)*Saturation - DEFAULT (50)

11)*Audio Volume - DEFAULT (50)

12)*Auto Black-and-White - At night switch to Balak and White mode OFF

13)*FrameRate Down - lower frame rate at night OFF

14)*IR LED Light - Only if supported by the camera AUTO

15)*LED Status Indicator - OFF

Copy To, Apply, Return Buttons not shown in AMCAP

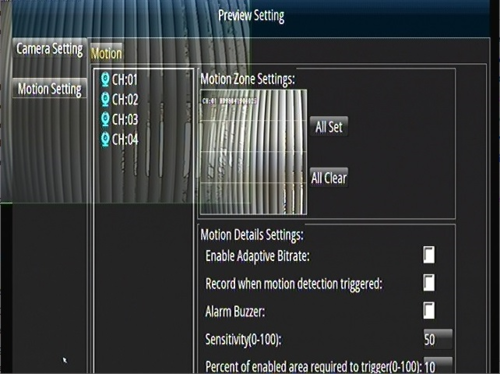

Motion Settings

Each channel set separately

1)*Motion Zone Settings All Clear

2)* Enable Adaptive Bit rate Default

3)* Record when motion detection triggered Default

4)* Alarm Buzzer Default

5)* Sensitivity(0-100) Default(50)

6)* Percent of enabled area required to trigger (0-100) Default(10)

Copy To, Apply, Return Buttons not shown in AMCAP

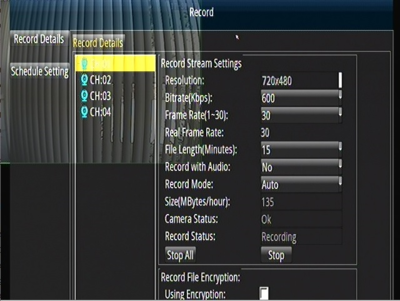

Record

1)* Resolution - DEFAULT

2)* Bitrate(Kbps) - DEFAULT

3)* Frame Rate(1-30) - DEFAULT(30)

4)* Real Frame Rate - 30

5)* File Length(Minutes) - ?

6)* Record with Audio - DEFAULT(NO)

7)* Record Mode - DEFAULT

8)* Size(MBytes/hour) - DEFAULT

9)* Camera Status - DEFAULT

10)* Record Status - DEFAULT

11)* Stop All Stop - Do not press

12)* Record File Encryption - DEFAULT(Blank)

Copy To, Apply, Return Buttons not shown in AMCAP

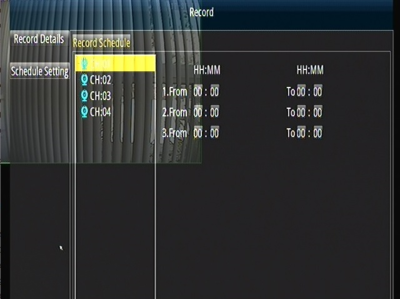

Record Schedule

1)* HH:MM HH:MM Leave this section blank - DEFAULT

Clear, Copy To, Apply, Return Buttons not shown in AMCAP

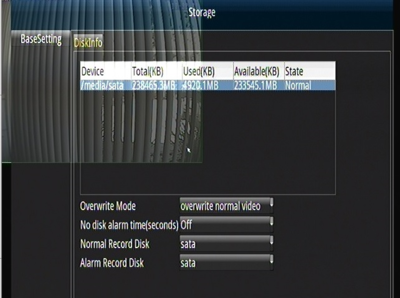

Storage

1)* Overwrite Mode - DEFAULT(Overwrite normal video)

2)* No disk alarm time(seconds)) - DEFAULT(Off)

3)* Normal Record Disk - DEFAULT(sata)

4)* Alarm Record Disk - DEFAULT(sata)

5)* Format - Use Format Only at Initialization of SSD

Format, Refresh, Apply, Return Buttons not shown in AMCAP

Mobile

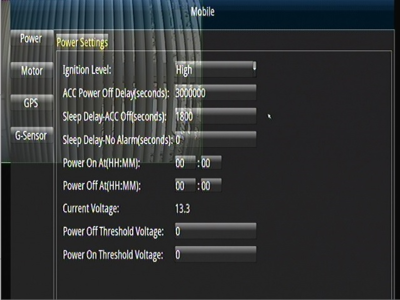

Power

1)* Ignition Level - DEFAUL(High)T

2)* ACC Power Off Delay(seconds)) - DEFAULT(30)

3)* Sleep Delay-ACC Off(seconds) - DEFAULT(60)

4)* Sleep Delay-No Alarm(seconds) - 0

5)* Power On at(HH:MM) - 00:00

6)* Power Off at (HH:MM) - 00:00

7)* Current Voltage - 13.0

8)* Power Off Threshold Voltage - 12.9

9)* Power On threshold Voltage - 13.0

Apply, Return Buttons not shown in AMCAP

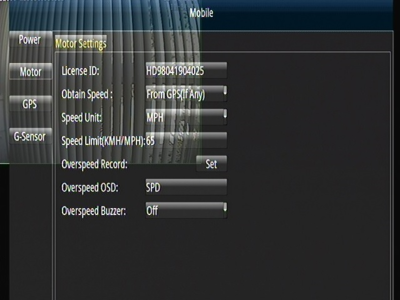

Motor

1)* Ignition Level - DEFAUL(High)T

2)* ACC Power Off Delay(seconds)) - DEFAULT(30)

3)* Sleep Delay-ACC Off(seconds) - DEFAULT(60)

4)* Sleep Delay-No Alarm(seconds) - 0

5)* Power On at(HH:MM) - 00:00

6)* Power Off at (HH:MM) - 00:00

7)* Current Voltage - 13.0

8)* Power Off Threshold Voltage - 12.9

9)* Power On threshold Voltage - 13.0

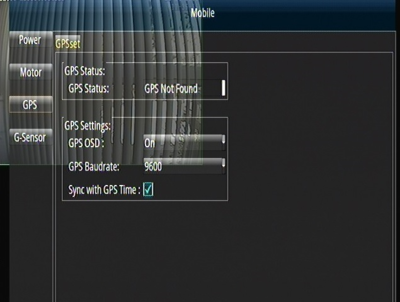

GPS

GPS

1)* Ignition Level - DEFAUL(High)T

2)* ACC Power Off Delay(seconds)) - DEFAULT(30)

3)* Sleep Delay-ACC Off(seconds) - DEFAULT(60)

4)* Sleep Delay-No Alarm(seconds) - 0

5)* Power On at(HH:MM) - 00:00

6)* Power Off at (HH:MM) - 00:00

7)* Current Voltage - 13.0

8)* Power Off Threshold Voltage - 12.9

9)* Power On threshold Voltage - 13.0

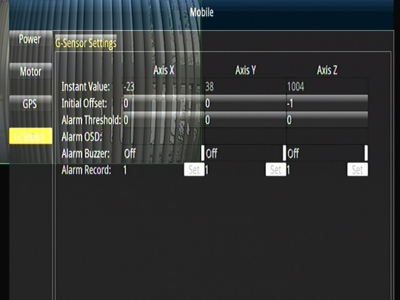

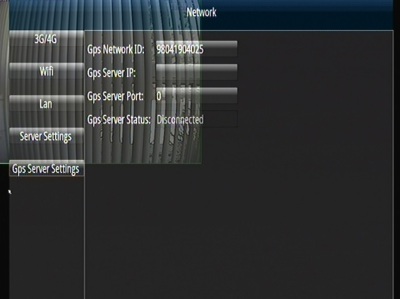

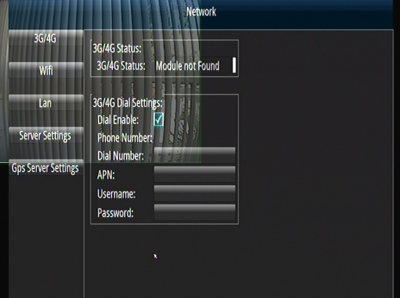

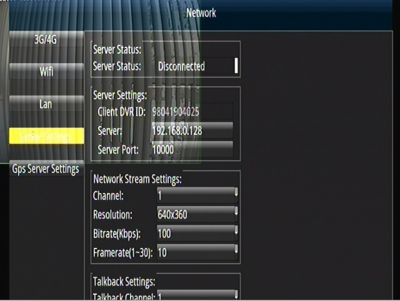

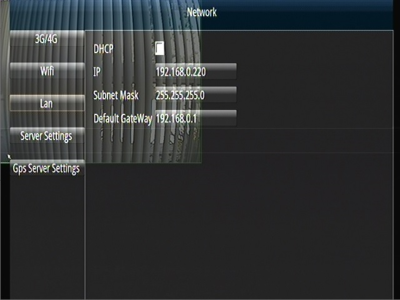

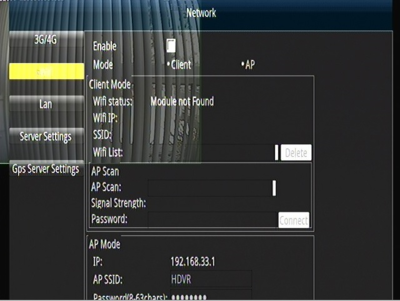

Network

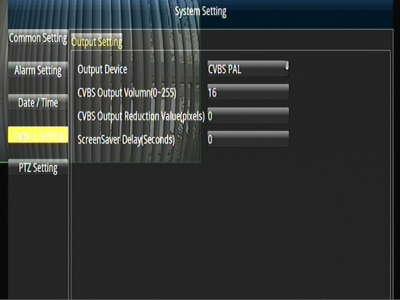

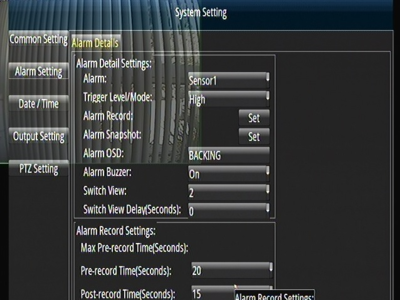

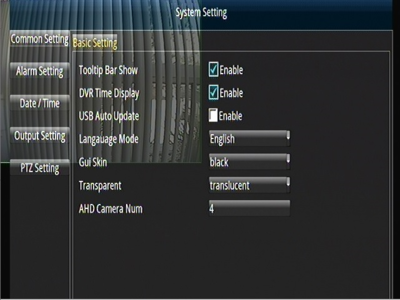

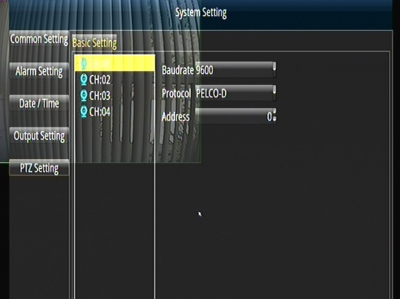

Setting

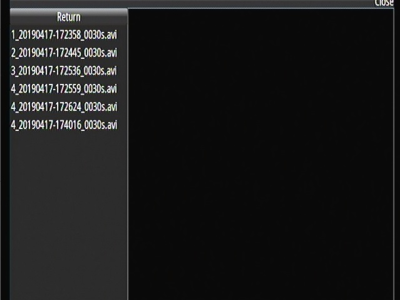

File

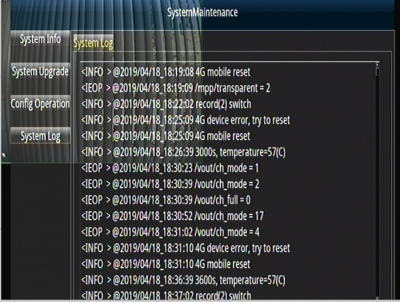

System
