New D4M (4/17/19) Initial Configuration and Setup

Idrive D4M Configuration

Record Serial Number

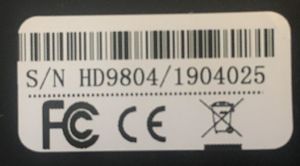

Serial number is located on the bottom of the D4M.

Remove D4M from the Security Box

Record Serial number

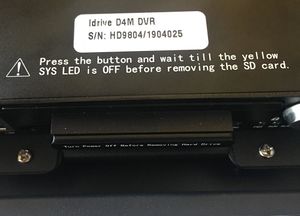

Print Label and afix to the top of the D4M

• Enter Serial Number into Admin Center.

AC> Manufacturing >D4-DVR Production Tab

Click on ADD and enter the S/N

Select Item Type IDRDVRD4HD

Install Hard Drive/SSD

Use the 4 screws in the plastic bag with the keys to secure the SSD in the carriage

Install the Hard Drive Sled into the D4M

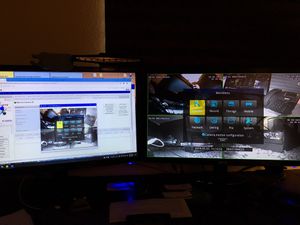

Setup the D4 for configuration

• Plug in the Power Cable

• Plug in the Monitor Cable

• Plug in the Camera Cable

• Plug in a Mouse (no Remote Control with the D4M)

• Turn power supply ON

• Turn Key ON

• Select Main Menu

Click the Right Mouse Button For Options

1)*Main Menu - DVR Configuration Options

2)*SingleScreen - Display one Camera on the Monitor

3)*MultiScreen - Display all 4 cameras on the monitor

4)*UpScreen - Figure it out

5)*DownScreen - Figure it out

6)*Screen Save - Save the current screen configuration as Default

7)*PTZ

Verify Correct Firmware version

Main Menu> System> System Info

Current Release V206-2019/4/12-10:11:124

Upgrade Firmware if needed

• Obtain Latest Firmware Version from AdminCenter (if we receive one)

• Place the Firmware on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

• Main Menu> System> System Upgrade> Browse and select file and click OK

File:D4M FW Update.jpg

<br

Import Idrive Default Configuration

• Obtain Latest Config File from AdminCenter (if we receive one)

• Place the Config File on a SD Card (USB Port is in use for the mouse)

• Insert the SD card into the DVR

• Main Menu> System> Config Operation> Import Configuration Browse and select file and click OK

Verify Config and customize Settings

• Enter the serial number for the D4M into the “LICENSE ID” Menu> Mobile> Motor> License ID

• Set the CUSTOMER's Time Zone Menu> Setting> Date/Time> Timezone

• Set the CUSTOMER's Time Menu> Setting> Date/Time> Set Time

• Set the CUSTOMER's Daylight Savings Time Menu> Setting> Dst Setting> USA

Note No need to fill in the week day or Hour. USA sets this

• Turn Key OFF

• Remove SD Card

Format the SSD / Hard Drive

• Install the hard drive carriage into the D4M

• Turn the key ON

• Format the SSD/Hard Drive Menu> Storage> Disk Info> Format

The Format Button is at the bottom but does not display in AMCAP

• Push record and verify that it can write to the hard drive.

• Push stop

• Test all camera ports with a working camera to ensure that they all work.

• Turn the Key and Power supply off.

• Box up unit with serial number on the outside of the box

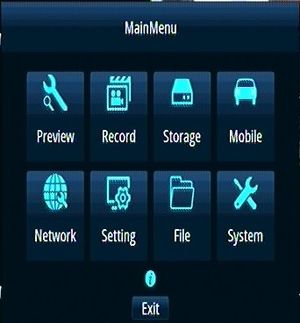

Main Menu

The Main Menu is Displayed by right clicking the USB mouse .

1)**Preview - Camera Setting , Motion Setting

2)**Record - words here

3)**Storage - words here

4)**Mobile - words here

5)**Network - words here

6)**Setting - words here

7)**File - words here

8)**System - words here

Preview Setting

File:D4m Motion Setting.jpg

Record

File:D4M Record Details.jpg

File:D4M Schedule Setting.jpg

Storage

File:D4M Storage Basesetting.jpg

Mobile

File:D4M Mobile Power.jpg

File:D4M Mobile Motor.jpg

File:D4M Mobile GPS.jpg

File:D4M Mobile G-Sensor.jpg

Network

File:D4M Network 3G/4G.jpg

File:D4M Network Wifi.jpg

File:D4M Network LAN.jpg

File:D4M Network Server Settings.jpg

File:D4M Network GPS Server Settings.jpg

Setting

File:D4M Setting Common Setting.jpg

File:D4M Setting Alarm Setting.jpg

File:D4M Setting Date Time.jpg

File:D4M Setting Output Setting.jpg

File:D4M Setting PTZ Setting.jpg

File

File:D4M File.jpg

System

File:D4M System Info.jpg

File:D4M System Upgrade.jpg

File:D4M System Config Operation.jpg

File:D4M System Log.jpg
