Stonkam D8 Initial Configuration and Setup

Routine Setup

Login

Default user name admin

Default password 123

SSD Operations

Format

Click on the Floppy Disk Icon on main display

Format SSD (15 seconds for 500GB)

FileSystem windows format not Linux

Filesystem Structure

Log4Gui - ASCII System Log

test_writable - system test if disk read only?

Normal Folder - location where videos are stored

• 20170801 Folder - separate folder for each date

• Video files naming example: 20170801150248_NM_0030_0001_1920_1080_25_04194304_AAAAAA_02.avi

• 2017^08^01^ - Year^Month^Day

• 15^02^48 - Hour^Minute^Second (from start?)

• _NM_0030_0001_1920_1080_25_04194304_ Figure this out

• AAAAAA_02 - Vehicle_Channel

Firmware Upgrade via SD

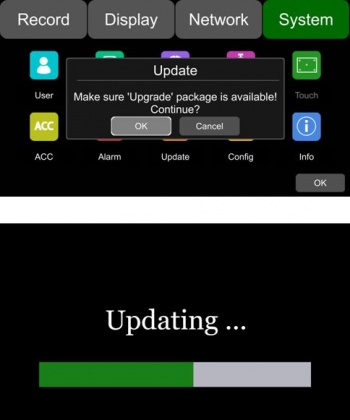

Insert the SD card with the appropriate upgrade files in its root directory.

Navigate to Menu -> Setup -> System -> Update

Hit OK

Wait for Update Success!

Note: To make sure the update was a success reboot the device and navigate to

Menu -> Setup -> System -> Info

Compare the current version to the desired version.

Config Import via USB

First insert the USB with the appropriate configuration file in its root directory

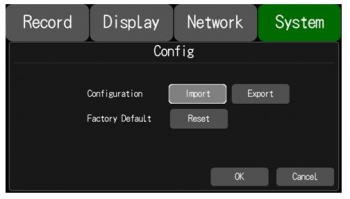

Navigate to Menu -> System -> Config

Select the import button

Hard Disk Installation

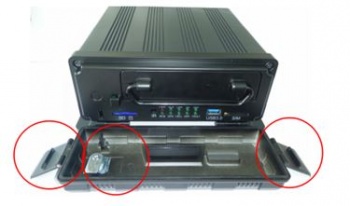

Step 1: Unlock the device with its key, and open the two side flaps on the front panel. Pull the front plate from the top down as shown in the photo below

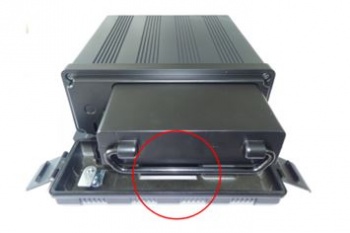

Step 2: Pull the hard drive sled out by its attached ring as shown in the image below

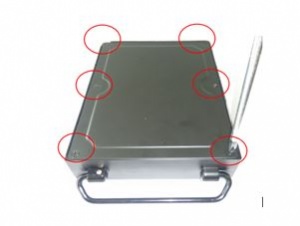

Step 3: Remove the six screws that hold the hard drive sled together carefully with a screwdriver. Once these screws are off the whole bottom plate should be removed.

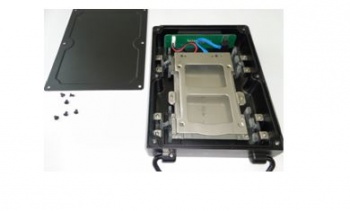

Step 4: Remove the two screws on the silver hard drive support shelf as shown below. Once these are removed pull the top of the shelf up as illustrated.

Step 5: Slide the new hard drive into the enclosure making sure a solid connection is made with the hard drive ribbon cable.

Step 6: Fold the hard drive shelf back down into its resting position and secure the 4 hard drive mounting screws in place. These hard drive mounting screws come from the device's accessory pack

Step 7: Lock the hard drive shelf into place with the 2 securing screws from step 4 as shown in the image below

Step 8: Reinstall 6 Hard drive Sled screws that secure its bottom panel.

Step 9: Slide hard drive sled back into the D8 securely

Manual Configuration

Enter Setup Mode by pressing the cog button on the main menu.

Record

File:Stkm record main.jpg

• Power On Rec

• Cyclic Rec. - Overwrite?

• Event Rec.

• Video Quality

• Record Channel - turn on/off recording for each channel

• Event Duration

• File Length

• Motion Sensitivity

• G-Force Sensitivity

• File Type

Display

Camera

Navigate to the display tab by hitting Menu->Setup->Display

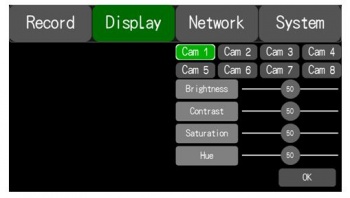

Here you can choose which camera's settings you would like to alter. Settings include brightness, contrast, saturation, and hue

Cam Name

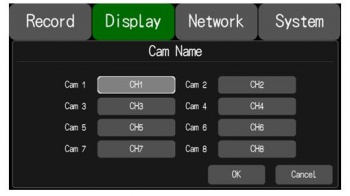

Each camera has its own channel with its own "channel name". This is what you will be changing since the cameras are pre labeled cam1,cam2...etc

Navigate to the display tab by hitting Menu->Setup->Display

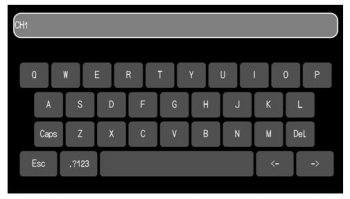

Choose which camera name you would like to change by selecting its associated channel name. This Name will be displayed at the bottom of the screen on each camera individually. Once the channel is selected a keyboard will pop up, type in the desired name with a maximum of 8 characters and must not be blank

Once you are finished hit escape and check to see if your cameras are correctly named

Language

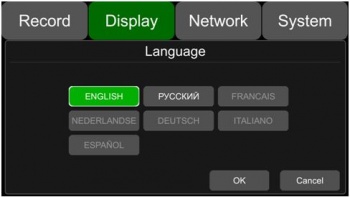

To edit the language of the device access Menu->Setup->Display->Language

Select which language you want from the buttons presented. Languages available are English, French, German, Russian, Japanese, Italian, Austrian

Audio Out

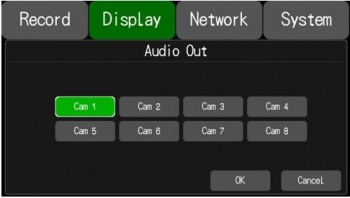

To edit the output for the audio channel in split mode navigate to Menu->Setup->Display->Audio Out

Select which camera's audio you would like to output.

Network

LAN

Defaults:

IP Address 192.168.100.188

Mask 255.255.255.0

Gateway 192.168.100.1

MAC Add: 7e:97:15:xx:xx:xx

WiFi

N/A - Optional

System

Device

License No. - Default:(AAAAAA)

Device ID - Default:(BBBBBB)

Path No. - Default (CCCCCC)
