Video Splitter Assembly

Process for Assembling an idrive 4 channel video splitter

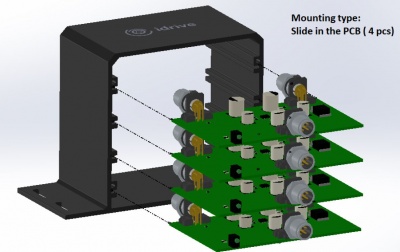

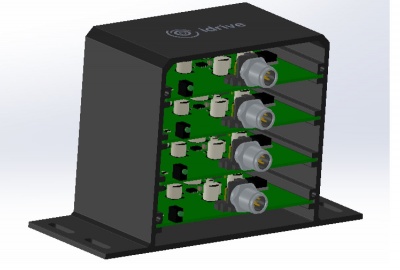

Step 1: Mount the 4 PCB Boards

• Slide Each PCB board sequentially in the 4 slots, making sure all boards have the same orientation as in the images below

Note: Use the idrive logo on the case as a reference point when determining correct orientation

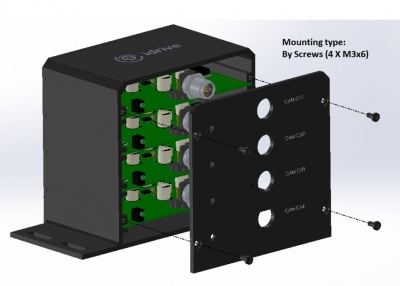

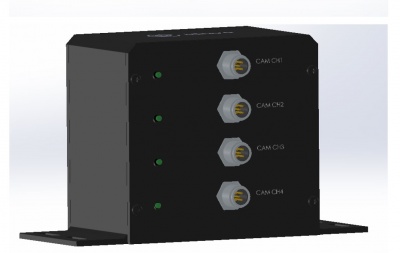

Step 2: Affix the Input Face-plate

• Place the Input face-plate flush with the input plugs and use four of the provided screws to secure it to the case

Note: The input side of the PCB has only 1 plug as well as four small led indicator lights

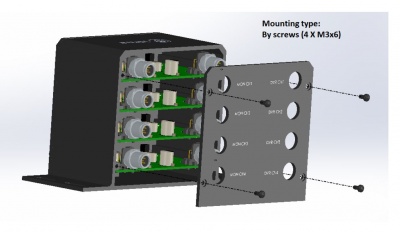

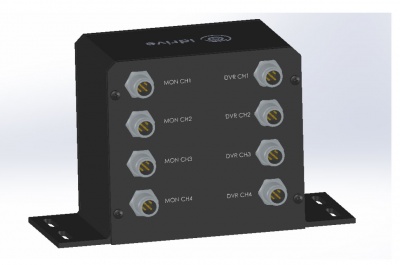

Step 3: Affix the Output Face-Plate

• Place the Output face-plate flush with the output plugs and use four of the provided screws to secure it to the case

Note: The output side of the PCB has 2 plugs

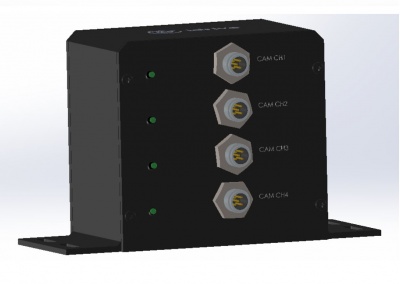

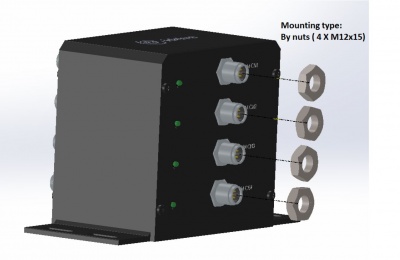

Step 4: Secure 4 Input Nuts

• Fasten the 4 input nuts tightly to the case as in the image below

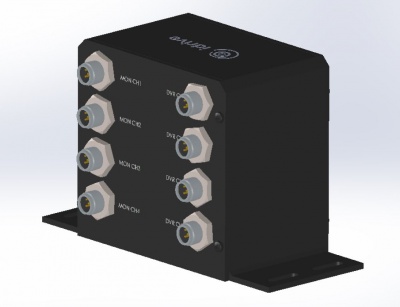

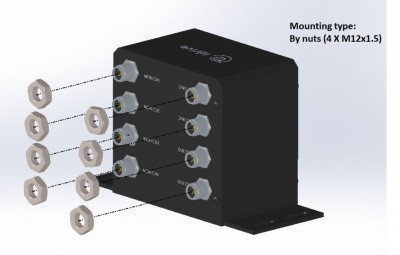

Step 5: Secure 8 Output Nuts

• Fasten the 8 output nuts tightly to the case as in the image below

Schematics and Details

Assembly Procedure PDF

File:Video Splitter Assembly Procedure.pdf

3D PCB Rendering

File:Video Splitter 3D PCB Rendering.pdf

PCB Scematic

File:Video Splitter Scematic.pdf

Adapter Cable Technical Drawings

5P Female to MiniDin 4p Male FOR Cable: File:Video Splitter 5pFemale to 4pMiniDinMale.pdf

5P Female to MiniDin 4p Female FOR Cable: File:Video Splitter 5pFemale to 4pMiniDinFemale.pdf

4P Female to GX 4P Female FOR Cable: File:Video Splitter 4pFemale to 4pGXFemale.pdf
