Process for Assembling an idrive 4 channel video splitter (Mount 4 PCBs, Affix Input Faceplate, Affix Output Faceplate, Secure 4 Nuts on Input side, Secure 8 nuts on output side)

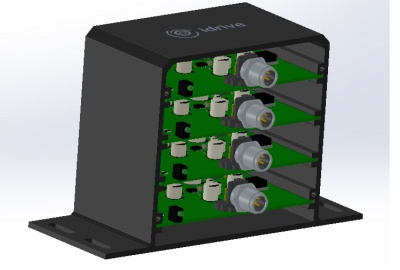

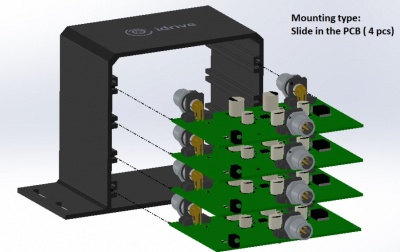

Slide Each PCB board sequentially in the 4 slots, making sure all boards have the same orientation as in the images below

Note: Use the idrive logo on the case as a reference point when determining correct orientation

Place the Input face-plate flush with the input plugs and use four of the provided screws to secure it to the case

Note: The input side of the PCB has only 1 plug as well as four small led indicator lights

Place the Output face-plate flush with the output plugs and use four of the provided screws to secure it to the case

Note: The output side of the PCB has 2 plugs

File:D8 Output Faceplate Install.jpg

@@ Line 3: / Line 3: @@
 === Step 1:  Mount the 4 PCB Boards ===
-* Slide Each PCB board sequentially in the 4 slots, making sure all boards have the same orientation as in the image below
+* Slide Each PCB board sequentially in the 4 slots, making sure all boards have the same orientation as in the images below
 '''Note: Use the idrive logo on the case as a reference point when determining correct orientation'''
-[[File:D8_PCB_Install.jpg|400px|]]
+[[File:D8_PCB_Install_1.jpg|400px|]][[File:D8_PCB_Install_2.jpg|400px|]]
 ===Step 2: Affix the Input Face-plate ===
