ICV D8 Initial Configuration and Setup

ICARvisions

Setup

Install the Hard Drive

• Remove tray

• secure hard drive with the 4 supplied screws

• Insert the tray back into the DVR and turn the DVR on with the Key

• Format the hard drive Tools > Format (an unformatted HDD will show 0MB capacity)

• DVR reboots

Install Batteries (not included)in the remote control

• requires 2 AAA batteries

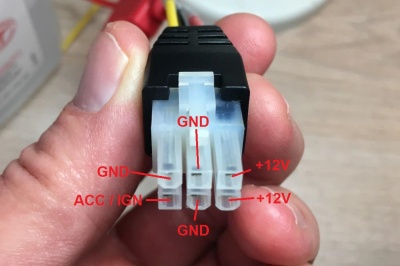

Plug in the power supply harness

Power connector's plastic is keyed the same as Easystorage(D4)as well as the VisionMaster D8 and but the pinouts are different!

Connect a monitor

No monitor connection on the device we have

Use StarTech USB Video adapter with AMCAP Capture software or

Use Web browser - plug Cat5 cable into device, navigate to 192.168.0.250

Basic Setup

Power up the device

Press the "Login" Button on the remote

Admin user default passwd 888888

The setup menu has 8 options

General Settings

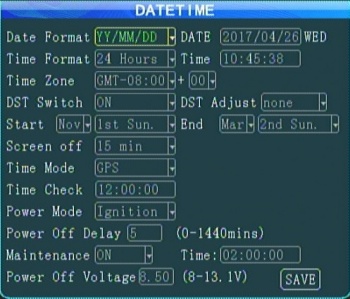

Date & Time

• Date Format

• Time Format

• Daylight Savings Settings

• Time Mode - GPS

• Power Mode - Ignition

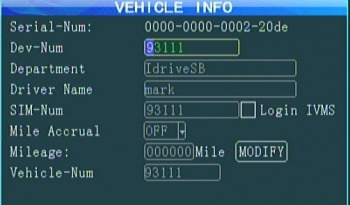

Vehicle Info

Serial number of Device (Hex so not suitable for device number) Example 0000-0000-0002-20de

• Dev-Num - must be 5 digits to integrate with server

• Department - Optional

• Driver Name - Optional

• SIM-Num - field is only 12 digits long but SIM cards are 19 digits long. - figure it out

• Login IVMS check box - must Un-Check to use SIM Card

• Mile Accrual - N/a

• Mileage - N/A

• Vehicle-Num - vehicle name. can take letters as well as numbers. Set on server?

User Setup

Add/Remove users. Only the Admin User exists in the received device.

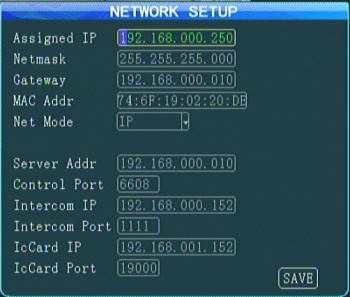

Network

For Wired Cat5 connection ONLY:

• IP Address

• Netmask

• Gateway

• MAC Address

For Wired, Wireless and Cellular connections:

I have been able to connect using IP address but Domain connection did not work. Some DNS issue.

• Net Mode - search for Server by IP address or DNS

• Server Address - either IP Address of DNS Ex: dvr.idriveglobal.com

• Control Port - Must match the port of the "Gateway Server"

Other Options: Intercom & IcCard - N/A

Code OSD

Controls the text shown on screen/recordings

Tools Settings

Configure

Load default config

Import Config File

Export Config File

Upgrade Logo

Format

Format HDD

Logs

Search for System or Alarm logs by date & time

Peripherals Settings

PTZ Setup

N/A

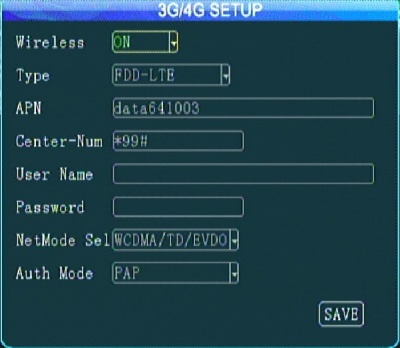

Wireless Setup (3g/4g Cellular)

3g/4g setup

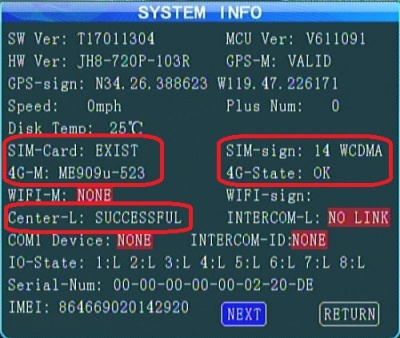

Connected via cellular

Wifi Setup

not working yet

Fuel

N/A

Serial

N/A

Search

Search for recordings by Date/Time

Firmware upgrade with USB Stick

1.Device must switch off power disconnect the power source before upgrading;

2.Extract the rar file, copy the .crc file to a USB flash memory FAT32 format, insert the flash memory to the MDVR USB port.

3.Power on the MDVR(connect the power), it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Attention: Upgrade will need about 3-5 minutes. Make sure power connecting all the time during upgrading

Firmware upgrade with SD Card

1.Device must switch off power;

2.Decompress the rar file, copy the .crc file to a SD card, and insert the SD card to the MDVR SD card port.

3.Power on the MDVR, it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Note: upgrade will need about 3 minutes. Make sure power connecting all the time during upgrading.
