ICV D8 Initial Configuration and Setup

ICARvisions

Setup

Install the Hard Drive

• Remove tray

• secure hard drive with the 4 supplied screws

• Insert the tray back into the DVR and turn the DVR on with the Key

• Format the hard drive Tools > Format (an unformatted HDD will show 0MB capacity)

• DVR reboots

Install Batteries (not included)in the remote control

• requires 2 AAA batteries

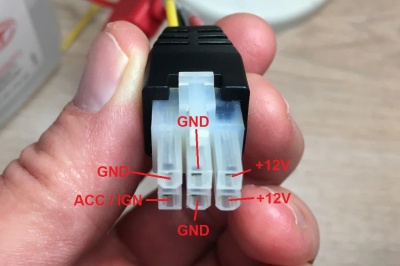

Plug in the power supply harness

Power connector's plastic is keyed the same as Easystorage(D4)as well as the VisionMaster D8 and but the pinouts are different!

Basic Setup

Power up the device

Press the "Login" Button on the remote

Admin user default passwd 888888

The setup menu has 8 options

Tools Settings

Configure

Load default config

Import Config File

Export Config File

Upgrade Logo

Format

Format HDD

Logs

Search for System or Alarm logs by date & time

Peripherals Settings

3g/4g setup

Firmware upgrade with USB Stick

1.Device must switch off power disconnect the power source before upgrading;

2.Extract the rar file, copy the .crc file to a USB flash memory FAT32 format, insert the flash memory to the MDVR USB port.

3.Power on the MDVR(connect the power), it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Attention: Upgrade will need about 3-5 minutes. Make sure power connecting all the time during upgrading

Firmware upgrade with SD Card

1.Device must switch off power;

2.Decompress the rar file, copy the .crc file to a SD card, and insert the SD card to the MDVR SD card port.

3.Power on the MDVR, it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."

4.Device will automatically restart when the upgrade is complete.

Note: upgrade will need about 3 minutes. Make sure power connecting all the time during upgrading.
