| Line 65: |
Line 65: |
| | | | |
| | [[File:Mikrotik11.png|1024px|center]] | | [[File:Mikrotik11.png|1024px|center]] |
| − |
| |
| − |
| |
| − | Add user and password and choose service pptp from the dropdown.
| |
| − | The "Local Address" and "Remote Address" must be diferent than your internet access IP pool.
| |
| − |
| |
| − | Ex.:
| |
| − | Local Address: 1.1.1.1
| |
| − | Remote Address: 1.1.1.2
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik14.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Now select EoIp Tunnel tab from Interfaces and add a new tunnel.
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik15.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Add Local and Remote Address same as above and add "1" in the "Tunnel ID".
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik16.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Add a new bridge from "Bridge" interface choose a name or leave default and click OK.
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik17.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Repeat the step above and create "bridge2"
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik19.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Now select "Ports" tab from the same interface and add ether1(LAN/Internet cable), ether2(NIC1 - Internet Connection) in "bridge1" and in "bridge2" add EoIP tunnel, ether3, ether4 and ether5(Base Station NIC) interfaces.
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik23.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Add IP for ether5(Base Station NIC).
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik20.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | Now you have to enable the PPTP server.
| |
| − | From PPP->Interface select "PPTP Server" tab check "Enabled" and all "Authentication" boxes.
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik21.png|1024px|center]]
| |
| − |
| |
| − |
| |
| − | If the VPN client is created will appear in PPP->Active Connections if not, please check [[Configure VPN Client]]
| |
| − |
| |
| − |
| |
| − | [[File:Mikrotik22.png|1024px|center]]
| |
Revision as of 15:35, 31 May 2013
Before start configure VPN server download the Configuration tool for RouterOS.
Run Winbox.exe and wait 5-10 sec. until the IP and MAC adress will apear.
A pop-up window will apear and choose "Remove Configuration" otherwise the router will create a default configuration.
First step is to create a static IP for your internet connection.
Select "Addresses" from "IP" and click the plus sign.
We used IP 10.3.0.80 which is a local IP from the main router IP Pool and
we have forwarded the 1723 port.

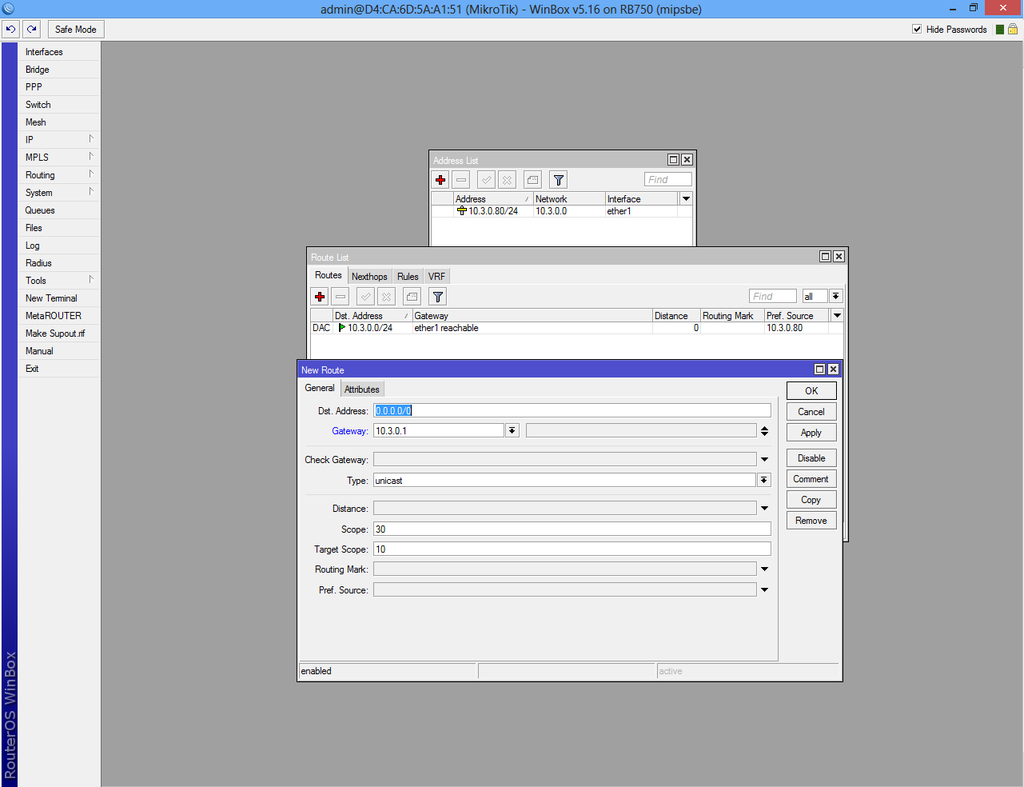

Route IP for internet access.
Add IP 0.0.0.0/0 in "Dst. Address:" box. In "Gateway" box add your ISP gateway.

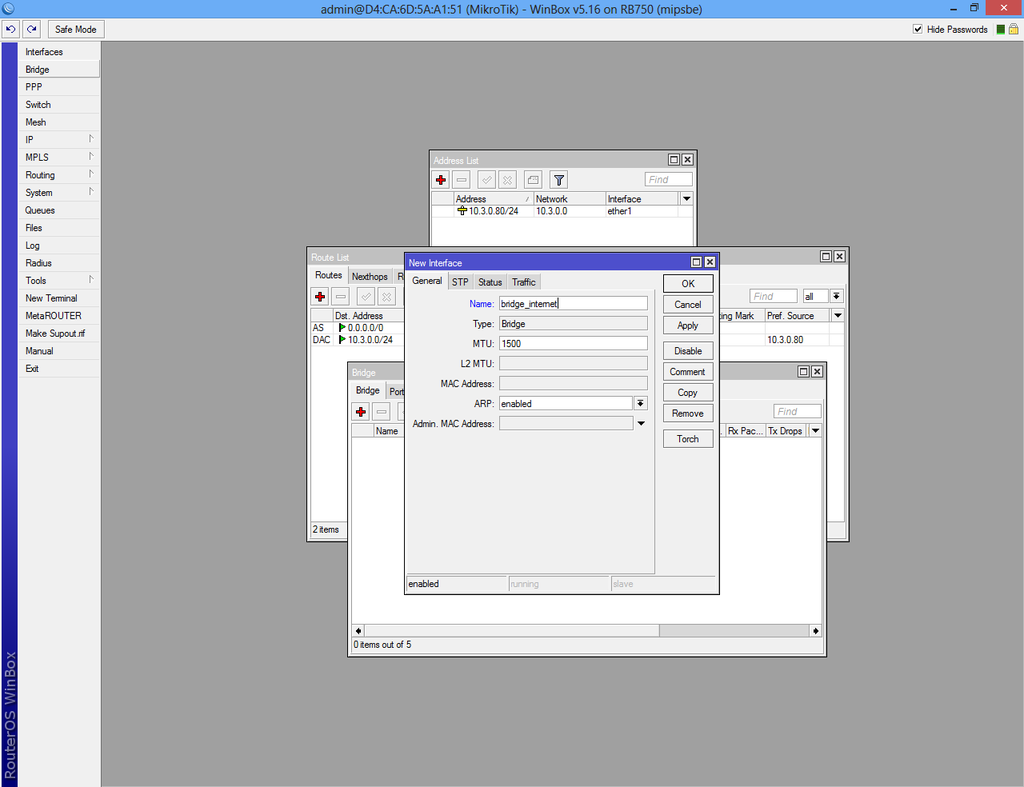

Select "Bridge" from the left menu and add new bridge.

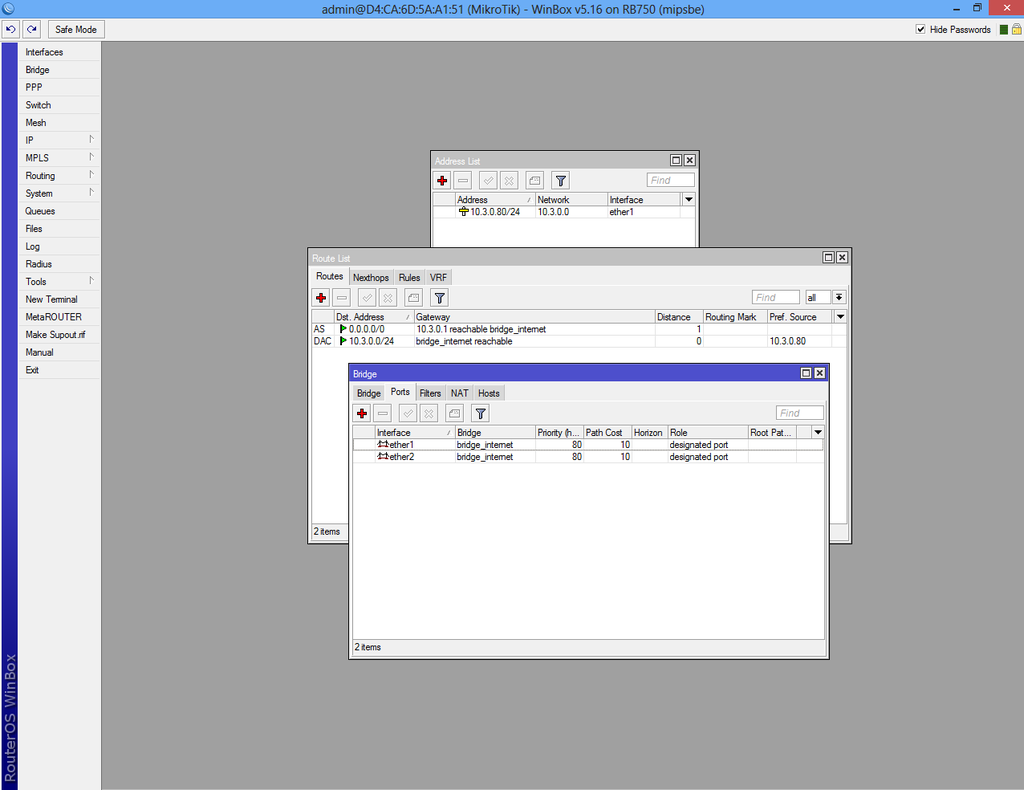

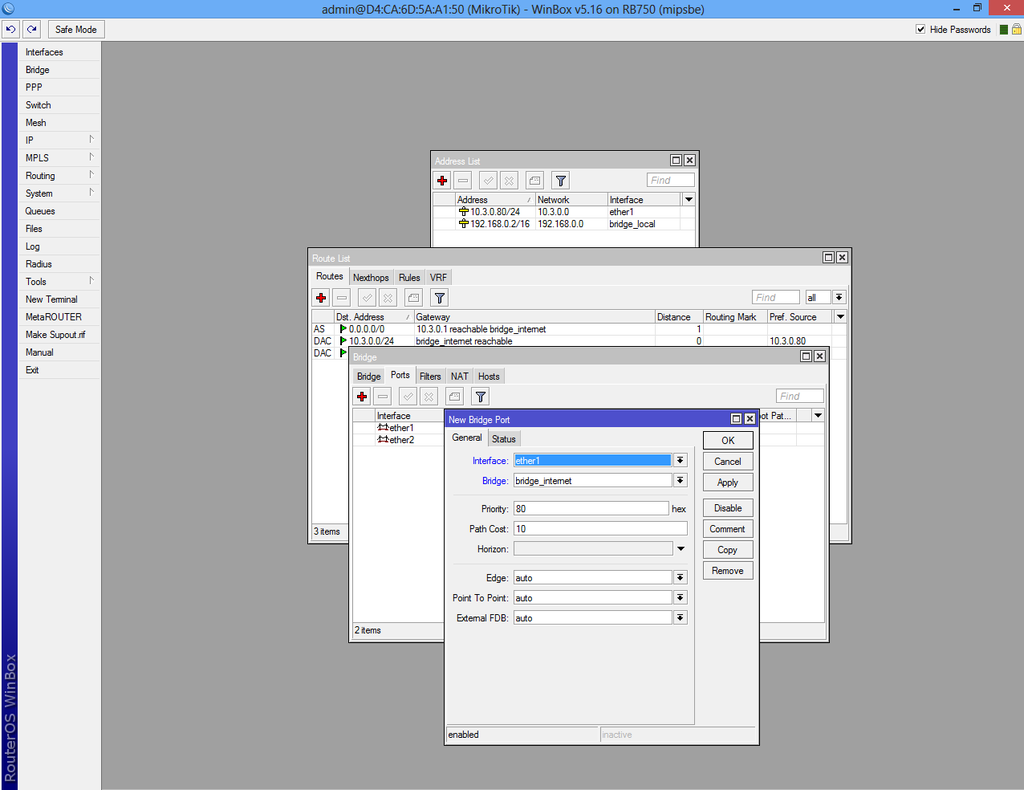

From the same interface select "Ports" tab and add interfaces ether1 and ether2 to "bridge_internet"
Now repeat the step above and create a new bridge.
Make sure the "ARP" is disabled!
