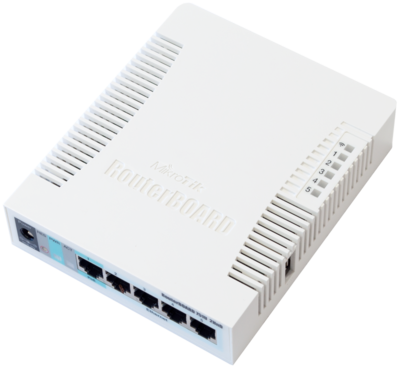

[[File:RB751U-2HnD.png|400px|center]] | [[File:RB751U-2HnD.png|400px|center]] | ||
| Line 4: | Line 7: | ||
{| border="1" cellpadding="2"|center | {| border="1" cellpadding="2"|center | ||
|-valign="top" | |-valign="top" | ||
| − | |width=" | + | |width="550px"|Features |
| − | |width=" | + | |width="550px"|RB751U-2HnD (USB, 2GHz, 802.11n, dual chain) |
|-valign="top" | |-valign="top" | ||
|CPU | |CPU | ||
| Line 55: | Line 58: | ||
DSSS: DBPSK, DQPSK, CCK | DSSS: DBPSK, DQPSK, CCK | ||
|} | |} | ||
| + | |||
| + | |||

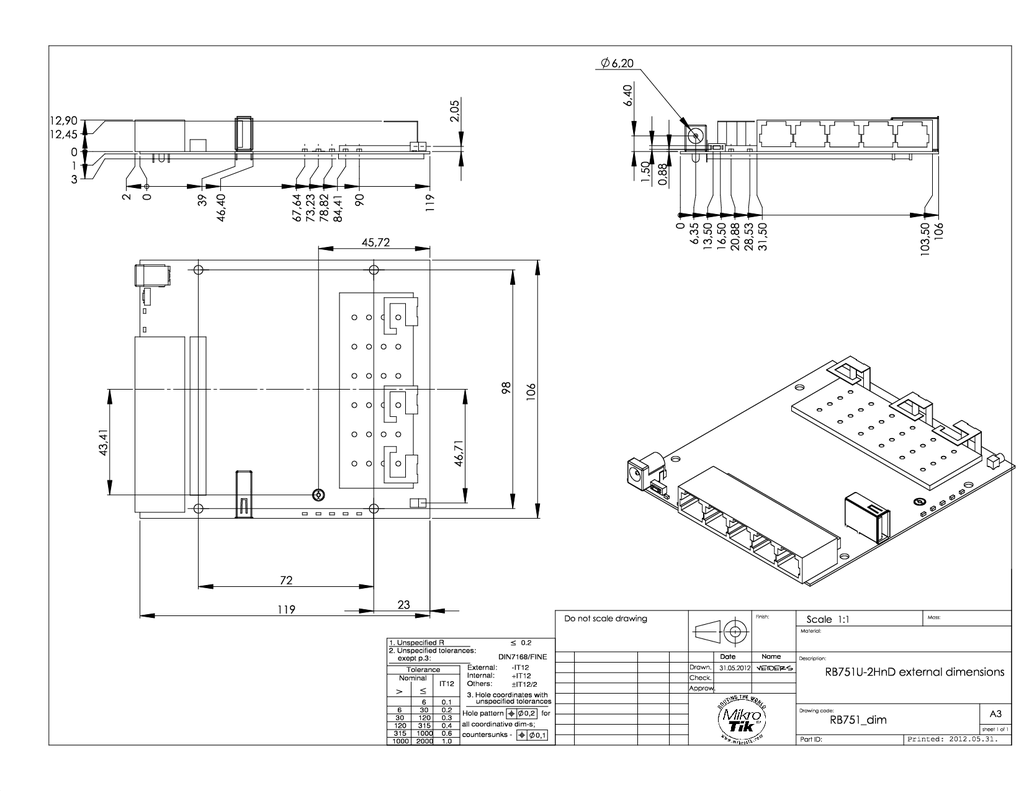

| + | [[File:RB751.png|1024px|center]] | ||
Revision as of 12:54, 27 May 2013
RB751U-2HnD
| Features | RB751U-2HnD (USB, 2GHz, 802.11n, dual chain) |
| CPU | Atheros AR7241 400MHz CPU |
| Memory | 32MB DDR SDRAM onboard memory |
| Data storage | 64MB onboard NAND storage chip |
| Ethernet | Five independent 10/100 Ethernet ports |
| LEDs | Power, NAND activity, 5 Ethernet LEDs, wireless activity LED |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Dimensions | 113x138x29mm. Weight without packaging and cables: 230g |
| Power consumption | Up to 10W |
| Operating Temp | -20C .. +50C |
| Operating System | MikroTik RouterOS, Level4 license |
| Package contains | RouterBOARD in a plastic case, power adapter |
| Antennas | 2x2 MIMO PIF antennas, max gain 2.5dBi; external MMCX option |
| RX sensitivity | 802.11g: -96dBm @ 6Mbit/s to -81dBm @ 54Mbit/s
802.11n: –96 dBm @ MCS0 to –78 dBm @ MCS7 |
| TX power | 802.11g: 30dBm @ 6Mbps to 27dBm @ 54 Mbps
802.11n: 30dBm @ MCS0 to 26dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK |
