Stonkam D8 End User Guide

Idrive D8 End User Guide

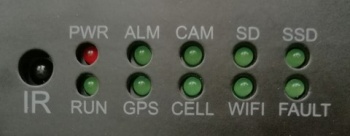

Front Panel LEDs

PWR: Power indicator - DVR is powered ON.

RUN: Working status indicator. It will flash slowly when DVR is running.

ALM: Alarm indicator. It keeps on with the record when there is Alarm-in, G-force activation or motion detection or speed or panic button event alarm.

GPS: GPS indicator. It lights up when GPS is running.

CAM: Camera indicator. It keeps on when camera is working and off when not working.

SD: SD card indicator. It blinks when recording, and keeps on when no recording, and is off when SD card in abnormal status.

SSD: SSD/HDD indicator. It blinks when recording, and keeps on when no recording, and is off when SSD/HDD in abnormal status.

CELL: Cellular indicator. It always lights up when uploading data and off when no cellular module or cellular module in abnormal status.

WIFI: WIFI indicator. It always lights up when uploading data and off when no cellular module or WIFI module in abnormal status.

FAULT: What is this?

IR This is not an LED, it is Infared Receiver is for the DVR remote control.

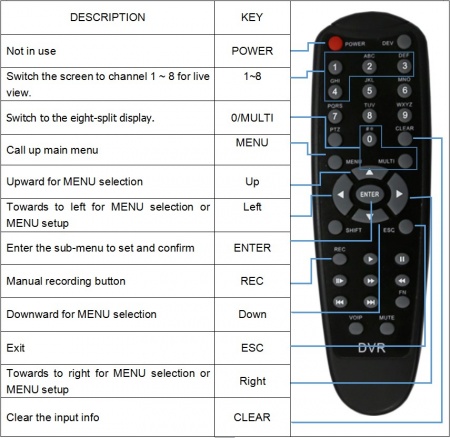

Remote Control

Remove Hard Disk Sled

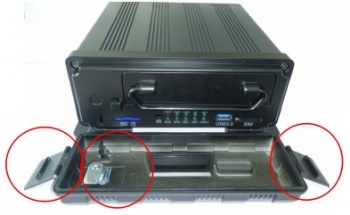

Unlock with the Key and open the two ears on the sides of the front panel, and pull down the front plate.

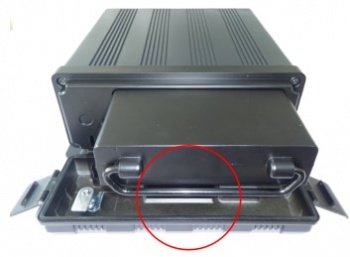

Remove the Hard Disk Sled by pulling on the handle.

Connecting The Monitor

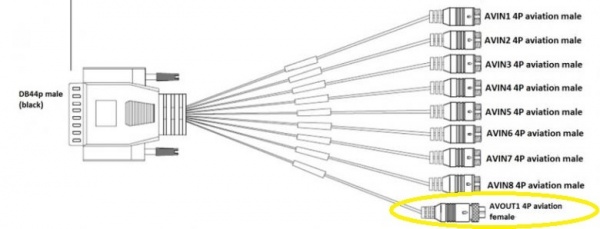

The monitor will connect through the output wire labeled AVOUT1 on the DB44 cable.

This wire is a yellow male 4Pin aviation connector (circled in yellow).

After the monitor is connected the remote is used to manipulate the menus of the device

On-Device Video Playback

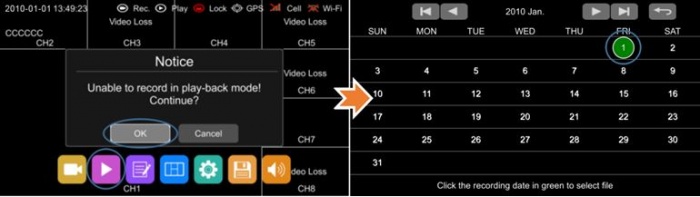

Hit the pink video playback button to enter video playback mode.

A notice will appear explaining that this shuts recording off while videos are being accessed, hit ok.

Once in video playback mode you are shown a calendar.

The dates highlighted in green are the dates video has been recorded for. To access these dates simply select them.







Controls While Accessing Calendar:

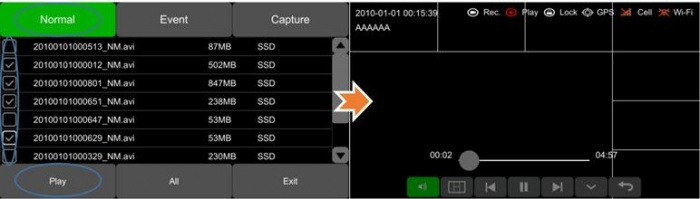

After selecting an appropriate date you must choose the appropriate tab for what you would like to access:

Normal: The normal tab includes a video list of all normal video recording, Power on recording, and scheduled recordings

Event: The event tab includes a video list of all Alarm recordings 1-8, motion detection triggered, G-force triggered, Speed Triggered, and Panic Button Triggered recordings

Capture: The capture tab includes all screenshots captured by the user

Video Options

Play: Plays the selected videos

All: Selects all videos appearing on the list

Exit: Returns you to the previous menu

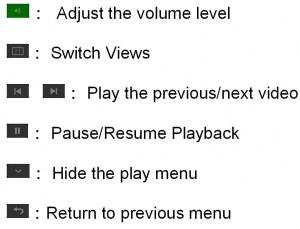

Controls While Accessing Video Playback:

Diagnosing System Alarms

Symptom	Fault
One long Whistle followed by two short Whistles	The front panel of the D8 is open. This panel must be shut in order for the D8 to record
One long Whistle followed by three short Whistles	A hard disk is not recognized in the device
One long whistle followed by four short whistles	Disk file system not recognized or corrupted
Two short whistles followed by two short whistles	The disk is full with alarm video files
Two short whistles followed by three short whistles	The disk is full with common video files and cycle record is not enabled
Two short whistles followed by four short whistles	The D8 is not recording but has a recognized disk

Viewing videos from the removable HDD; The HDD Reader and PC Software

MS Show Software download and HDD Reader software operating PDF

Download the MSSHOW.exe from the Downloads page or linked below

https://s3.amazonaws.com/wiki-public/images/6/6a/MSShow.zip

Download the HDD Reader and Software operating manual below

media:Idrive D8 HDD Reader and Software.pdf | Idrive D8 HDD Reader and Software.pdf
