Routine Setup

Login

Default user name admin

Default password 123

SSD Operations

Format

Click on the Floppy Disk Icon on main display

Format SSD (15 seconds for 500GB)

FileSystem windows format not Linux

Filesystem Structure

Log4Gui - ASCII System Log

test_writable - system test if disk read only?

Normal Folder - location where videos are stored

20170801 Folder - separate folder for each date

Video files naming example: 20170801150248_NM_0030_0001_1920_1080_25_04194304_AAAAAA_02.avi

2017^08^01^ - Year^Month^Day

15^02^48 - Hour^Minute^Second (from start?)

_NM_0030_0001_1920_1080_25_04194304_ Figure this out

AAAAAA_02 - Vehicle_Channel

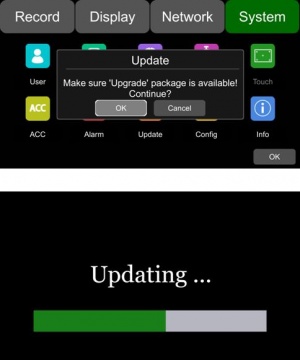

Firmware Upgrade via SD

Insert the SD card with the appropriate upgrade files in its root directory.

Navigate to Menu -> Setup -> System -> Update

Hit OK

Wait for Update Success!

Note: To make sure the update was a success reboot the device and navigate to

Menu -> Setup -> System -> Info

Compare the current version to the desired version.

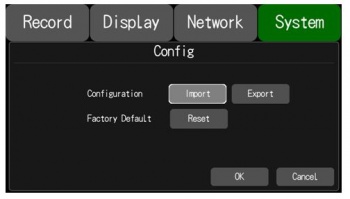

Config Import via USB

First insert the USB with the appropriate configuration file in its root directory

Navigate to Menu -> System -> Config

Select the import button

Hard Disk Installation

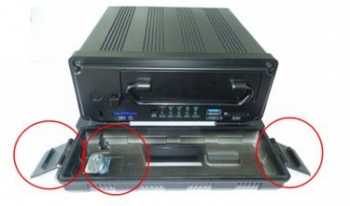

Step 1: Unlock the device with its key, and open the two side flaps on the front panel. Pull the front plate from the top down as shown.

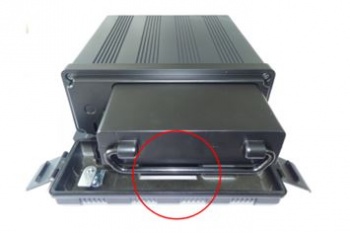

Step 2: Pull the hard drive sled out by its attached ring

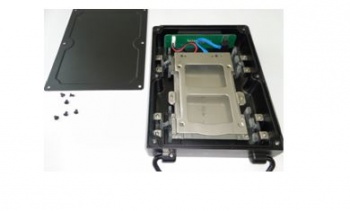

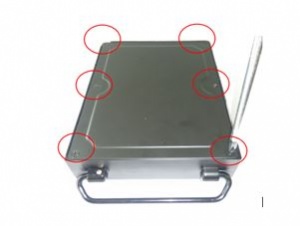

Step 3: Remove the six screws that hold the hard drive sled together carefully with a screwdriver. Once these screws are off the whole bottom plate should be removed.

Step 4: Remove the two screws on the silver hard drive support shelf. Once these are removed pull the top of the shelf up as illustrated.

Step 5: Slide the new hard drive into the enclosure making sure a solid connection is made with the hard drive.

Step 6: Fold the hard drive shelf back down into its resting position and secure the 4 hard drive mounting screws in place. These hard drive mounting screws come from the device's accessory pack

Step 7: Lock the hard drive shelf into place with the 2 securing screws from step 4 as shown in the image below

Step 8: Reinstall 6 Hard drive Sled screws that secure its bottom panel.

Step 9: Slide hard drive sled back into the D8 securely

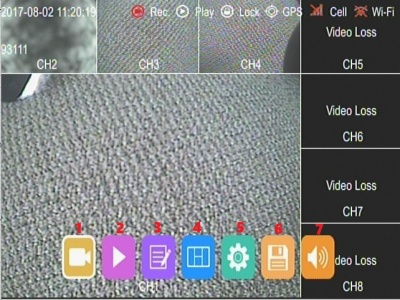

Main Menu

The Main Menu is Displayed by pressing Menu on the remote. If using a touch screen touch the bottom half of the screen.

1)**DVR Controls - Rec ord, Play Stop, FF RW

2)**Search Videos - Search by date & Time

3)**Logs - System & Export Logs

4)*Switch Grid view from Channels 1-4, 5-8 or 1-8

5)**Configuration Settings - Record,Display, Network & System settings

6)**Storage - Manage SSD, SD, USB

7)*Not Sure

DVR Controls

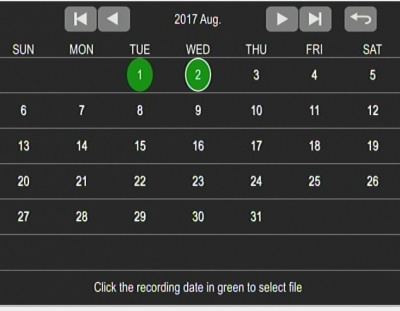

Search Videos

Select Date

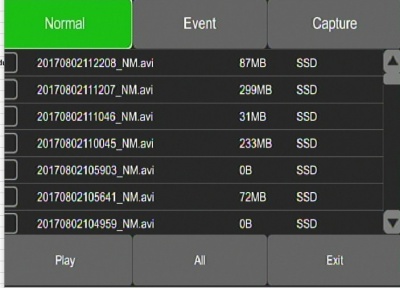

Select Video

Select and Play Videos

Normal

Event

Captue

Play

All

Exit

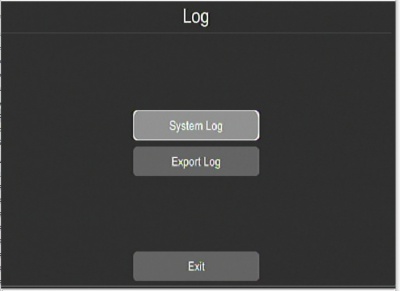

Logs

br>

System Log

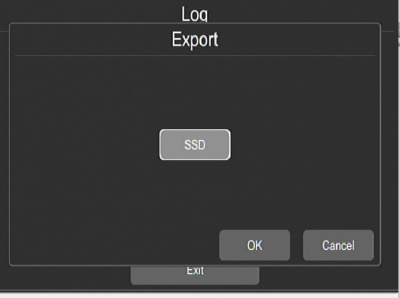

Export Log

Configuration Settings

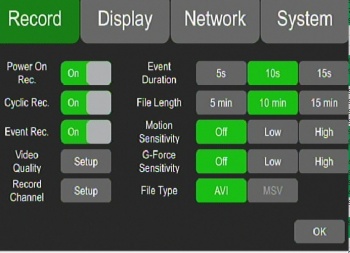

Record

Power On Rec

Cyclic Rec. - Overwrite?

Event Rec.

Video Quality

Record Channel - turn on/off recording for each channel

Event Duration

File Length

Motion Sensitivity

G-Force Sensitivity

File Type

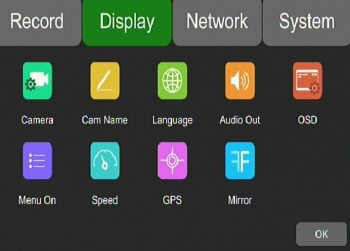

Display

*Camera - Brightness, Contrast Etc for each Camera

*Cam Name - Name of Channel on Display

*Language - Set system Language

*Audio Out - Select Channel Audio to listen to

*Camera - Brightness, Contrast Etc for each Camera

*OSD - On Screen Display Information

*Menu On - How lon Menu is Displayed before logout

*Speed - Speed Settings

*GPS - GPS Location Information

*Mirror - Mirror the Camera Image

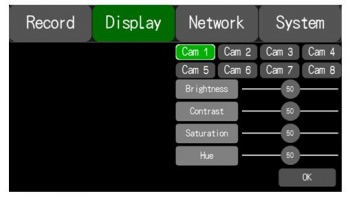

Camera

Navigate to the display tab by hitting Menu->Setup->Display

Here you can choose which camera's settings you would like to alter. Settings include brightness, contrast, saturation, and hue

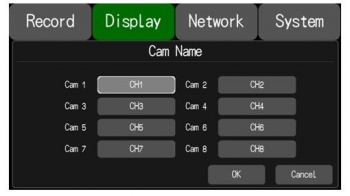

Cam Name

Each camera has its own channel with its own "channel name". This is what you will be changing since the cameras are pre labeled cam1,cam2...etc

Navigate to the display tab by hitting Menu->Setup->Display

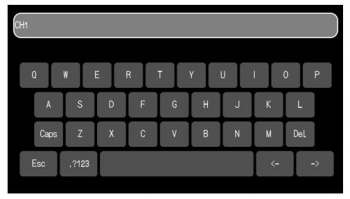

Choose which camera name you would like to change by selecting its associated channel name. This Name will be displayed at the bottom of the screen on each camera individually. Once the channel is selected a keyboard will pop up, type in the desired name with a maximum of 8 characters and must not be blank

Once you are finished hit escape and check to see if your cameras are correctly named

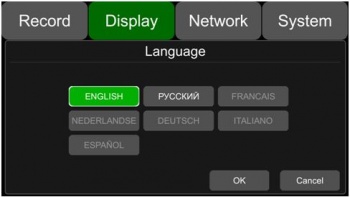

Language

To edit the language of the device access Menu->Setup->Display->Language

Select which language you want from the buttons presented. Languages available are English, French, German, Russian, Japanese, Italian, Austrian

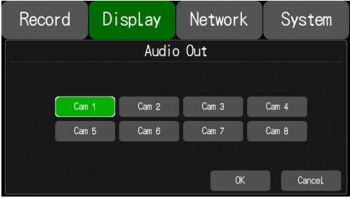

Audio Out

To edit the output for the audio channel in split mode navigate to Menu->Setup->Display->Audio Out

Select which camera's audio you would like to output.

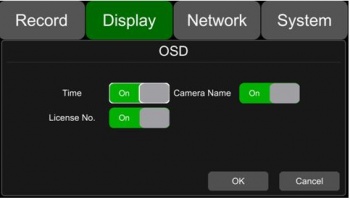

OSD

OSD controls what information gets overlayed on the video of each camera. You can add Time, License Plate Numbers of current vehicle the camera is on, and Camera Names. This is crucial information to clarify video playback.

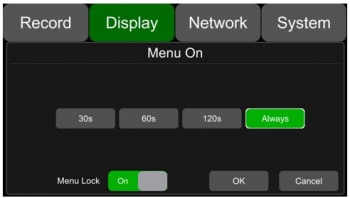

Menu On

Sets the duration of time the menu displays for. This can be set to 30, 60, 120 seconds, or always on. Can also lock the menu to be password protected. A password is needed to change this setting, the default password is 123.

To change these settings navigate to Menu->Settings->Display->Menu On

Select the duration of display on time you need, and toggle the Menu Lock option to change it.

Speed

GPS

Mirror

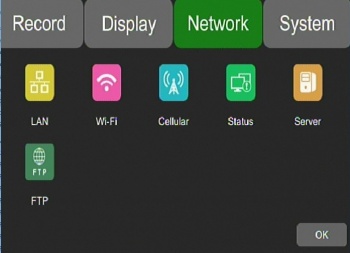

Network

*Lan - Lan Settings

*Wifi - Wifi Settings

*Cellular - Cellular Settings

*Status - Networks Status

*Server - Server Settings

*FTP - FTP Settings

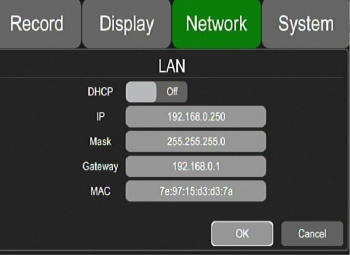

LAN

Defaults:

IP Address 192.168.100.188 set to 192.168.0.250

Mask 255.255.255.0

Gateway 192.168.100.1 set to 192.168.0.1

MAC Add: 7e:97:15:xx:xx:xx

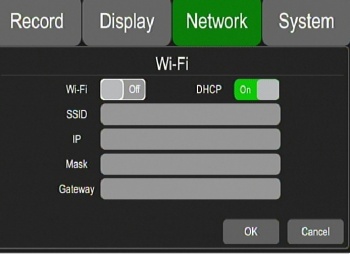

WiFi

N/A - Optional

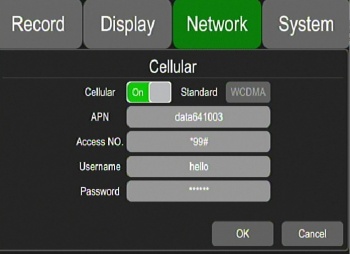

Cellular

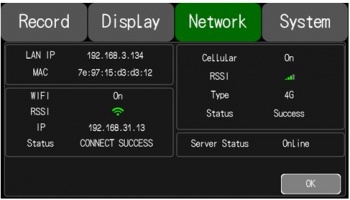

Status

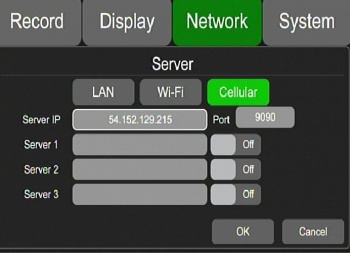

Server

Newdvr.idriveglobal.com IP 54.152.129.215

No DNS? - Need setting for LTI

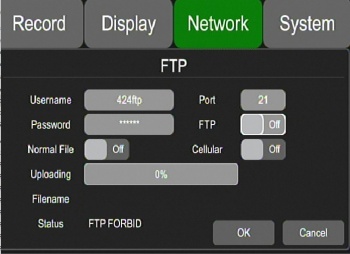

FTP

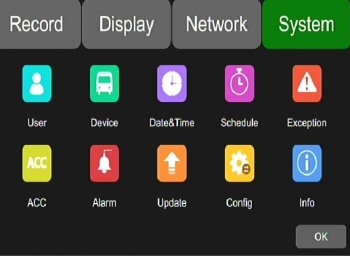

System

*User - Admin only!!!?

*Device - Vehicle ID

*Date & Time -

*Schedule - Timed Recording

*Exception -

*Acc -

*Alarm -

*Update -

*Config -

*Info -

User

File:Stkm system user.jpg

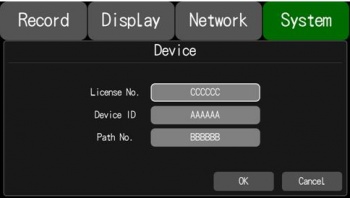

Device

License No. - Default:(AAAAAA)

Device ID - Default:(BBBBBB)

Path No. - Default (CCCCCC)

Date & Time

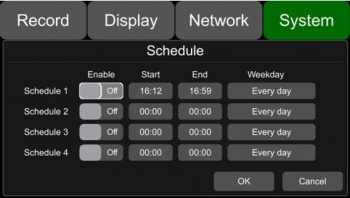

Schedule

Touch

File:Stkm system touch.jpg

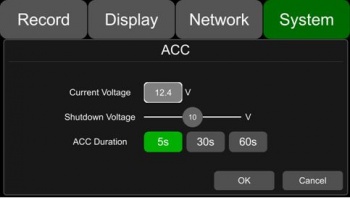

ACC

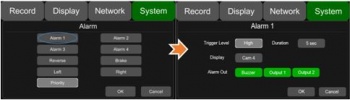

Alarm

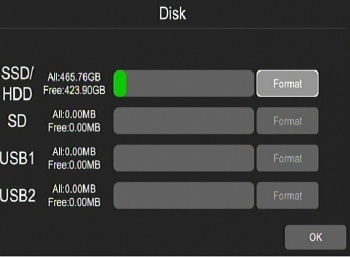

Storage
