Process for Assembling an idrive 4 channel video splitter
Step 1: Mount the 4 PCB Boards

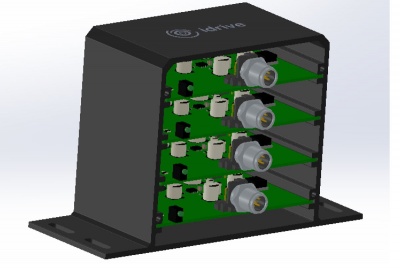

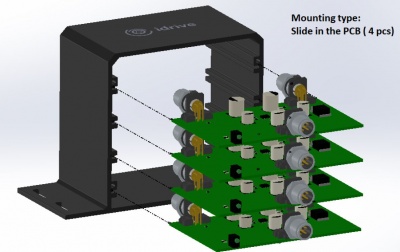

- Slide Each PCB board sequentially in the 4 slots, making sure all boards have the same orientation as in the images below
Note: Use the idrive logo on the case as a reference point when determining correct orientation

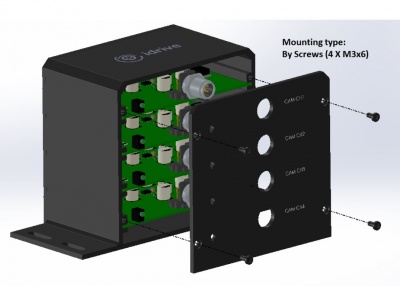

Step 2: Affix the Input Face-plate

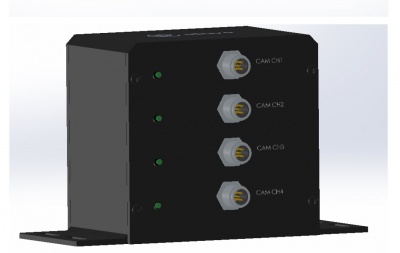

- Place the Input face-plate flush with the input plugs and use four of the provided screws to secure it to the case
Note: The input side of the PCB has only 1 plug as well as four small led indicator lights
Step 3: Affix the Output Face-Plate

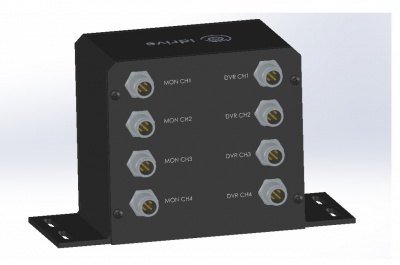

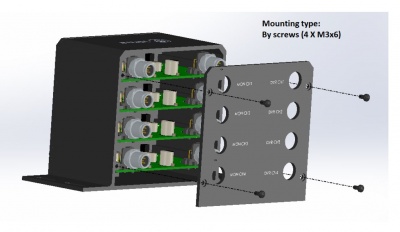

- Place the Output face-plate flush with the output plugs and use four of the provided screws to secure it to the case
Note: The output side of the PCB has 2 plugs
Step 4: Secure 4 Input Nuts

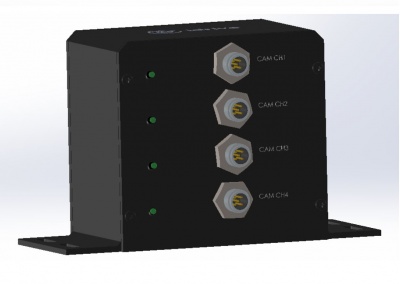

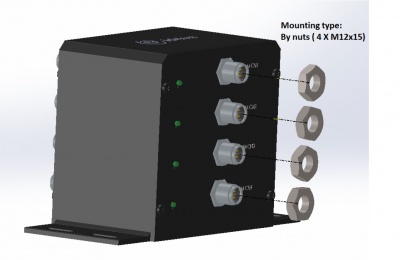

- Fasten the 4 input nuts tightly to the case as in the image below

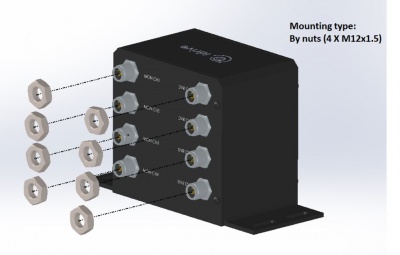

Step 5: Secure 8 Output Nuts

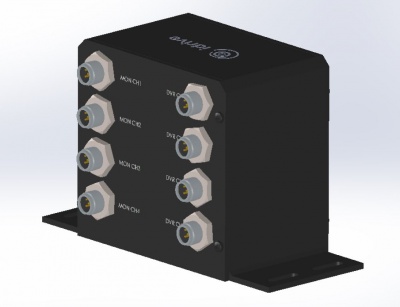

- Fasten the 8 output nuts tightly to the case as in the image below
Schematics and Details
Assembly Procedure PDF
File:Video Splitter Assembly Procedure.pdf
3D PCB Rendering
File:Video Splitter 3D PCB Rendering.pdf
PCB Scematic
File:Video Splitter Scematic.pdf
Adapter Cable Technical Drawings
5P Female to MiniDin 4p Male FOR Cable: File:Video Splitter 5pFemale to 4pMiniDinMale.pdf
5P Female to MiniDin 4p Female FOR Cable: File:Video Splitter 5pFemale to 4pMiniDinFemale.pdf
4P Female to GX 4P Female FOR Cable: File:Video Splitter 4pFemale to 4pGXFemale.pdf
