ICV D8 Installation Guide

ICARvisions D8 Installation Guide

Packaging

All components for a specific individual vehicle will be in one box. This way the DVR will be set up for the exact vehicle and configuration.

Components

DVR

Cables

Cameras

4 Channel Video Splitter (Cranes only)

Idrive D8 DVR

• DVR with SSD & SIM card installed and configured

• Power cable and Fuse

• Dual Video Camera Splitter Cable (QTY 2 for Sideloaders and Chassis, QTY 4 for Cranes)

• External GPS Module

• 3G/4G Antenna

• Video Monitor Cable

• Keys

• Remote Control (Batteries Installed)

Video Splitter (4 channels)

For use in Cranes only to route the video from the existing 4 camera monitor system to the DVR.

• Video Splitter (4 Channels)

• Four 3 meter cables (from Splitter to DVR)

Camera Types

• Waterproof

• Dome (No Audio)

• CAM8165 - what is this?

Connections

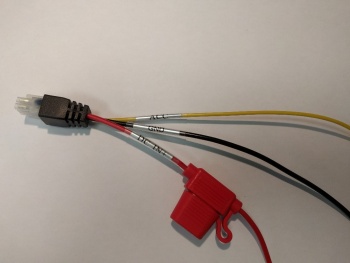

Power Cable

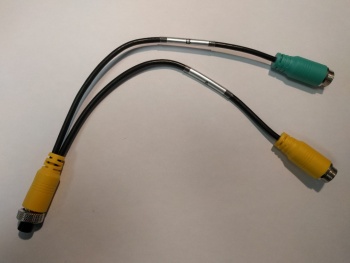

Dual Video Camera Splitter Cable

Words here

Camera Connections

Camera Connections	Cam#/Type/Cable
Connector	Side Loader	Chassis Handler	Crane
CAM1&CAM2 "A"	#1 /Dome/ 5m	#1 /Dome/ 5m	#1/Dome/5m
CAM1&CAM2 "B"	#2 /WP/ 10m	#2 /WP/5m or 10m?	#2/WP/10m
CAM3&CAM4 "A"	#3 /WP/ 10m	#3 /WP/5m or 10m?	#3/WP/10m
CAM3&CAM4 "B"	#4 /WP/ 10m	#4 /WP/ 10m	#4/8165CAM/65m
CAM5&CAM6 "A"	N/A	N/A	#5 /Splitter CH1/ 3m
CAM5&CAM6 "B"	N/A	N/A	#6 /Splitter CH2/ 3m
CAM7&CAM8 "A"	N/A	N/A	#7 /Splitter CH3/ 3m
CAM7&CAM8 "B"	N/A	N/A	#8 /Splitter CH4/ 3m

Sideloader Schematic:

Crane Schematic:

GPS Puck

Words here

3G/4G Antenna

Words here

Rear Anti-Tamper Case Cable Shield

File:Icvd8 rear shield tape.jpg

Install it - Wrap cables with ________ to prevent wear on sheet metal.
