Revision as of 21:37, 17 April 2017
ICARvisions
Setup
Insatall the Hard Drive

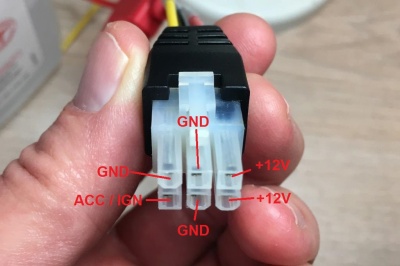

Plug in the power supply harness Power connector is keyed the same as Easystorage (D4)as well as the VisionMAster D8 and but the pinouts are different!
Connect the monitor by ??
Basic Setup
Power up the device
Press the "Login" Button on the remote
Admin user default passwd 888888
The setup menu has 8 options
General Settings
Channel Mode
Record Settings
Alarm Settings
Tools Settings
Peripherals Settings
Search
System Info
Firmware upgrade with USB Stick
1.Device must switch off power disconnect the power source before upgrading;
2.Extract the rar file, copy the .crc file to a USB flash memory FAT32 format, insert the flash memory to the MDVR USB port.
3.Power on the MDVR(connect the power), it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."
4.Device will automatically restart when the upgrade is complete.
Attention: Upgrade will need about 3-5 minutes. Make sure power connecting all the time during upgrading
Firmware upgrade with SD Card
1.Device must switch off power;
2.Decompress the rar file, copy the .crc file to a SD card, and insert the SD card to the MDVR SD card port.
3.Power on the MDVR, it will update automatically once the MDVR starts up. and the monitor will display "upgrading..."
4.Device will automatically restart when the upgrade is complete.
Note: upgrade will need about 3 minutes. Make sure power connecting all the time during upgrading.
