CMS Server documentation

AWS Instance

CMSServer_login

dvr.idriveglobal.com

IP 54.210.45.54 / Domain dvr.idriveglobal.com

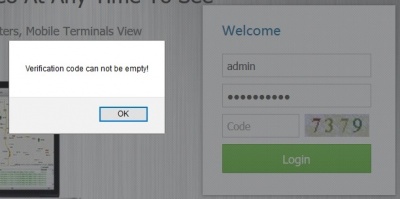

Login By:

User Name : Admin

Password: Not shown

Enter the Validation Code

Click Login

Installation

Download Location

Download- https://www.dropbox.com/s/o2qytb6hxdc2clt/CMSServerV7_7.10.0.1_20170112.exe?dl=0

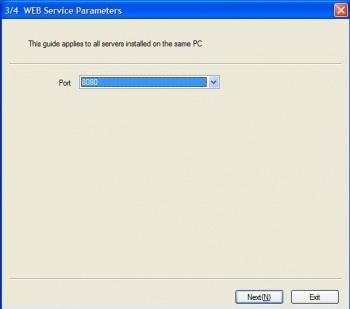

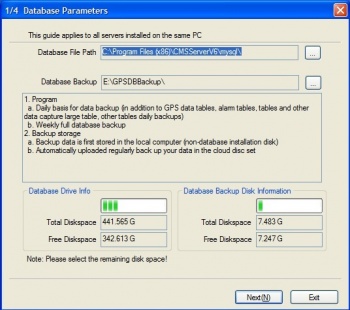

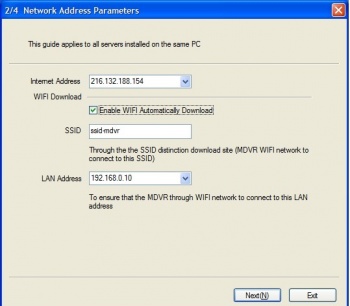

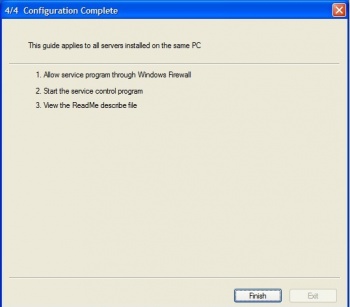

Installation Steps

Configuration

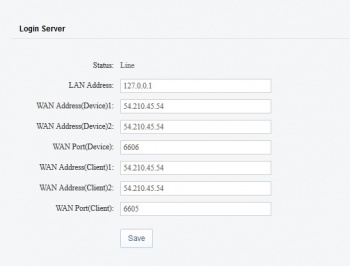

AWS instance shown. I installed this on a local system and changing 54.210.45.54 to 192.168.0.10 everything worked.

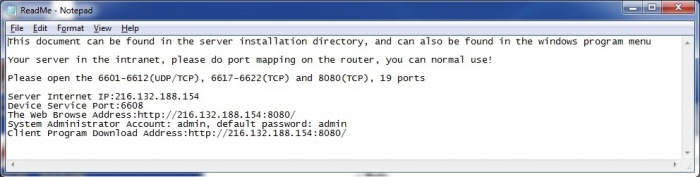

Ports

These ports need to be open at the server site? Not at the client because we use 3G?

• Login Server 6606(Device) 6605(Client)

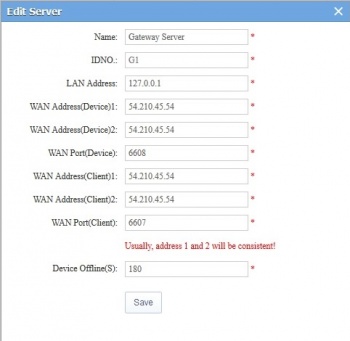

• Gateway Server 6608(Device) 6607(Client)

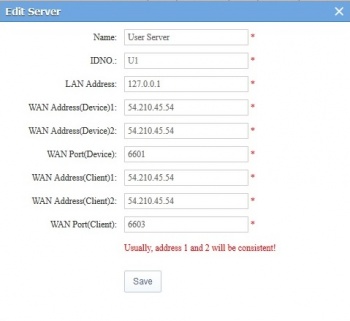

• User server 6601(Device) 6603(Client)

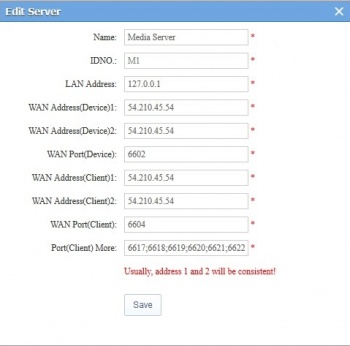

• Media Server 6602(Device) 6604(Client)

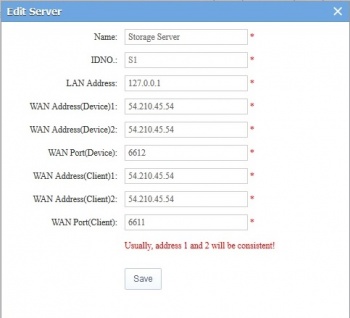

• Storage Server 6612(Device) 6611(Client)

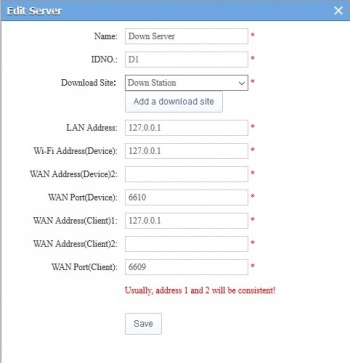

• Download Server 6610(Device) 6609(Client)

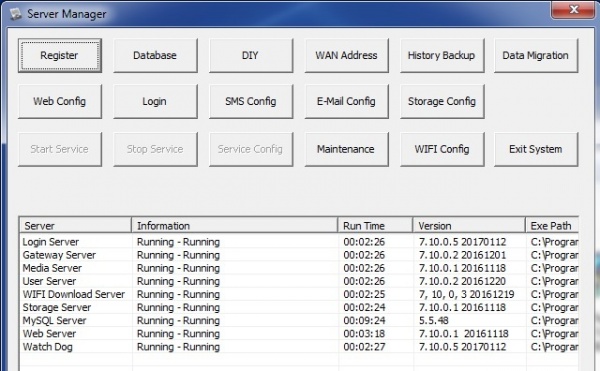

Server Manager Open

Start>Programs>CMSServerV6>CMSServer Control

Vehicles / Devices / SIMs

You must have a "Device" (D8) created before adding a vehicle. If the Device has a SIM it should be added to the "Device since that is where it is installed. When you create a Vehicle you add the Device to it. To change the Device or Vehicle after the fact you need to delete the Vehicle and the the Device and add them back in.

Adding

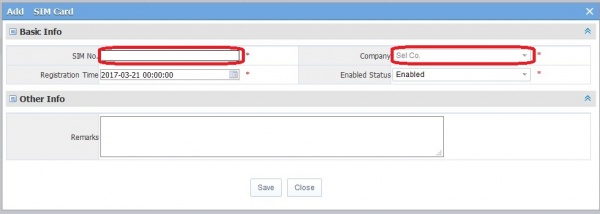

SIMS

You can pre-populate N-Number of SIMS and they do not need to corrialate to the number of devices.

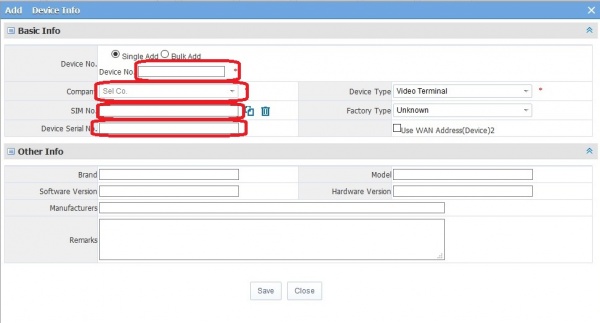

Devices

Enter the following information

• Device No. (use the last 6 digits from the serial number on the D8)

• Company - Select using the Pulldown

• SIM No. - Select from the list of SIMs (Click in the empty box for a list)

• Device Serial No. - user the same number as in Device No.

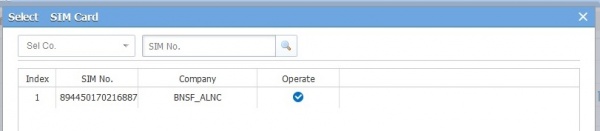

Click on "Operate" to select the SIM

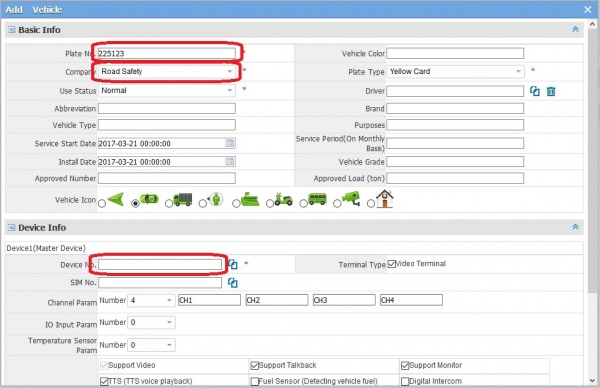

Vehicles

THis information will be modified once we have details on the vehicles and what device is installed in them

Enter the following information

• Plate No. - For initial Vehicle creation use the Device No. Thsi will be modified with vehicle name when received from the customer/installer

• Company - Select company from the Pull-down (if known)

• Device No. - The Device that is installed in this vehicle.

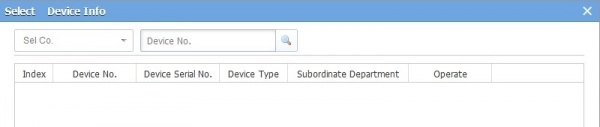

Click on "Operate" to select the Device

Deleting

Deleting a Vehicle Deletes the assigned device!

Alarms

View Alarms

Click on the "Video" Icon at the top:

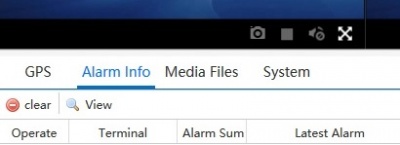

Select "Alarm Info" below the viewing area and click "View":

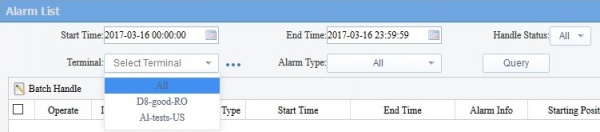

Set Start and End Date/Times

Select "Terminal" (Vehicle) All or individual

Click on "Query":

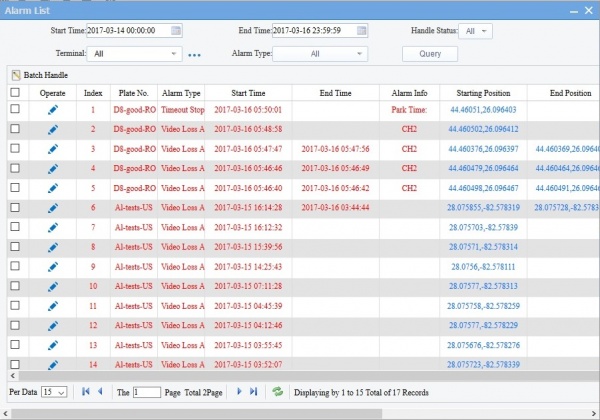

Populated Alarm List:
