=D8 Configuration and Setup=

=D8 Configuration and Setup=
 +
 +
==Document Serial number of the D8==
 +
 +
Get the serial number from the side of the DVR. Example: 000-201-17225002
 +
 +
(the last 6 digits "225002" will used in settings after the param.xml file is loaded)
 +
 +
:* device_num (Sys Setup>>Terminal>>Device ID)
 +
 +
:*Phonenumber (Sys Setup>>Terminal>>Phone NO)
 +
 +
:*Authentication (Sys Setup>>Terminal>>AuthNum)
 +
 +
[[file:document_ser_number1.jpg‎|300px|left|Doc Serial Number]]
 +
 +
<br><br>
 +
 +
==Items needed==
 +
 +
:*D8 Kit
 +
 +
:*SSD
 +
 +
:*BNC Male to RCA Male adapter
 +
 +
:*SIM card
 +
 +
<br><br>


==Assemble System==

==Assemble System==

−
Place default configuration (Parameters file on the SSD
+
Place default configuration (Parameters file on the SSD) (Figure out how to use an SD card for this)
 +

 +
Looks like the hard drive needs to be powered up in the D8 so the two partitions can be created. Then put the param.xml file on it.
 +

 +
<br><br>
 +

 +
===Hard Drive Installation===
 +

 +
There are four screws (circled in red below) that must be removed to access the SATA port inside the hard drive sled.  A picture of the inside is also given.
 +

 +
[[File: D8sled1.jpg|x250px|alt=Alt text|Four screws need to dismantle the sled]]
 +
[[File: D8sled2.jpg|x250px|alt=Alt text|Inside of the hard drive sled]]
 +

 +

 +
Next, remove the screws from both silver brackets, take them off of the main sled, and set them aside.
 +

 +

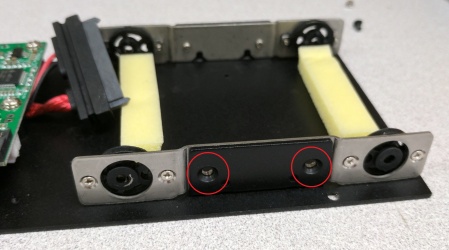

[[File: D8sled3.jpg|x250px|alt=Alt text|Screws holding in the silver brackets]]
 +

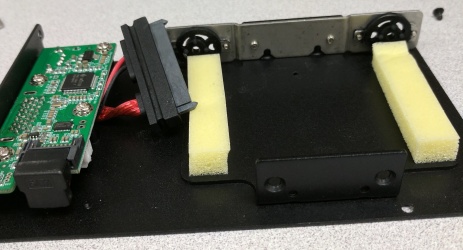

[[File: D8sled4.jpg|x250px|alt=Alt text|Sled without one bracket]]
 +

 +

 +
Now, locate the hard drive standoffs from the D8 accessory kit.  Screw four of them into the sides of the hard drive to be installed.
 +

 +
[[File: D8sled5.jpg|x250px|alt=Alt text|Hard drive standoff]]
 +

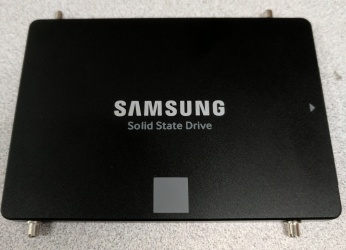

[[File: D8sled6.jpg|x250px|alt=Alt text|SSD with standoffs installed]]
 +

 +

 +
Take the silver brackets and fit them onto the hard drive standoffs.  Make sure the indentation is facing inward, towards the hard drive.  At this point you should also connect the SATA cable to the drive.
 +

 +
[[File: D8sled7.jpg|x250px|alt=Alt text|Hard drive with brackets]]
 +

 +

 +

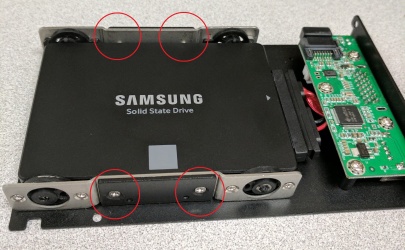

Finally, slide the hard drive and brackets back into place inside the sled.  Re-fasten the bracket screws and reassemble the sled.
 +

 +
[[File: D8sled8.jpg|x250px|alt=Alt text|]]
 +

 +
<br><br>
 +

 +
The Assembled HDD Cartridge has a USB port on it. When removed from deck you can plug the dual sided USB to USB cable into the Cartridge and a PC to view the videos. But the files are not in AVI and are in a proprietary format. You have to use the MDVRPlayer software to view and export or save.
 +

 +
===Connect Power and 16 Pin Accessory Cable===
 +

 +
'''Power''' - <span style="color: red">'''make sure it is the D8 Power cable and not the D4 cable'''
 +

 +
:*Plug into +12V Power Supply
 +

 +
<br><br>
 +

 +
'''16 Pin Accessory Cable''' - connect
 +
 +
:* Plug the Starcom S-Video Composite to USB Adaptor into the BNC connector
 +

 +
:: You need a BNC to Phono Jack Adapter Sending you two AL

−
Install SSD
+
<br><br>

−
put Batteries in the remote (batteries not included w/D8)
+
===Remote needs Batteries===

−
Plug in the D8 Power cable (NOT a D4 Cable!)
+
Install 2 AAA Batteries (not included with D8)

−
Plug in the 16 wire Harness and attach the StarTech USB device
+
<br><br>
 +

 +

 +
===Install and Document SIM Card===


Install the SIM card  (what SIM, how to document etc)

Install the SIM card  (what SIM, how to document etc)

 +
<br><br>
 +
 +
It has been decided (March 15th, 2017) that we will be using PODS Systems SIMs.
 +
 +
the following fields are necessary to be set from the D8 Interface under Network and ......
 +
 +
<br><br>
 +
 +
==Configure the Default Parameters using a '''param.xml''' file==
 +
 +
Current file is '''param_032217.xml'''
 +
 +
Stage the param.xml file the SSD after it has been partitioned by a D8
 +
 +
Power on the D8
 +
 +
Press "Login" button on the remote
 +
 +
[[file:login_button.jpg‎|200px|left|Login Button]]
 +
 +
<br><br><br><br><br><br><br><br>
 +
 +

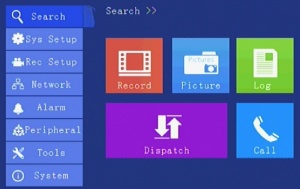

Enter the default admin password "666666" and press"OK"
 +
 +
[[file:login_admin_search.jpg‎|300px|left|Login Screen]]
 +
 +
<br><br><br><br><br><br><br><br><br><br><br><br>
 +
 +
Navigate the menus using the left, right, up, down arrow buttons on the remote
 +
 +

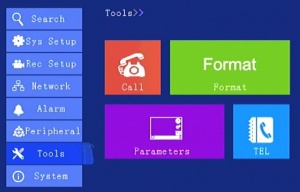

Navigate to '''"Tools> Parameters"'''
 +
 +
[[file:login_admin_tools.jpg‎|300px|left|Tools Screen]]
 +
 +
<br><br><br><br><br><br><br><br><br><br><br><br>
 +
 +
Import Parameters - reboots device to take new settings
 +
 +
==Device Specific Settings==
 +
 +
Power on the D8
 +
 +
Press "Login" on the remote
 +
 +
Enter the Admin Password (Default = 666666)
 +
 +
Set Customer/Device Specific Parameters==
 +
 +
:*device_num (Sys Setup>>Terminal>>Device ID)
 +
 +
:*Phonenumber (Sys Setup>>Terminal>>Phone NO)
 +
 +
:*Authentication (Sys Setup>>Terminal>>AuthNum)
 +
 +
:*company_name (Sys Setup>>Terminal>>Company)
 +
 +
 +
<br><br>
 +
 +
==Save settings in new Param.xml file==
 +
 +
(Tools>>Parameters>>Parameters Export) click yes to overwrite the generic file


<br><br>

<br><br>

−
==Import Configuration "Parameters" File==
+
=Configuration "Parameters" Discussion=
 +

 +
'''From Al 3/14'''
 +

 +
1. This will set ever D8 the same and there needs to be changes to each config for Terminal (which is the last 6 digits of the serial number)
 +

 +
3. Also I just got to setting the Alerts and only have one camera set to “EXIGENCY” – which means when disconnected send an ALARM, but I just found out I cannot duplicate the ALARM in the same window for more cameras ALARM…  we get a weird alarm text when trying to save… chinglish
 +

 +
<span style="color: red">Resolved, When in the Alarm>IO screen press "info" and you can add other Items to enable. I added ch1.off, ch2.off etc.
 +

 +
:*<span style="color: red">these can be setup in the param.xml file
 +
 +
::<span style="color: red">-Set the in "UserParam" section.
 +
 +
::<span style="color: red">-Then edit the "SensorAlarm Set" section, Edit the Name and "Enable" where the number 0=OFF and the number 24 is the 25th item in the pulldown menu.
 +

 +
To make the param.xml file for Mark, I had to change the device 6 digit number ID number. I used the last six digits of the serial number from the label on the side…

−
Press login button
+
Since then I changed the unit number in the software and have not been able to connect again… I made no change to the APN data that is the same…
 +

 +
The DVR shows the icon as connected to the server, but I cannot get the data or tracking on the server… am working with Chinese right now…
 +

 +
'''From Al 3/15'''
 +

 +
It was unexplained. But the vehicle name must be the same as the
 +
Phone number field.

−
enter password 666666 (admin)press "OK"


−
navigate to "Tools > Parameters"


−
Click "Import Parameters" (Yes)



<br><br>

<br><br>

−
==Parameters file differences==
+
==Parameters file differences 3/14 Preliminary==


Comparison of Al's initial config and the default config

Comparison of Al's initial config and the default config
Line 41: Line 205:

'''<BaseSetup'''

'''<BaseSetup'''




−
:* TimeZone (Al = 7 Default = 20)
+
:*<span style="color: red"> TimeZone (Al = 7 Default = 20)


:* timingtime (Al = "00:00:00" Default = "06:30:00")

:* timingtime (Al = "00:00:00" Default = "06:30:00")
Line 54: Line 218:

:* Phonenumber (Al = Blank Default = 1000)

:* Phonenumber (Al = Blank Default = 1000)

−
:* company_name (Al = "idr" Default = Blank)
+
:*<span style="color: red"> company_name (Al = "idr" Default = Blank)

−
:* Authentication (Al = "225001" Default = 10000)
+
:* <span style="color: red">Authentication (Al = "225001" Default = 10000)


Line 88: Line 252:

'''<NetWorkSet'''

'''<NetWorkSet'''

−
:* IpAddr  (Al = 10.7.7.14  Default = 192.168.1.80)
+
:* <span style="color: red">IpAddr  (Al = 10.7.7.14  Default = 192.168.1.80)

−
:* GateWay (Al = 10.7.7.1  Default 192.168.2)
+
:*<span style="color: red"> GateWay (Al = 10.7.7.1  Default 192.168.2)

−
:* DNS1    (Al = 65.32.5.111 Default 192.168.1.2)
+
:* <span style="color: red">DNS1    (Al = 65.32.5.111 Default 192.168.1.2)

−
:* DNS2    (Al = 65.32.5.111 Default 192.168.1.2)
+
:* <span style="color: red">DNS2    (Al = 65.32.5.111 Default 192.168.1.2)


AL:

AL:

−
<CenterNetwork __id="0" Enable="1" Type="0" '''CenterIP="72.186.112.19"''' '''ContrlPort="6608"''' DomainName="" />
+
<CenterNetwork __id="0" Enable="1" Type="0" '''<span style="color: red">CenterIP="72.186.112.19"''' ContrlPort="6608" DomainName="" />

−
<CenterNetwork __id="1" Enable="1" Type="0" '''CenterIP="10.7.7.2"''' '''ContrlPort="6608"''' DomainName="" />
+
<CenterNetwork __id="1" Enable="1" Type="0" '''<span style="color: red">CenterIP="10.7.7.2"''' ContrlPort="6608" DomainName="" />


<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />
Line 116: Line 280:

Default:

Default:

−
<CenterNetwork __id="0" Enable="1" Type="0" '''CenterIP="115.159.59.201"''' '''ContrlPort="6608"''' DomainName="" />
+
<CenterNetwork __id="0" Enable="1" Type="0" '''CenterIP="115.159.59.201"''' ContrlPort="6608" DomainName="" />

−
<CenterNetwork __id="1" Enable="1" Type="0" '''CenterIP="192.168.1.10" ContrlPort="6608"''' DomainName="" />
+
<CenterNetwork __id="1" Enable="1" Type="0" '''CenterIP="192.168.1.10"''' ContrlPort="6608" DomainName="" />


<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />
Line 130: Line 294:

<CenterNetwork __id="6" Enable="0" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="6" Enable="0" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

−
<CenterNetwork __id="7" Enable="1" Type="0" '''CenterIP="113.108.120.47"''' '''ContrlPort="21"''' DomainName="" /
+
<CenterNetwork __id="7" Enable="1" Type="0" '''<span style="color: red">CenterIP="113.108.120.47"''' '''ContrlPort="21"''' DomainName="" /


Line 161: Line 325:


:* Purpose  (Al = 16  Default =0)

:* Purpose  (Al = 16  Default =0)
 +
 +
'''<AlarmSet'''
 +
 +
Al:
 +
    <SensorAlarmSet __id="0" Name="Exigency" Enable="1" isRecord="1" LimitValue="1" HoldTime="3" DelayTime="1" linkage="32" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="1" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="2" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="3" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="4" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="5" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="6" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="0" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="7" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
 +
Default:
 +
    <SensorAlarmSet __id="0" Name="IO1" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="1" Name="IO2" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="2" Name="IO3" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="3" Name="IO4" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="4" Name="IO5" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="5" Name="IO6" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="6" Name="IO7" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="7" Name="IO8" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
    <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
 +
 +
 +
'''<SubStreamSet'''
 +
 +
:* bitRate  (Al = "400"  Default = 160)
 +
 +
:* targetFrame  (Al = ="25"  Default = 4)
 +
 +
 +
 +
'''<UserParam'''
 +
 +
AL:
 +
 +
intParam0="255" intParam1="255" intParam2="255" intParam3="255" intParam4="255" intParam5="255" intParam6="255" intParam7="255" doubleParam="0.000000" charParam=""
 +
 +
Default:
 +
 +
intParam0="0" intParam1="0" intParam2="0" intParam3="0" intParam4="0" intParam5="0" intParam6="0" intParam7="0" doubleParam="0.000000" charParam=""


Line 173: Line 394:

<SecuritySet

<SecuritySet

−
:* AdminPassword  (Default 666666)
+
:*<span style="color: red"> AdminPassword  (Default 666666)

−
:* UserPassword (Default 000000)
+
:* <span style="color: red">UserPassword (Default 000000)


<Front0sdSet

<Front0sdSet


:* <ChlName __id="0" ChlName="CH1"  (Change "CH1" to "Crane front Left" etc?)

:* <ChlName __id="0" ChlName="CH1"  (Change "CH1" to "Crane front Left" etc?)
 +
 +
<br><br>
 +
 +
 +
=Installation Issues=
 +
 +
==Documentation needed from installation==
 +
 +
Vehicle name
 +
 +
what else?
 +
 +
<br><br>
 +
 +
==Standard installation==
 +
 +
May be a client by client thing
 +
 +
Connect what? Don't connect what?
 +
 +
<br><br>
 +
 +
==Monitor Information==
 +
 +
We are shipping a 7" monitor with the first 3 D8s.
 +
 +
Voltage input 9v - 35vdc, 5W
 +
 +
Wiring:
 +
 +
:*Red  9-35vdc
 +
 +
:*Black Gnd
 +
 +
:*Yellow - video1
 +
 +
:*Yellow - Video2
 +
 +
:* Blue - Rear View
 +
 +
<br><br>
 +
 +
==Camera Connections==
 +
 +
On the Back Panel
 +
 +
AV IN #1 connector - Black - CH1 Yellow = CH2
 +
 +
AV IN #2 connector - Black - CH3 Yellow = CH4
 +
 +
AV IN #3 connector - Black - CH5 Yellow = CH6
 +
 +
AV IN #4 connector - Black - CH7 Yellow = CH8
 +
 +
<br><br>

Latest revision as of 19:35, 22 March 2017

D8 Configuration and Setup

Document Serial number of the D8

Get the serial number from the side of the DVR. Example: 000-201-17225002

(the last 6 digits "225002" will used in settings after the param.xml file is loaded)

  • device_num (Sys Setup>>Terminal>>Device ID)
  • Phonenumber (Sys Setup>>Terminal>>Phone NO)
  • Authentication (Sys Setup>>Terminal>>AuthNum)
Doc Serial Number



Items needed

  • D8 Kit
  • SSD
  • BNC Male to RCA Male adapter
  • SIM card



Assemble System

Place default configuration (Parameters file on the SSD) (Figure out how to use an SD card for this)

Looks like the hard drive needs to be powered up in the D8 so the two partitions can be created. Then put the param.xml file on it.



Hard Drive Installation

There are four screws (circled in red below) that must be removed to access the SATA port inside the hard drive sled. A picture of the inside is also given.

Alt text Alt text


Next, remove the screws from both silver brackets, take them off of the main sled, and set them aside.

Alt text Alt text


Now, locate the hard drive standoffs from the D8 accessory kit. Screw four of them into the sides of the hard drive to be installed.

Alt text Alt text


Take the silver brackets and fit them onto the hard drive standoffs. Make sure the indentation is facing inward, towards the hard drive. At this point you should also connect the SATA cable to the drive.

Alt text


Finally, slide the hard drive and brackets back into place inside the sled. Re-fasten the bracket screws and reassemble the sled.

Alt text



The Assembled HDD Cartridge has a USB port on it. When removed from deck you can plug the dual sided USB to USB cable into the Cartridge and a PC to view the videos. But the files are not in AVI and are in a proprietary format. You have to use the MDVRPlayer software to view and export or save.

Connect Power and 16 Pin Accessory Cable

Power - make sure it is the D8 Power cable and not the D4 cable

  • Plug into +12V Power Supply



16 Pin Accessory Cable - connect

  • Plug the Starcom S-Video Composite to USB Adaptor into the BNC connector
You need a BNC to Phono Jack Adapter Sending you two AL



Remote needs Batteries

Install 2 AAA Batteries (not included with D8)




Install and Document SIM Card

Install the SIM card (what SIM, how to document etc)



It has been decided (March 15th, 2017) that we will be using PODS Systems SIMs.

the following fields are necessary to be set from the D8 Interface under Network and ......



Configure the Default Parameters using a param.xml file

Current file is param_032217.xml

Stage the param.xml file the SSD after it has been partitioned by a D8

Power on the D8

Press "Login" button on the remote

Login Button









Enter the default admin password "666666" and press"OK"

Login Screen













Navigate the menus using the left, right, up, down arrow buttons on the remote

Navigate to "Tools> Parameters"

Tools Screen













Import Parameters - reboots device to take new settings

Device Specific Settings

Power on the D8

Press "Login" on the remote

Enter the Admin Password (Default = 666666)

Set Customer/Device Specific Parameters==

  • device_num (Sys Setup>>Terminal>>Device ID)
  • Phonenumber (Sys Setup>>Terminal>>Phone NO)
  • Authentication (Sys Setup>>Terminal>>AuthNum)
  • company_name (Sys Setup>>Terminal>>Company)




Save settings in new Param.xml file

(Tools>>Parameters>>Parameters Export) click yes to overwrite the generic file



Configuration "Parameters" Discussion

From Al 3/14

1. This will set ever D8 the same and there needs to be changes to each config for Terminal (which is the last 6 digits of the serial number)

3. Also I just got to setting the Alerts and only have one camera set to “EXIGENCY” – which means when disconnected send an ALARM, but I just found out I cannot duplicate the ALARM in the same window for more cameras ALARM… we get a weird alarm text when trying to save… chinglish

Resolved, When in the Alarm>IO screen press "info" and you can add other Items to enable. I added ch1.off, ch2.off etc.

  • these can be setup in the param.xml file
-Set the in "UserParam" section.
-Then edit the "SensorAlarm Set" section, Edit the Name and "Enable" where the number 0=OFF and the number 24 is the 25th item in the pulldown menu.

To make the param.xml file for Mark, I had to change the device 6 digit number ID number. I used the last six digits of the serial number from the label on the side…

Since then I changed the unit number in the software and have not been able to connect again… I made no change to the APN data that is the same…

The DVR shows the icon as connected to the server, but I cannot get the data or tracking on the server… am working with Chinese right now…

From Al 3/15

It was unexplained. But the vehicle name must be the same as the Phone number field.





Parameters file differences 3/14 Preliminary

Comparison of Al's initial config and the default config

<KeyPara

  • MD5 different


<BaseSetup

  • TimeZone (Al = 7 Default = 20)
  • timingtime (Al = "00:00:00" Default = "06:30:00")
  • OprTimeOut (Al = 120 Default = 30)


<TerminalSetup

  • device_num (Al = 225001 Default = 10000)
  • Phonenumber (Al = Blank Default = 1000)
  • company_name (Al = "idr" Default = Blank)
  • Authentication (Al = "225001" Default = 10000)


<RecordSet

  • CameraType (Al = "0" Default = 1)


<RecordSetMainChNoSet

  • Resolution (Al = "2" Default = 0)


<RecordSetMirrorChNoSet

  • isRec (Al = "1" Default = 0)


<SystemPowerSet

  • PowerOnTime (Al = "00:00:00" Default = 06:00:00)
  • PowerOffTime (Al = "00:00:00" Default = 22:00:00)


<MonitorSet

  • showNum (Al = 9 Default = 8)


<NetWorkSet

  • IpAddr (Al = 10.7.7.14 Default = 192.168.1.80)
  • GateWay (Al = 10.7.7.1 Default 192.168.2)
  • DNS1 (Al = 65.32.5.111 Default 192.168.1.2)
  • DNS2 (Al = 65.32.5.111 Default 192.168.1.2)

AL:

<CenterNetwork __id="0" Enable="1" Type="0" CenterIP="72.186.112.19" ContrlPort="6608" DomainName="" />

<CenterNetwork __id="1" Enable="1" Type="0" CenterIP="10.7.7.2" ContrlPort="6608" DomainName="" />

<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="3" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="4" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="5" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="6" Enable="0" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="7" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="21" DomainName="" />

Default:

<CenterNetwork __id="0" Enable="1" Type="0" CenterIP="115.159.59.201" ContrlPort="6608" DomainName="" />

<CenterNetwork __id="1" Enable="1" Type="0" CenterIP="192.168.1.10" ContrlPort="6608" DomainName="" />

<CenterNetwork __id="2" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="3" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="4" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="5" Enable="1" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="6" Enable="0" Type="0" CenterIP="0.0.0.0" ContrlPort="0" DomainName="" />

<CenterNetwork __id="7" Enable="1" Type="0" CenterIP="113.108.120.47" ContrlPort="21" DomainName="" /


<DialUpSet

  • APN (Al = data641003 Default = 3gnet)
  • UserName (Al = Blank Default = card)
  • UserPwd (Al = Blank Default = card)
  • SimICCID (Al & Default = "89860115851042424258") Why are these the same?
  • SmsCenter (Al = Blank Default = +8613010888500)


<WifiSet

  • Encrypt (Al = 2 Default = 3)
  • SSID (Al = Blank Default = 888
  • Pwd (Al = Blank Default = 88888888)
  • IpAddr (Al = 255.255.255.255 Default = 192.168.2.10)
  • SubNet (Al = 255.255.255.255 Default = 255.255.255.0)
  • GateWay (Al = 255.255.255.255 Default = 192.168.2.1)
  • Purpose (Al = 16 Default =0)

<AlarmSet

Al:

   <SensorAlarmSet __id="0" Name="Exigency" Enable="1" isRecord="1" LimitValue="1" HoldTime="3" DelayTime="1" linkage="32" HomePageChannel="0" />
   <SensorAlarmSet __id="1" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="2" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="3" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="4" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="5" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="6" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="0" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="7" Name="OFF" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />

Default:

   <SensorAlarmSet __id="0" Name="IO1" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="1" Name="IO2" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="2" Name="IO3" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="3" Name="IO4" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="4" Name="IO5" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="5" Name="IO6" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="6" Name="IO7" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="7" Name="IO8" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="8" Name="IO9" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="9" Name="IO10" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="10" Name="IO11" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="11" Name="IO12" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="12" Name="IO13" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="13" Name="IO14" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="14" Name="IO15" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />
   <SensorAlarmSet __id="15" Name="IO16" Enable="0" isRecord="0" LimitValue="1" HoldTime="3" DelayTime="1" linkage="0" HomePageChannel="0" />


<SubStreamSet

  • bitRate (Al = "400" Default = 160)
  • targetFrame (Al = ="25" Default = 4)


<UserParam

AL:

intParam0="255" intParam1="255" intParam2="255" intParam3="255" intParam4="255" intParam5="255" intParam6="255" intParam7="255" doubleParam="0.000000" charParam=""

Default:

intParam0="0" intParam1="0" intParam2="0" intParam3="0" intParam4="0" intParam5="0" intParam6="0" intParam7="0" doubleParam="0.000000" charParam=""





Things we may need/want to set

<SystemInfo Product_List_info , Manufacturer

<SecuritySet

  • AdminPassword (Default 666666)
  • UserPassword (Default 000000)

<Front0sdSet

  • <ChlName __id="0" ChlName="CH1" (Change "CH1" to "Crane front Left" etc?)




Installation Issues

Documentation needed from installation

Vehicle name

what else?



Standard installation

May be a client by client thing

Connect what? Don't connect what?



Monitor Information

We are shipping a 7" monitor with the first 3 D8s.

Voltage input 9v - 35vdc, 5W

Wiring:

  • Red 9-35vdc
  • Black Gnd
  • Yellow - video1
  • Yellow - Video2
  • Blue - Rear View



Camera Connections

On the Back Panel

AV IN #1 connector - Black - CH1 Yellow = CH2

AV IN #2 connector - Black - CH3 Yellow = CH4

AV IN #3 connector - Black - CH5 Yellow = CH6

AV IN #4 connector - Black - CH7 Yellow = CH8



Retrieved from "https://admincenter.idriveglobal.com/wiki/index.php?title=D8_Initial_Configuration_and_Setup&oldid=6748"
