Configure VPN Client

Mark Notes

Load default config file

Change ether1 address to the internet address of the customer location

Change the SSTP Dial Out address to the customers base station IP address

To Do: set time and timezone

set secure password / change user name?

<br\><br\>

Initial Configuration Setup

Set up RB751U-2HnD Router for initial configuration

Document the MAC addresses range from the bottom of the unit. IE 00:0C:42:AE:F2:7C - 00:0C:42:AE:F2:81 (5 addresses). These will be used to connect to the device and be logged in AdminCenter.

Connect to power

Connect cat 5 cable from Port ETH5 to the NIC for Idrive wireless

• Change settings for wireless NIC to:

-192.168.88.10

-255.255.255.0

<br\><br\>

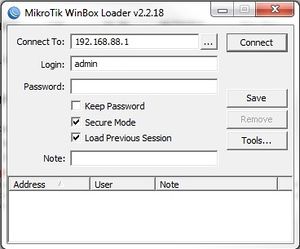

Connect using Winbox

Download and install Winbox Configuration tool for RouterOS.

Run Winbox.exe or double click the icon on the desktop

• Enter the Default "Connect To" IP Address: 192.168.88.1

• Login: admin

• password: blank

• Click "Connect"

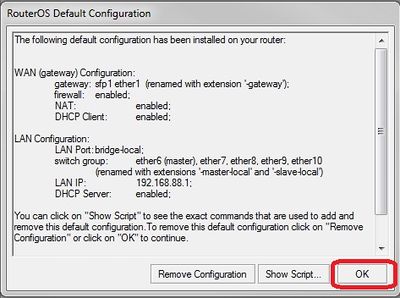

Upon initial log in the "RouterOS Default Configuration" pop-up window will appear. Choose "OK". We are not concerned about the default settings because they will be overwritten with the idrive default configuration file.

<br\><br\><br\><br\>

Upgrade OS and Firmware

Obtain the latest versions (V6.x) from the MicroTik [|download] site

Click on the correct link for the hardware architecture (mipsbe for RB751U-2HnD)

Click on "All Packages" and click Save

Extract all of the file from zip package

Copy the files from your computer to the Router Board by dragging and dropping all of the files into the files list in the WinBox window

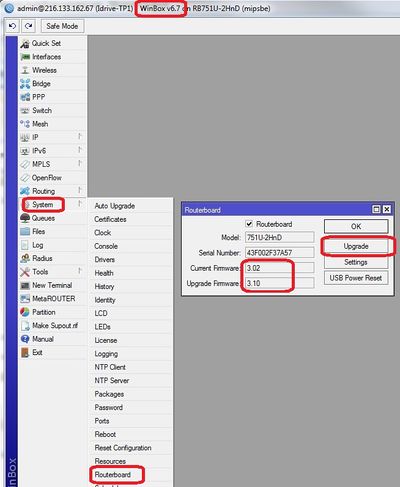

Restart the router and log back into the router and confirm that WinBox shows the new version of RouterOS and Firmware

<br\><br\>

Setup using Restore configuration file (Recommended)

Load Idrive Standard configuration

For simplicity and consistency it is better to set the routers configuration using the RouterOS backup/restore function. This "restores" the standard idrive configuration from a .backup file. This will leave only a few custom settings that are specific to the customer location(s).

update pics for RB751

• Download the most current .backup file from Admin Center

• Unzip the file to the Desktop on your computer

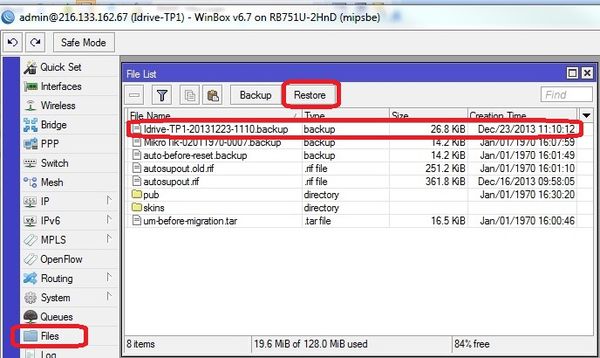

• In WinBox select “Files” from the left menu to open the Files List window.

• Use the mouse to drag and drop the configuration file from the Desktop into the Files List (uploads the file to the Router)

• Highlight the config file and click on "Restore"

The router will reboot with the new configuration. You will need to use the new IP address and password

-The new IP address for Ports 3 - 5 will be 192.168.0.3

-Change the IP address on your NIC to 192.168.0.10

Reconnect to the Router with the "Connect to" address of 192.168.0.3, password idrive#

<br\><br\><br\><br\><br\><br\><br\><br\><br\><br\>

Set Customer/Location Specific Settings

Static Internet IP Address

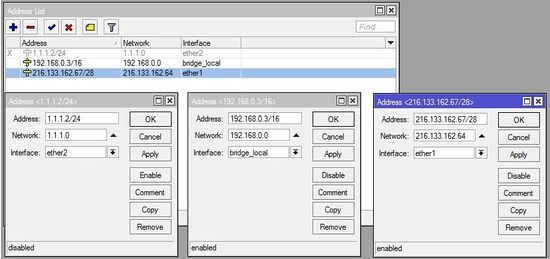

Click IP >Address to open the Address list form. Click on "+" to open the new address form.

update pics for RB751

Modify the internet connection address for the customer's location.

ether1 - This must be configured prior to shipment or you will not be able to contact the Transfer Point when it is installed at te customer location!!!.

• Enter Static IP address (216.133.162.67/28 in this example)

• Enter Network for (216.133.162.64 in this example)

• Interface "ether1"

bridge_local - No need to change unless there is more than one Remote Transfer point in the Idrive system. This is the IP address that the base station will see. Ports 3,4,5 share this address.

• IP Address 192.168.0.3/16

• Network 192.168.0.0

• Interface bridge_local

ether2 - Set by config file

• IP Address 1.1.1.2/24

• Network 1.1.1.0

• Interface ether2

<br\><br\><br\><br\><br\><br\><br\><br\>

Run Winbox.exe, select router from list and click connect

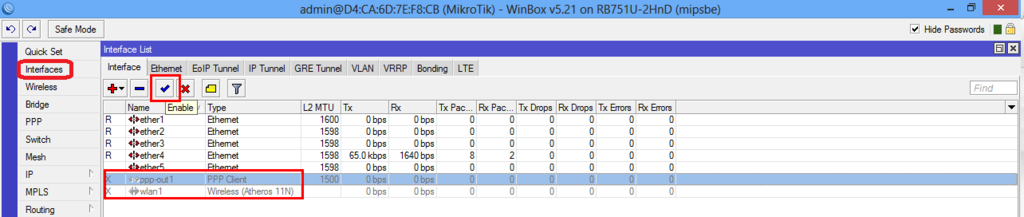

Select "Interfaces" from the left menu and enable both "wlan1" and "ppp-out1".

Connect your 3G USB dongle and restart router.

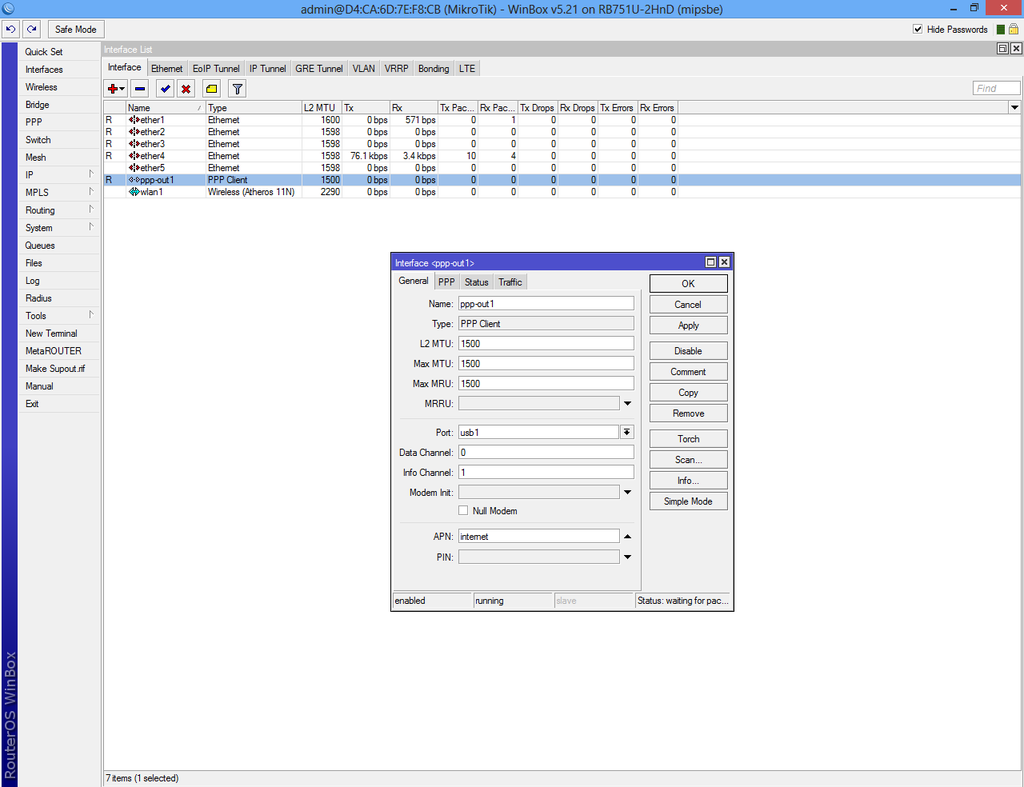

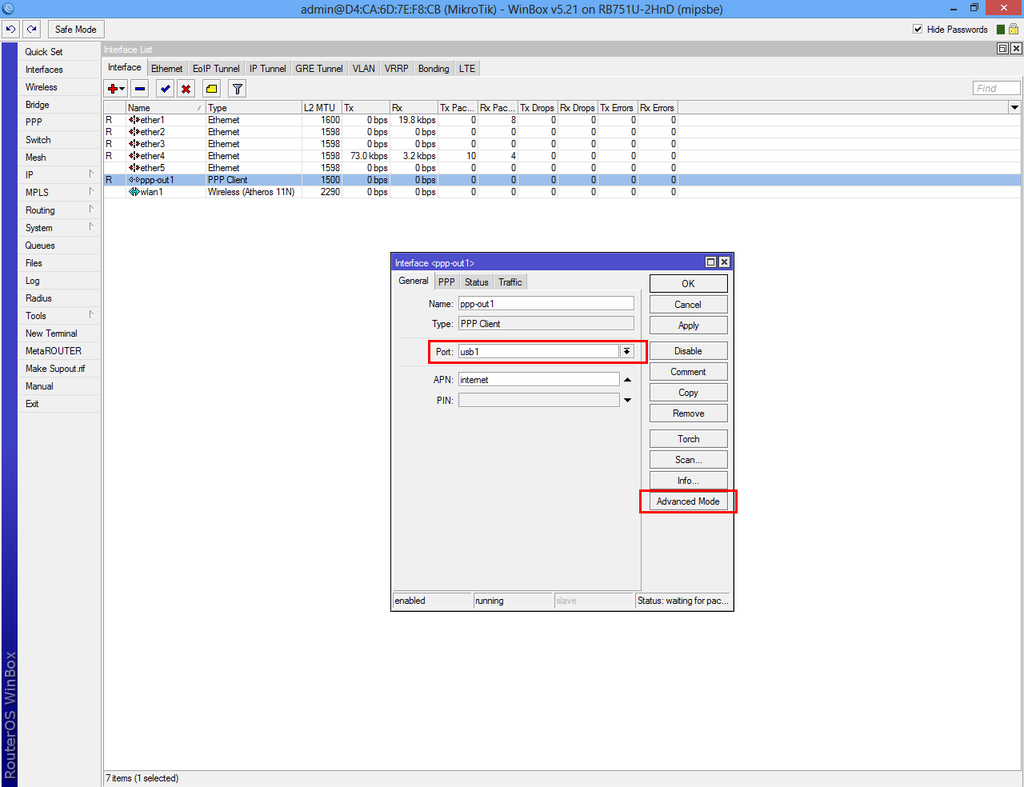

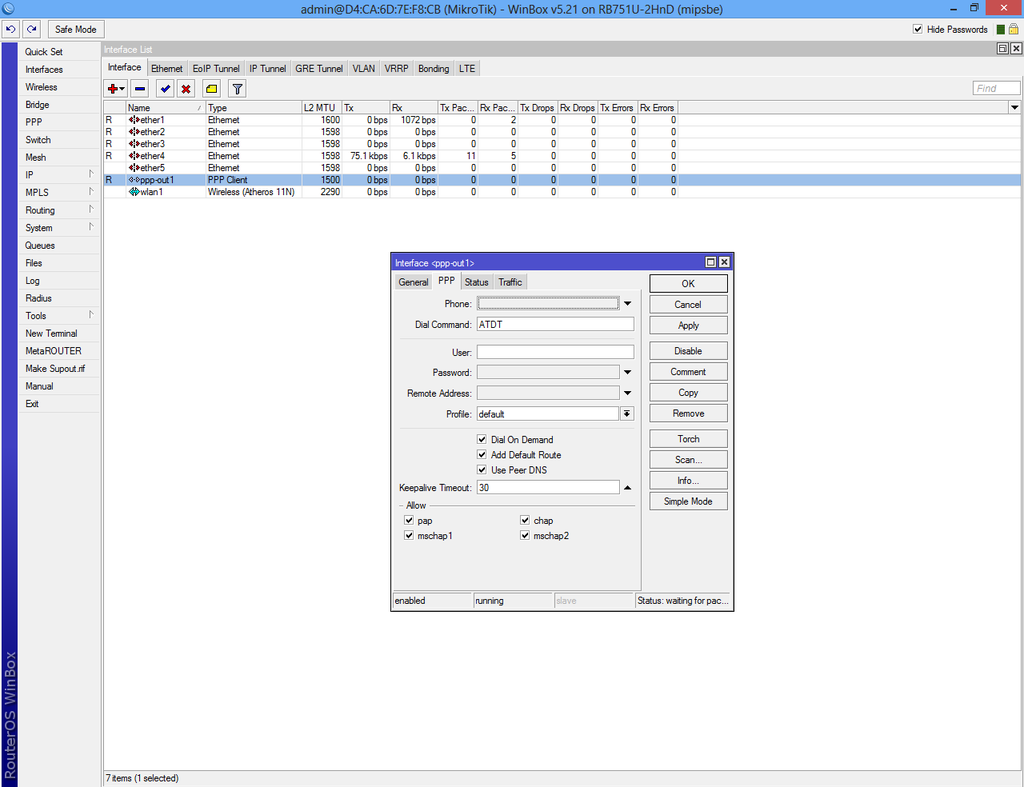

Return on "Interface List" and double-click "ppp-out1" and make sure that "usb1" option is selected. If the "Port" drop-down list is empty then your 3G dongle is not supported.

Our 3G USB worked by default without any other configuration. Click on "Advanced Mode" if your SIM does require mobile carrier configuration.

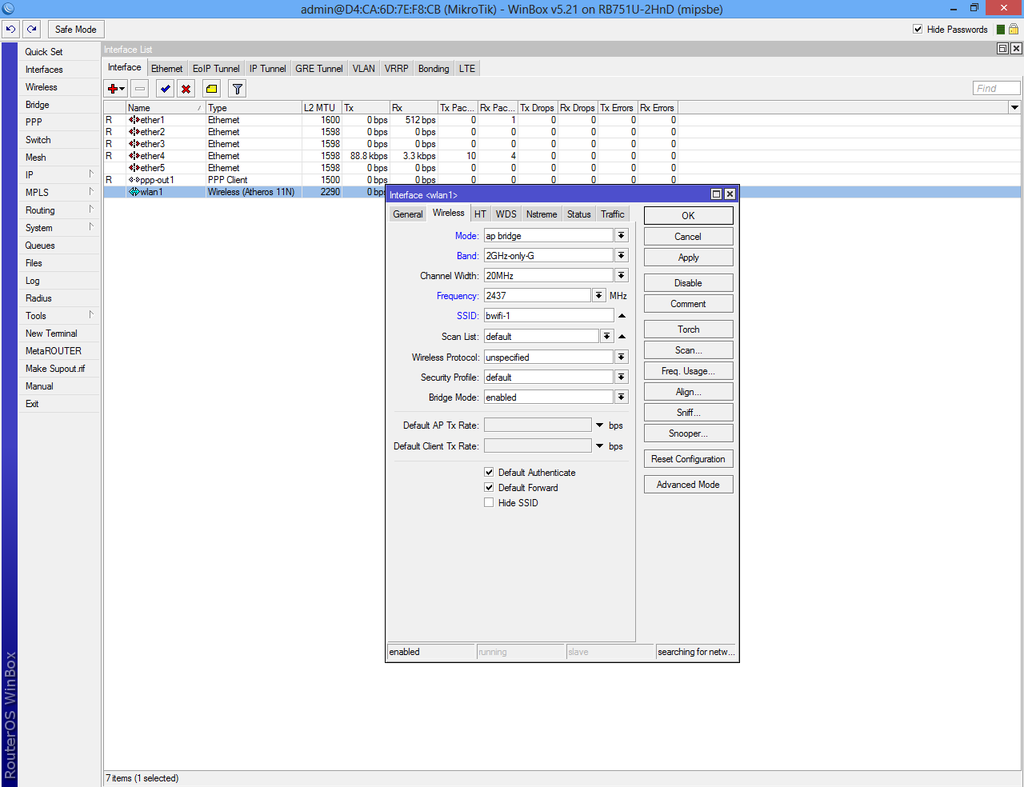

Return on "Interface List" double-click "wlan1", select "Wireless" tab and complete the fields as in picture.

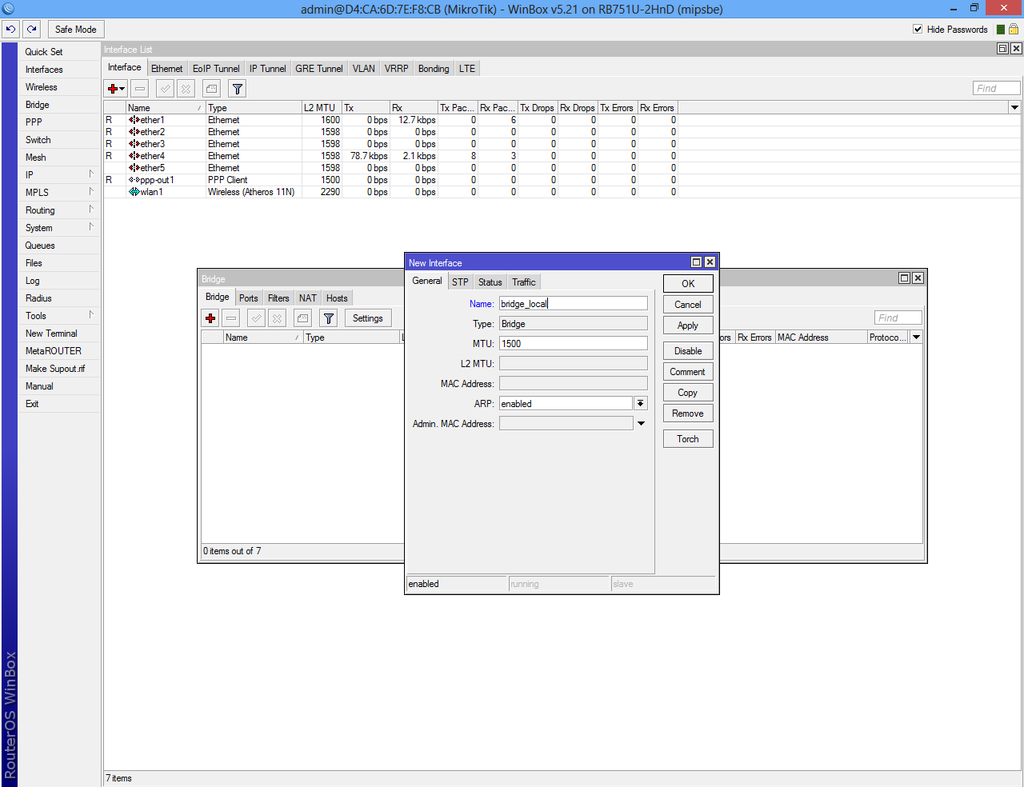

Select "Bridge" from the left menu and add new bridge.

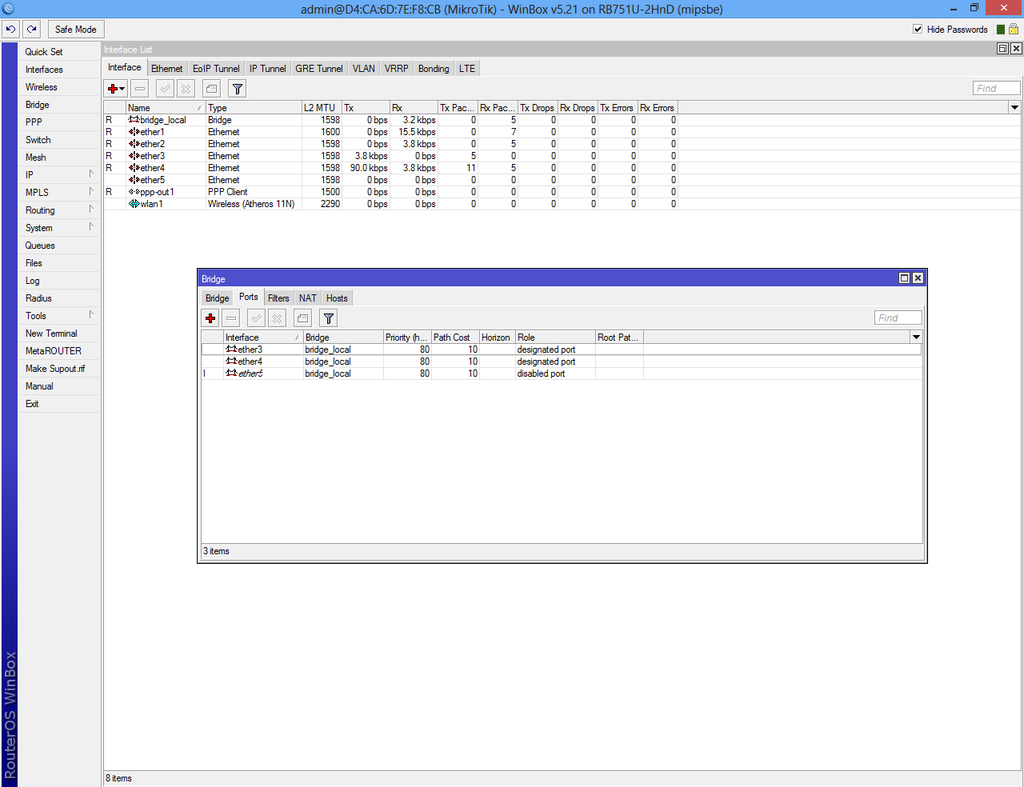

From the same window select "Ports" tab and add the following interfaces as in picture.

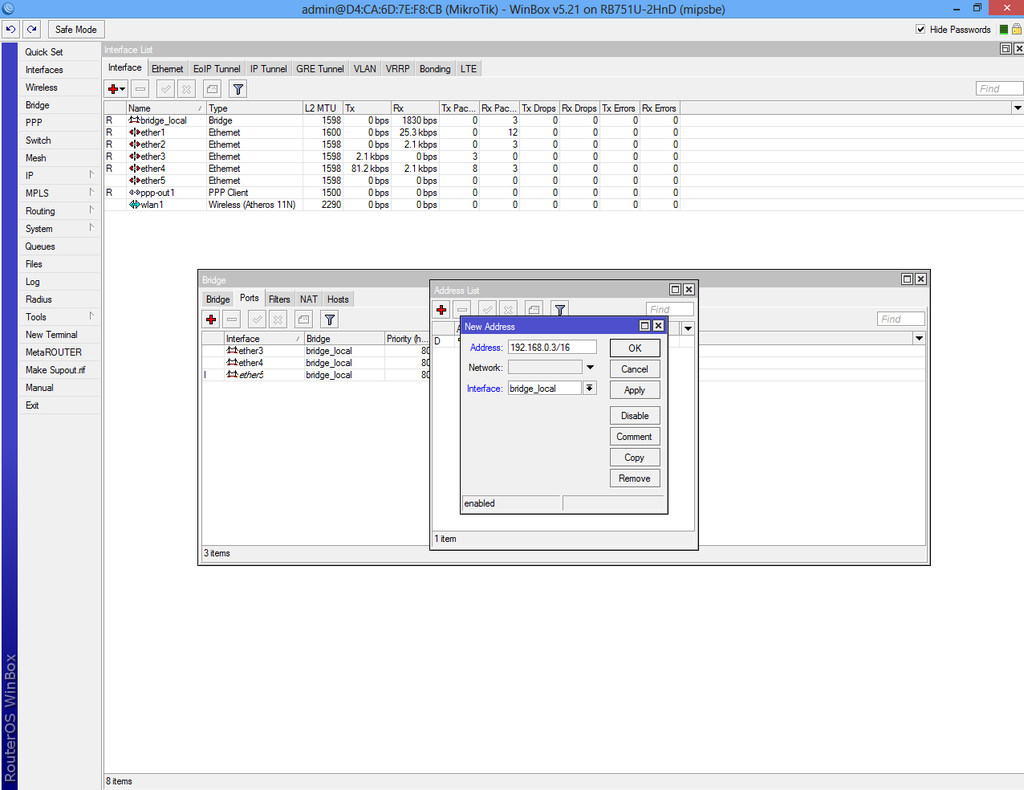

Select IP->Address List from the left menu and add a new address.

Return to "Bridge" and add a new bridge.

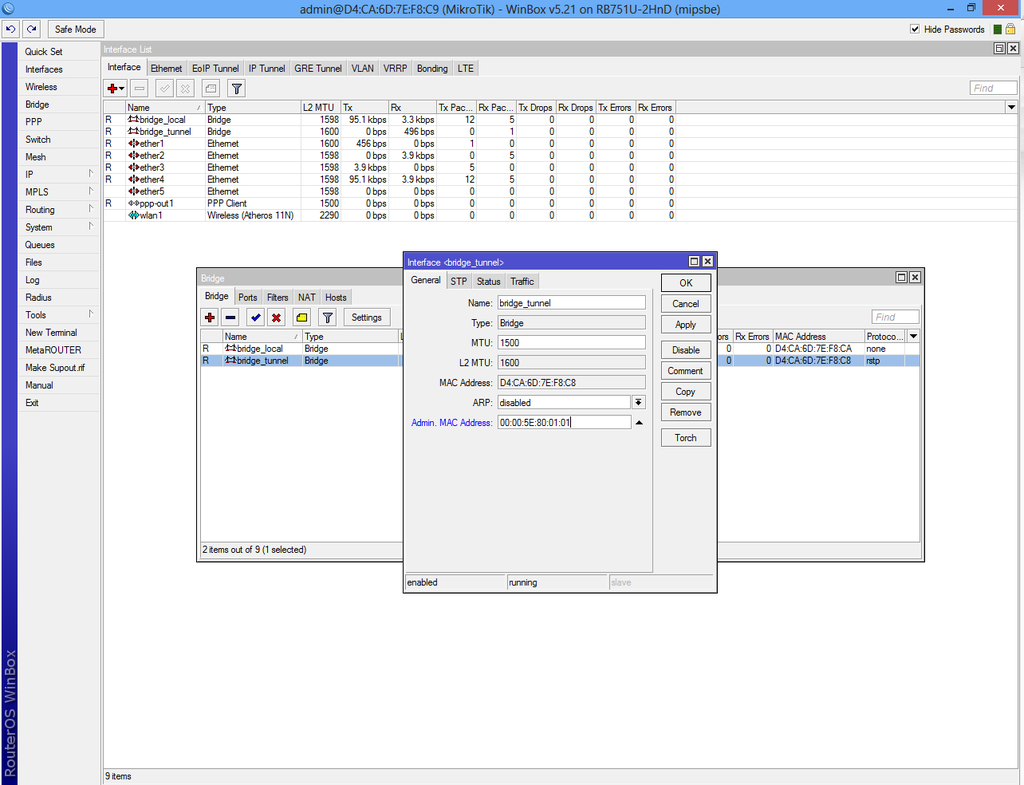

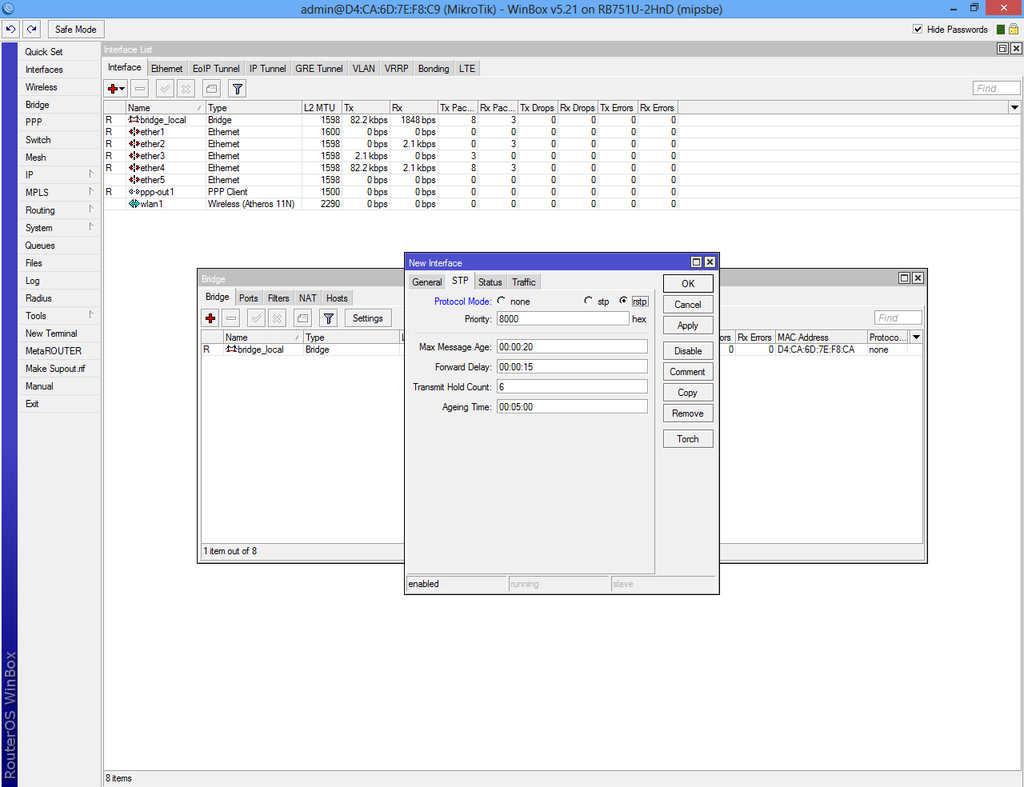

Make sure the "ARP" is disabled and enter the MAC Address: 00:00:5E:80:01:01 then select "STP" tab and check "Protocol Mode: rstp".

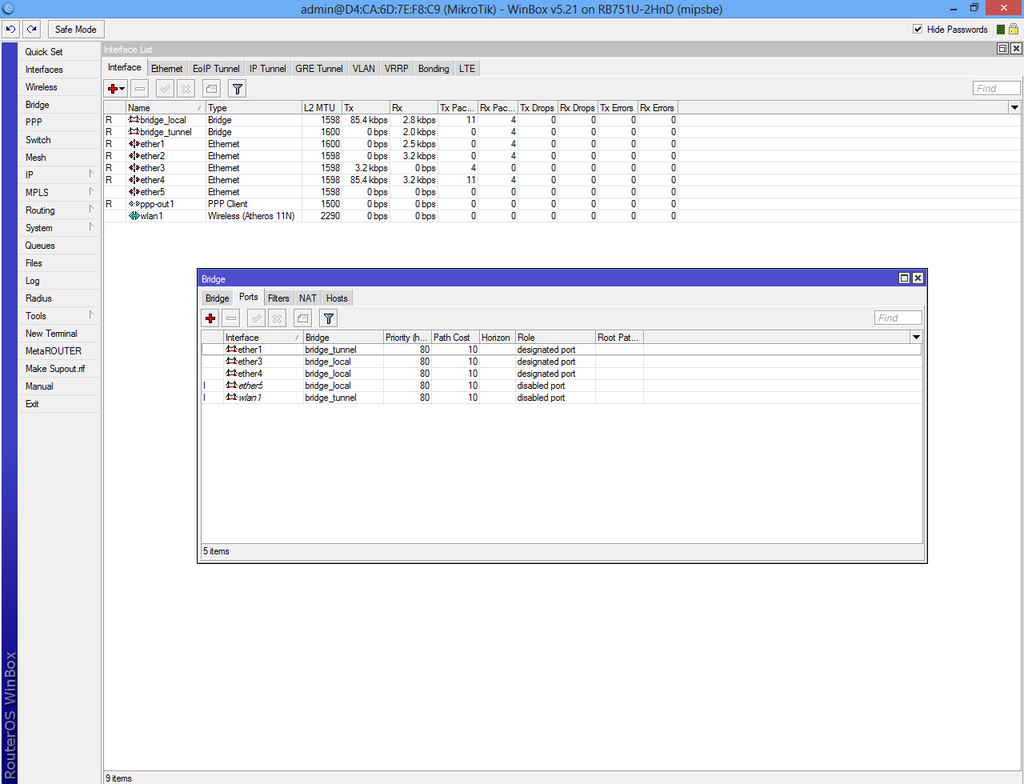

Select "Ports" tab from "Bridge" interface and add "ether1" and "wlan1" to "bridge_tunnel".

Select "PPP" from the left menu then go to "Profiles" tab and add new profile.

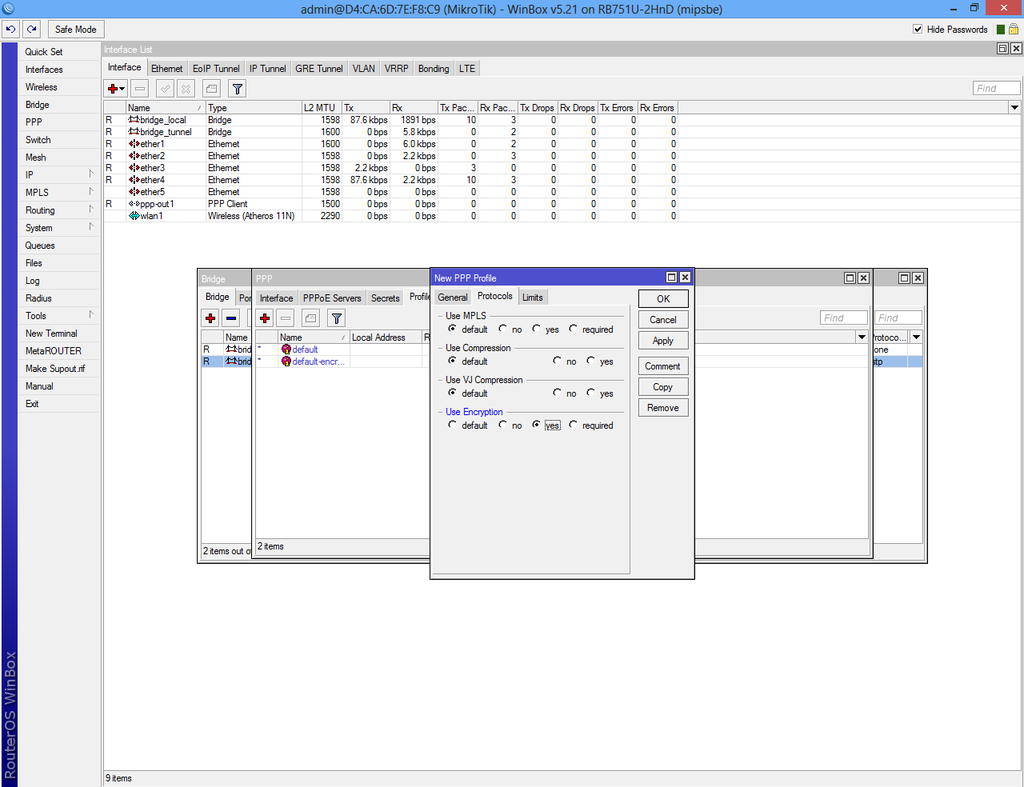

Complete the fields then select "Protocols" tab and check "yes" under "Use Encryption".

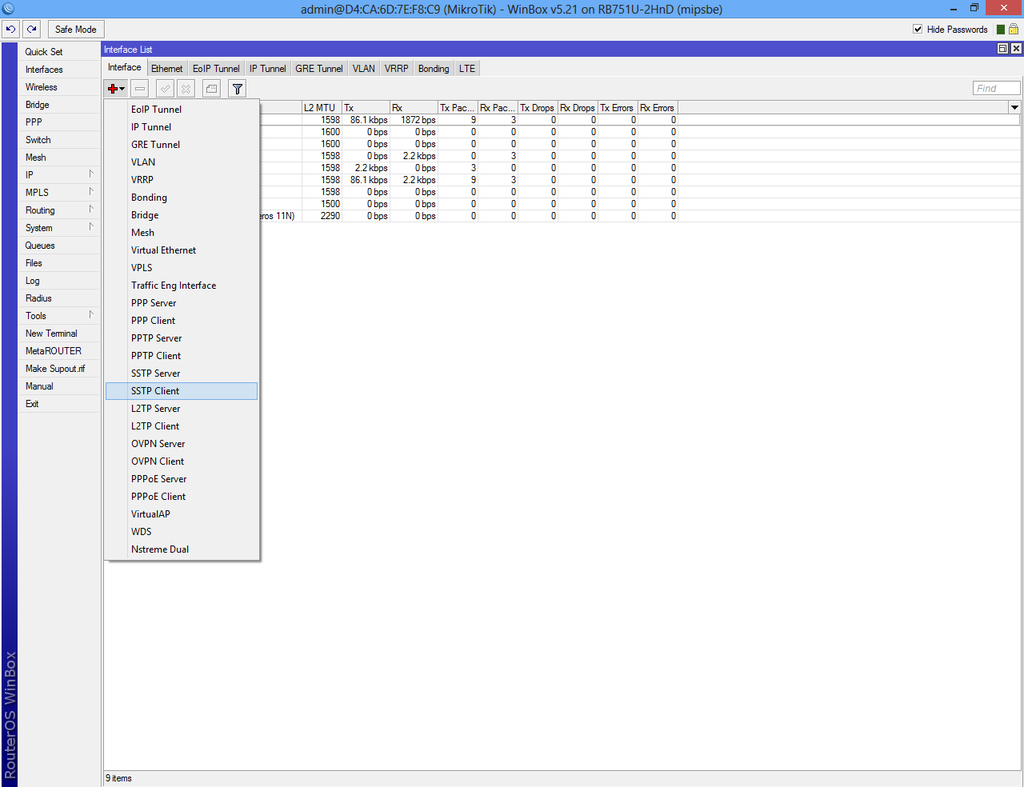

Return to "Interface List" and add new "SSTP Client".

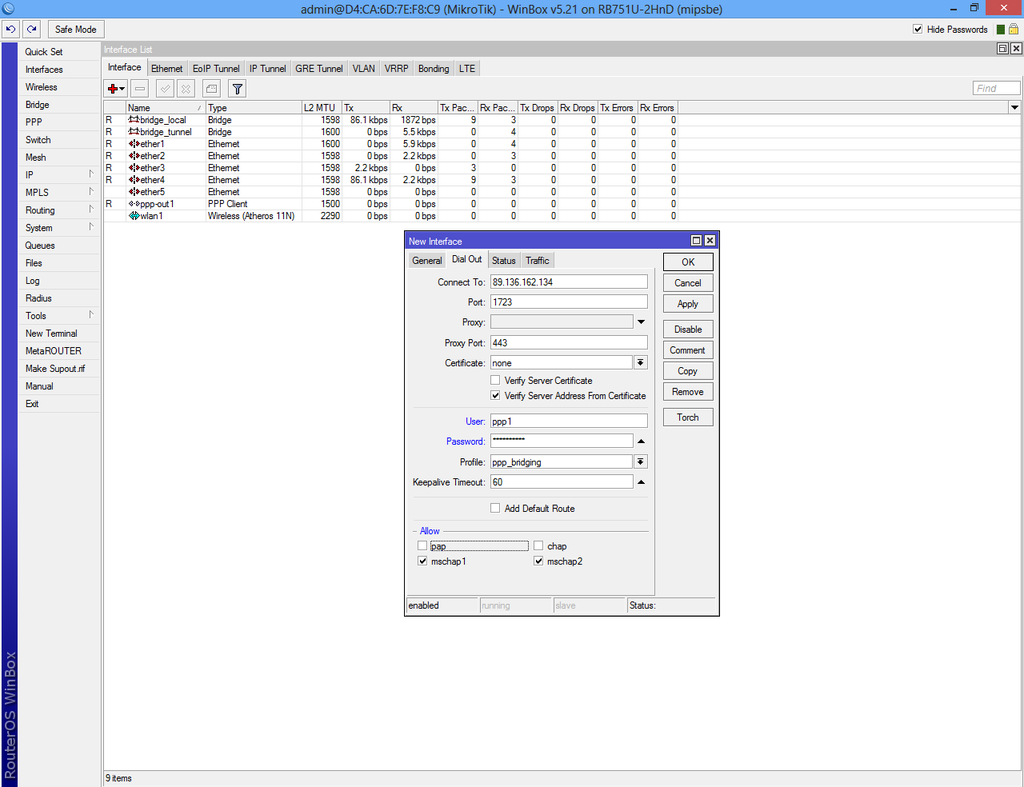

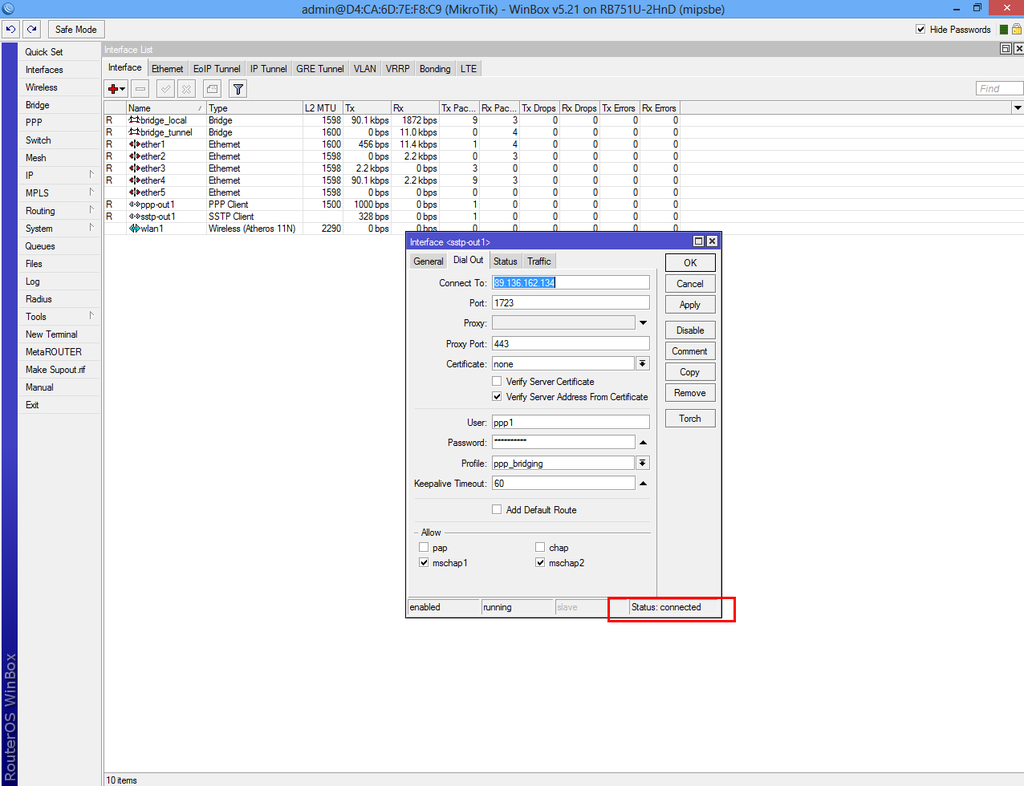

In the "Dial Out" fill "Connect To:" with the VPN Server public IP, set port to 1723, enter the user name and password that you have created on VPN Server.

Uncheck "pap" and "chap" boxes from "Allow".

If the VPN Server is configured the status will appear as connected. If the VPN Server is not configured then check Configure VPN Server.
